Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the TRANSMISSION CONNECTOR LAYOUTS  preceding these pinpoint tests.

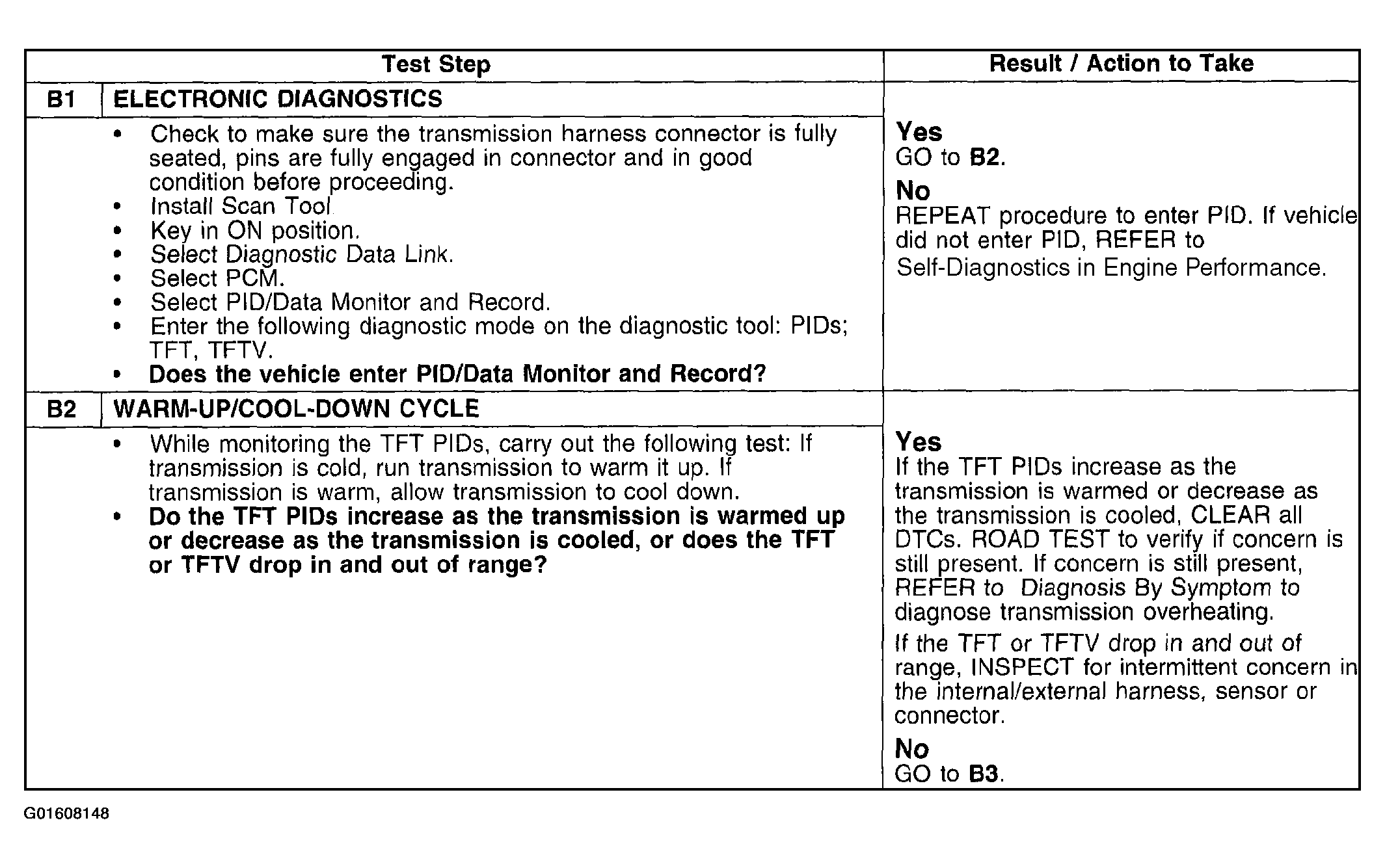

Fig 1: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (1 Of 2)
G01608148Courtesy of FORD MOTOR CO.

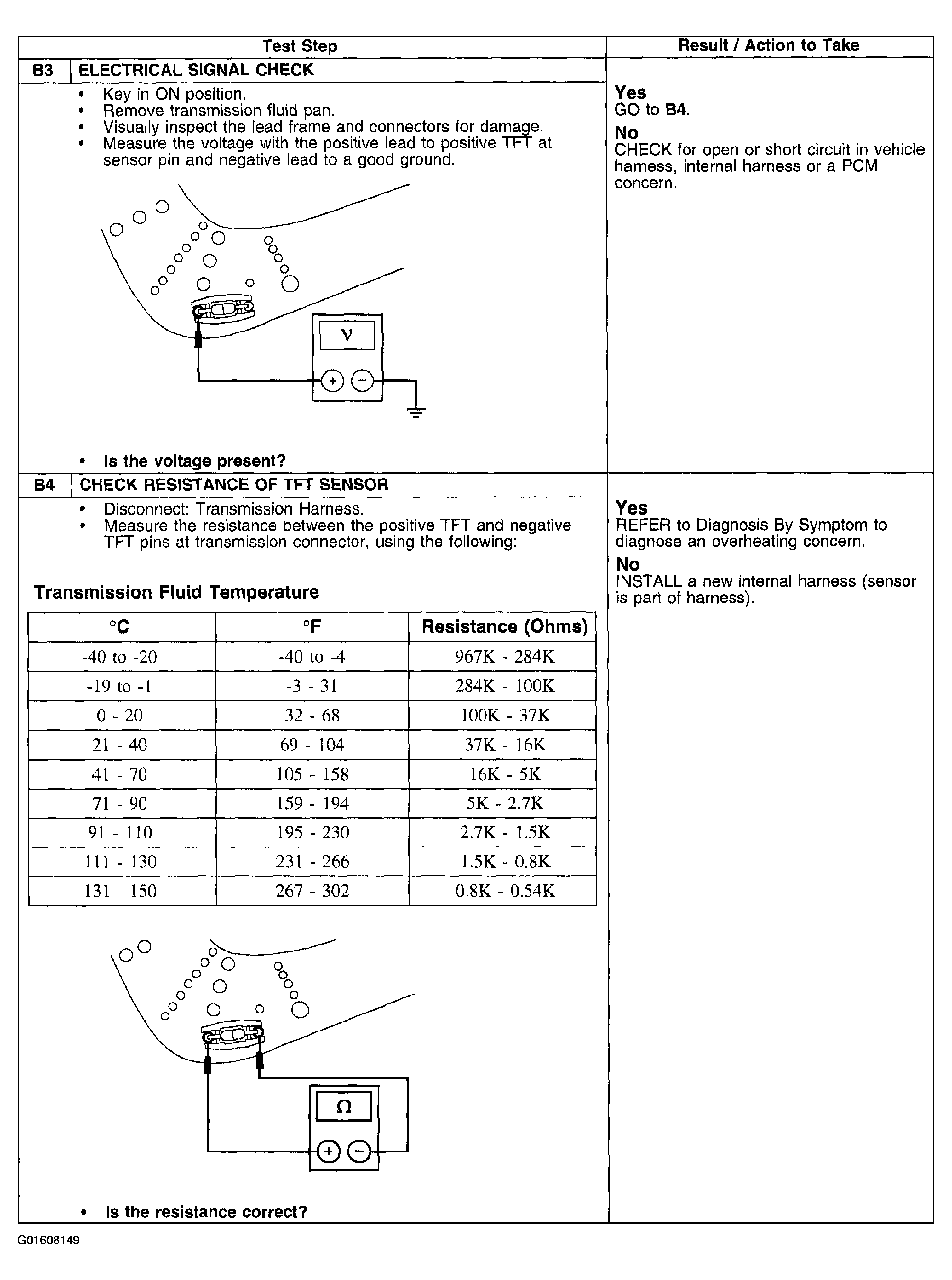

Fig 2: Pinpoint Test B: Transmission Fluid Temperature (TFT) Sensor (2 Of 2)
G01608149Courtesy of FORD MOTOR CO.
