Pinpoint Tests - OSC Equipped Vehicles: Notes

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools (1 Of 2)

Courtesy of FORD MOTOR CO.

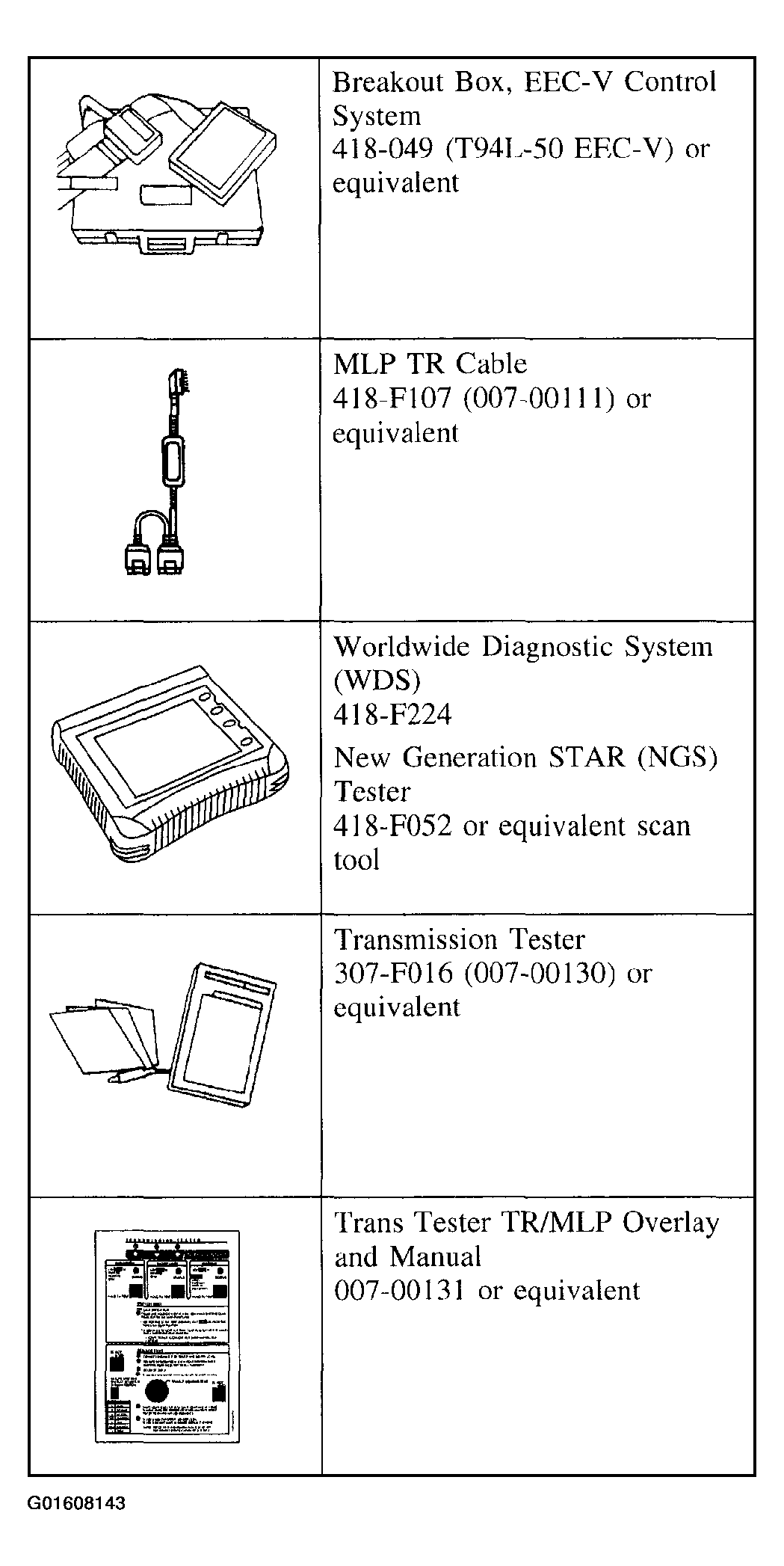

Fig 2: Identifying Special Tools (2 Of 2)

Courtesy of FORD MOTOR CO.

Any time an electrical connector or solenoid body is disconnected, inspect the connector for pin condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install a new component as required.
