Torque Converter Clutch Operation Concerns: Cycling/Shudder/Chatter

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Diagnostic Chart - Torque Converter Clutch Operation Concerns: Cycling/Shudder/Chatter (1 Of 2)
G01608207Courtesy of FORD MOTOR CO.

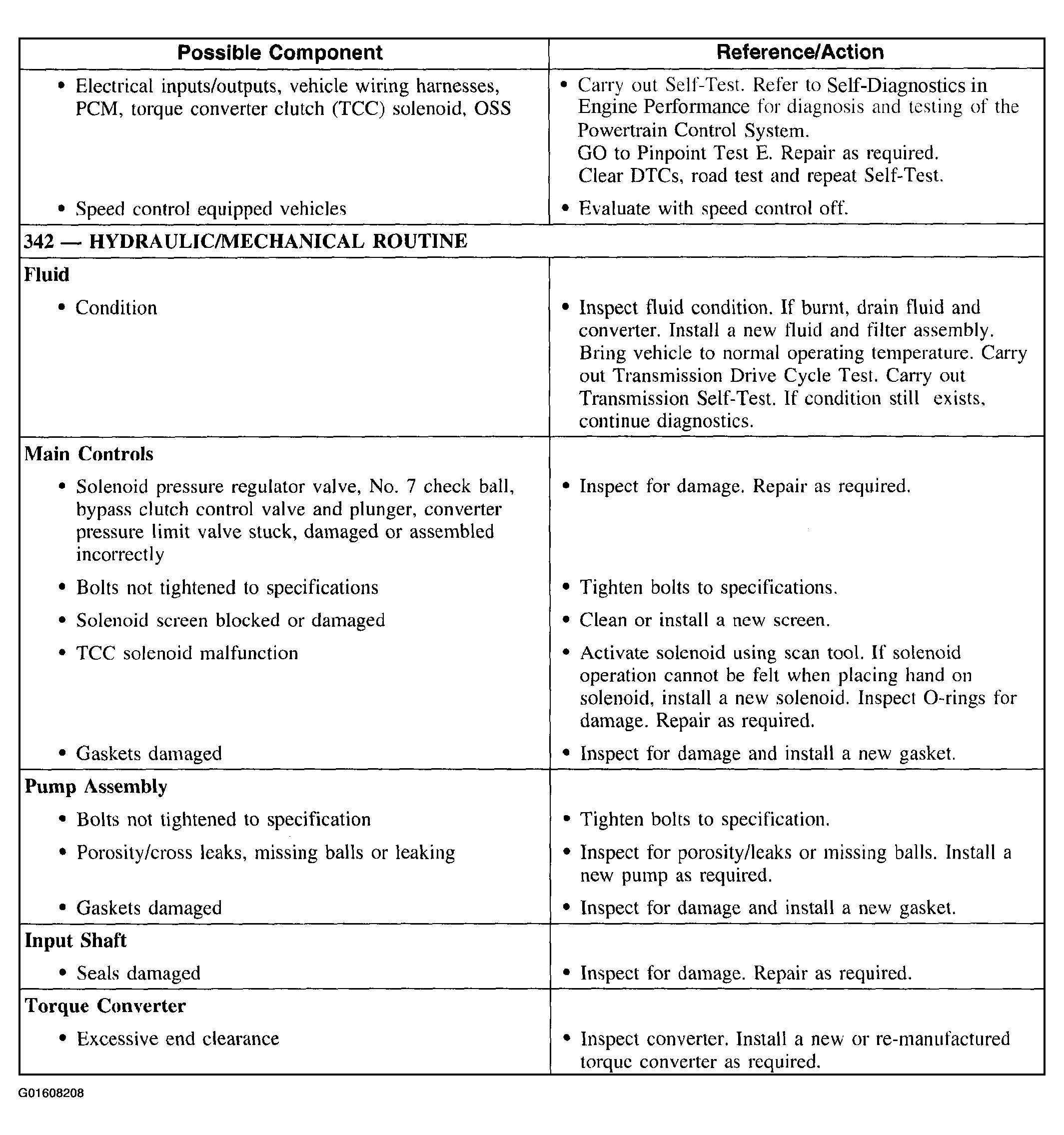

Fig 2: Diagnostic Chart - Torque Converter Clutch Operation Concerns: Cycling/Shudder/Chatter (2 Of 2)
G01608208Courtesy of FORD MOTOR CO.
