Torque Converter Clutch Operation Concerns: Always Applied/Stalls Vehicle

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

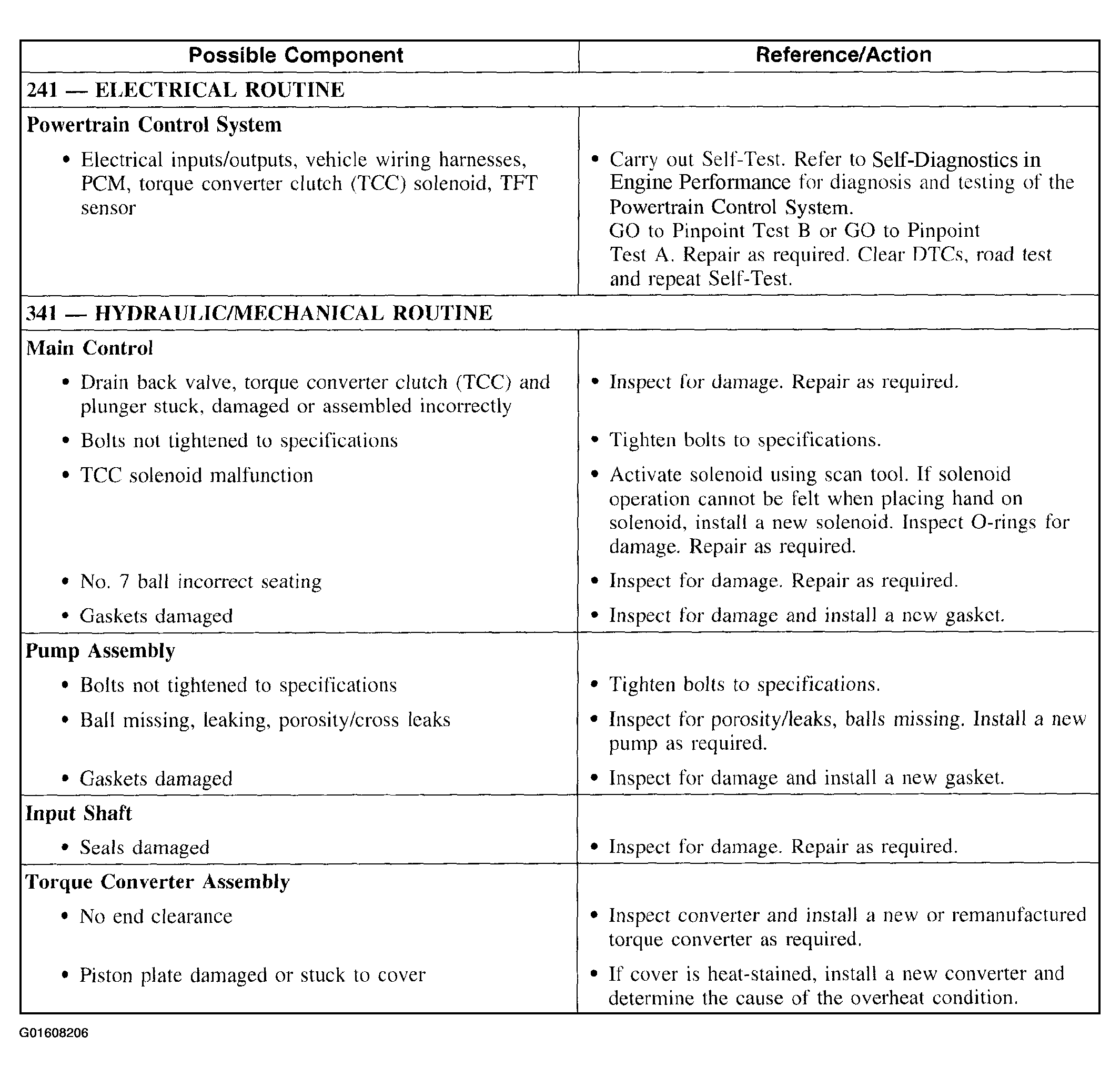

Fig 1: Diagnostic Chart - Torque Converter Clutch Operation Concerns: Always Applied/Stalls Vehicle
G01608206Courtesy of FORD MOTOR CO.
