Shift Concerns: 4-3 Shift (Automatic)

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Diagnostic Chart - Shift Concerns: 4-3 Shift Automatic (1 Of 2)
G01608201Courtesy of FORD MOTOR CO.

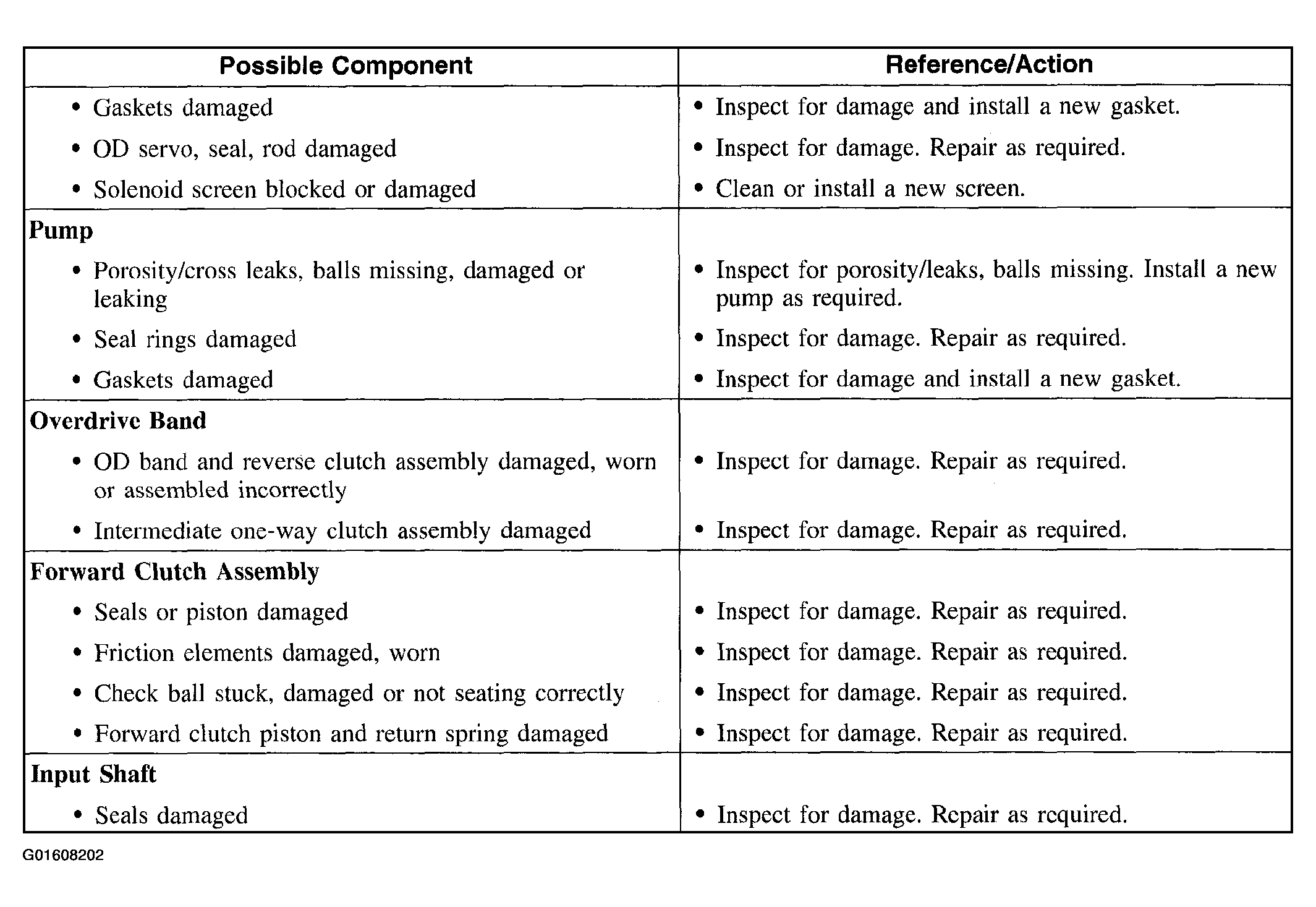

Fig 2: Diagnostic Chart - Shift Concerns: 4-3 Shift Automatic (2 Of 2)
G01608202Courtesy of FORD MOTOR CO.
