Section 300 (Automatic Transmission)
>>
Description And Operation
>>
Seals, Rings and Gasket Locator
Seals, Rings and Gasket Locator
WARNING:
This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

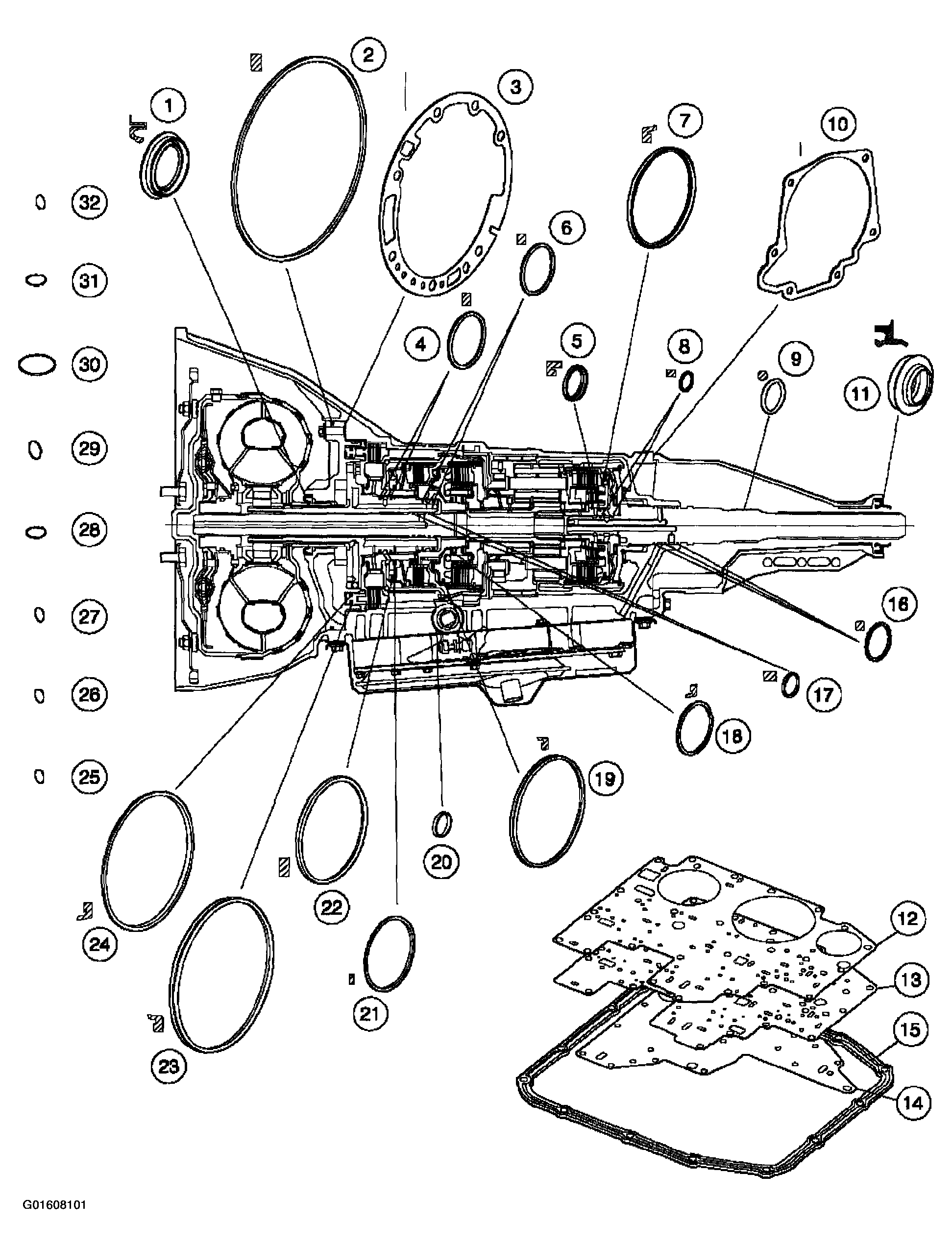

Fig 1: Seals, Rings And Gasket Locator
Courtesy of FORD MOTOR CO.

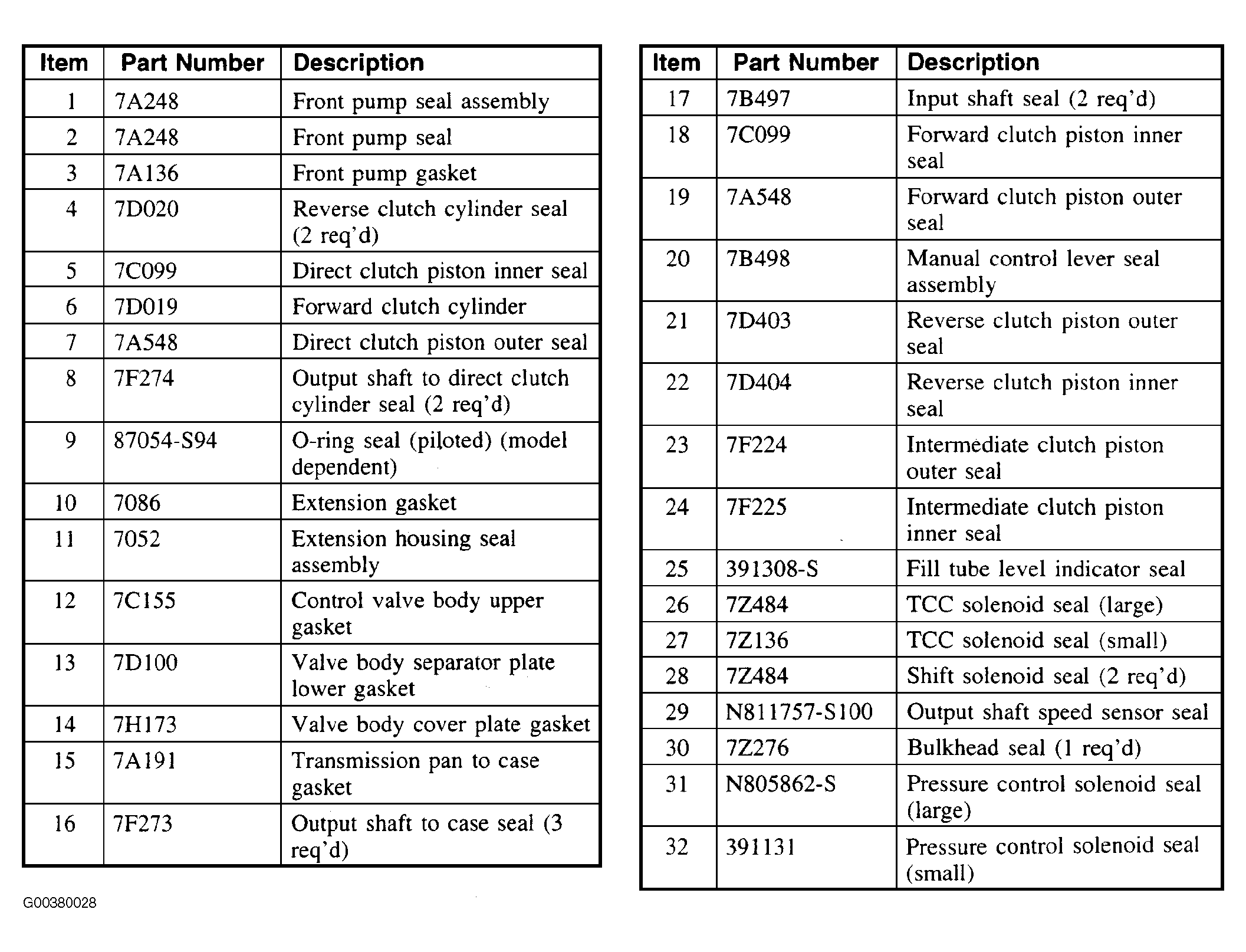

Fig 2: Seals, Rings And Gasket Locator Legend
Courtesy of FORD MOTOR CO.
