4R70W Automatic Transmission - Disassembled View

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

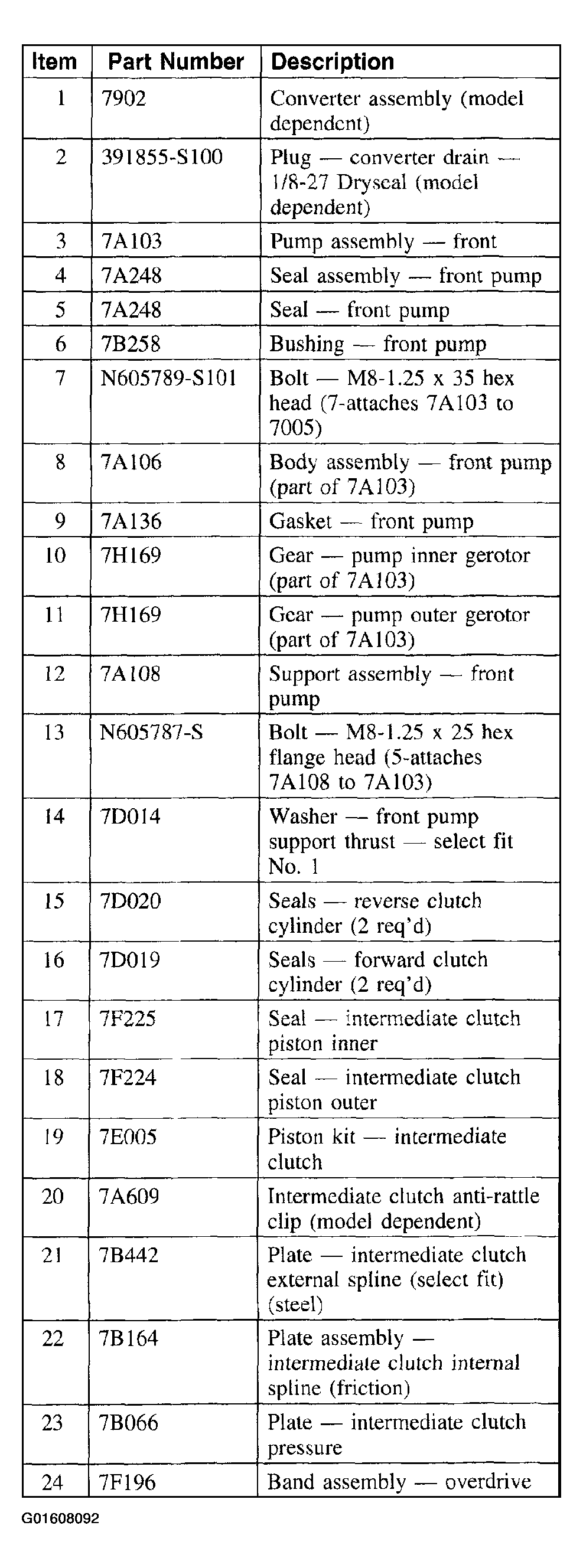

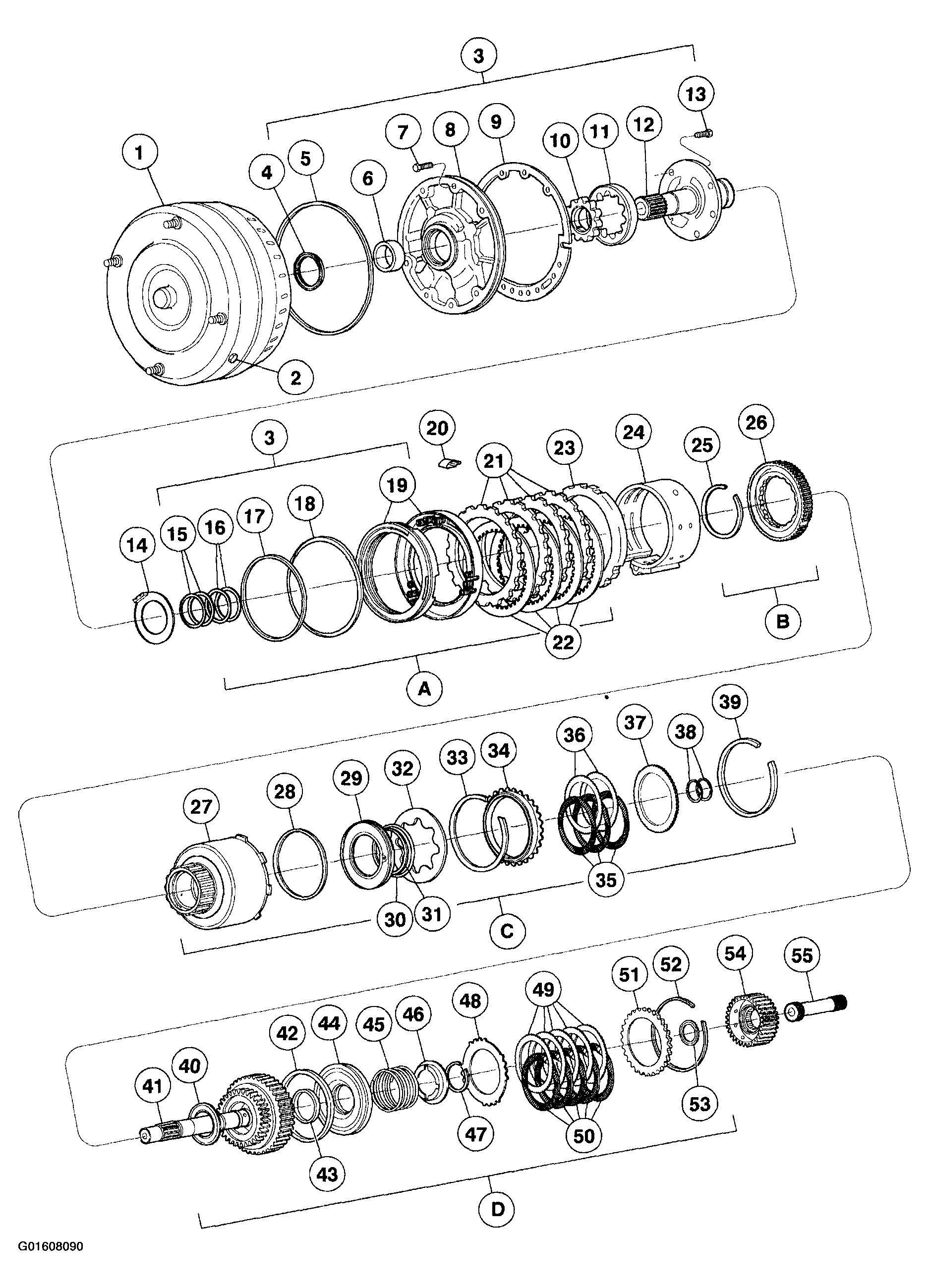

Fig 1: Exploded View Of 4R70W Automatic Transmission (1 Of 10)

Courtesy of FORD MOTOR CO.

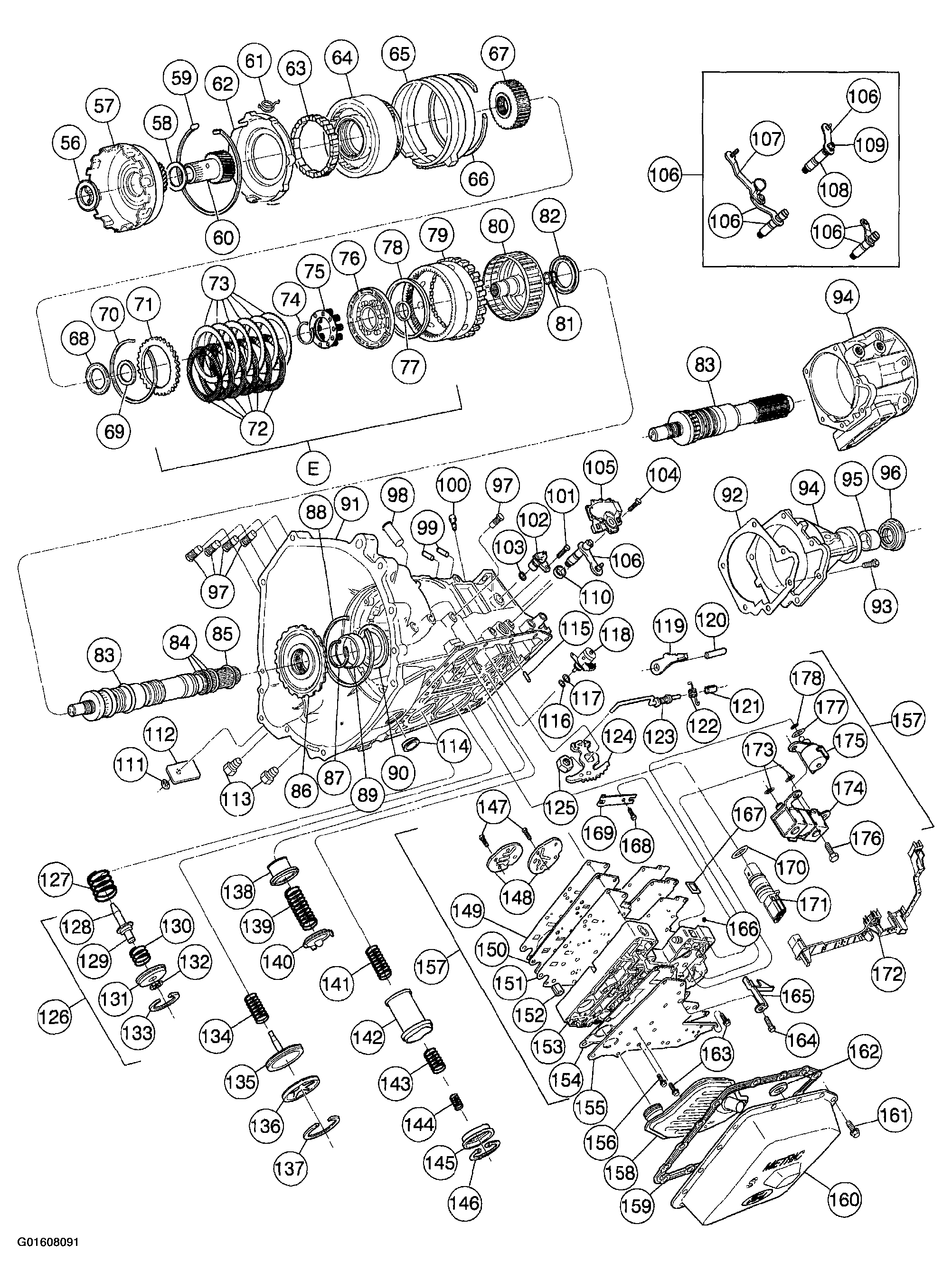

Fig 2: Exploded View Of 4R70W Automatic Transmission (2 Of 10)

Courtesy of FORD MOTOR CO.

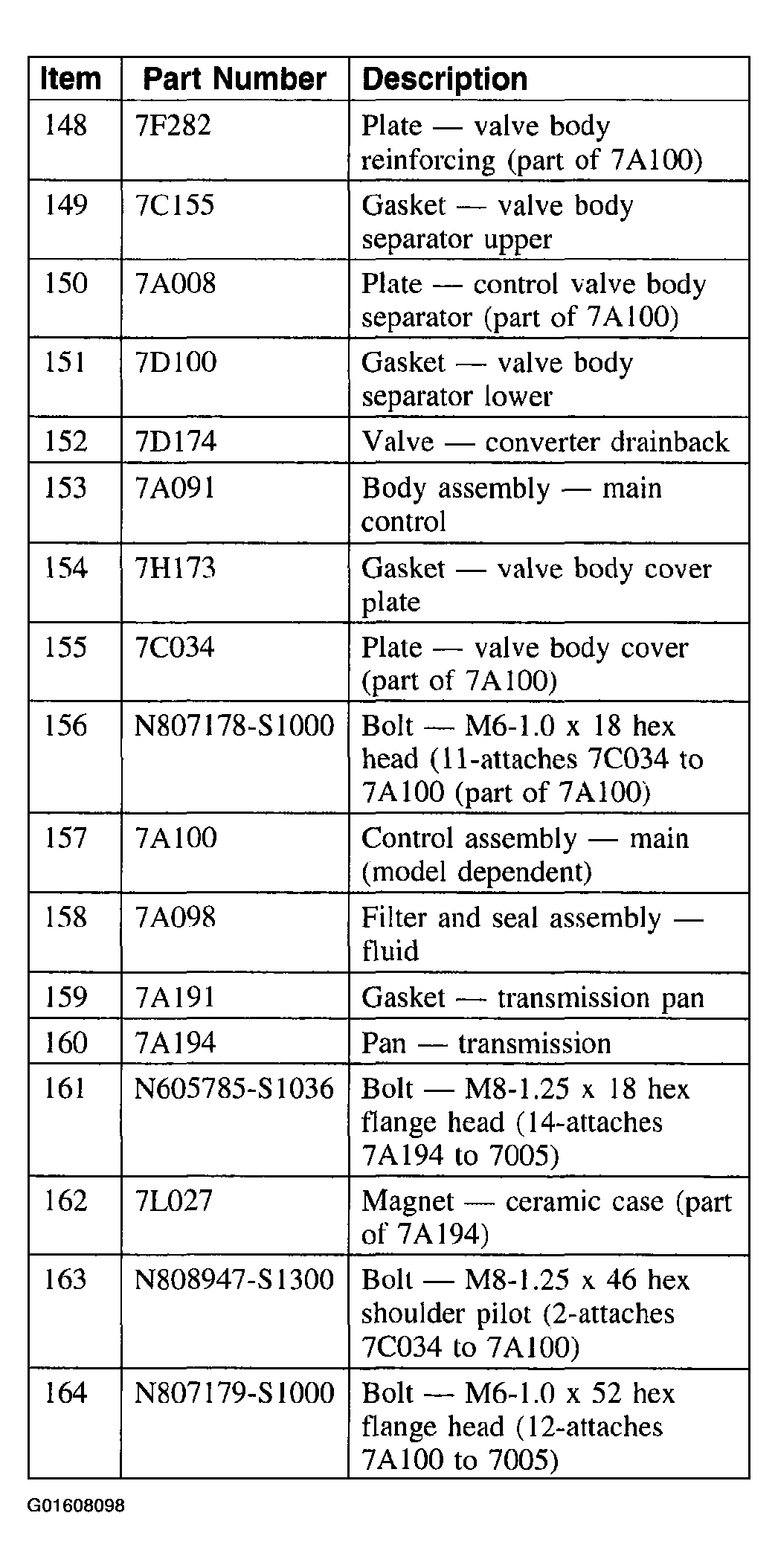

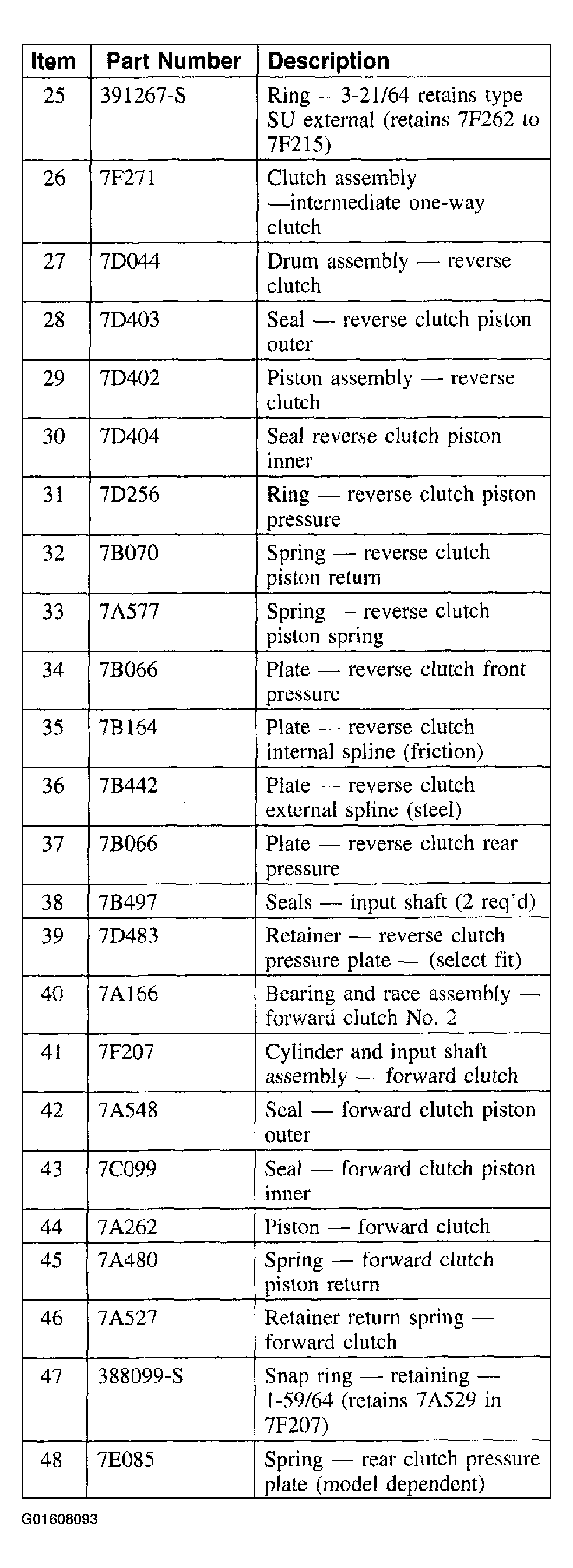

Fig 3: Exploded View Of 4R70W Automatic Transmission (3 Of 10)

Courtesy of FORD MOTOR CO.

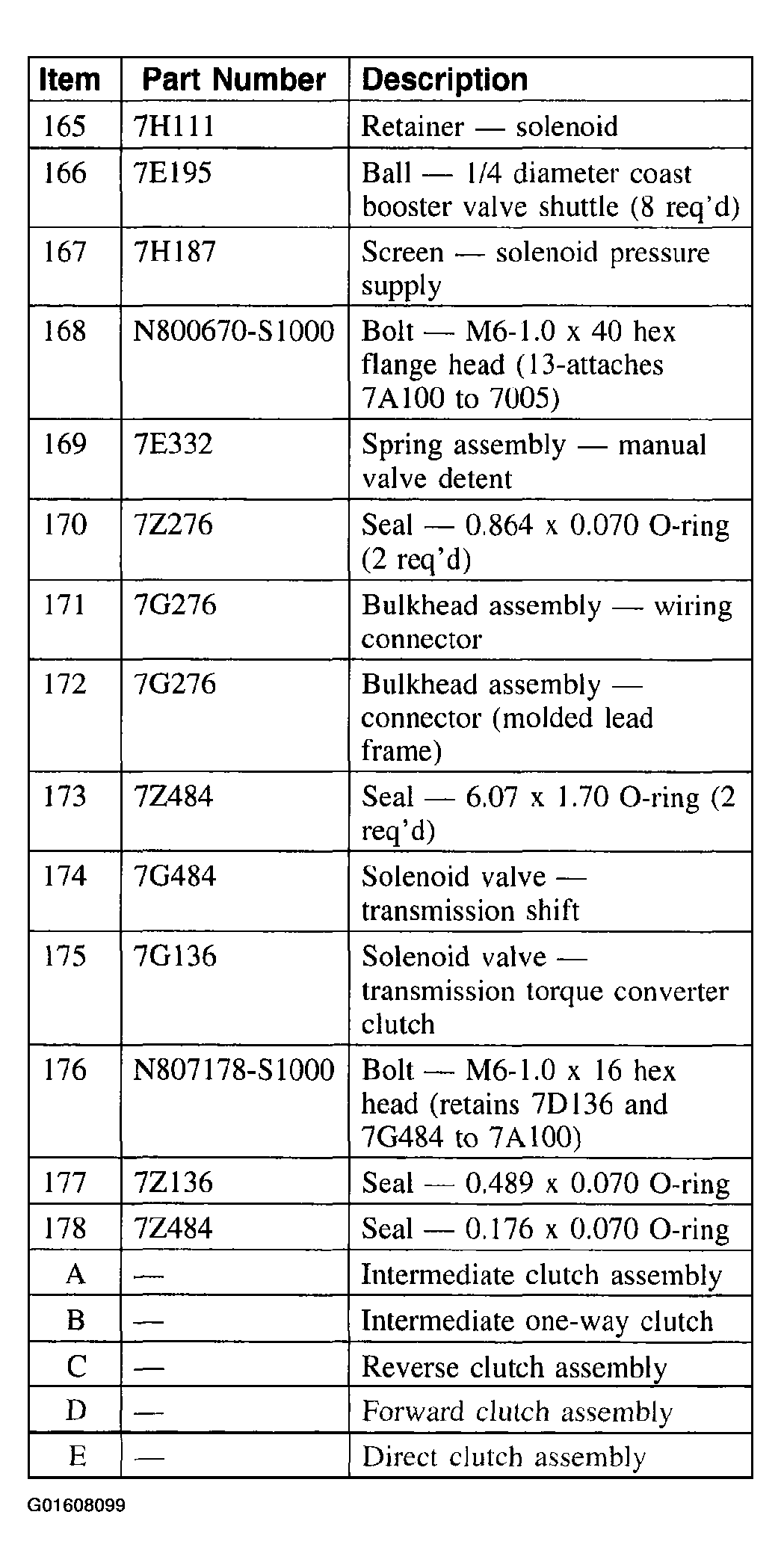

Fig 4: Exploded View Of 4R70W Automatic Transmission (4 Of 10)

Courtesy of FORD MOTOR CO.

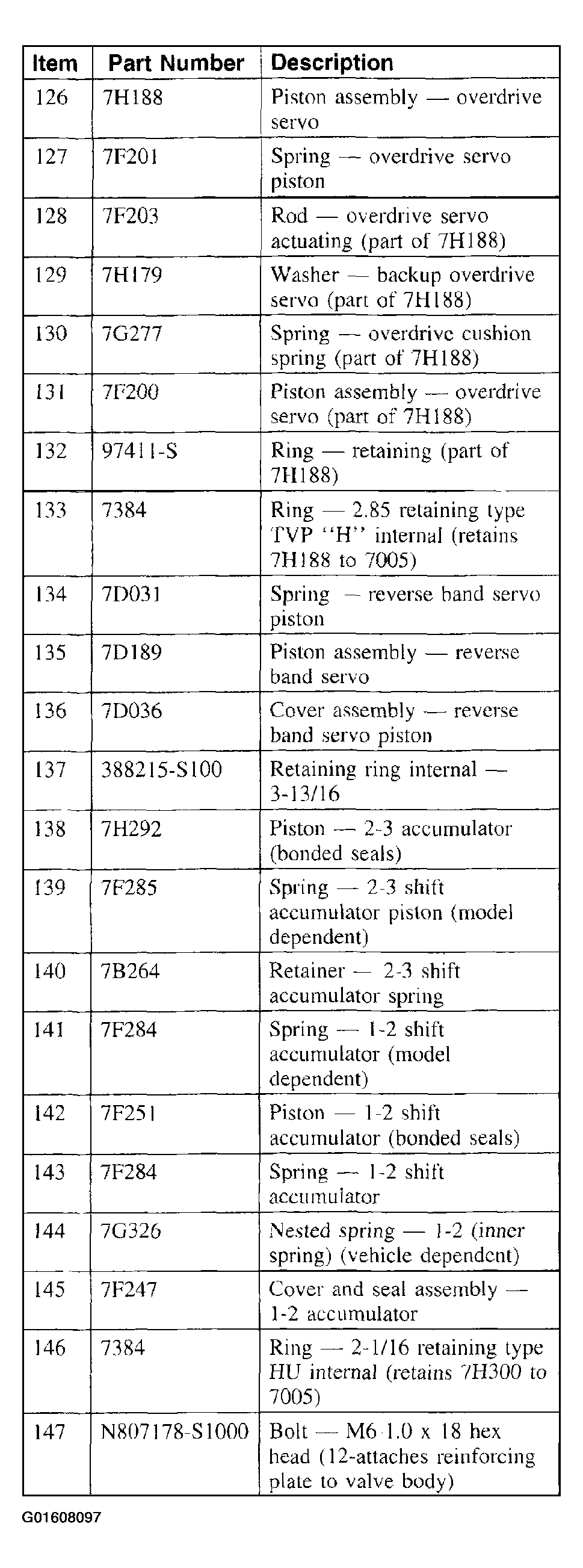

Fig 5: Exploded View Of 4R70W Automatic Transmission (5 Of 10)

Courtesy of FORD MOTOR CO.

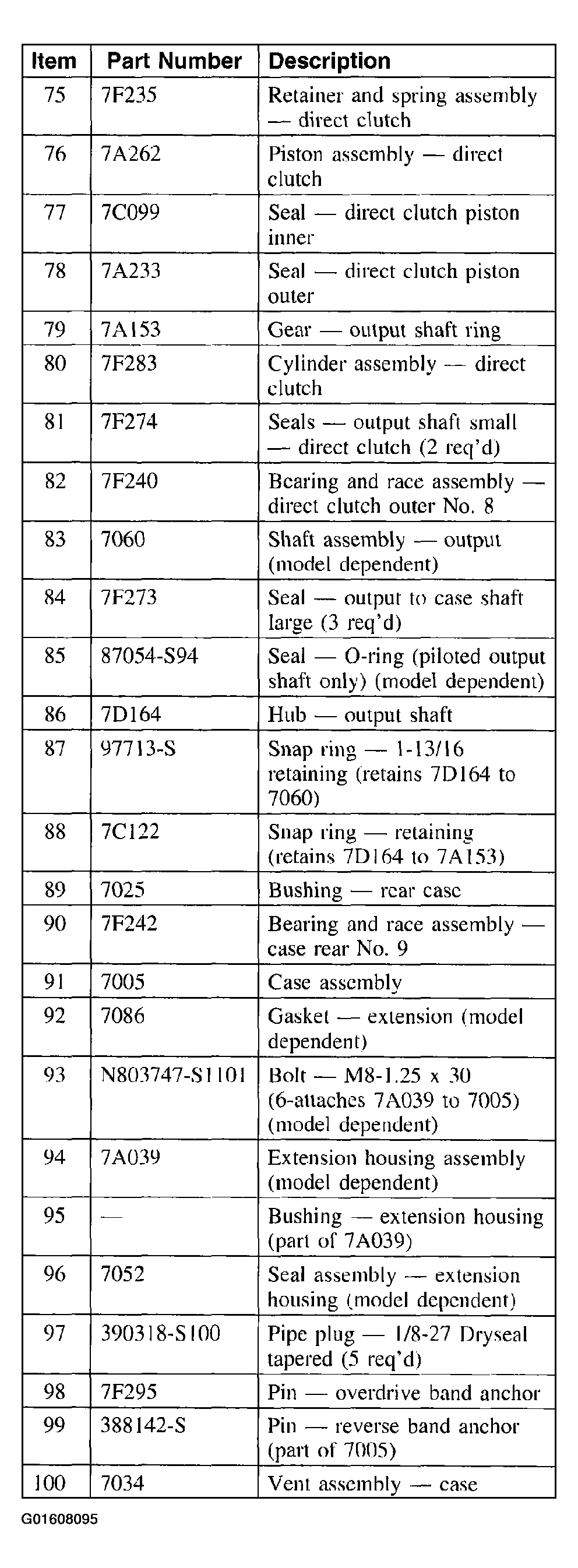

Fig 6: Exploded View Of 4R70W Automatic Transmission (6 Of 10)

Courtesy of FORD MOTOR CO.

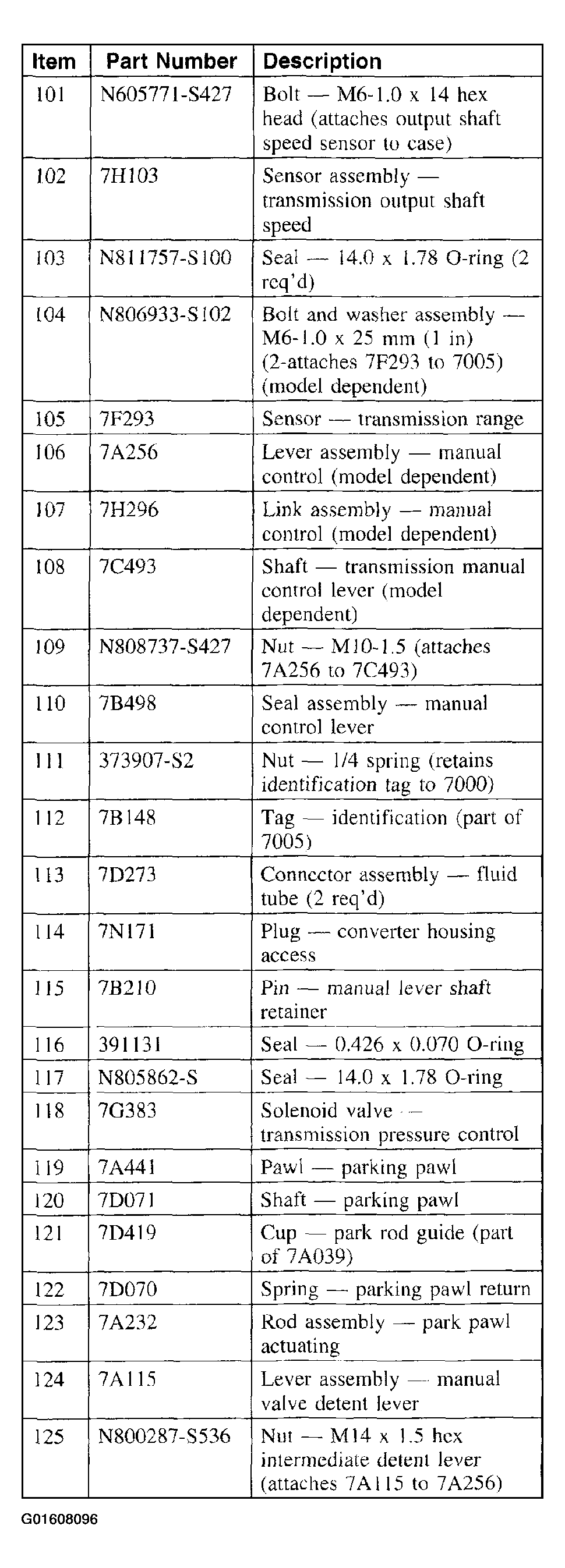

Fig 7: Exploded View Of 4R70W Automatic Transmission (7 Of 10)

Courtesy of FORD MOTOR CO.

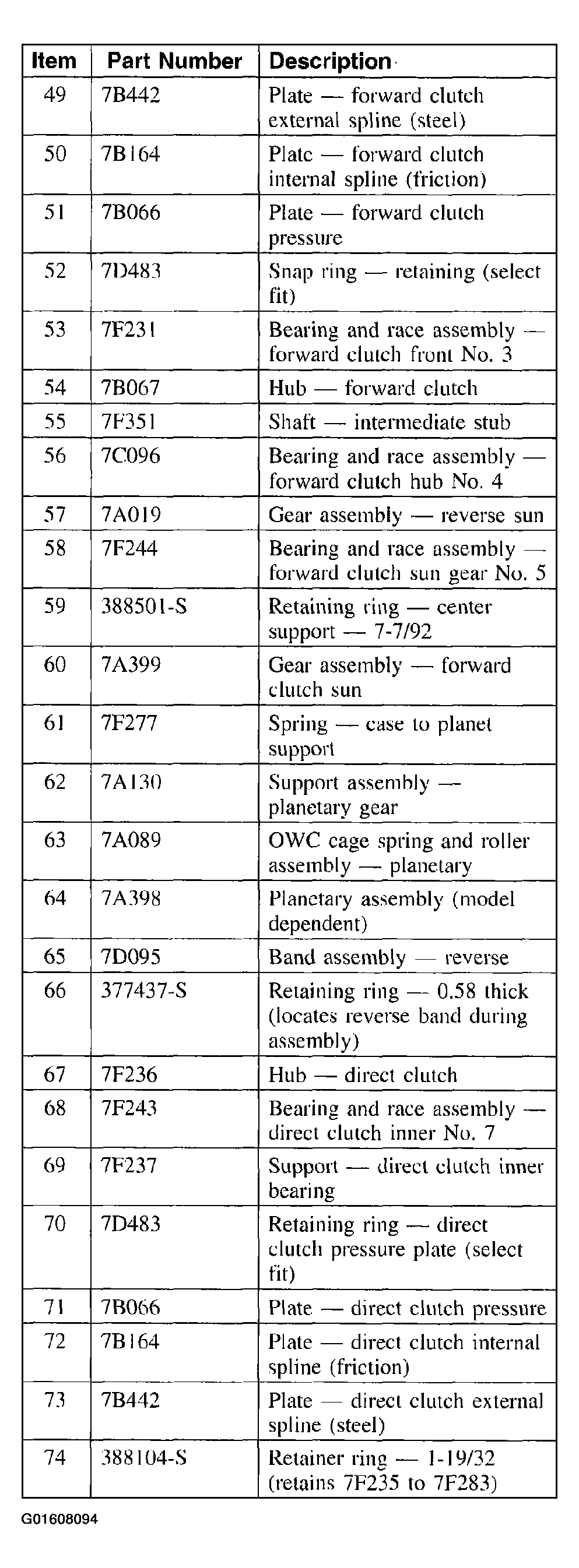

Fig 8: Exploded View Of 4R70W Automatic Transmission (8 Of 10)

Courtesy of FORD MOTOR CO.

Fig 9: Exploded View Of 4R70W Automatic Transmission (9 Of 10)

Courtesy of FORD MOTOR CO.

Fig 10: Exploded View Of 4R70W Automatic Transmission (10 Of 10)

Courtesy of FORD MOTOR CO.
