One-Way Clutch - Planetary (Low)

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

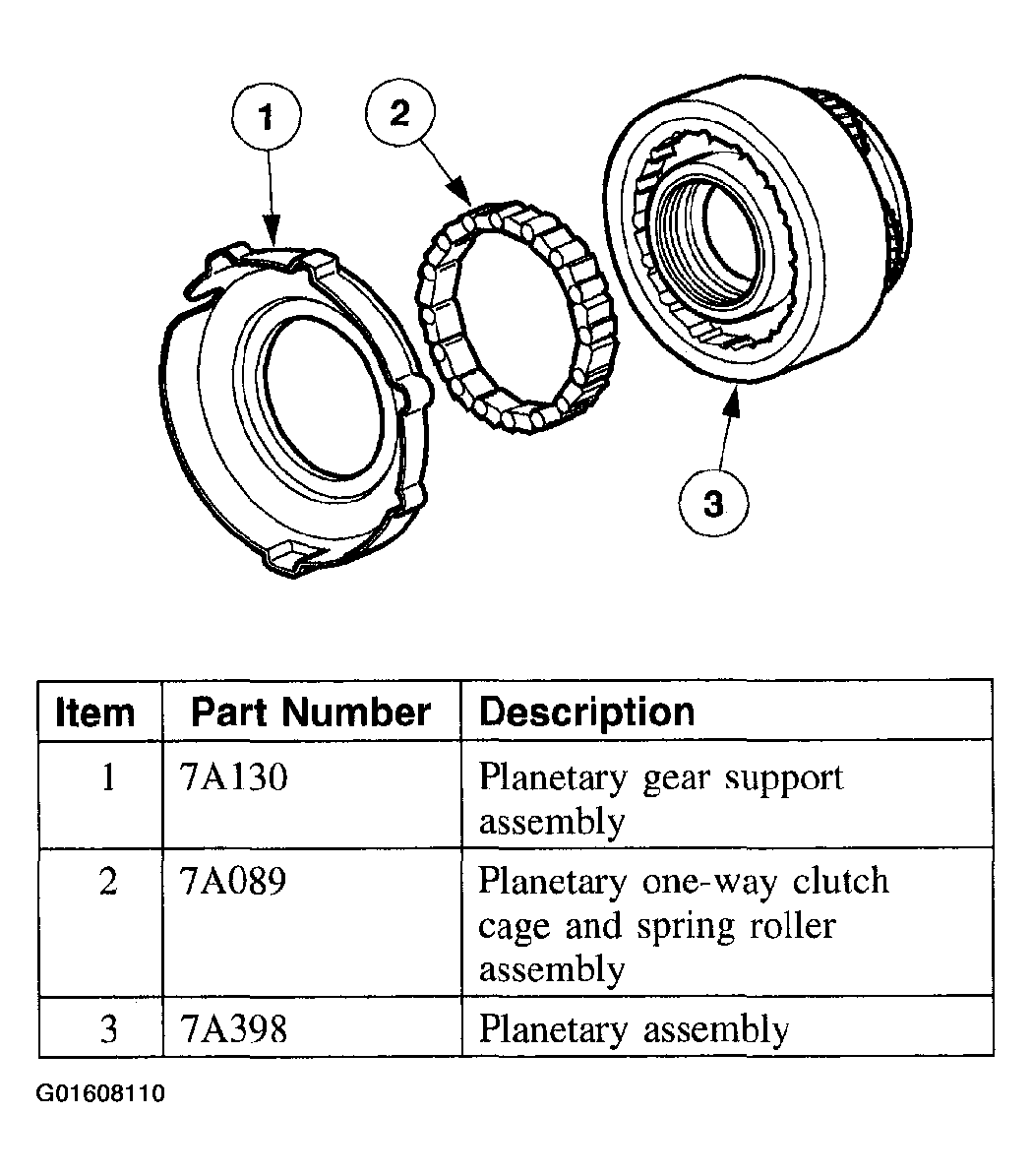

Fig 1: Identifying One-Way Clutch - Planetary (Low) Components
G01608110Courtesy of FORD MOTOR CO.

The planetary (low) one-way clutch is a roller clutch that holds the planetary gearset in first gear, (D) and D ranges. During automatic coasting downshifts into first gear ((D) and D ranges), the planetary one-way clutch freewheels so there is no engine braking.
