Clutch - Direct

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

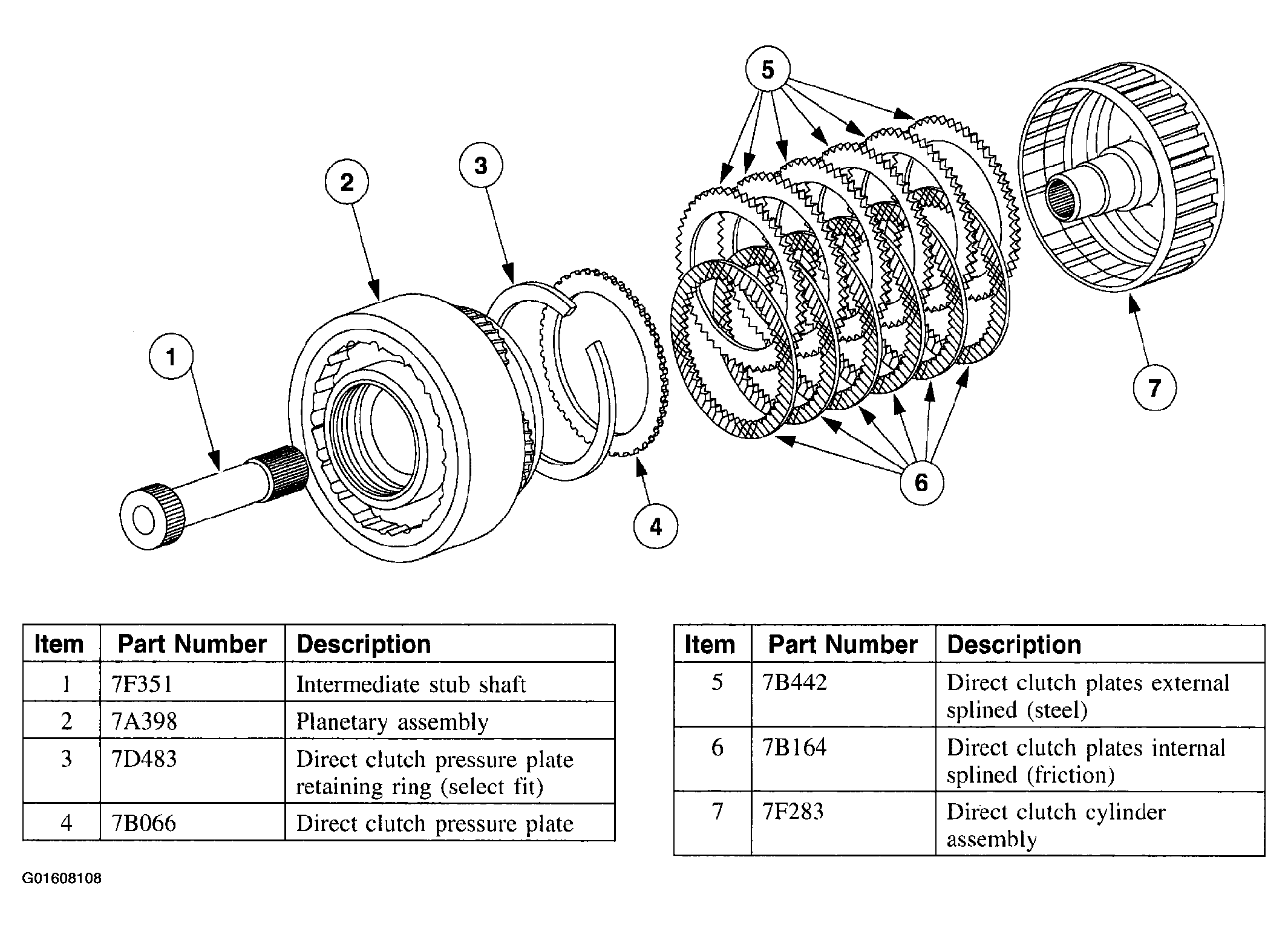

Fig 1: Exploded View Of Clutch - Direct
G01608108Courtesy of FORD MOTOR CO.

The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears.
