Removal And Installation: Bushing-Cover: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup, 2001 Ford Pickup, and 2000 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

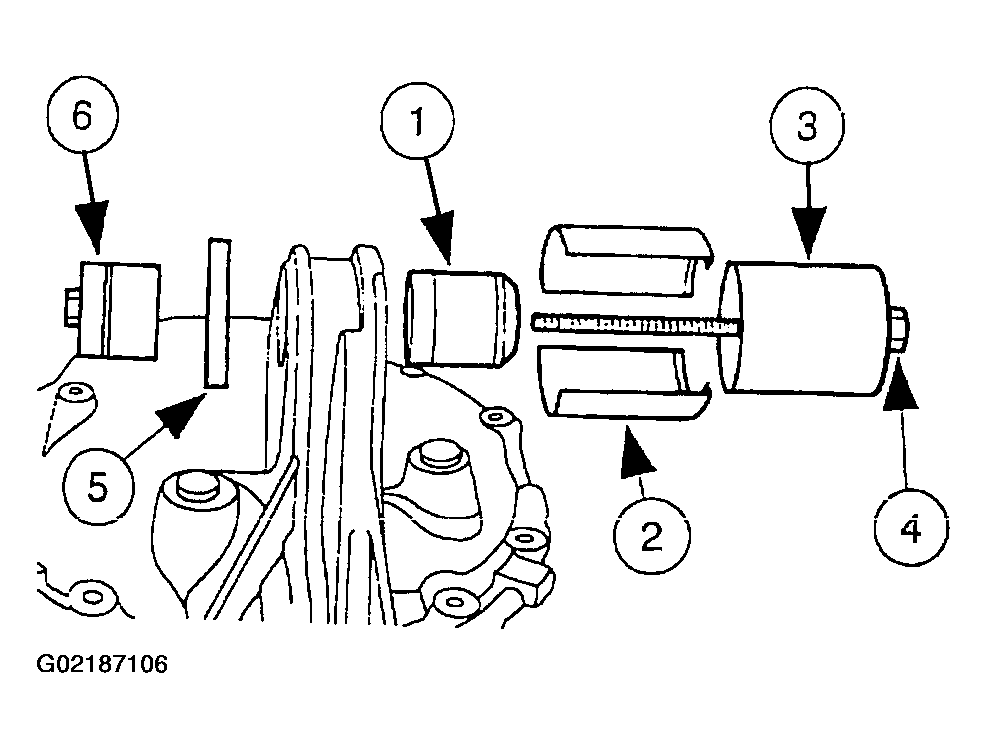

  1. Position the differential cover bushing and differential cover bushing tools.
    1. Position the differential cover bushing.
    2. Position the Bushing Collet Replacer.
    3. Position the Bushing Cup Remover/Replacer.
    4. Position the Drawbolt.
    5. Position the Bushing Adapter Replacer.
    6. Thread the Bushing Replacer on the Drawbolt.
      Fig 1: Positioning Differential Cover Bushing & Differential Cover Bushing Installation Tools
      G02187106Courtesy of FORD MOTOR CO.

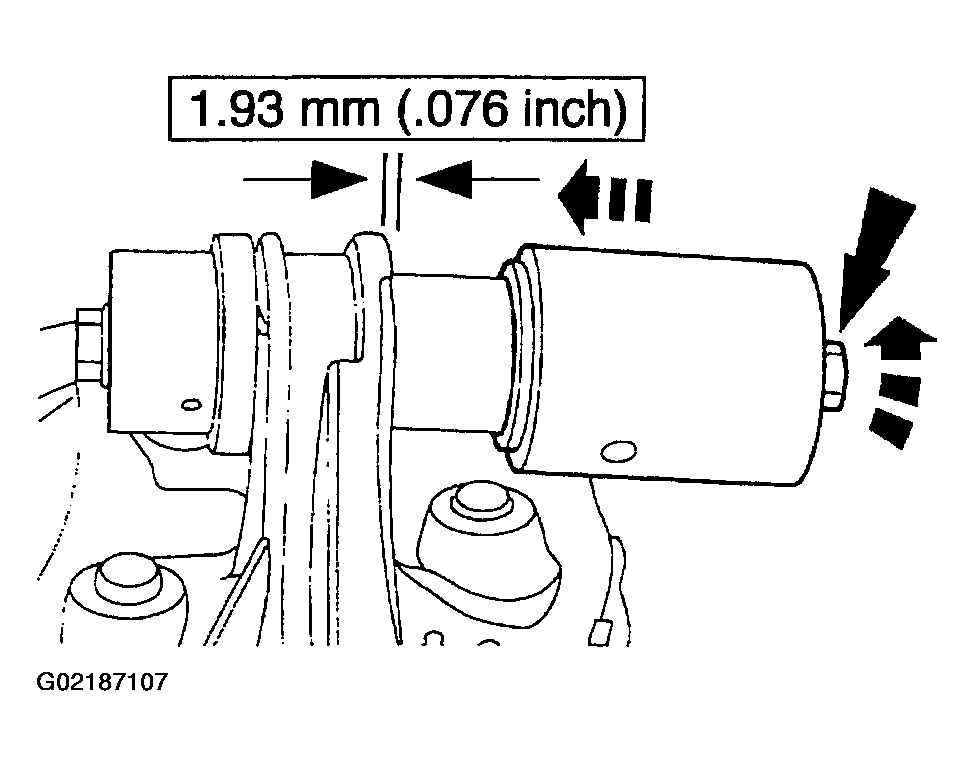

  2. To install the differential cover bushing, tighten the Drawbolt until the specified gap is reached between the cover ear and the bushing flange. Use a feeler gauge to verify the correct gap length.
    • Remove the tools.
      Fig 2: Tightening Drawbolt Until Specified Gap Is Reached Between Cover Ear & Bushing Flange
      G02187107Courtesy of FORD MOTOR CO.
  3. Install the front drive axle assembly. Refer to the AXLE ASSEMBLY-Front Drive .
