Axle Assembly-Front Drive: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup, 2001 Ford Pickup, and 2000 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
- Halfshaft fastener tightening specifications: 60 ft. lb. (82 Nm)
- Refer to DRIVE SHAFTS - F150 for driveshaft fastener tightening specifications.

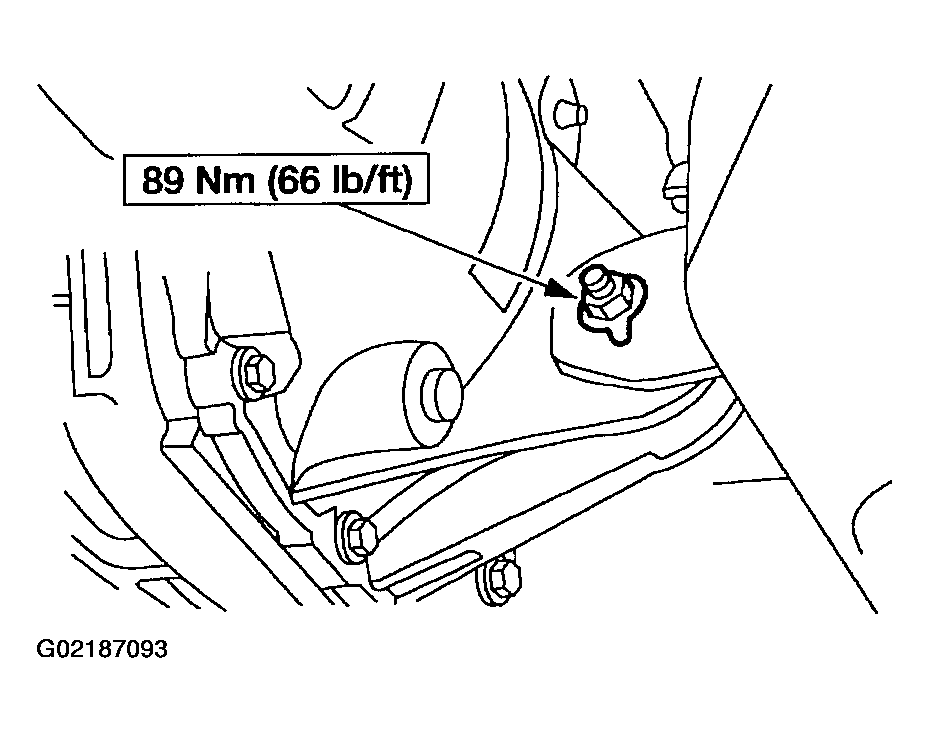

  Fig 1: Installing Nut & Bolt (1 Of 2)
  Courtesy of FORD MOTOR CO.

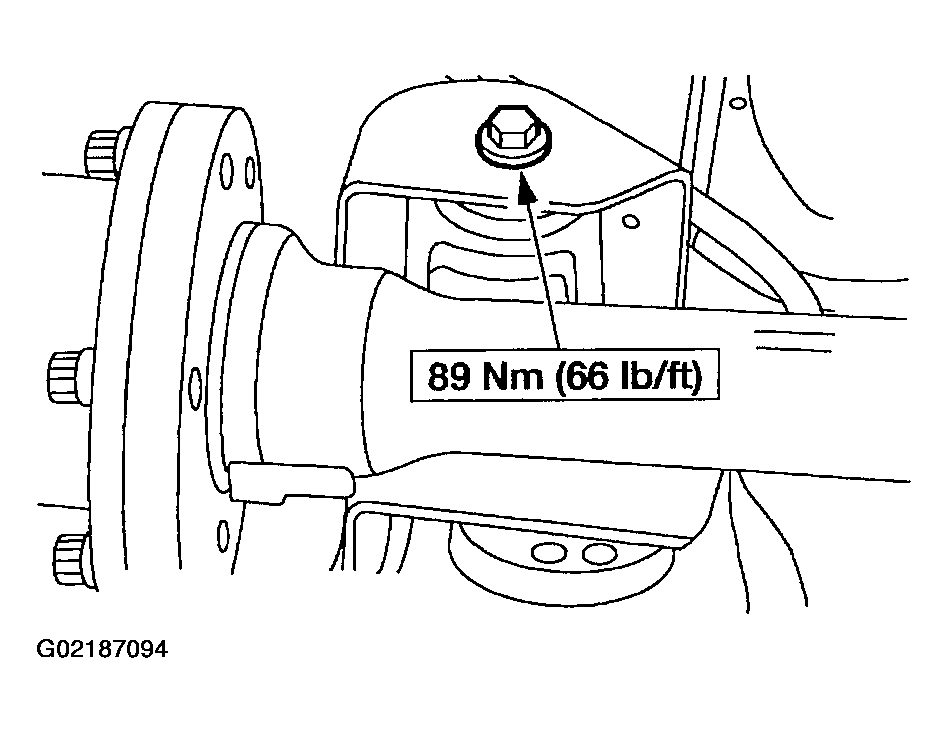

  Fig 2: Installing Nut & Bolt (2 Of 2)
  Courtesy of FORD MOTOR CO.

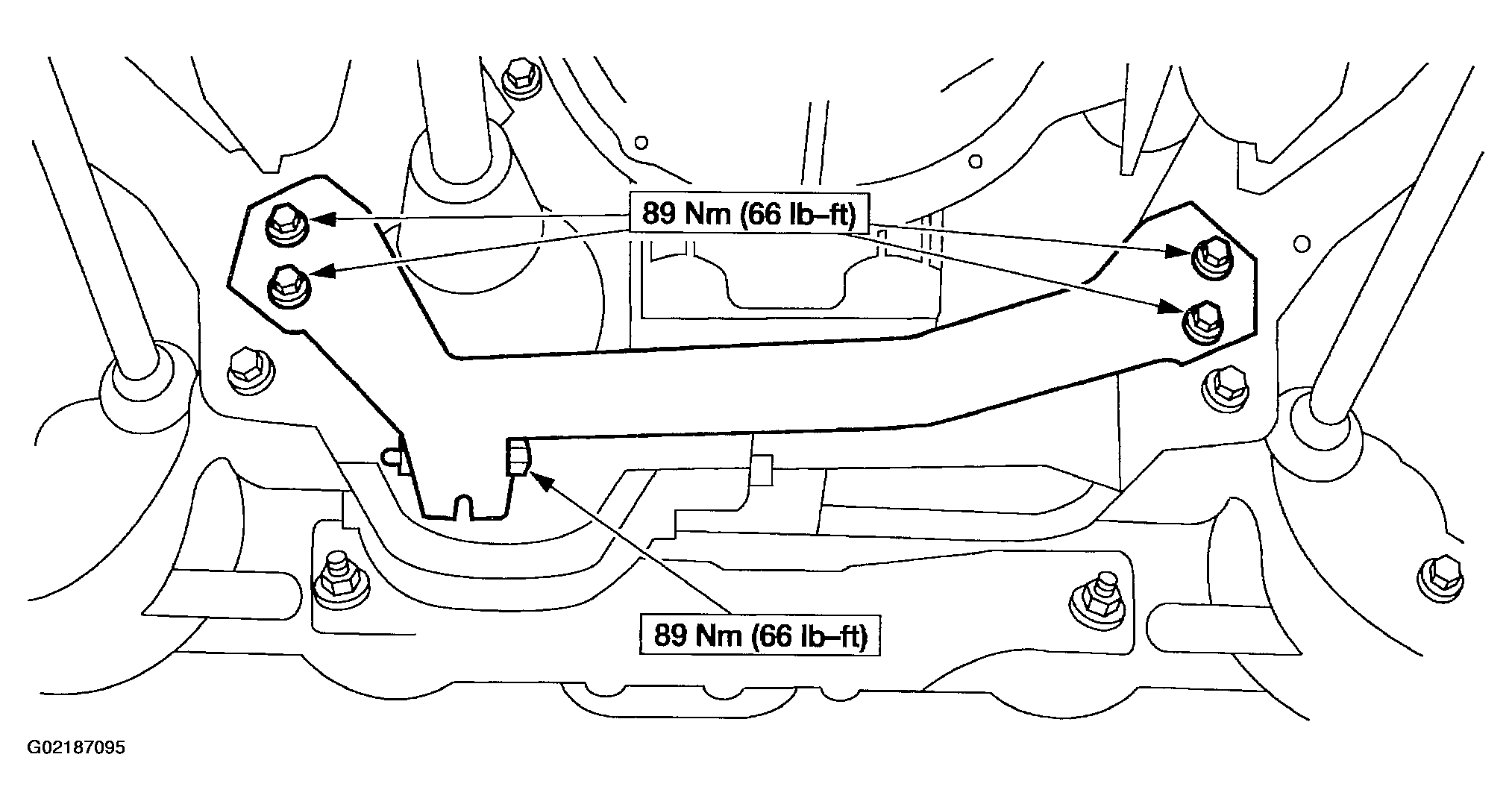

Fig 3: Installing Front Differential Support

Courtesy of FORD MOTOR CO.
