Front Axle Assembly-Exploded View

WARNING: This page is about a different car, the 2002 Ford Pickup, 2001 Ford Pickup, and 2000 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

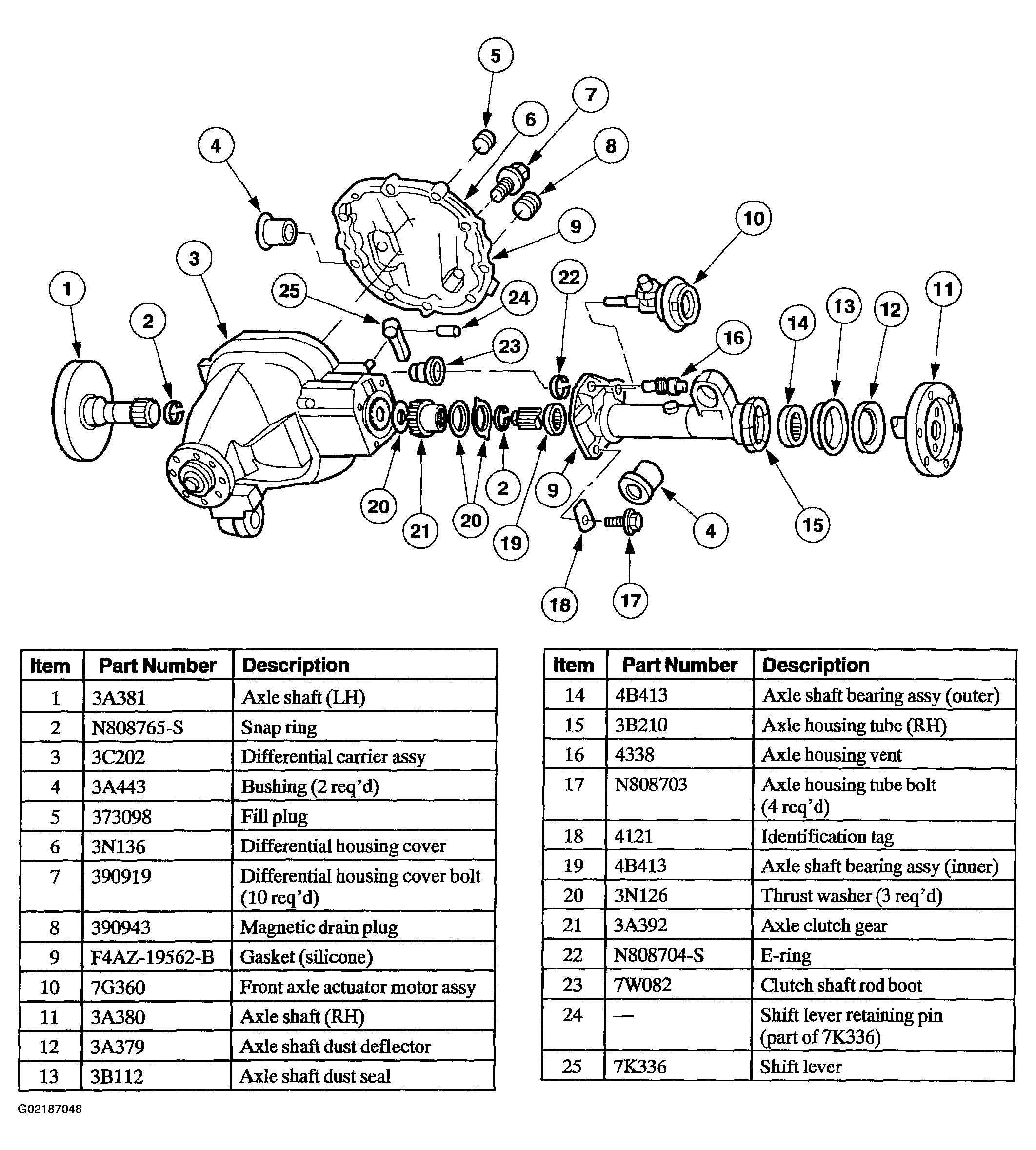

Fig 1: Exploded View Of Front Axle Assembly
G02187048Courtesy of FORD MOTOR CO.
