Section 285 (Four-Wheel Drive Systems (ESOF) - F150)
>>
Diagnosis And Testing
>>
Transfer Case - MSOF
>>
Symptom Chart
Symptom Chart
WARNING:
This page is about a different car, the 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

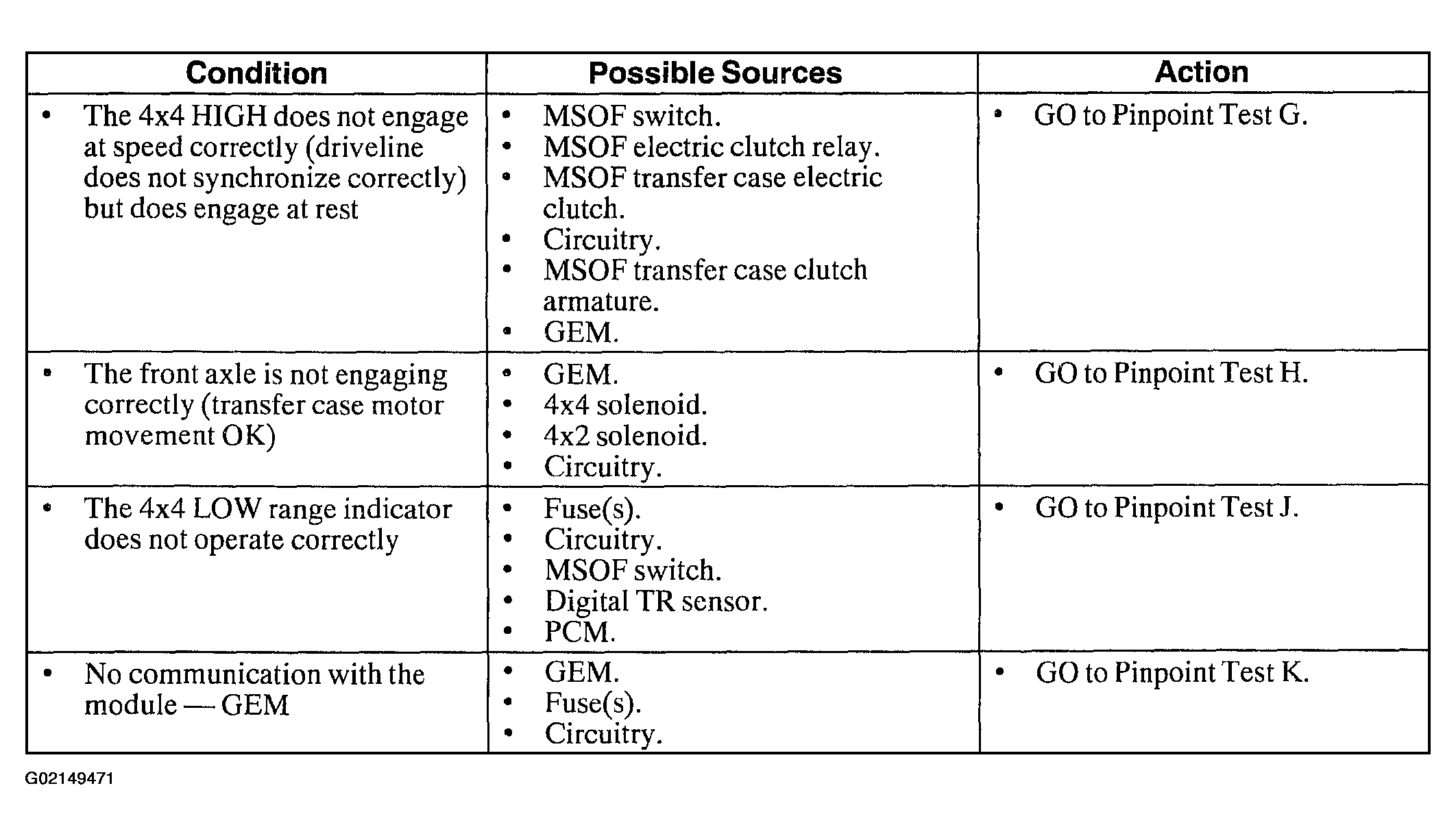

Fig 1: Symptom Chart
