Pinpoint Test K: No Communication With The Module - GEM

WARNING: This page is about a different car, the 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

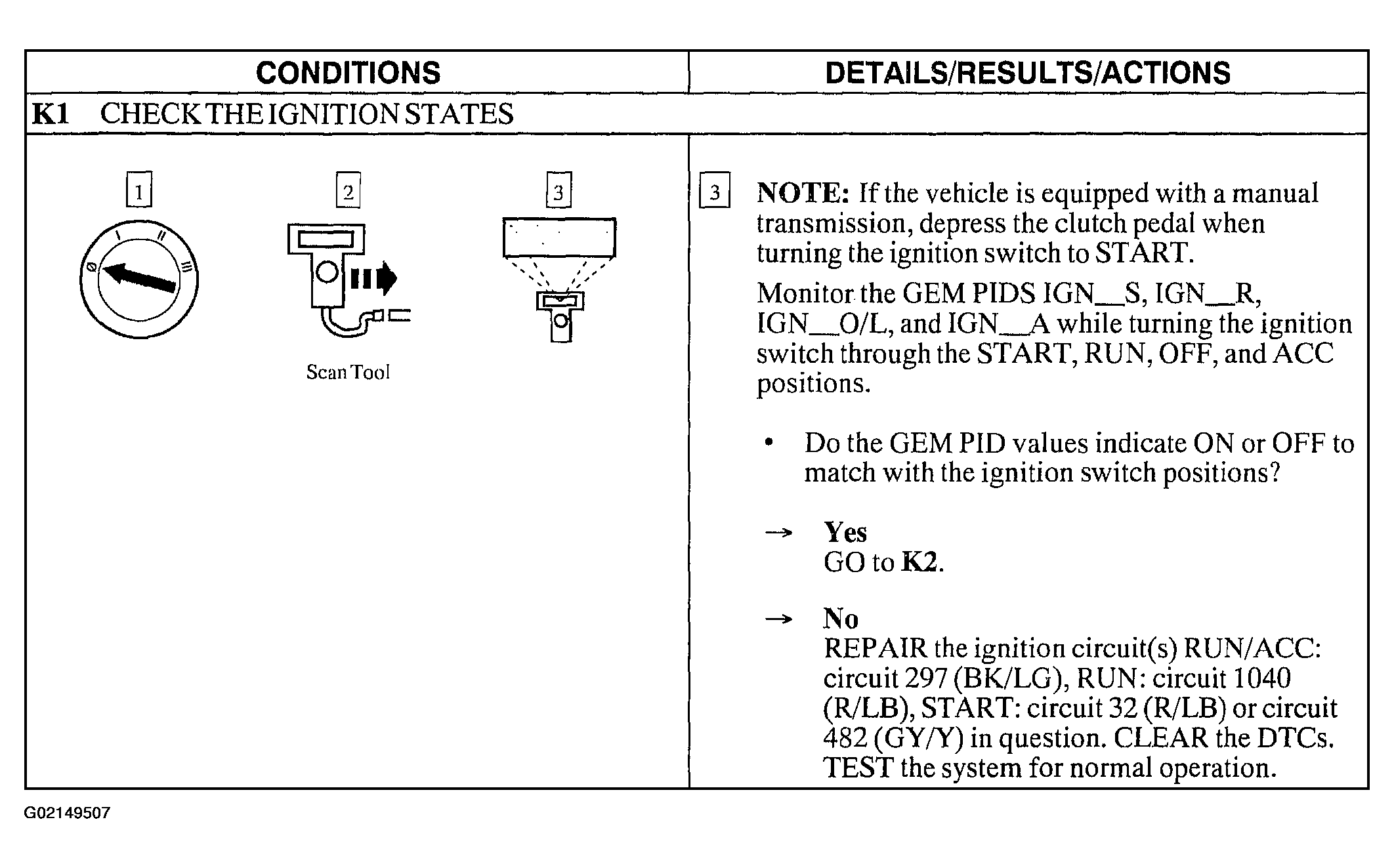

Fig 1: Pinpoint Test K: No Communication With The Module - GEM (Step K1)
G02149507

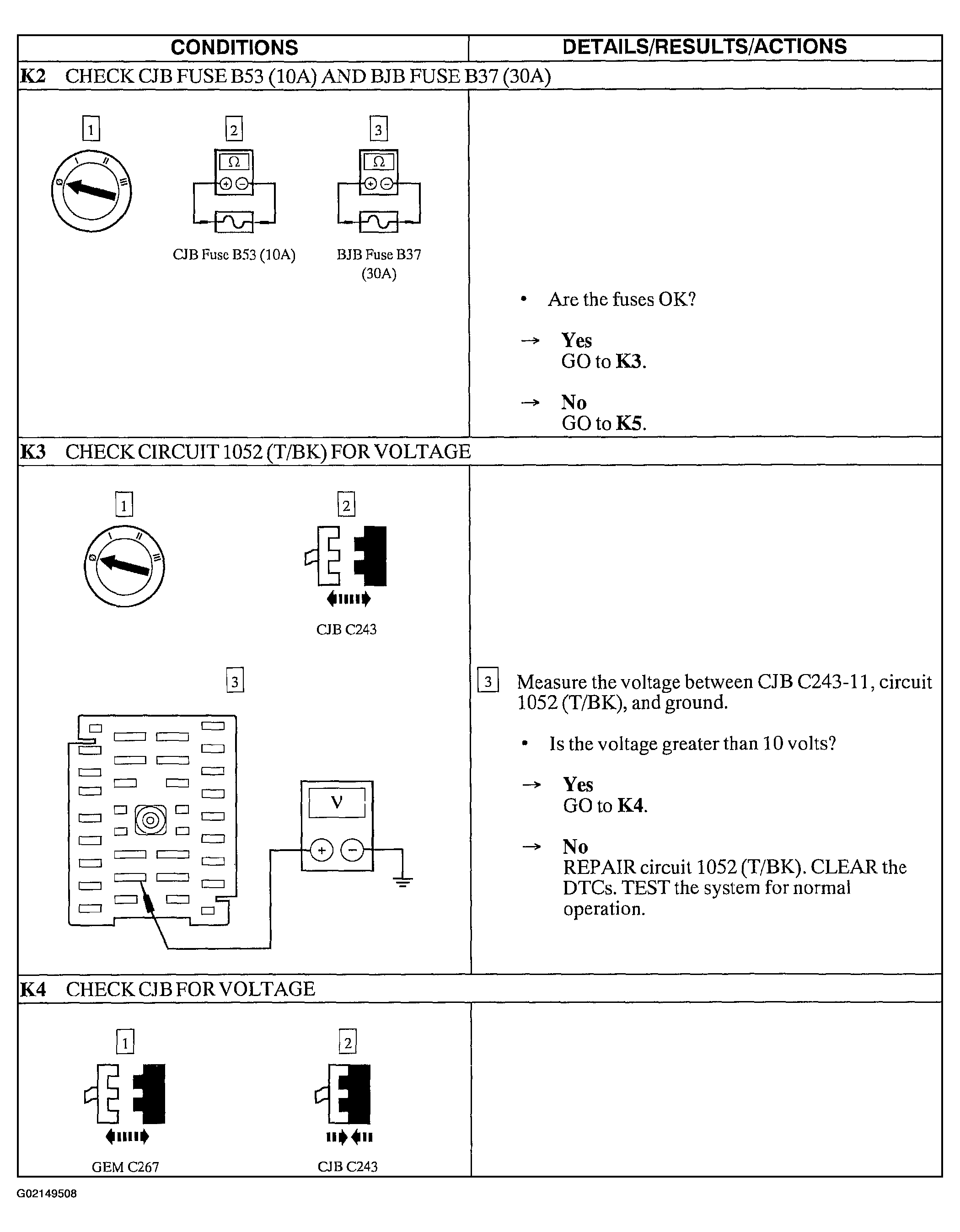

Fig 2: Pinpoint Test K: The Front Axle Is Not Engaging Correctly (Transfer Case Motor Movement OK) (Steps K2-K4)
G02149508

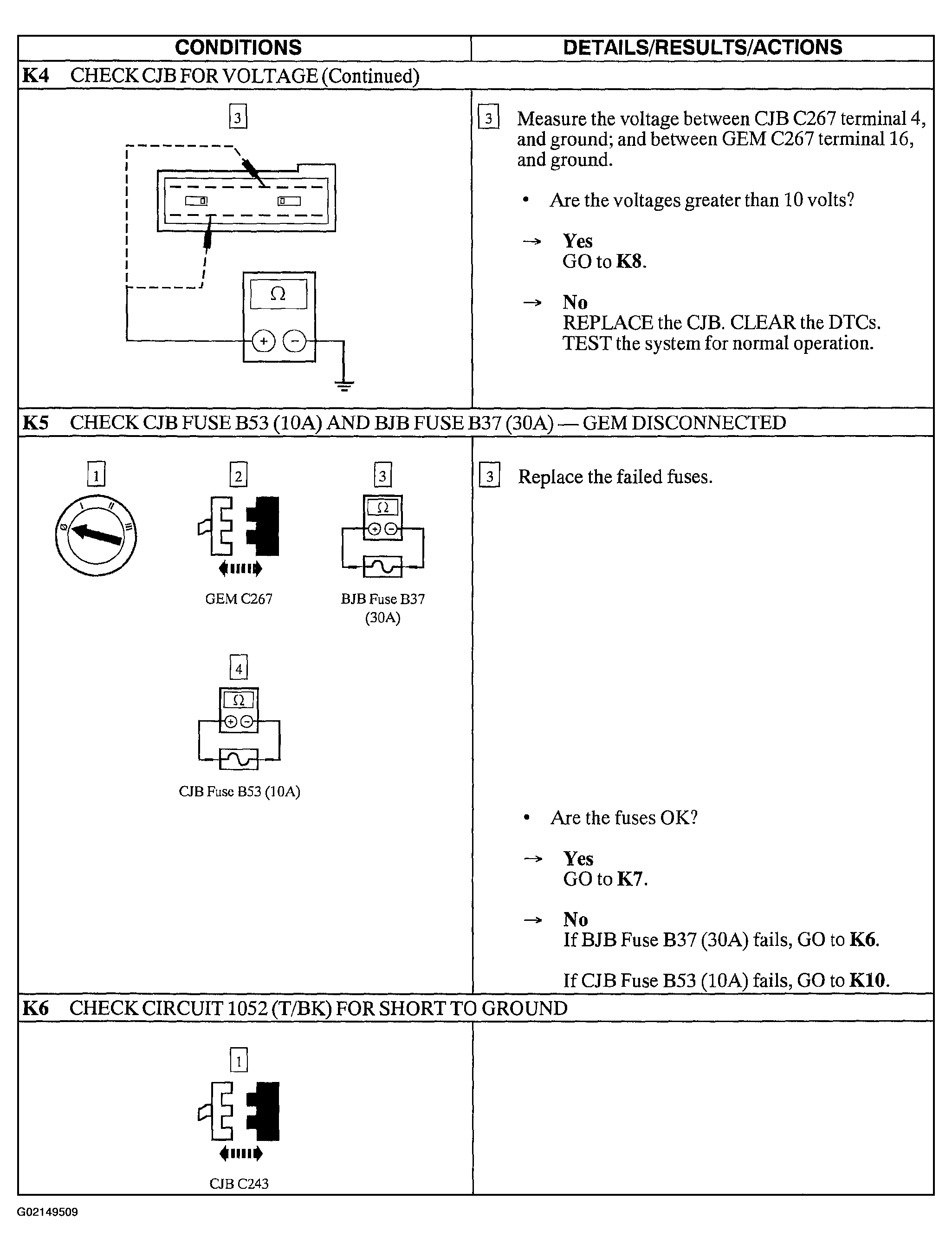

Fig 3: Pinpoint Test K: The Front Axle Is Not Engaging Correctly (Transfer Case Motor Movement OK) (Step K4 Cont.-K6)
G02149509

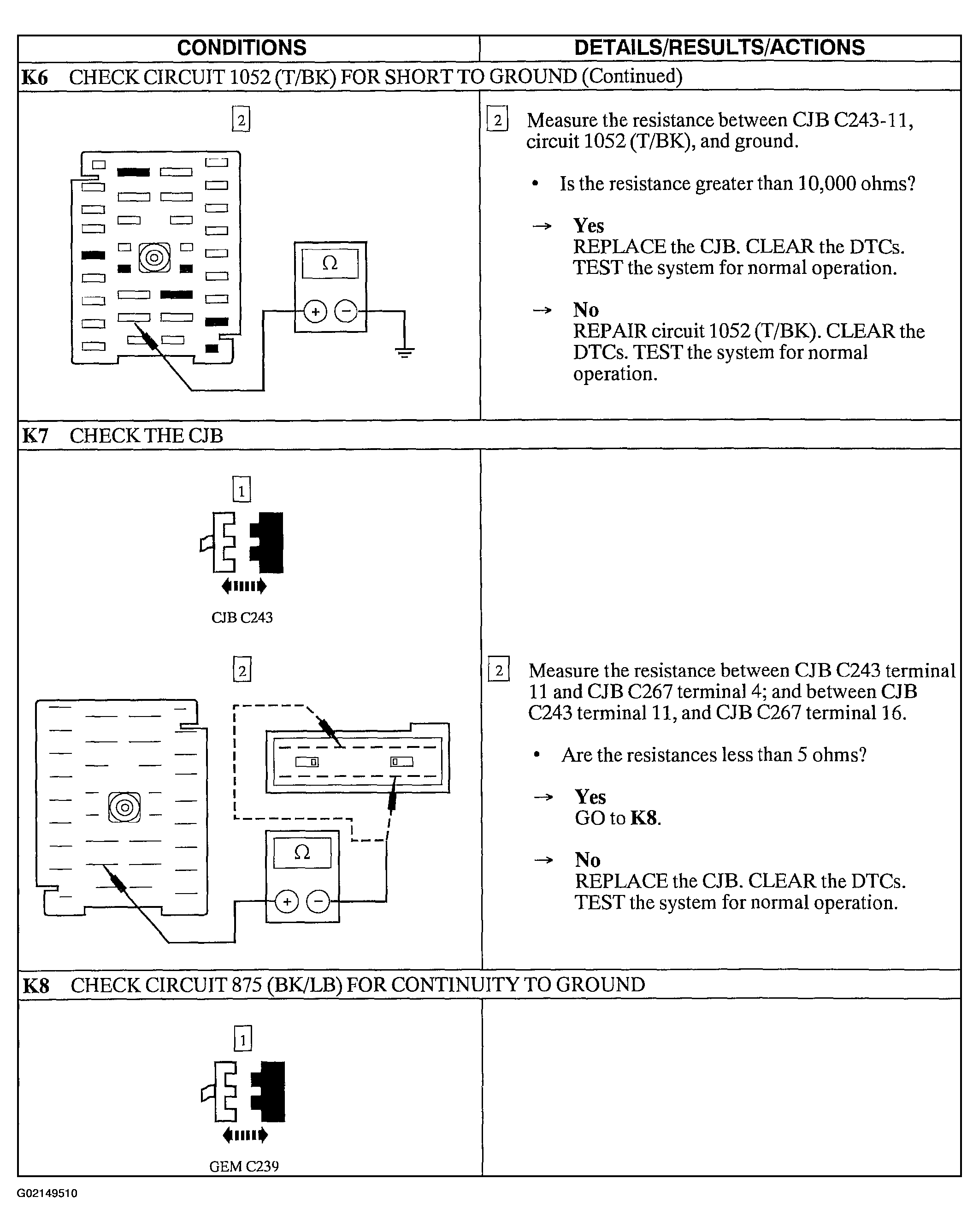

Fig 4: Pinpoint Test K: The Front Axle Is Not Engaging Correctly (Transfer Case Motor Movement OK) (Step K6 Cont.-K8)
G02149510

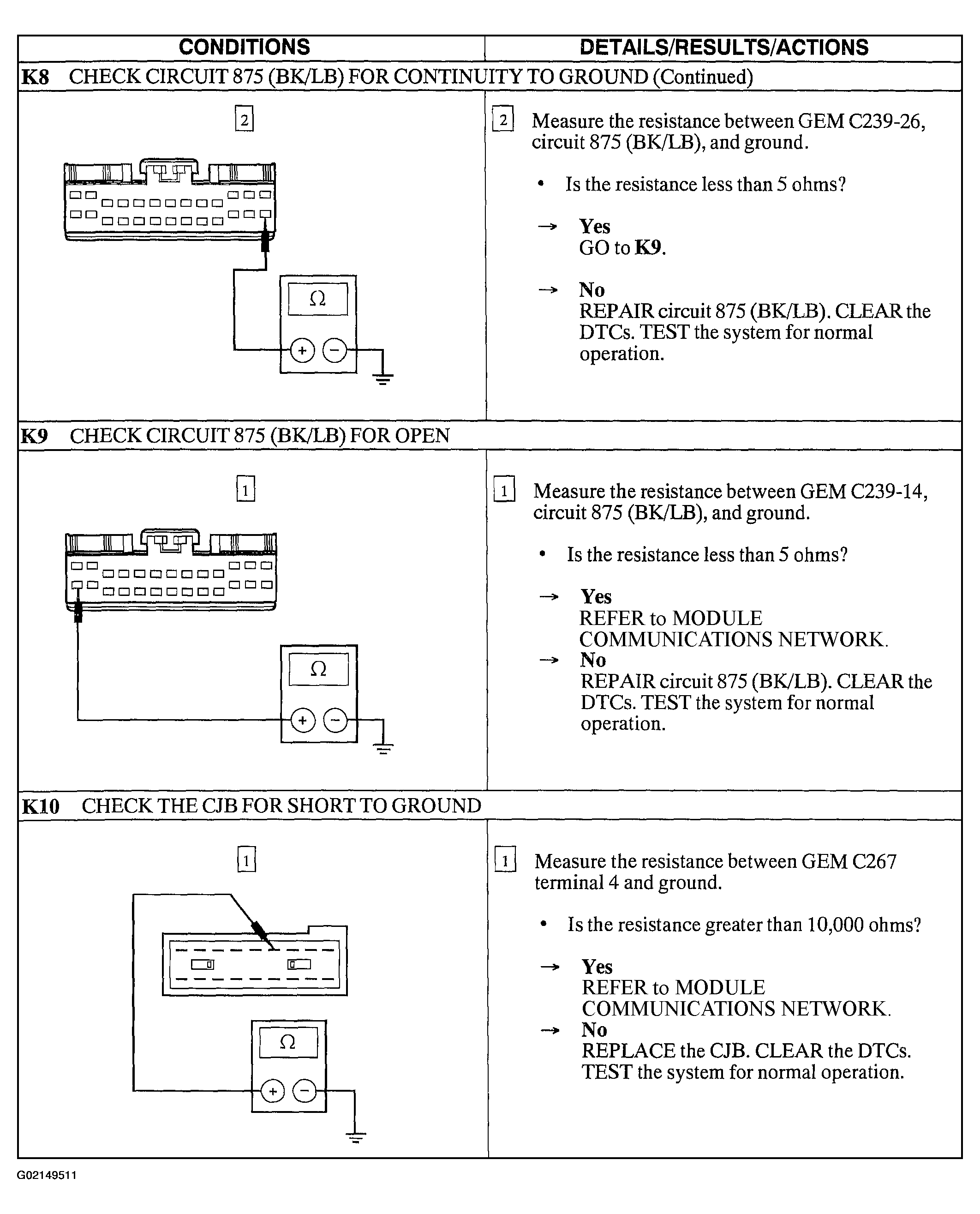

Fig 5: Pinpoint Test K: The Front Axle Is Not Engaging Correctly (Transfer Case Motor Movement OK) (Step K8 Cont.-K10)
G02149511
