GEM/CTM Parameter Identification (PID) Index

WARNING: This page is about a different car, the 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

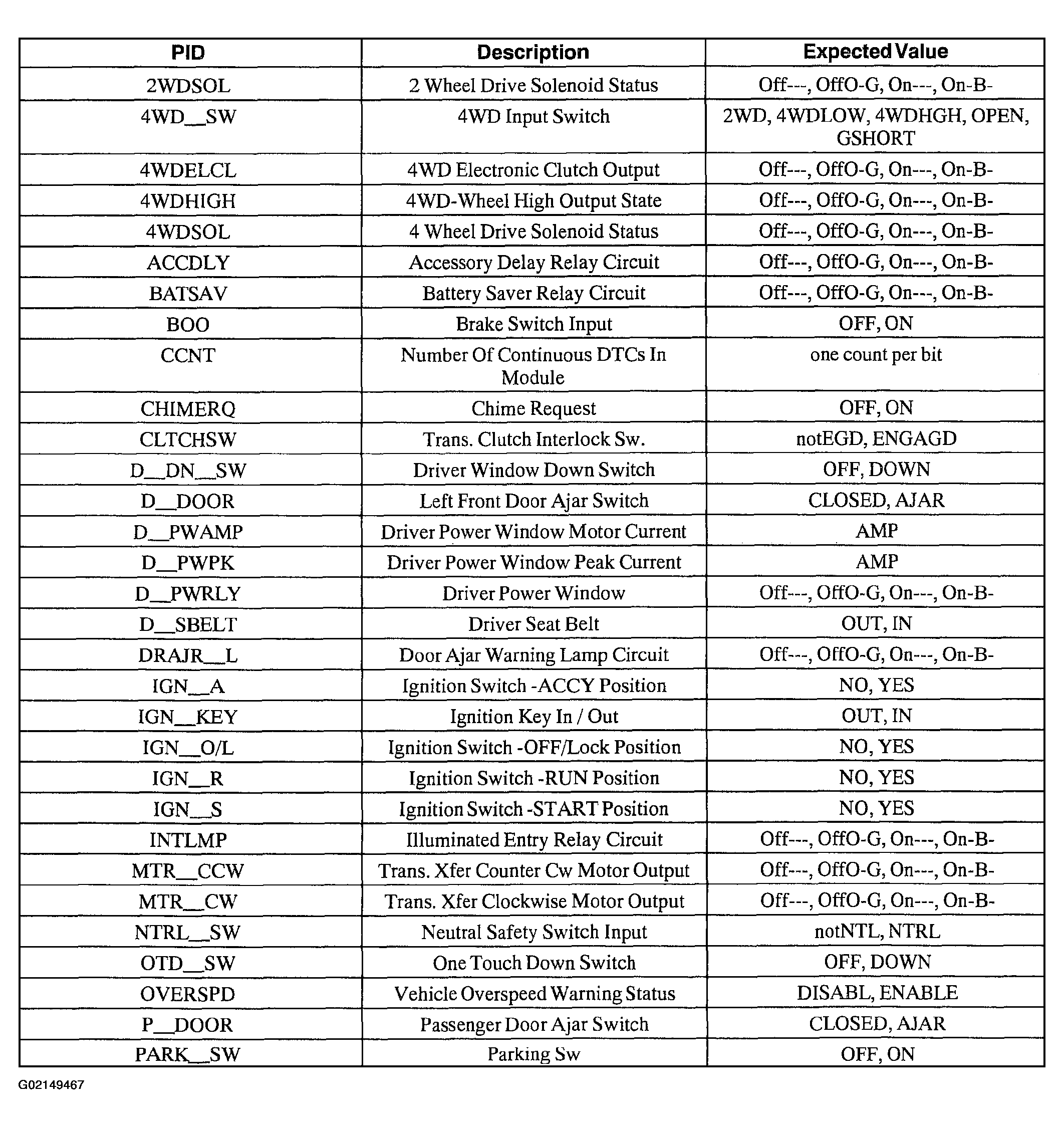

Fig 1: GEM/CTM Parameter Identification (PID) Index
G02149467

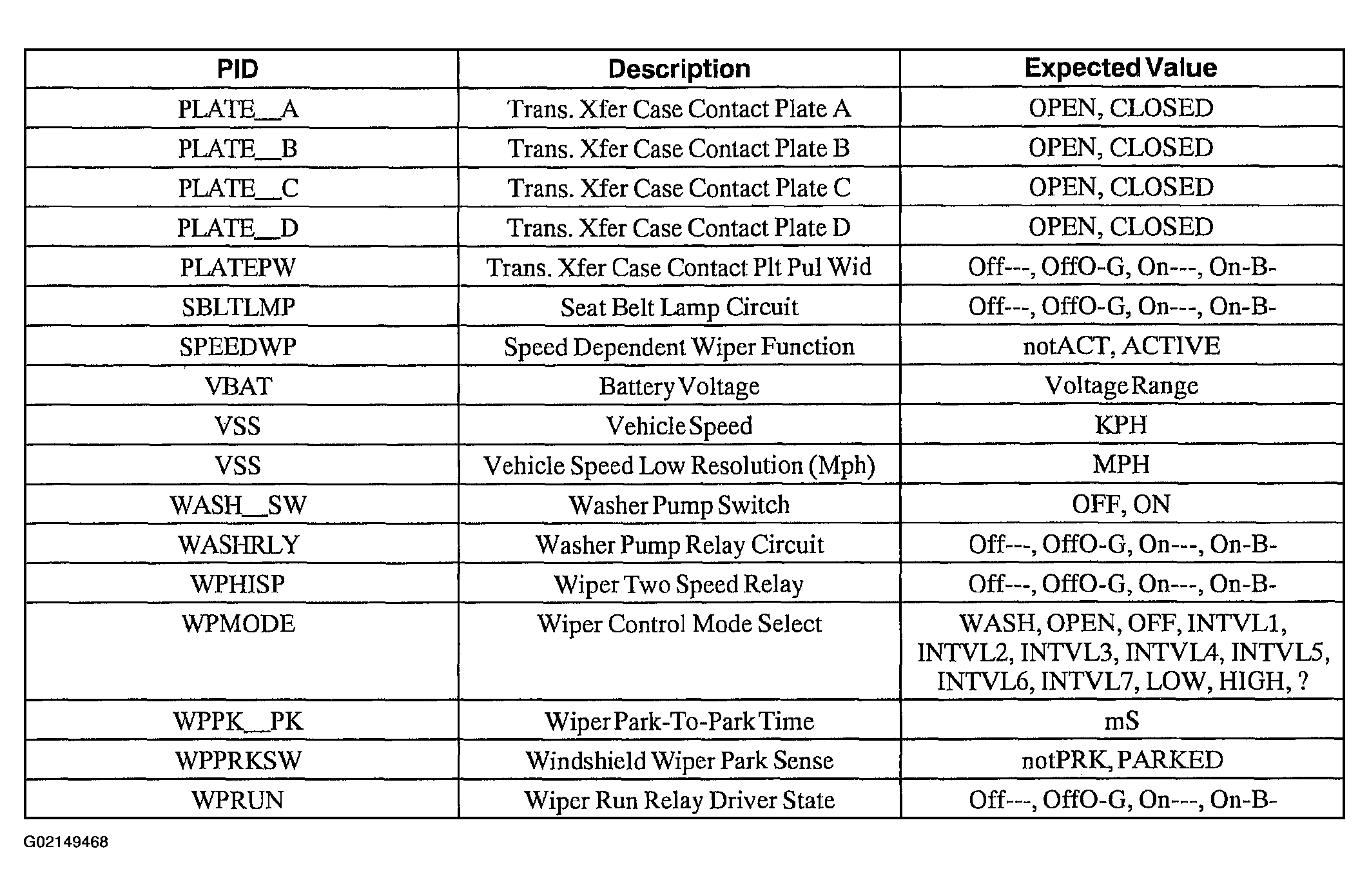

Fig 2: GEM/CTM Parameter Identification (PID) Index
G02149468
