Pinpoint Test F: No Communication With The Module - GEM

WARNING: This page is about a different car, the 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

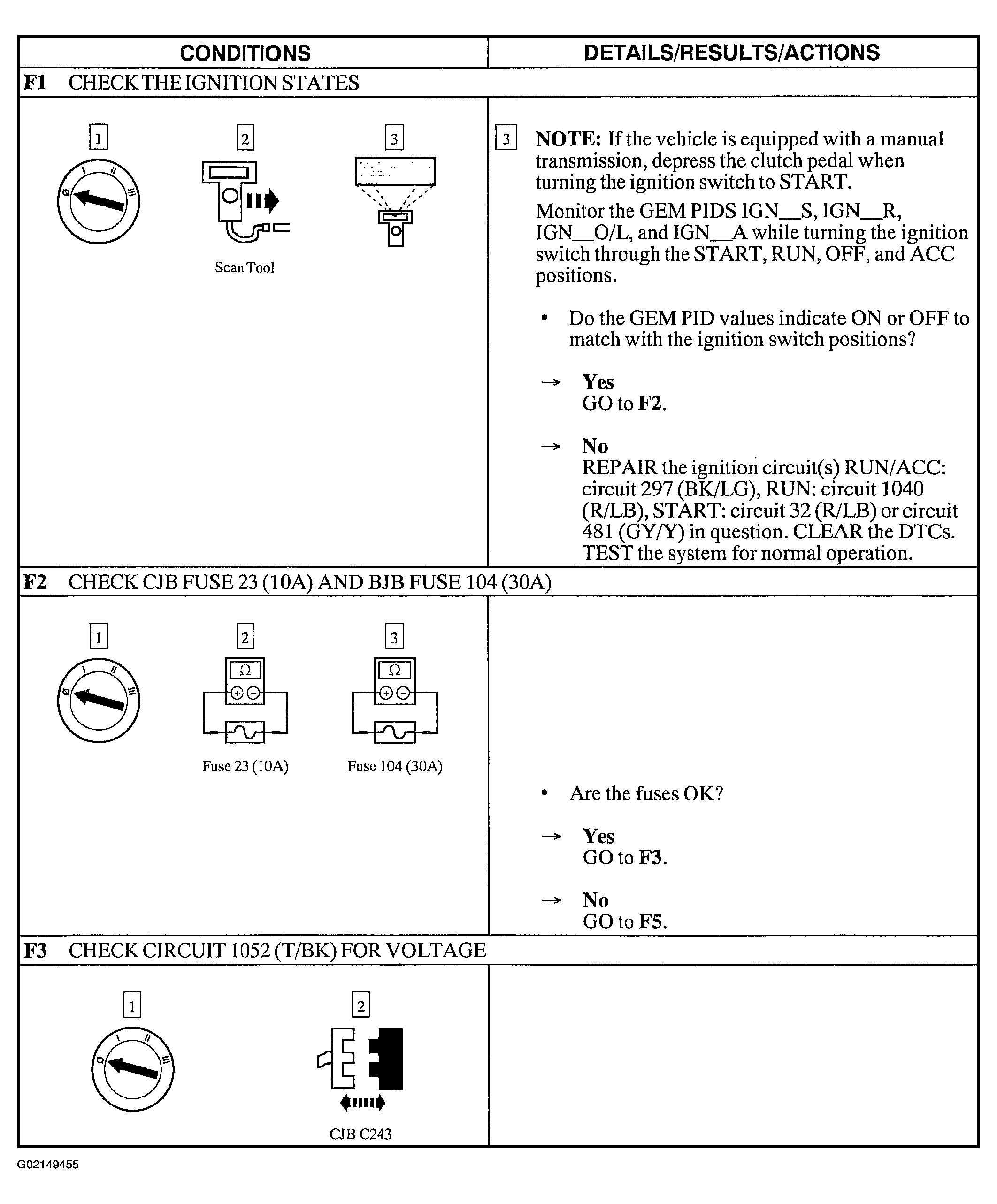

Fig 1: Pinpoint Test F: No Communication With The Module - GEM (Steps F1-F3)
G02149455

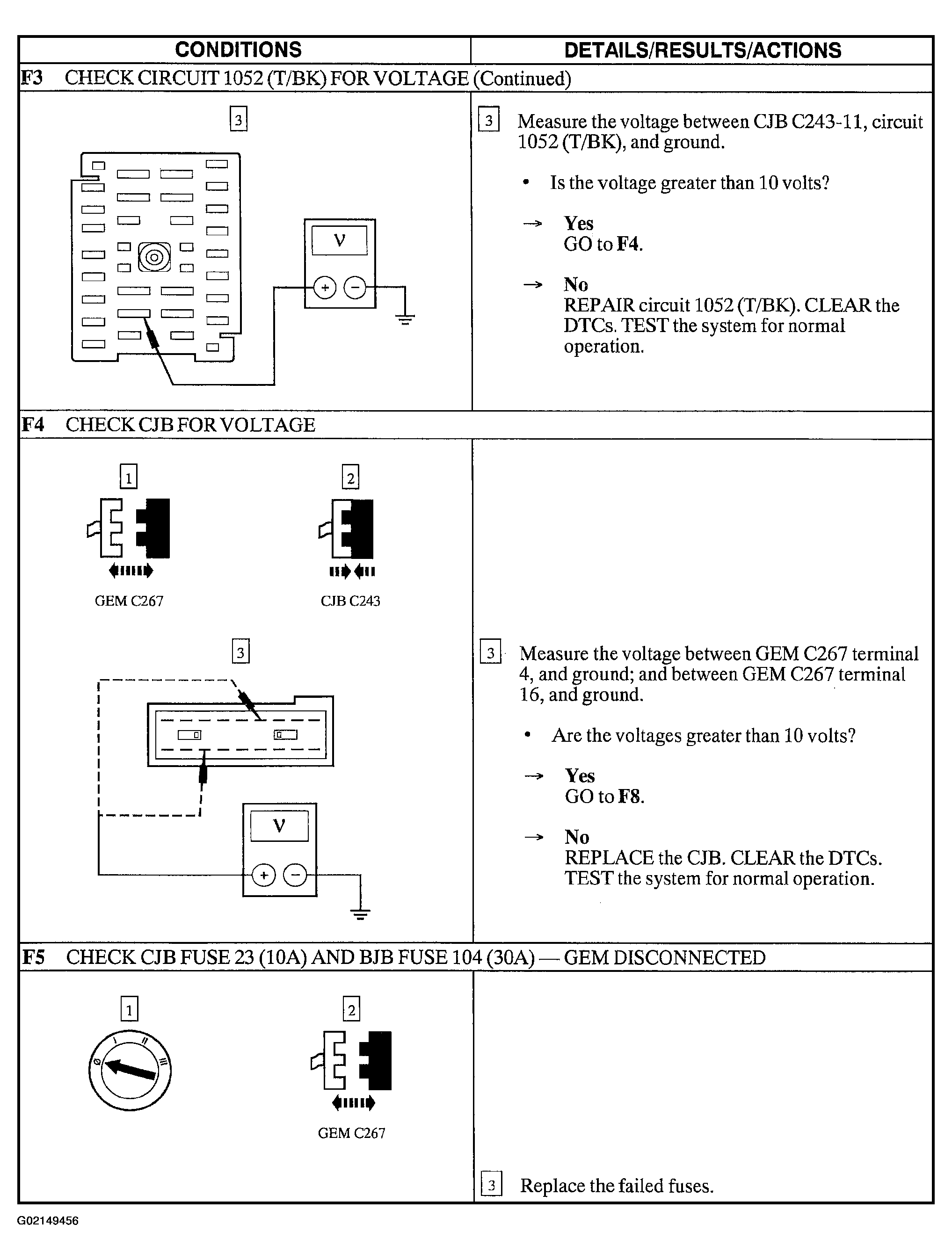

Fig 2: Pinpoint Test F: No Communication With The Module - GEM (Step F3 Cont.-F5)
G02149456

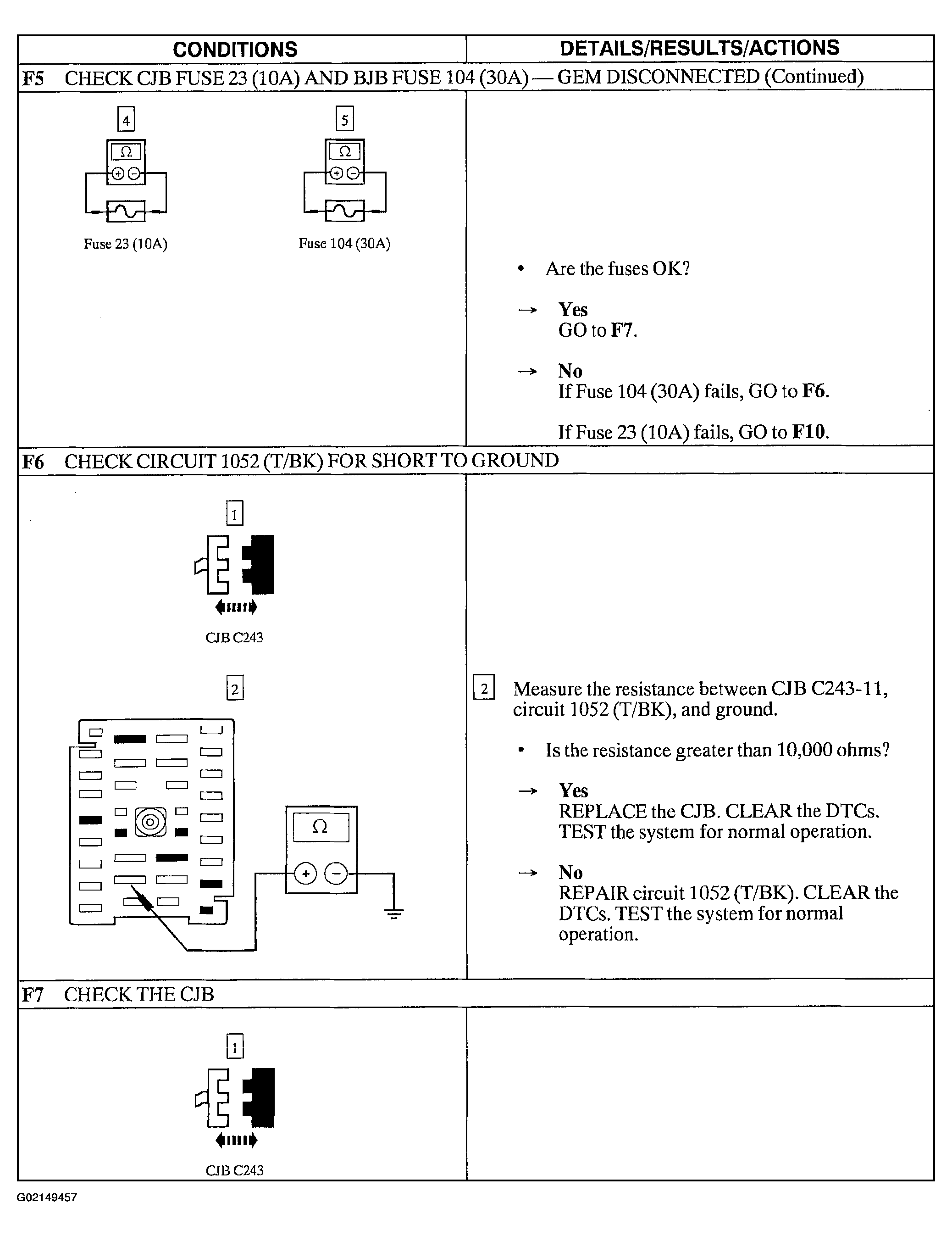

Fig 3: Pinpoint Test F: No Communication With The Module - GEM (Step F5 Cont.-F7)
G02149457

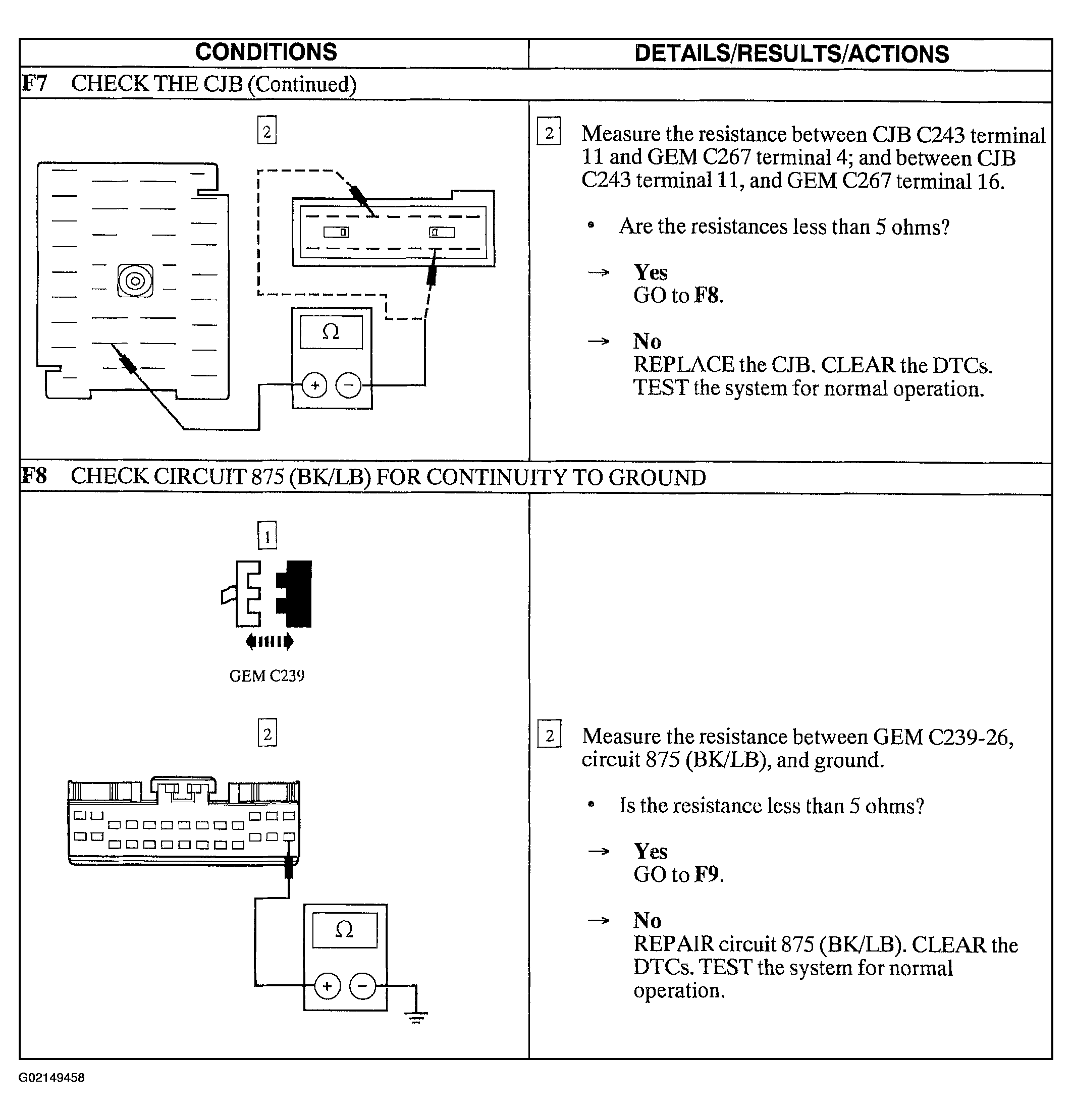

Fig 4: Pinpoint Test F: No Communication With The Module - GEM (Step F7 Cont. & F8)
G02149458

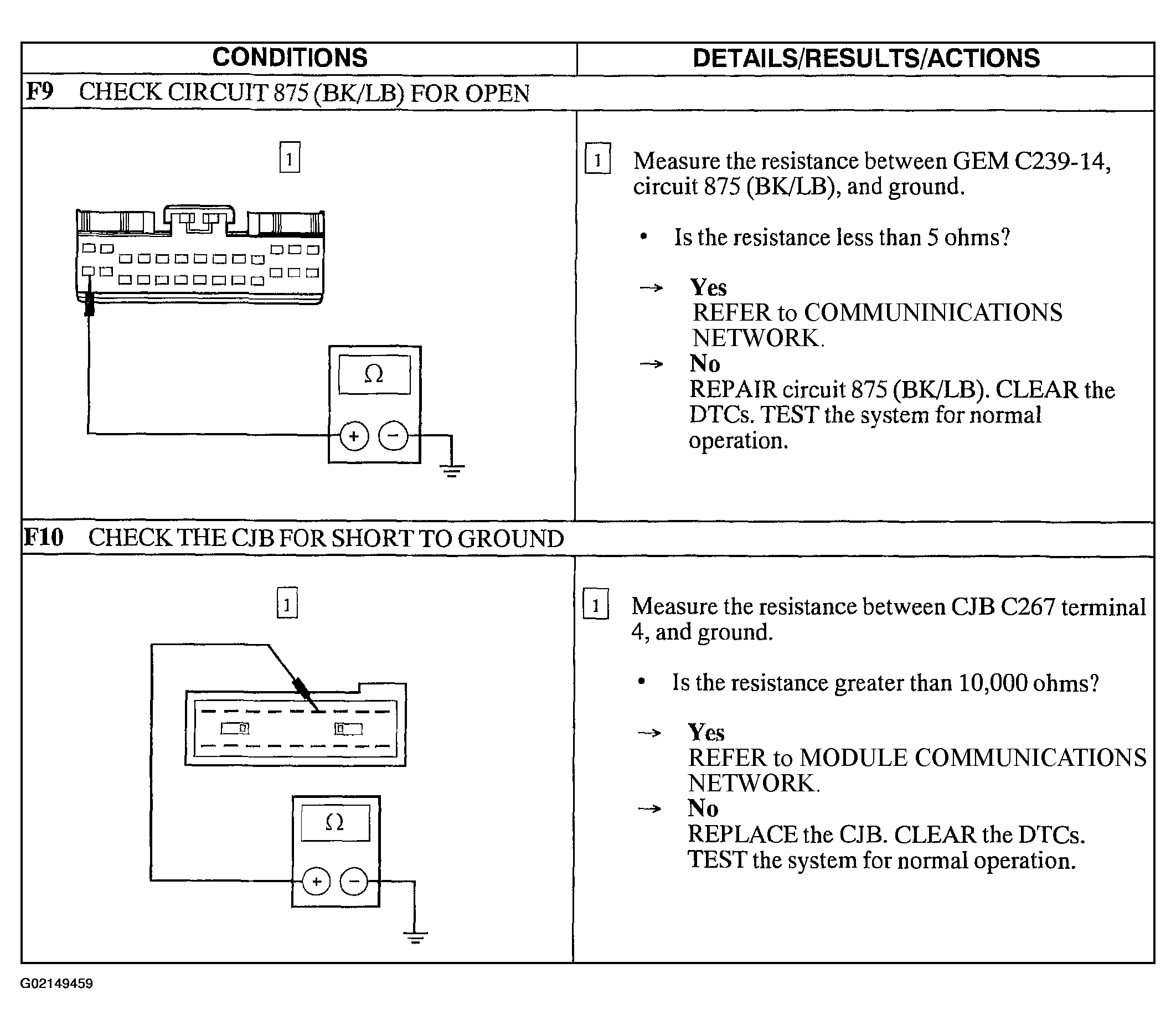

Fig 5: Pinpoint Test F: No Communication With The Module - GEM (Steps F9 & F10)
G02149459
