Special Tool(s)

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

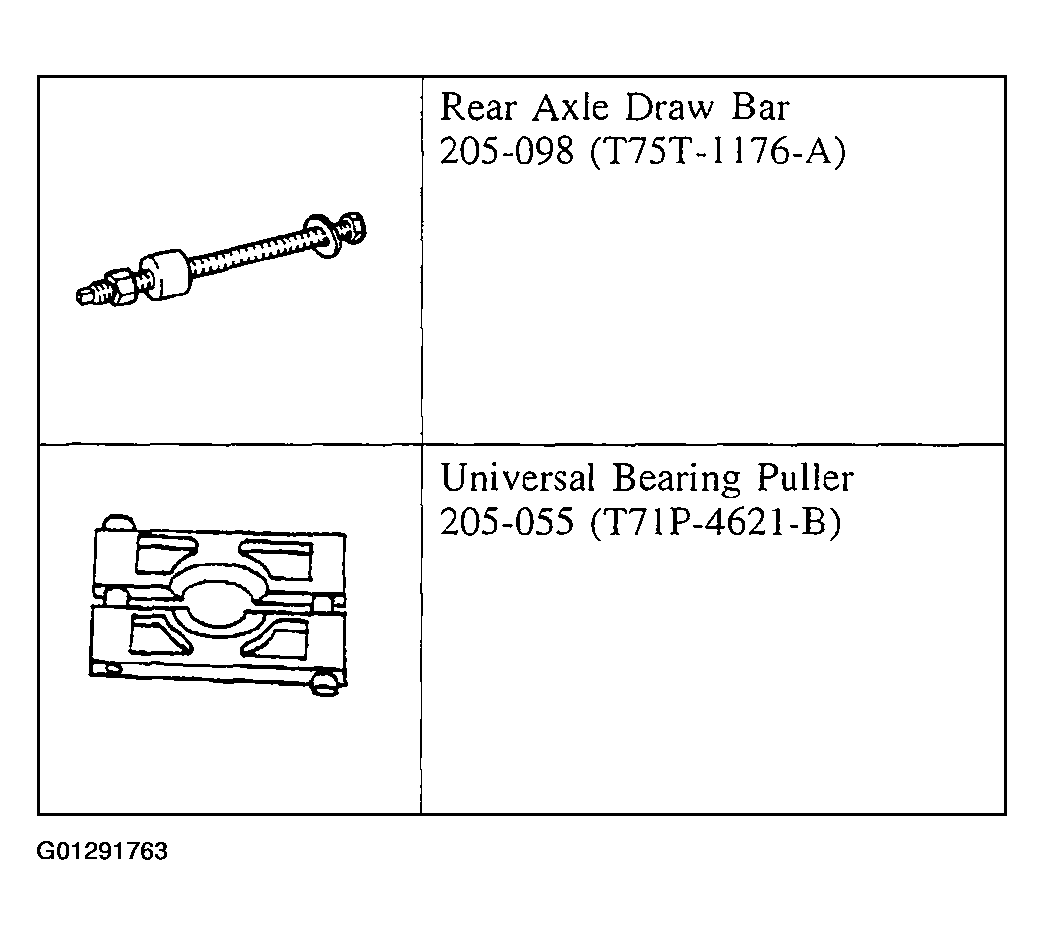

Fig 1: Identifying Special Tools (1 Of 5)

Courtesy of FORD MOTOR CO.

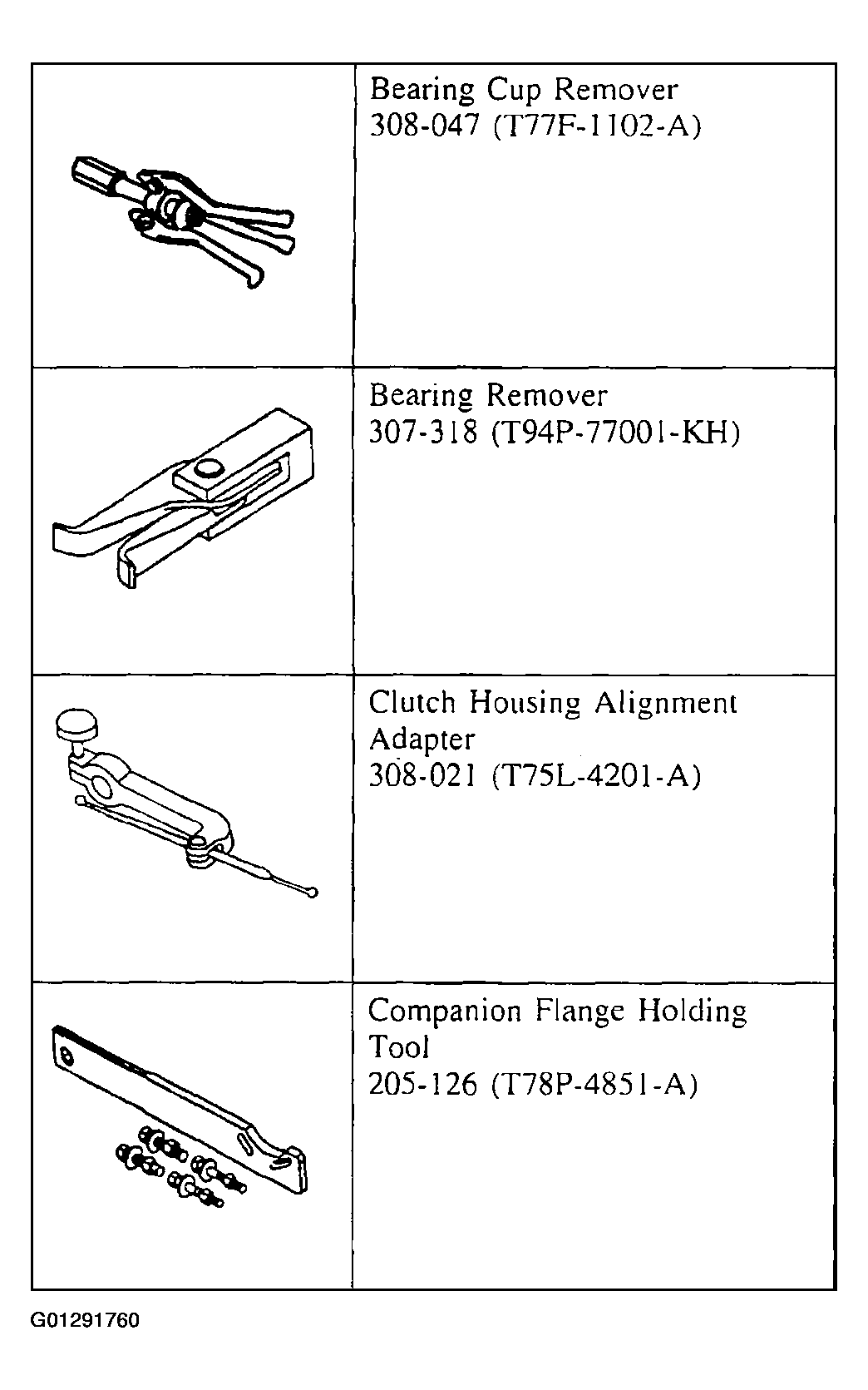

Fig 2: Identifying Special Tools (2 Of 5)

Courtesy of FORD MOTOR CO.

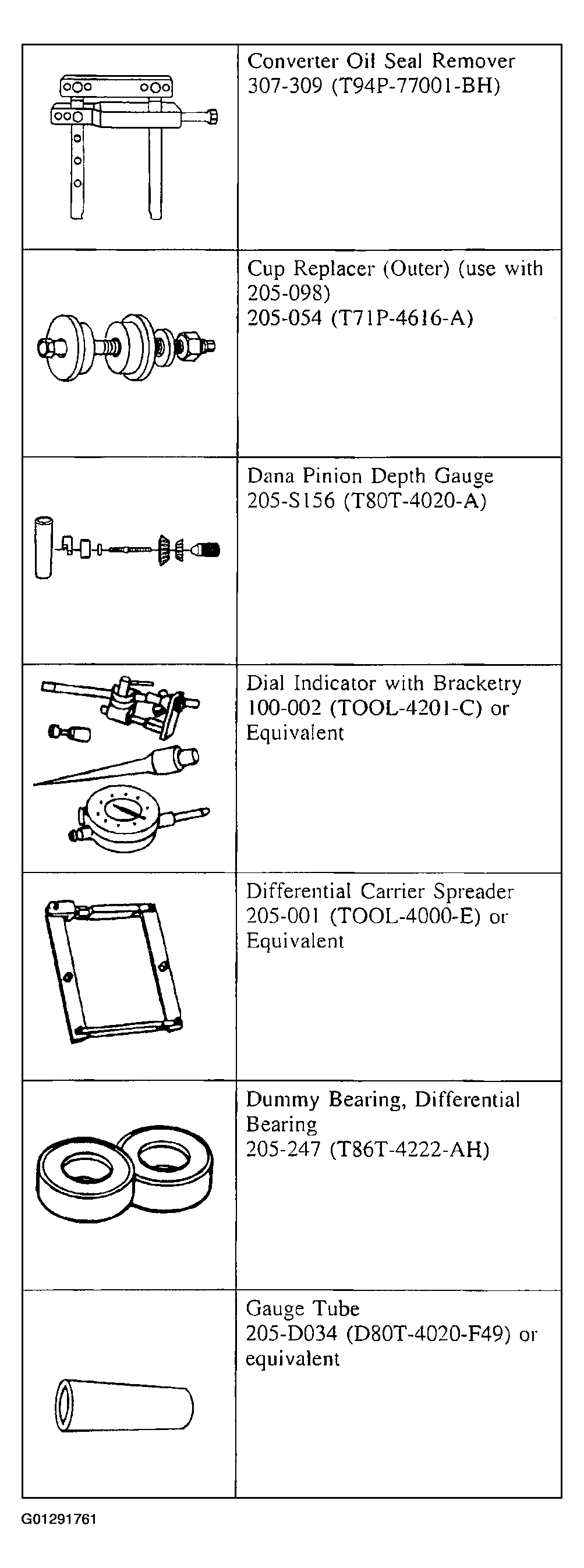

Fig 3: Identifying Special Tools (3 Of 5)

Courtesy of FORD MOTOR CO.

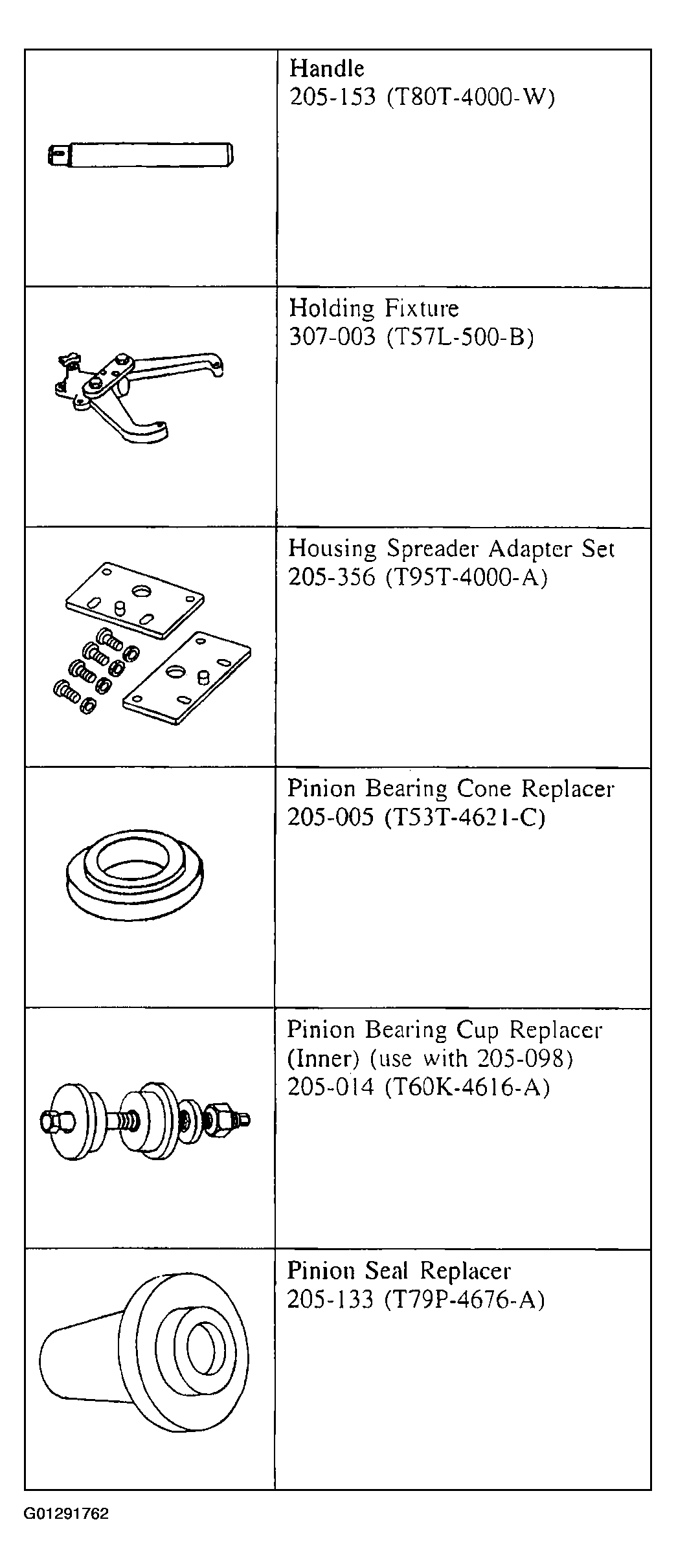

Fig 4: Identifying Special Tools (4 Of 5)

Courtesy of FORD MOTOR CO.

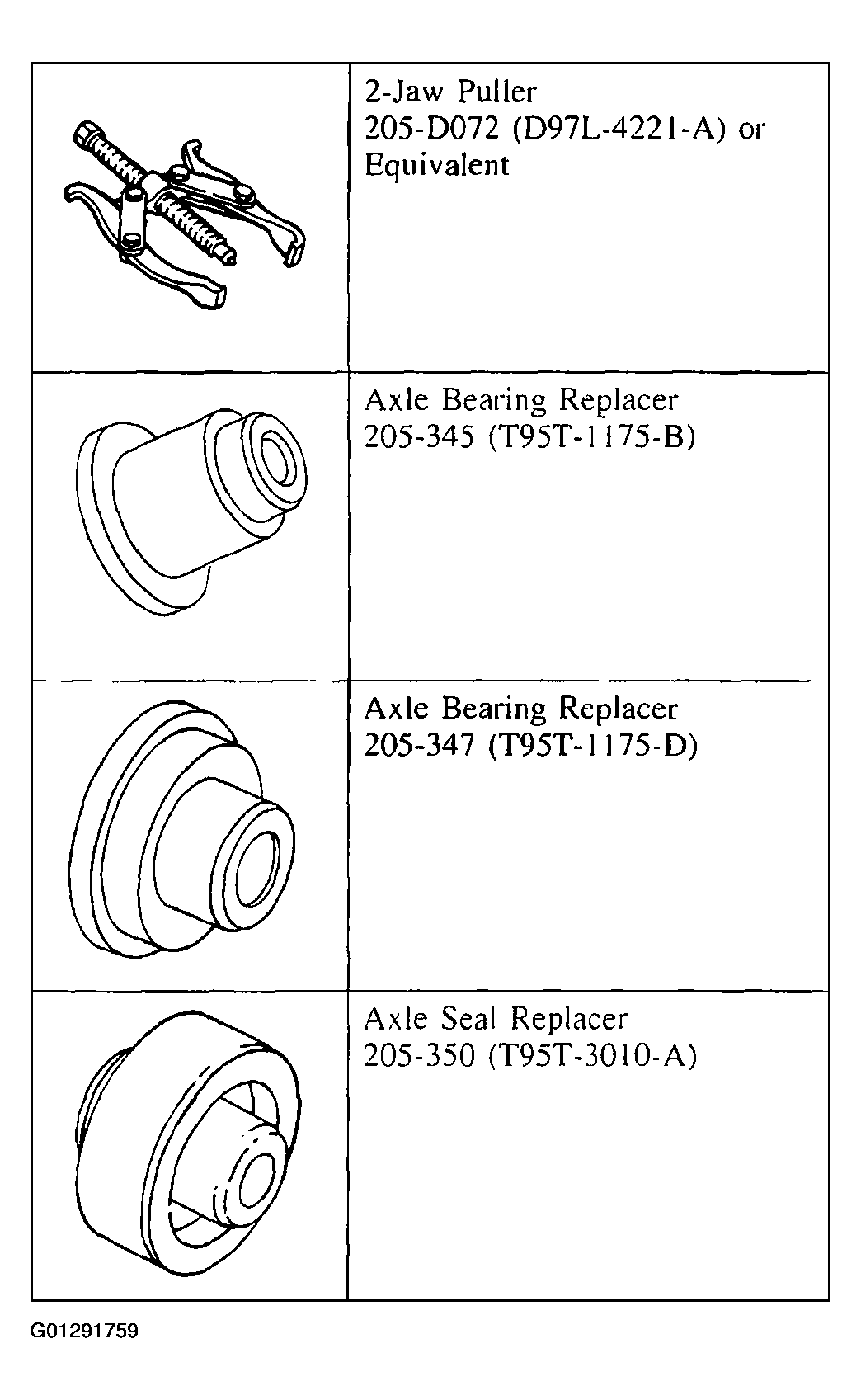

Fig 5: Identifying Special Tools (5 Of 5)

Courtesy of FORD MOTOR CO.
