AWD Dana 35 Exploded View

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

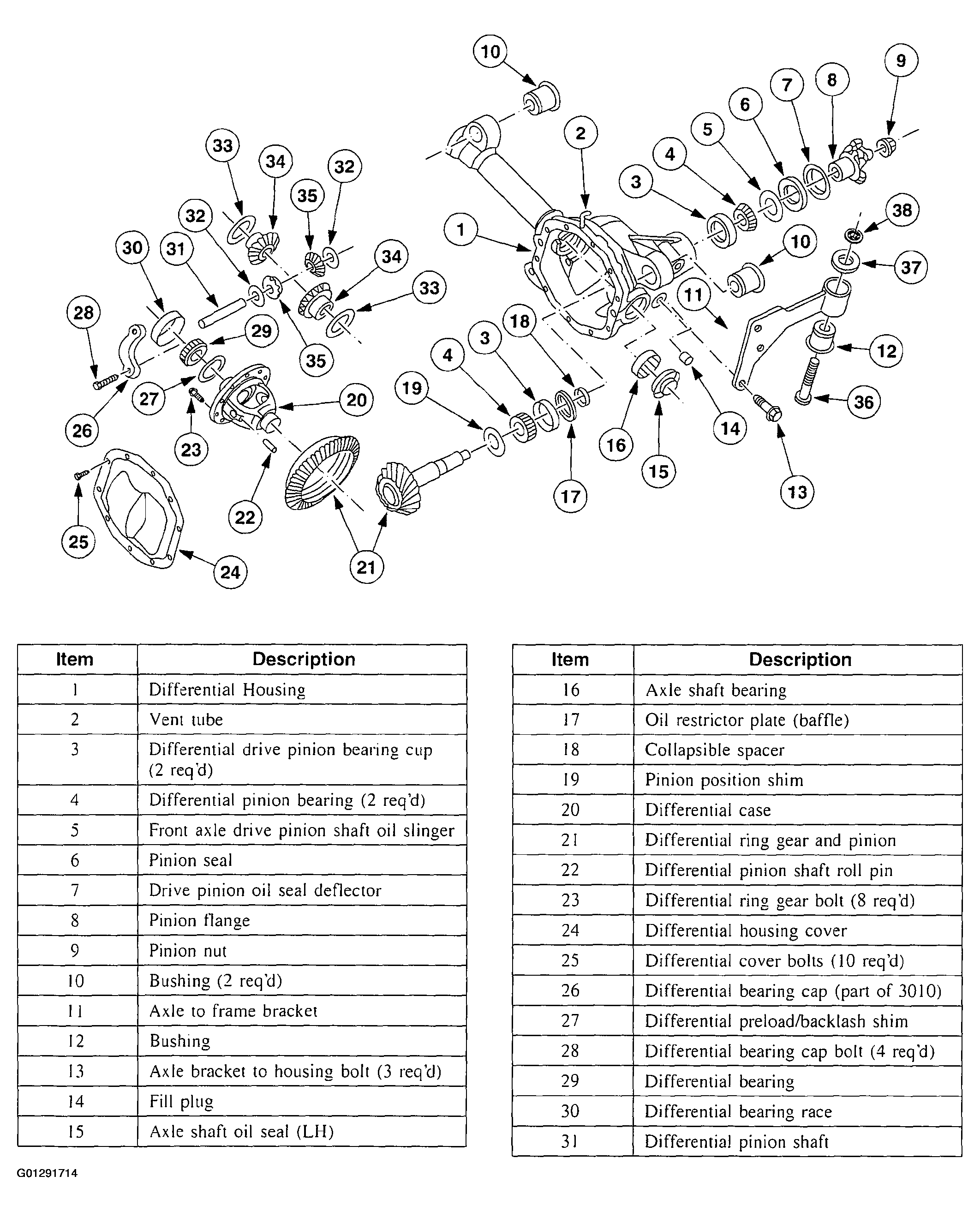

Fig 1: Exploded View Of AWD Dana 35 (1 Of 2)
G01291714Courtesy of FORD MOTOR CO.

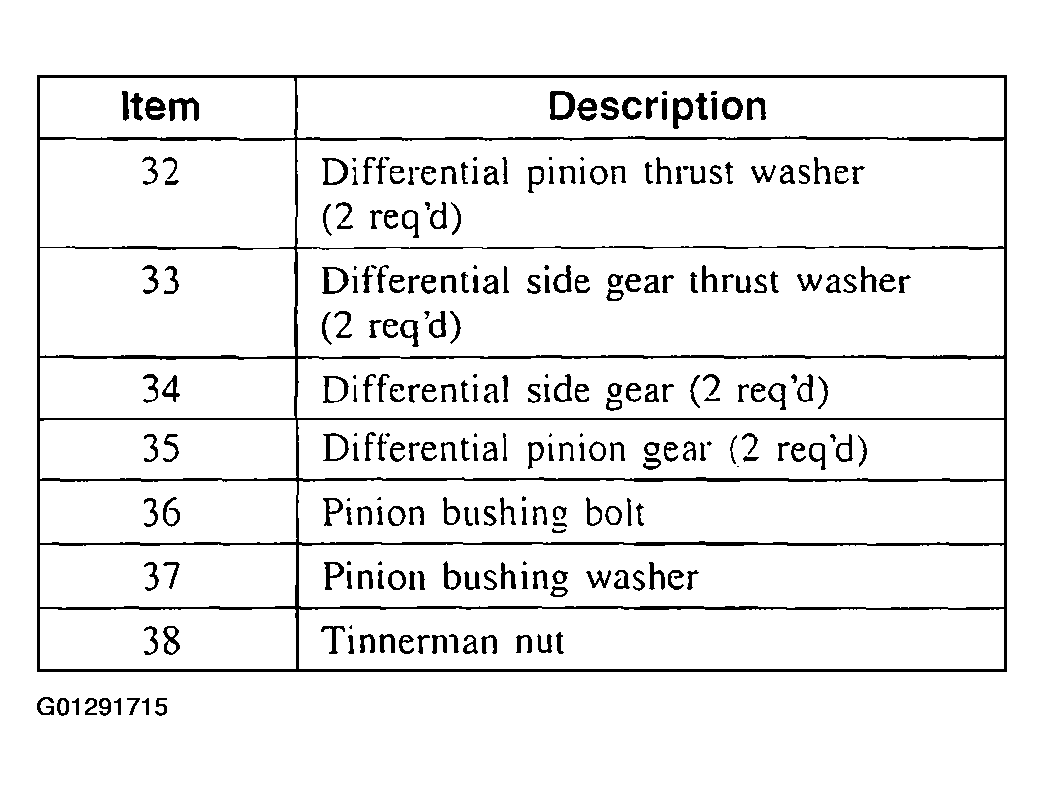

Fig 2: Exploded View Of AWD Dana 35 (2 Of 2)
G01291715Courtesy of FORD MOTOR CO.
