Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft (4234). For additional information, refer to AXLE SHAFT .
    2. NOTE: If the wheel bearing oil seal (1177) is leaking, the differential housing vent may be plugged with foreign material.

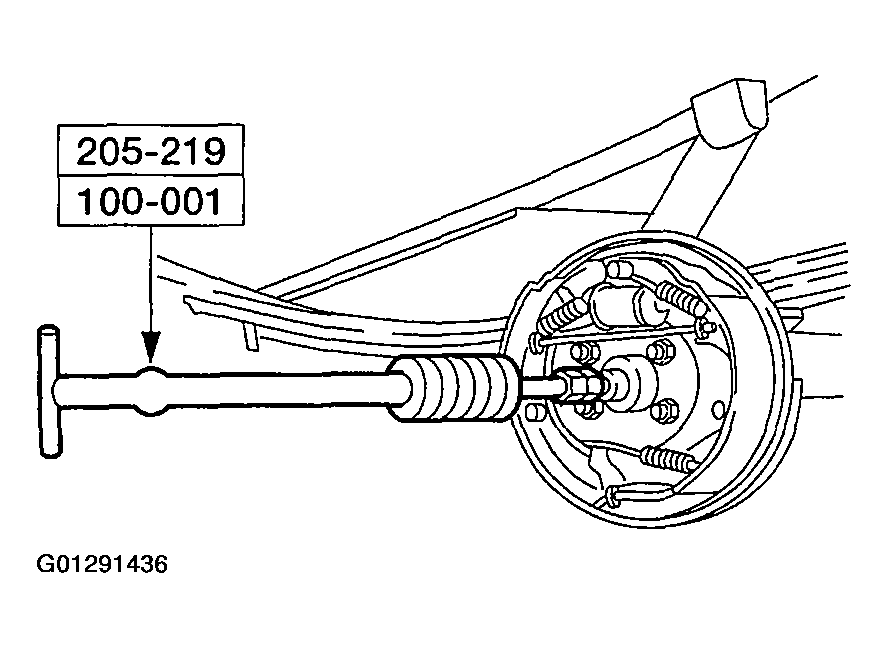

    Fig 1: Removing Rear Wheel Bearing & Wheel Bearing Oil Seal
    G01291436Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the rear wheel bearing (1225) and wheel bearing oil seal.
