Drive Pinion Flange: Removal

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel and tire assemblies.
    2. CAUTION: Remove the brake drums (1126) to prevent brake drag during drive pinion bearing preload adjustment.
  2. Remove the brake drums. For additional information, refer to DISC & DRUM .
    3. CAUTION: Index-mark the driveshaft flange and pinion flange (4851) for correct alignment during installation.

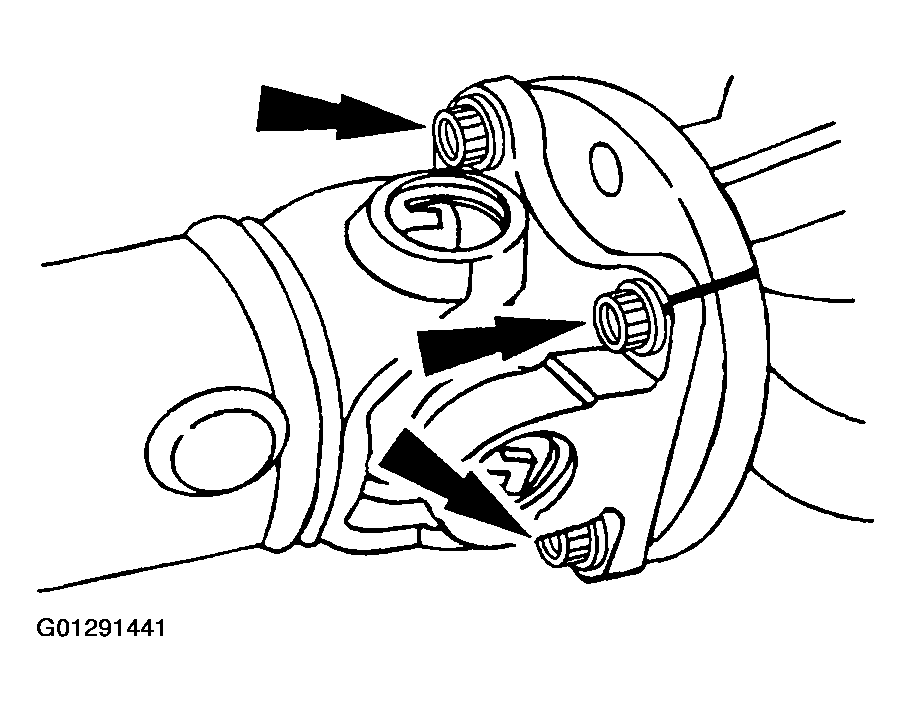

    Fig 1: Removing Four Driveshaft Bolts
    G01291441Courtesy of FORD MOTOR CO.
  3. Remove the four bolts.
    4. CAUTION: The driveshaft flange fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the pinion flange. Pry only in the area shown with a suitable tool to disconnect the driveshaft flange from the pinion flange.

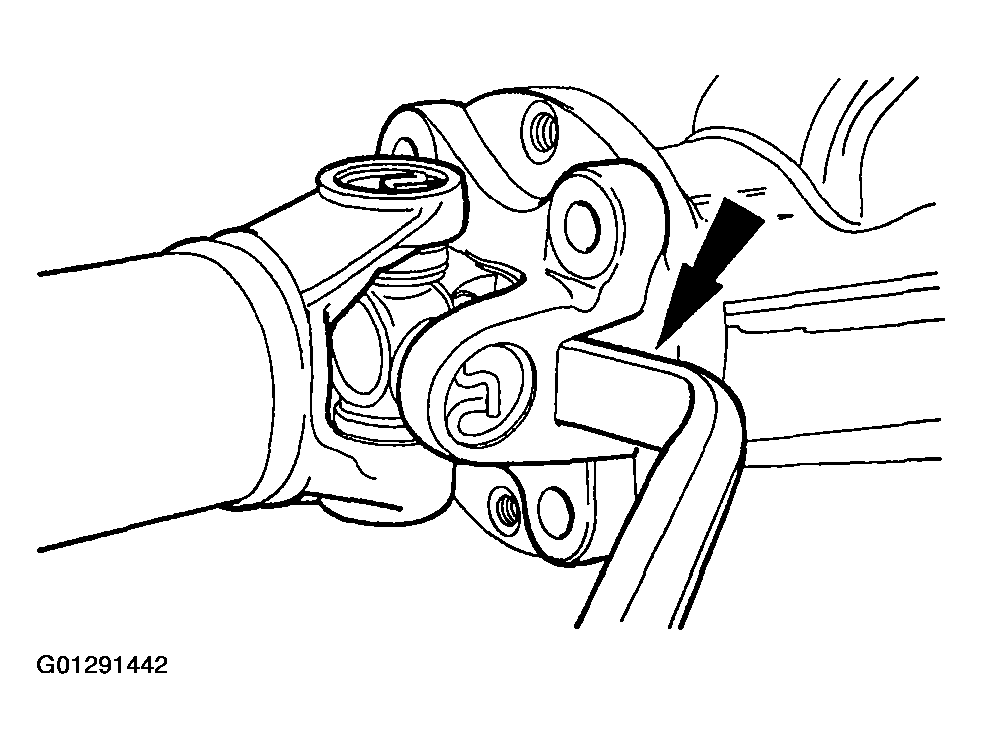

    Fig 2: Disconnecting Driveshaft Flange From Rear Axle Pinion Flange
    G01291442Courtesy of FORD MOTOR CO.
  4. Using a suitable tool as shown, disconnect the driveshaft flange from the rear axle pinion flange.
  5. Install a Nm (inch-pound) torque wrench on the nut and record the torque necessary to maintain rotation of the pinion through several revolutions.

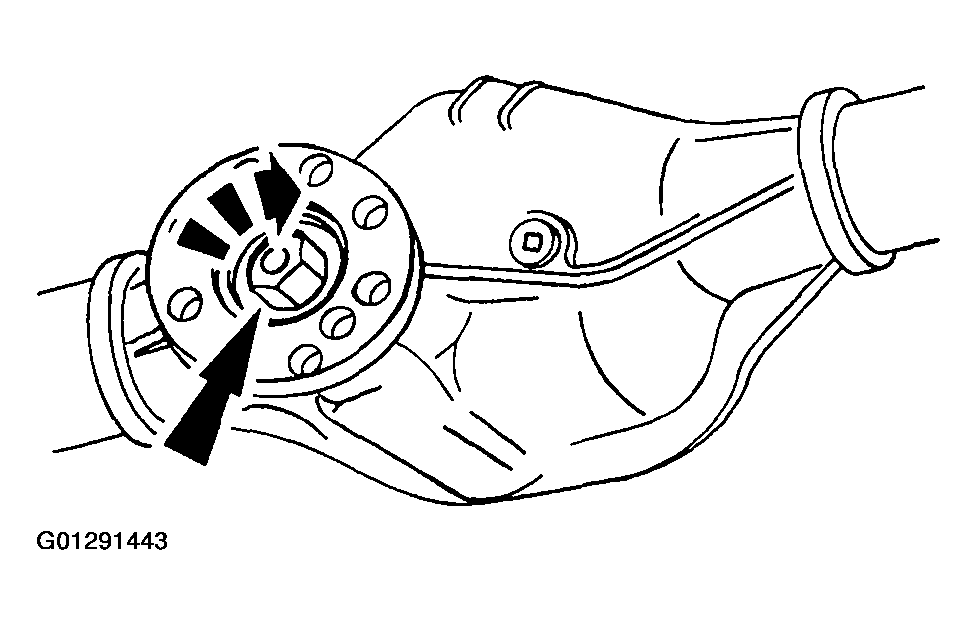

    Fig 3: Installing Torque Wrench On Nut
    G01291443Courtesy of FORD MOTOR CO.
    6. CAUTION: Discard the nut after removing it. Install a new nut during installation.
    Fig 4: Using Special Tool To Hold Pinion Flange While Removing Nut
    G01291444Courtesy of FORD MOTOR CO.
  6. Use the special tool to hold the pinion flange while removing the nut.
  7. Index-mark the pinion flange and the drive pinion stem for correct alignment during installation.

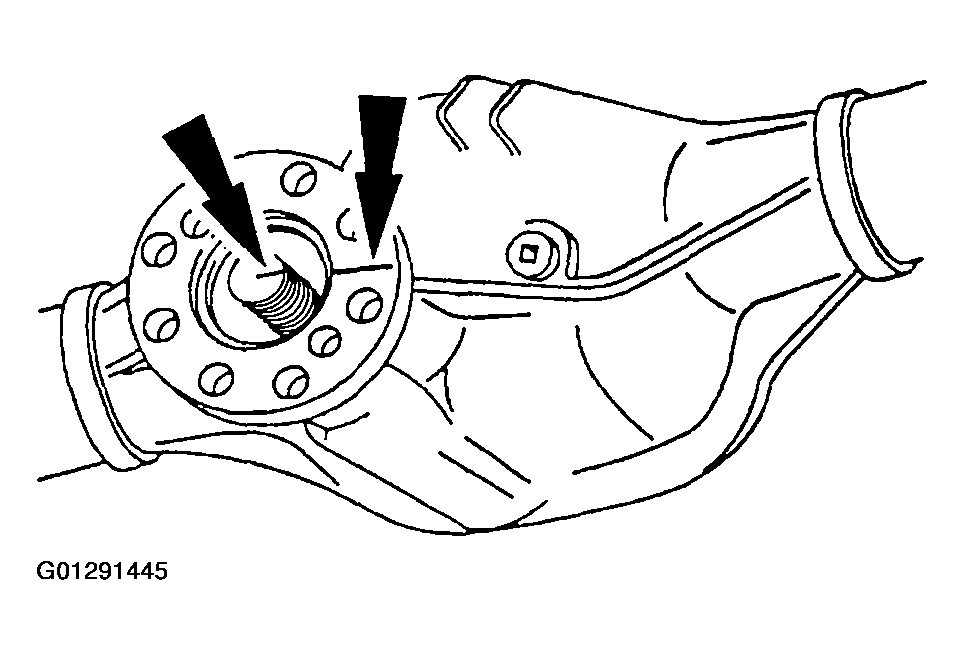

    Fig 5: Index-Marking Pinion Flange & Drive Pinion Stem For Correct Alignment During Installation
    G01291445Courtesy of FORD MOTOR CO.
  8. Using the special tool, remove the pinion flange.

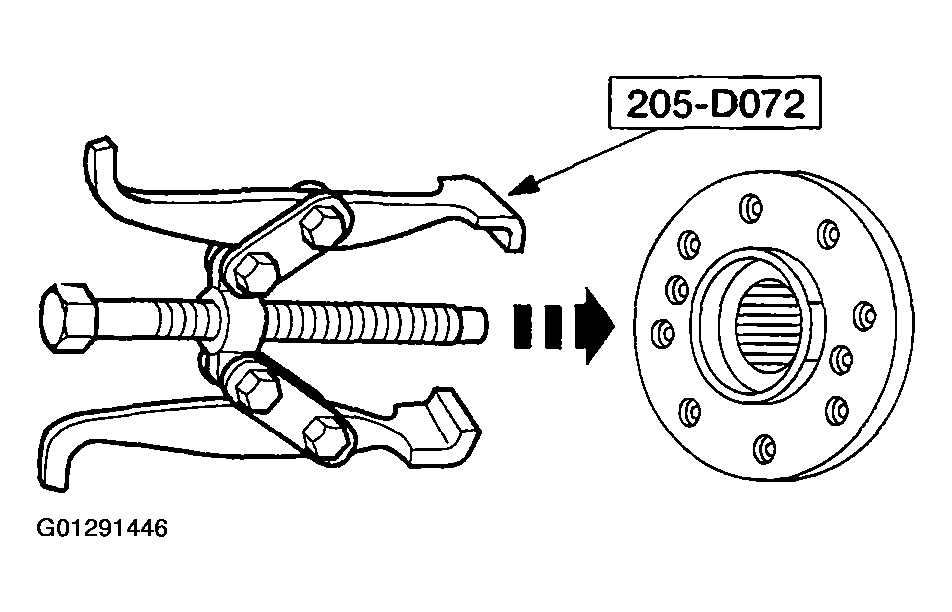

    Fig 6: Removing Pinion Flange
    G01291446Courtesy of FORD MOTOR CO.
