Reverse Position Power Flow

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

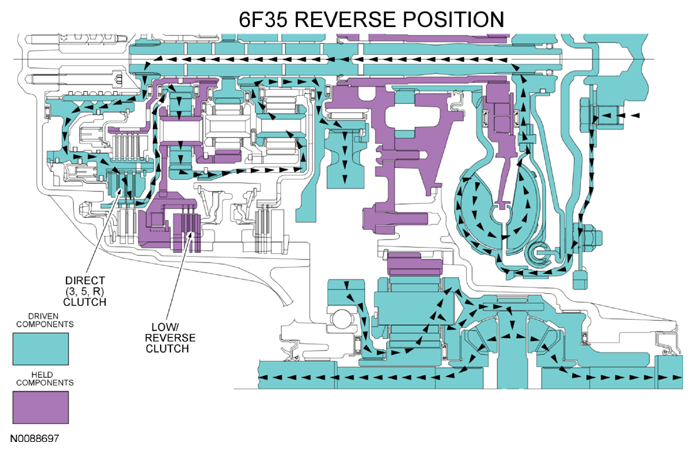

Fig 1: 6F35 Reverse Position Power Flow Diagram
G07782585Courtesy of FORD MOTOR CO.
