6th Gear Torque Converter Clutch (TCC) Applied: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

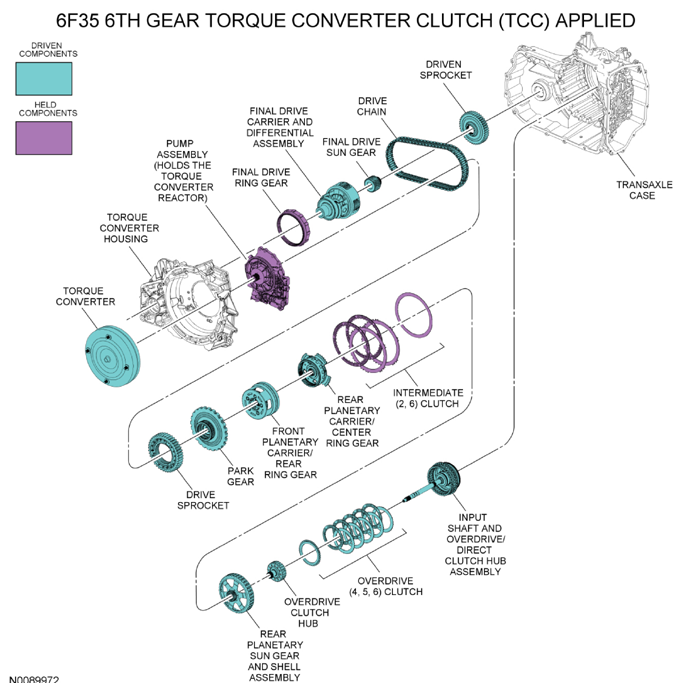

Fig 1: Exploded View Of Transaxle 6F35 6th Gear Torque Converter Clutch Applied Components
G07782605Courtesy of FORD MOTOR CO.
