3rd Gear: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

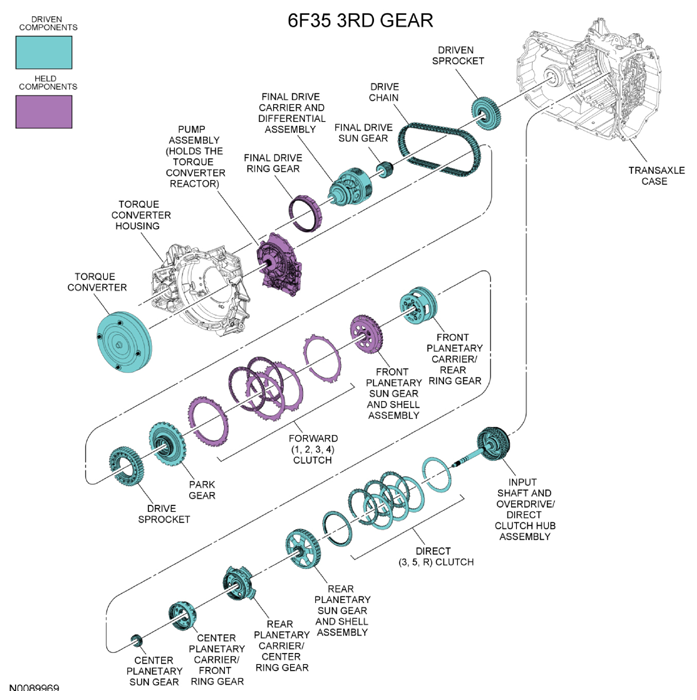

Fig 1: Exploded View Of Transaxle 6F35 3rd Gear Components
G07782596Courtesy of FORD MOTOR CO.
