Solenoid Body
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

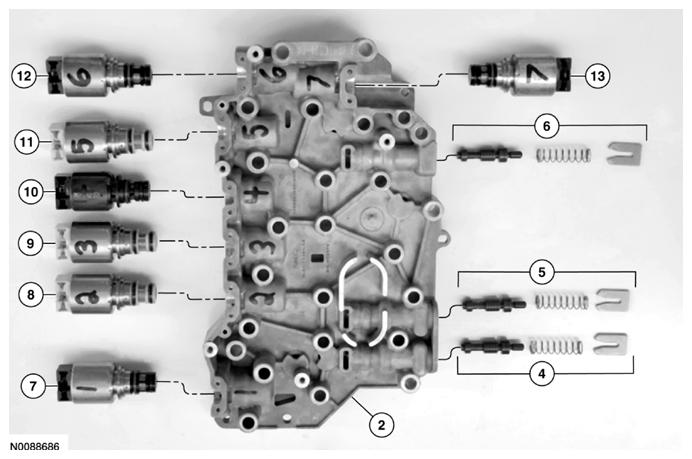

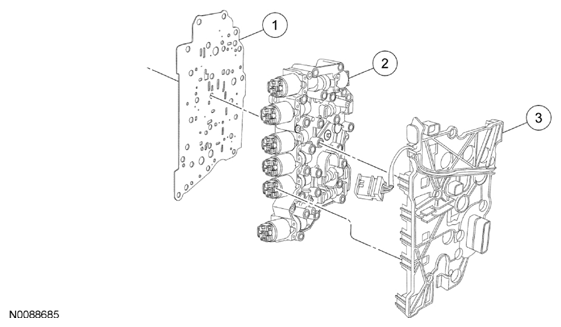

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7Z490 | Main control valve body-to-solenoid body separator plate |
| 2 | 7G391 | Solenoid body |
| 3 | 7G276 | Solenoid body leadframe |
| 4 | 7J187 | Direct (3, 5, R) clutch latch valve |
| 5 | 7J187 | Intermediate (2, 6) clutch latch valve |
| 6 | 7J187 | Low reverse/overdrive (4, 5, 6) clutch latch valve |
| 7 | 7G383 | Line Pressure Control (LPC) solenoid |
| 8 | 7G136 | Shift Solenoid C (SSC) |
| 9 | 7G136 | Torque Converter Clutch (TCC) |
| 10 | 7G484 | ON/OFF solenoid |
| 11 | 7G136 | Shift Solenoid A (SSA) |
| 12 | 7G383 | Shift Solenoid B (SSB) |
| 13 | 7G383 | Shift Solenoid D (SSD) |
