Torque Converter Clutch (TCC) And Lubrication Hydraulic Circuits

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Pressure for TCC release is supplied by the main pressure regulator valve to the TCC control valve through the CONV FD circuit. The CONV FD circuit also supplies lubrication for the differential. When the TCC is released, the TCC control valve is positioned by the TCC solenoid to direct CONV FD pressure to the TCC RELEASE circuit to release the TCC. TCC RELEASE pressure returns to the TCC control valve through the TCC APPLY circuit. The position of the TCC control valve opens the TCC APPLY circuit to the COOLER FD circuit which allows the transmission fluid returned from the torque converter to cycle through the thermal bypass valve circuit when the Transmission Fluid Temperature (TFT) is below 80°C-93°C (176°F-200°F) or the transmission fluid cooler when the temperature is above 80°C-93°C (176°F-200°F).

Return transmission fluid from the thermal bypass valve or the transmission fluid cooler supplies transaxle lubrication through the LUBE circuit which runs through the input shaft.

For lubrication passage location and description, refer to MECHANICAL COMPONENTS AND FUNCTIONS  in this service information.

The position of the TCC control valve is controlled by pressure from the TCC solenoid through the VBS TCC circuit. The TCC solenoid is controlled by the PCM.

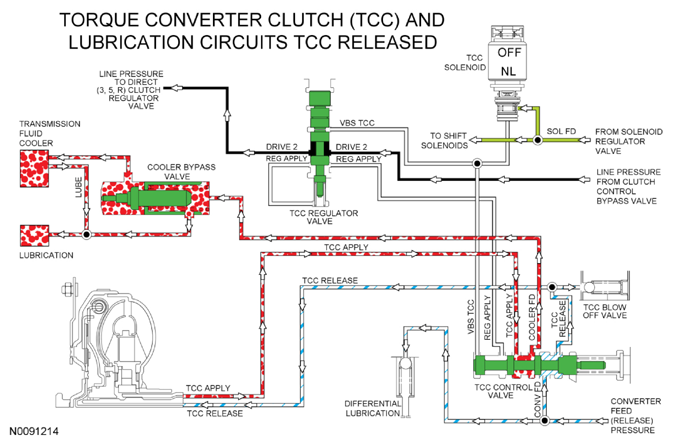

Fig 1: Torque Converter Clutch (TCC) And Lubrication Flow Diagram (TCC Released)
G07782552Courtesy of FORD MOTOR CO.

When the TCC clutch is applied, the TCC solenoid applies pressure to the TCC control and regulator valves to position the valves to apply the TCC clutch. Regulated line pressure is supplied to the TCC control valve through the REG APPLY circuit by the TCC regulator valve. The TCC control valve directs the regulated line pressure from the REG APPLY circuit to the TCC APPLY circuit to apply the TCC. The TCC control valve blocks the TCC RELEASE circuit to maintain pressure in the TCC APPLY circuit. The TCC control valve directs the CONV FD circuit to the COOLER FD circuit to allow the transmission fluid to flow through the thermal bypass valve or the transmission fluid cooler to the LUBE circuit to lubricate the transaxle.

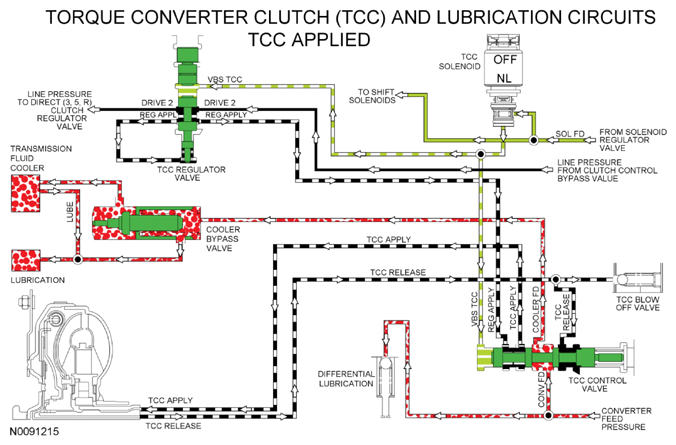

Fig 2: Torque Converter Clutch (TCC) And Lubrication Flow Diagram (TCC Applied)
G07782553Courtesy of FORD MOTOR CO.
