This pinpoint test is intended to diagnose the following:

• Harness circuits: battery positive voltage (B+), vehicle power (VPWR), air conditioning clutch (A/CC), air conditioning clutch power (A/CC PWR), A/CLPCS, A/CHPSW, air conditioning cycling switch (A/CCS).
• Powertrain control module (PCM) (12A650).

Fig 1: Identifying Air Conditioning Clutch (A/CC) Relay Connector Terminal

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Air Conditioning High Pressure Switch (A/CHPSW) Connector Terminal

Courtesy of FORD MOTOR CO.

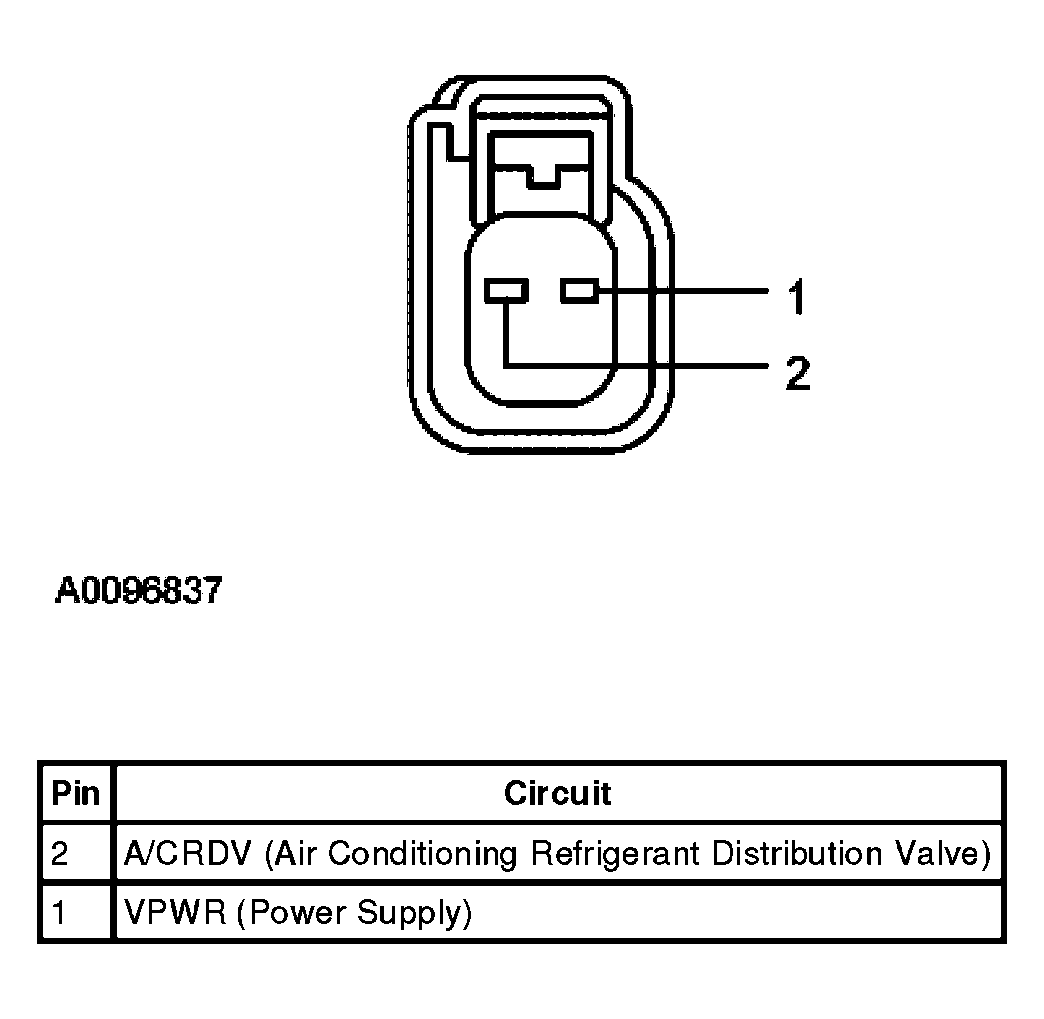

Fig 3: Identifying Air Conditioning Refrigerant Distribution Valve (A/CRDV) Solenoid Connector Terminal

Courtesy of FORD MOTOR CO.

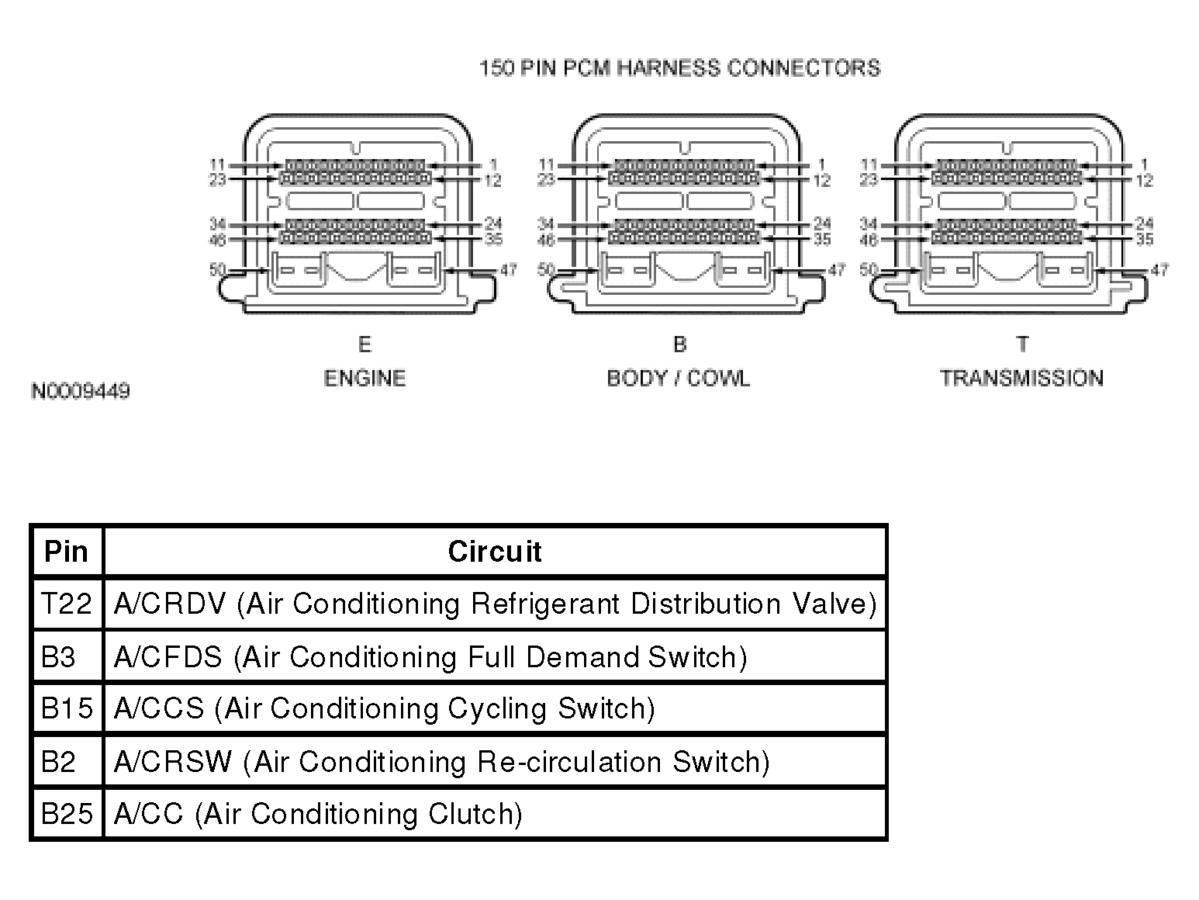

Fig 4: Identifying Powertrain Control Module (PCM) Connector Terminal

Courtesy of FORD MOTOR CO.
