4x4, Rear Driveline Angles @ Curb Specifications

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

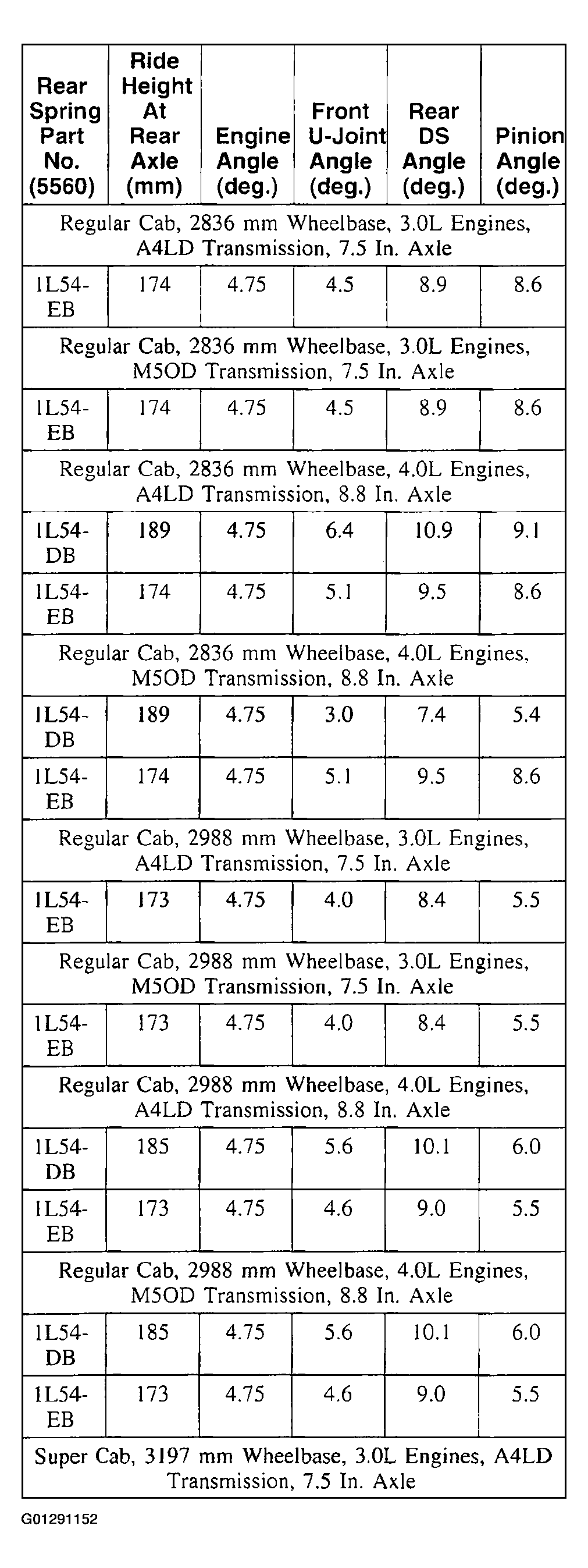

Fig 1: 4x4, Rear Driveline Angles @ Curb Specifications Table (1 Of 2)

Courtesy of FORD MOTOR CO.

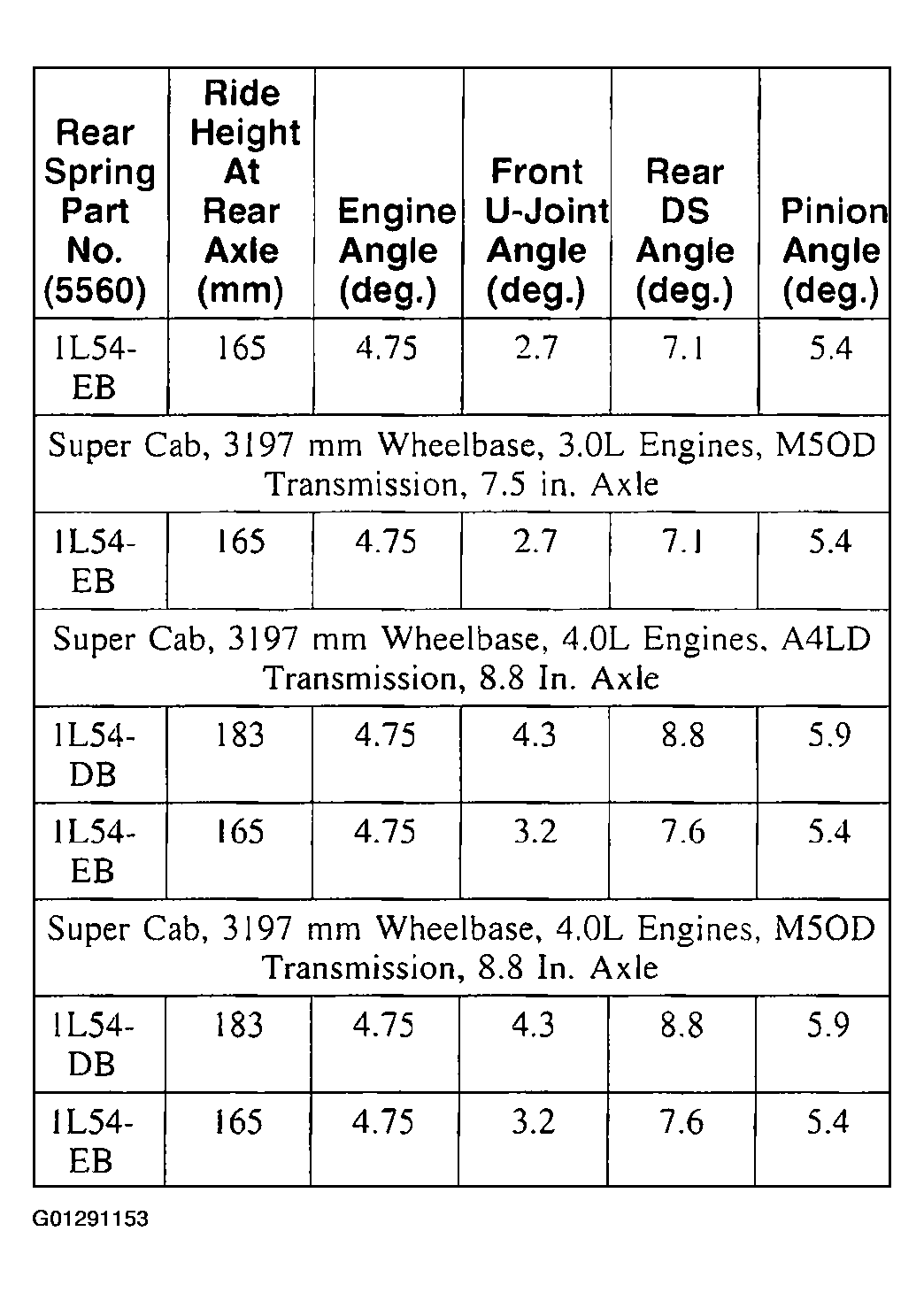

Fig 2: 4x4, Rear Driveline Angles @ Curb Specifications Table (2 Of 2)

Courtesy of FORD MOTOR CO.
