Special Tool(s)

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool
G01291196Courtesy of FORD MOTOR CO.
NOTE: An incorrect driveline angle can cause a vibration or shudder. For additional information, refer to NOISE, VIBRATION AND HARSHNESS .
  1. Check the vehicle for evidence of overload or sagging. Check for specified air pressures in all four tires.
  2. Normalize the suspension.
  3. Drive the vehicle onto a drive-on hoist or back onto a front-end alignment rack.
  4. Drive the vehicle onto a drive-on hoist or back onto a front-end alignment rack.
    • Measure the curb position ride height with the vehicle empty and all fluids full.
  5. Place the inclinometer on a clean, flat level section on the bottom of the frame rail. Press the ALT ZERO button to calibrate the inclinometer to the vehicle.

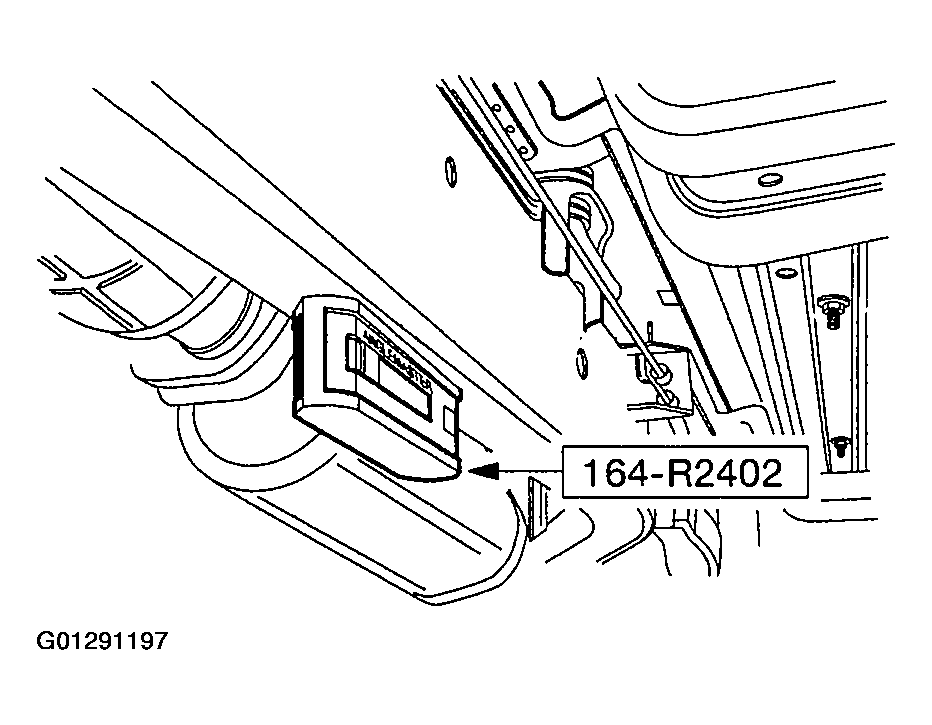

    Fig 2: Placing Inclinometer On Bottom Of Frame Rail
    G01291197Courtesy of FORD MOTOR CO.
  6. For the driveshaft angle reading, place the inclinometer flush against the bottom of the driveshaft. Check and record the reading. Compare the results with the correct angles. Refer to Specifications  in this section.

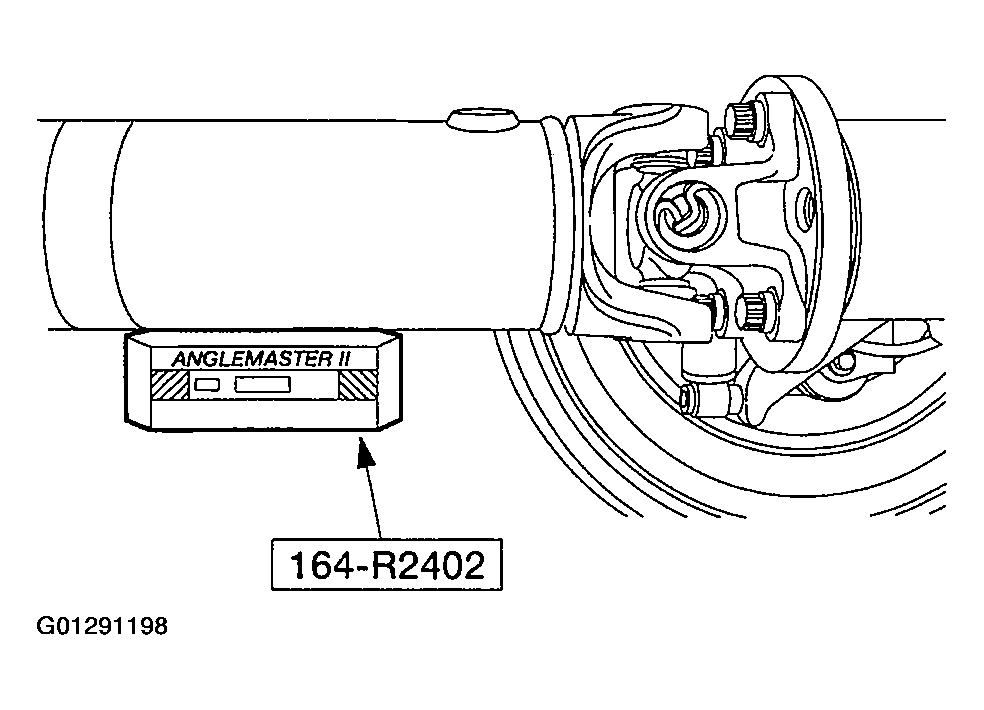

    Fig 3: Placing Inclinometer Flush Against Bottom Of Driveshaft
    G01291198Courtesy of FORD MOTOR CO.
  7. To check the pinion angle, rotate the driveshaft so that the rear axle pinion flange yoke ear is parallel to the floor. Remove the U-joint snap ring, then install the special tool. Check and record the pinion angle reading.
    • If the angle is not within specifications, repair or adjust to obtain the correct angles. Inspect the rear suspension, rear axle, rear axle mounting or the frame for wear or damage.

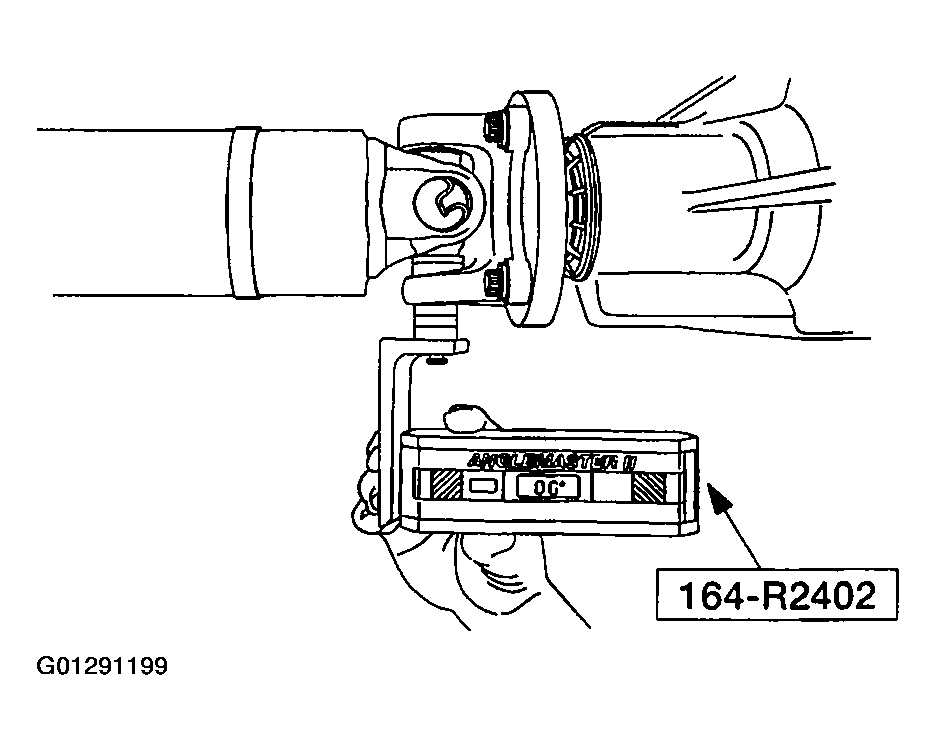

      Fig 4: Checking Pinion Angle
      G01291199Courtesy of FORD MOTOR CO.
  8. To check the engine angle, rotate the driveshaft so that the slip yoke ear is parallel to the floor. Remove the U-joint snap ring, then install the special tool. Check and record the engine angle reading.
    • If the angle is not within specifications, repair or adjust to obtain the correct angles. Inspect the powertrain/drivetrain mounts or frame rails for wear or damage.

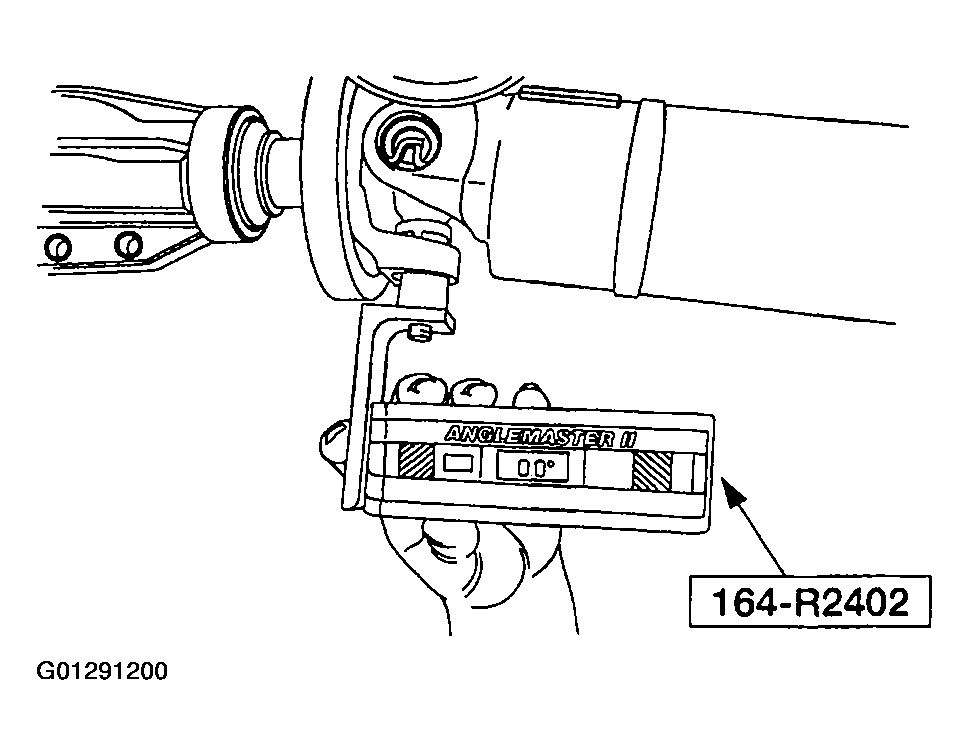

      Fig 5: Checking Engine Angle
      G01291200Courtesy of FORD MOTOR CO.
