PINPOINT TEST DH: Throttle Position (TP) Sensor: Introduction
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2011 Mercury Milan, 2011 Mercury Mariner, 2011 Mercury Grand Marquis, 2011 Lincoln Town Car, and 2011 Lincoln Navigator L. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- TP sensor (9B989)
- binding or sticking throttle linkage
- harness circuits: TP, SIGRTN, VREF, VPWR, and PWRGND
- powertrain control module (PCM) (12A650)

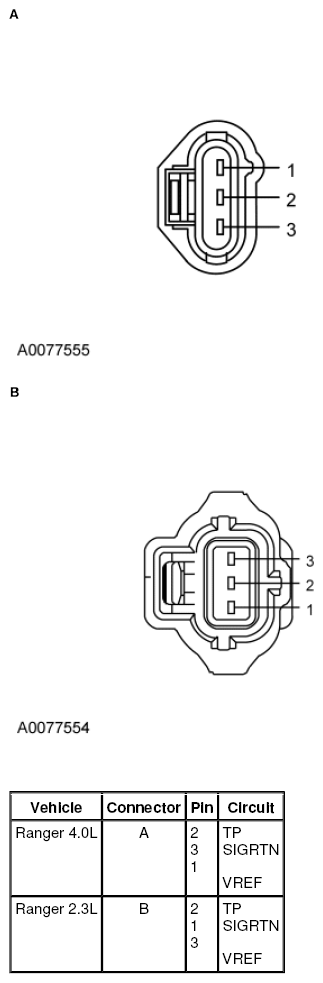

Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PINS REFERENCE CHART
| Connector | Pin | Circuit |
|---|---|---|
| 170 PIN | B41, E58, T41 B47, B48, B49, B50 B40, E57 B35, B36 E61 |
SIGRTN PWRGND VREF VPWR TP |
