Diagnostic Aids
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Perform this test only when instructed during QUICK TEST or if directed by other test procedures. This test is only intended to diagnose the following:

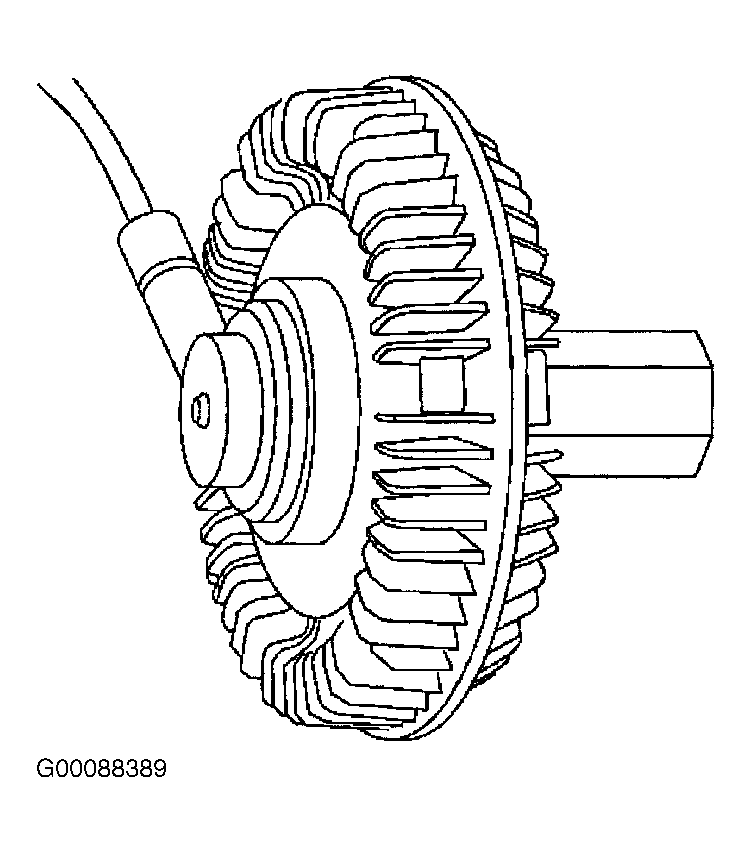

- Visctronic Drive Fan Clutch. See Fig 1.
- Visctronic Drive Fan Speed Sensor
- Wiring Harness Circuits Fan Control-Variable (FC-V), Fan Speed Sensor (FSS), PWRGND, Vehicle Buffered Power (VBPWR) & VPWR. See Fig 2.
- Powertrain Control Module (PCM)
FANSS PID will indicate fan RPM, and FANSSM will indicate if Hall Effect sensor for VDF fan speed is always HIGH or always LOW.
