Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Make sure the front wheels are in the straight-ahead position.
  1. Disconnect the battery ground cable (14301) and wait at least one minute to allow for depletion of the restraint system backup power supply.
  2. WARNING: To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the deactivation procedure.
  3. Deactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
  4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering wheel removal and installation procedure.
  5. Remove the steering wheel assembly. For additional information, refer to WHEEL .
  6. Twist off the cap from the ignition switch cylinder.

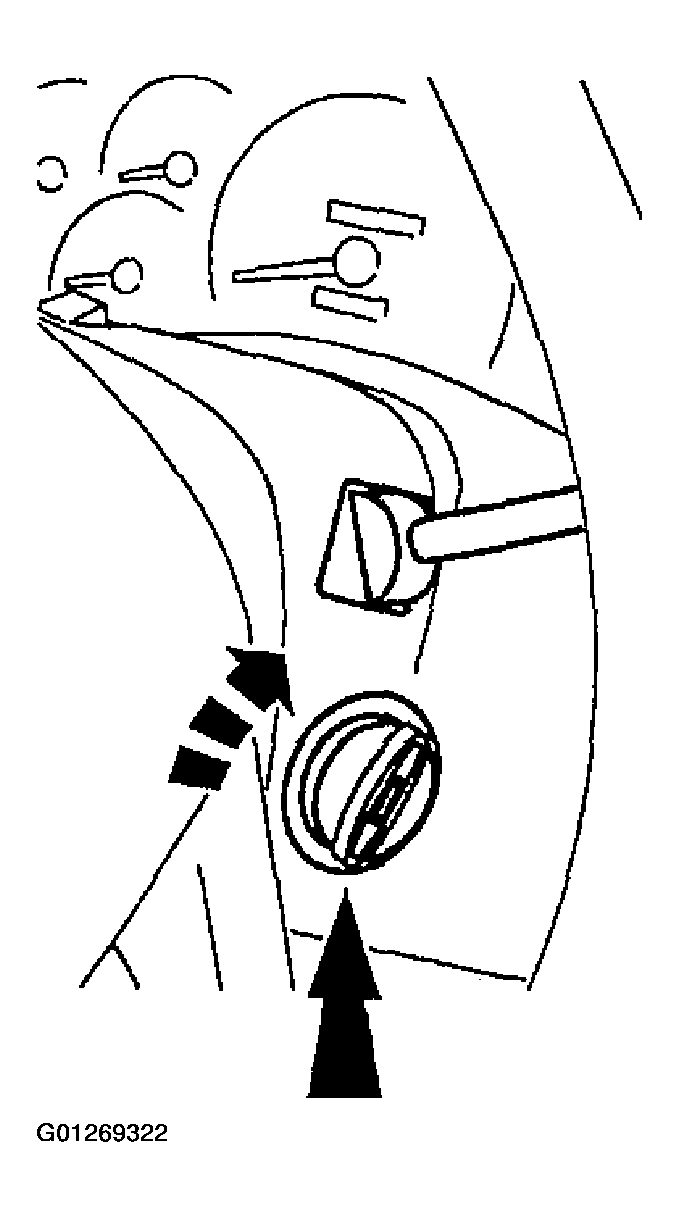

    Fig 1: Twisting Off Cap From Ignition Switch Cylinder
    G01269322Courtesy of FORD MOTOR CO.
  7. NOTE: The lock cylinder is repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair package (F85Z-11582-AA). The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
  8. Remove the ignition switch lock cylinder.
    • Use a 1/8-inch diameter drill bit to drill out the lock cylinder retaining pin.
    • Use a 3/8-inch drill bit to drill down the middle of the ignition lock key slot until the ignition switch lock cylinder breaks loose.
    • Remove and discard the ignition switch lock cylinder and clean the drill shavings from the steering column.

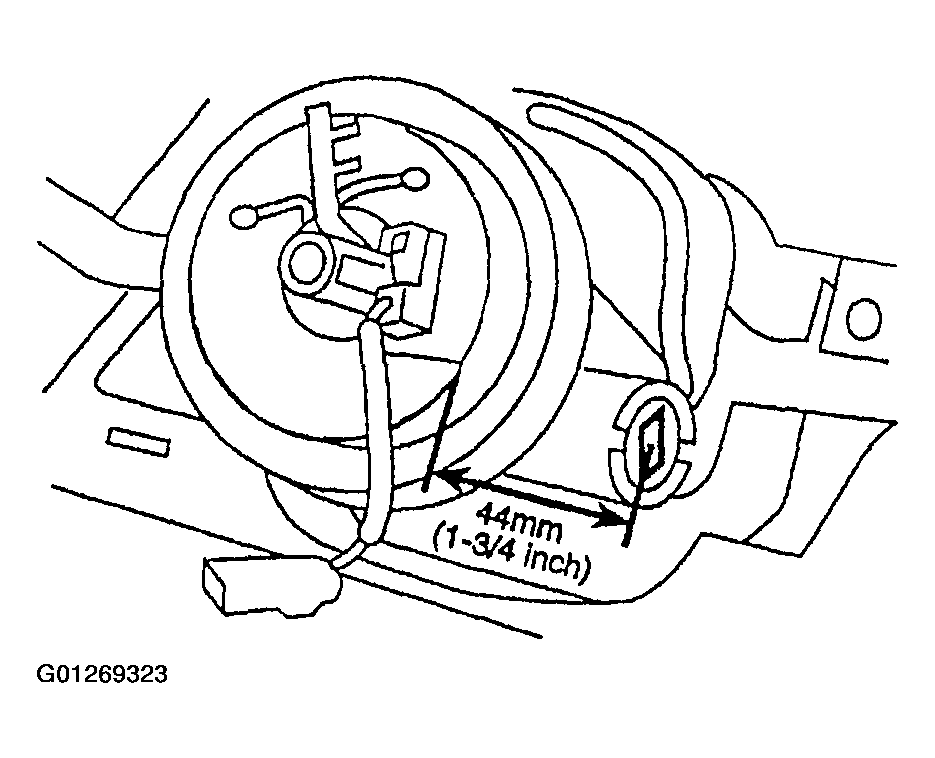

      Fig 2: Removing Ignition Switch Lock Cylinder
      G01269323Courtesy of FORD MOTOR CO.
  9. Remove the bearing retainer.
    Fig 3: Removing Bearing Retainer
    G01269324Courtesy of FORD MOTOR CO.
  10. Remove the bearing and gear.
    • Thoroughly clean all drill shavings from the steering column and inspect it for damage.
      Fig 4: Removing Bearing & Gear
      G01269325Courtesy of FORD MOTOR CO.
  11. To install, reverse the removal procedure.
    • Install a new ignition switch lock cylinder.
    • Verify ignition switch lock cylinder operation.

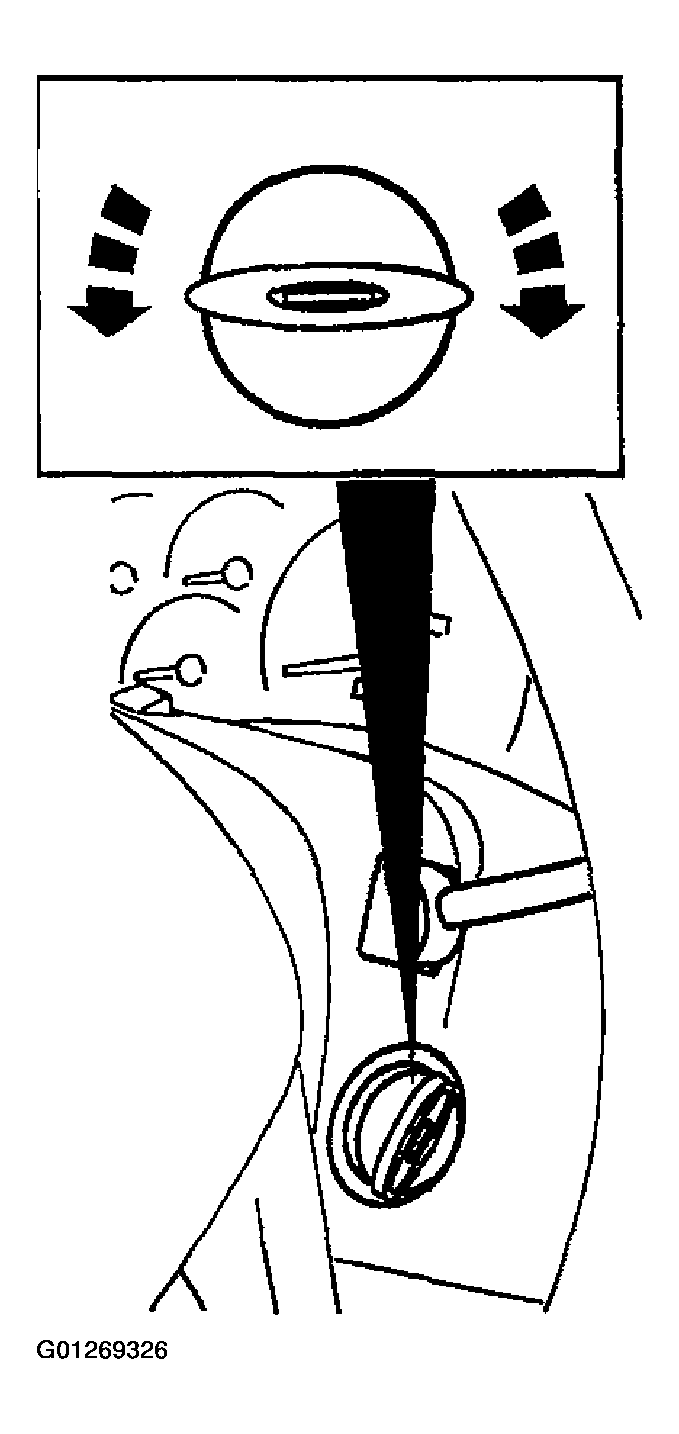

      Fig 5: Installing Ignition Switch Lock Cylinder
      G01269326Courtesy of FORD MOTOR CO.
  12. WARNING: To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the reactivation procedure.
  13. Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
