Steering Column - Manual Transmission: Assembly

All vehicles

1. Install the steering column lock lever actuator.
   1. Lubricate the steering column lock lever actuator with ignition lock grease.
   2. Install the steering column lock lever actuator.

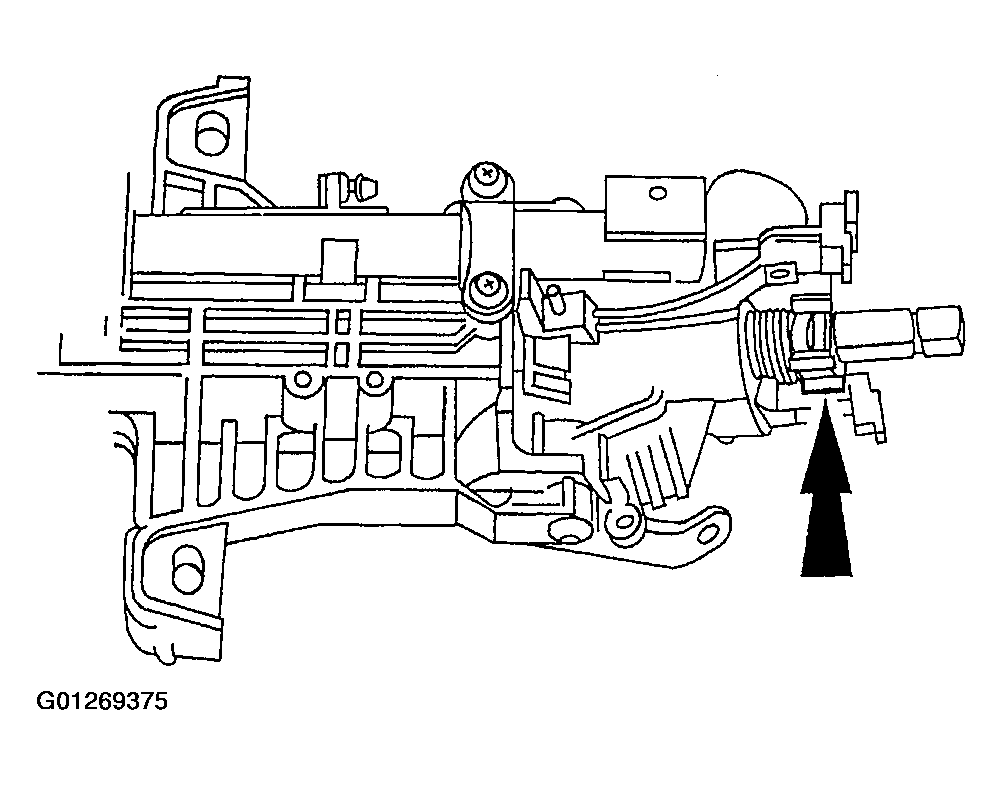

      Fig 1: Installing Steering Column Lock Lever Actuator

      Courtesy of FORD MOTOR CO.

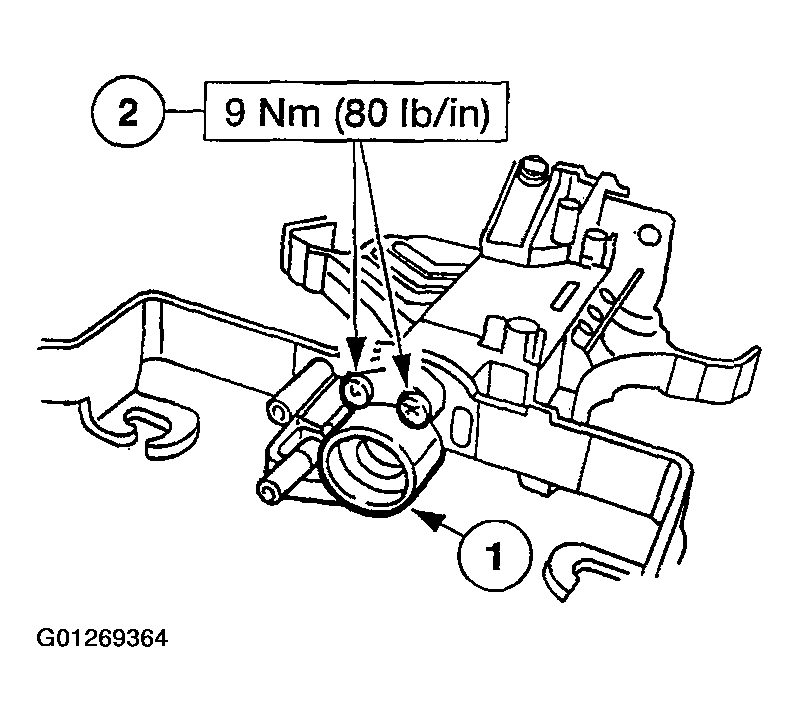

2. Install the steering column lower bearing retainer.
   1. Position the steering column lower bearing retainer.
   2. Install the three bolts.
      Fig 2: Installing Steering Column Lower Bearing Retainer

      Courtesy of FORD MOTOR CO.
NOTE: The "UP" position of the bearing must be facing forward, toward the engine.

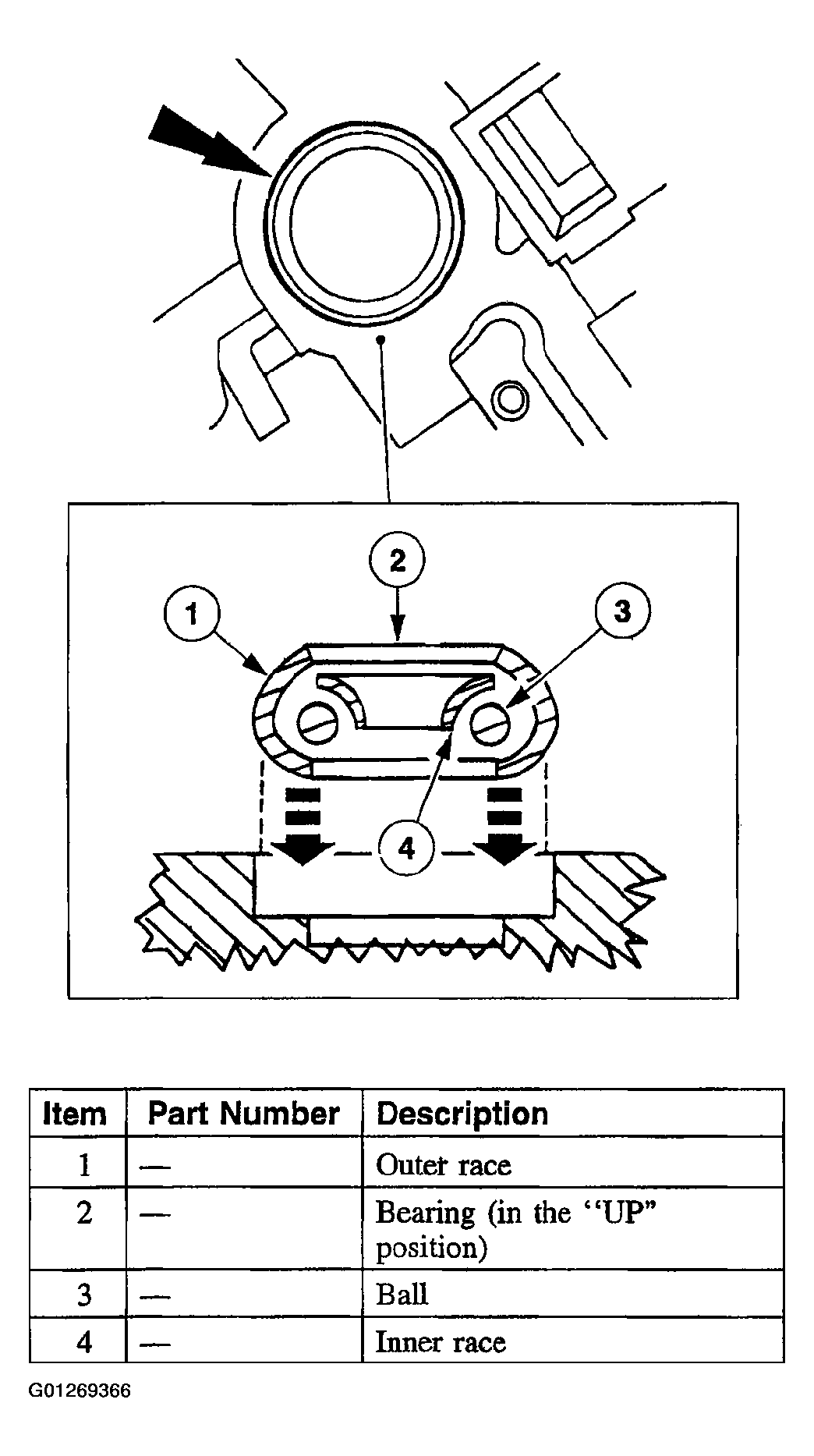

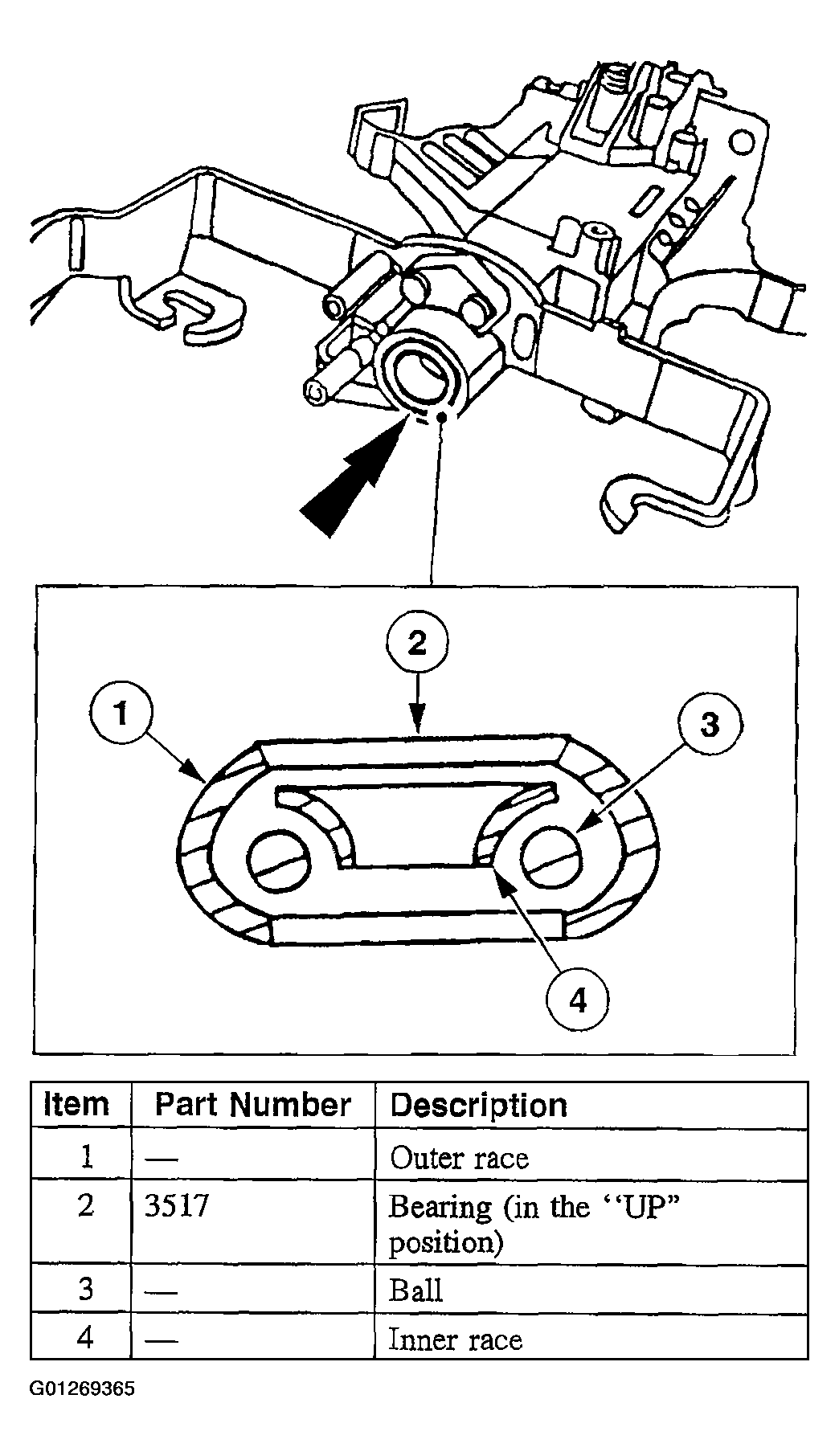

Fig 3: Installing Steering Column Bearing & Sleeve
Courtesy of FORD MOTOR CO.
3. Install the steering column bearing and sleeve.
4. Install the steering column bearing and sleeve so that the inner race is visible when installed.
CAUTION: Install the steering column bearing so that the inner race is visible when installed.
NOTE: Use an appropriate bearing installer or socket.

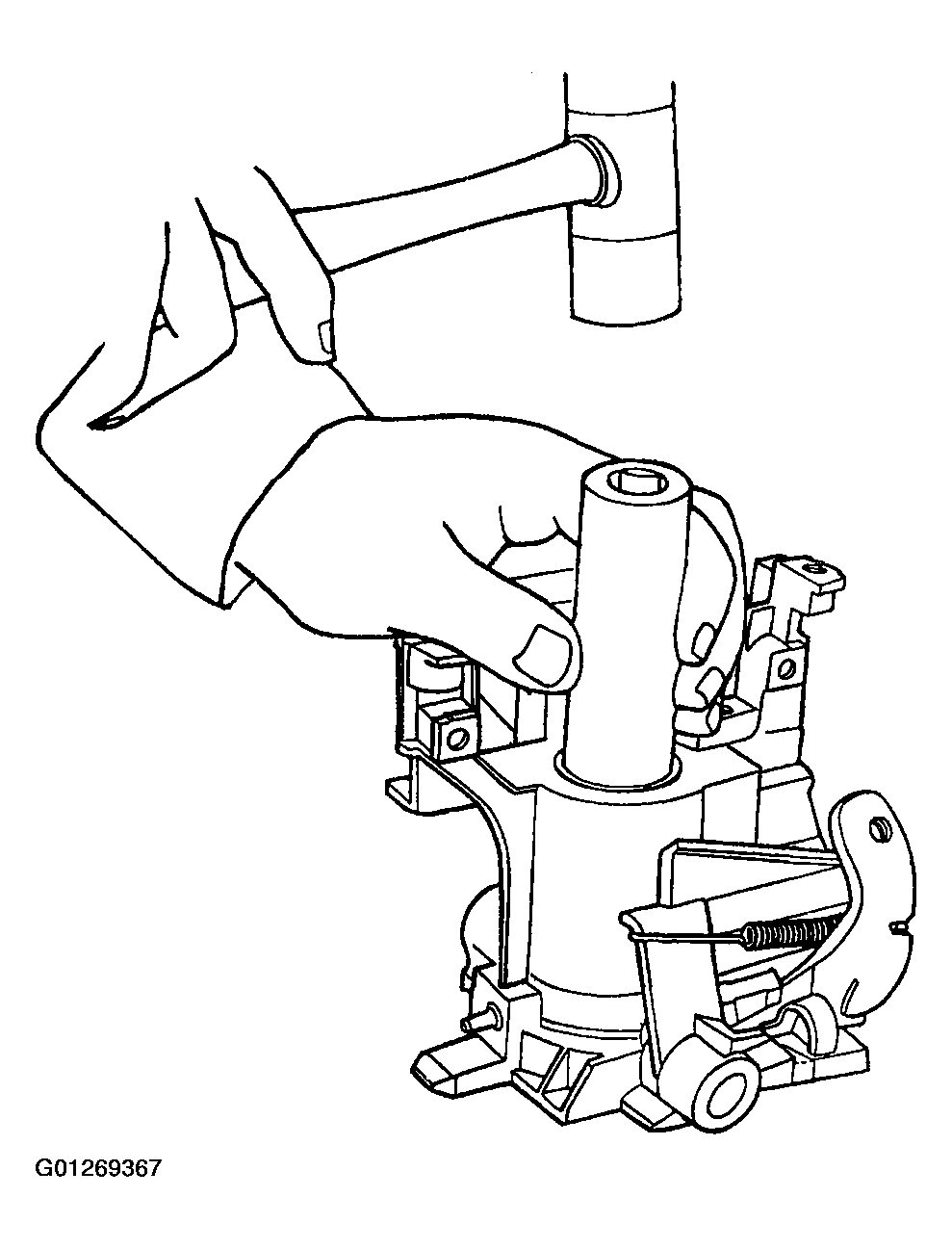

Fig 4: Installing Steering Column Bearing On Steering Column Lock Cylinder Housing (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 5: Installing Steering Column Bearing On Steering Column Lock Cylinder Housing (2 Of 2)
Courtesy of FORD MOTOR CO.
5. Install the steering column bearing on the steering column lock cylinder housing.

   Vehicles with tilt steering column

CAUTION: Install the steering column bearing so that the inner race is visible when installed.
NOTE: Use an appropriate bearing installer or socket.

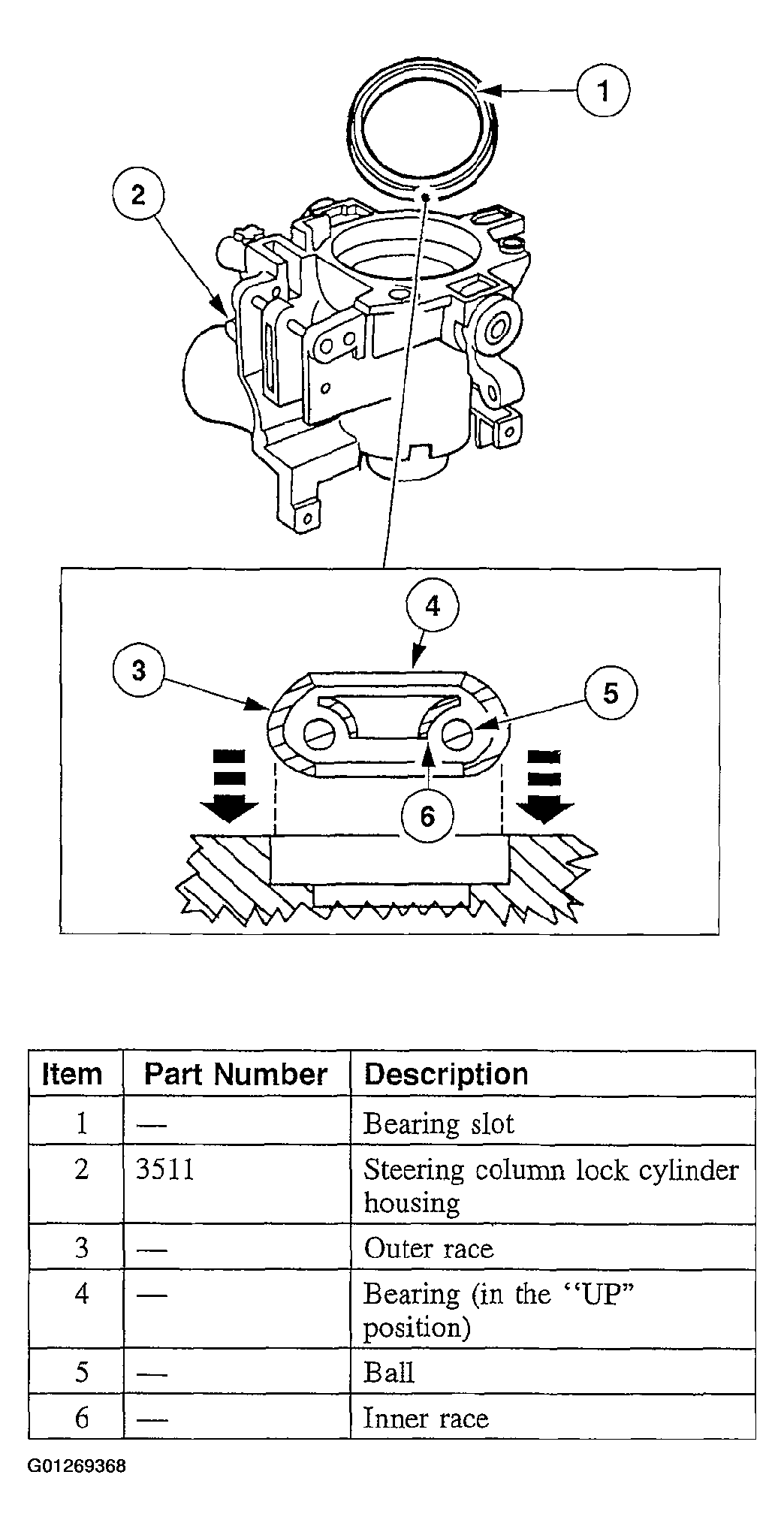

Fig 6: Installing Steering Column Bearing On Steering Column Lock Cylinder Housing (1 Of 2)
Courtesy of FORD MOTOR CO.

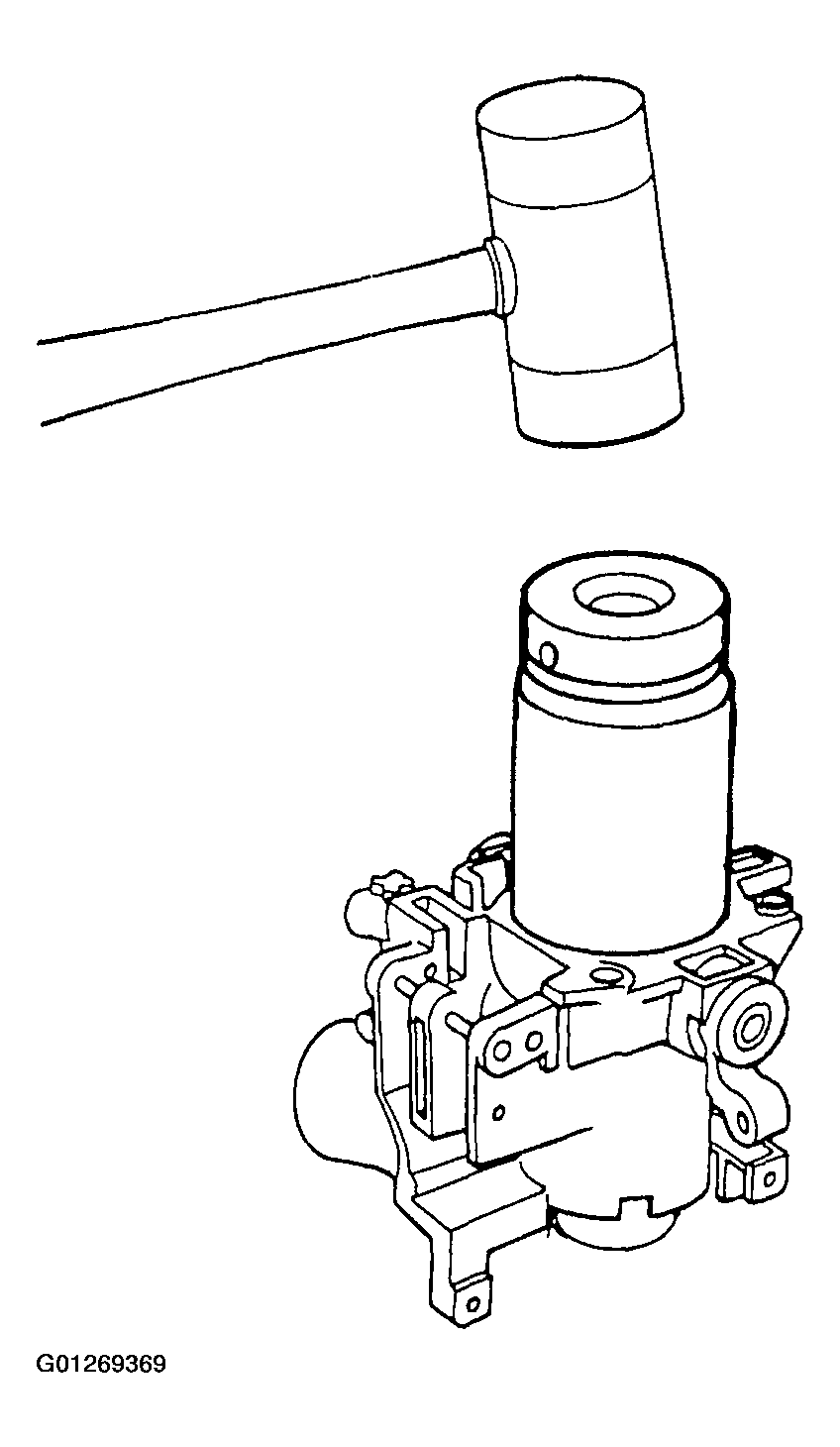

Fig 7: Installing Steering Column Bearing On Steering Column Lock Cylinder Housing (2 Of 2)
Courtesy of FORD MOTOR CO.
6. Install the steering column bearing on the steering column lock cylinder housing.

   All vehicles

7. Position the steering column shaft in the steering column lock cylinder housing.
   • Install the steering column bearing tolerance ring on the steering column shaft.
     Fig 8: Positioning Steering Column Shaft In Steering Column Lock Cylinder Housing

     Courtesy of FORD MOTOR CO.
8. Install the steering column bearing sleeve.
   Fig 9: Installing Steering Column Bearing Sleeve

   Courtesy of FORD MOTOR CO.
9. Install the steering column upper bearing spring.

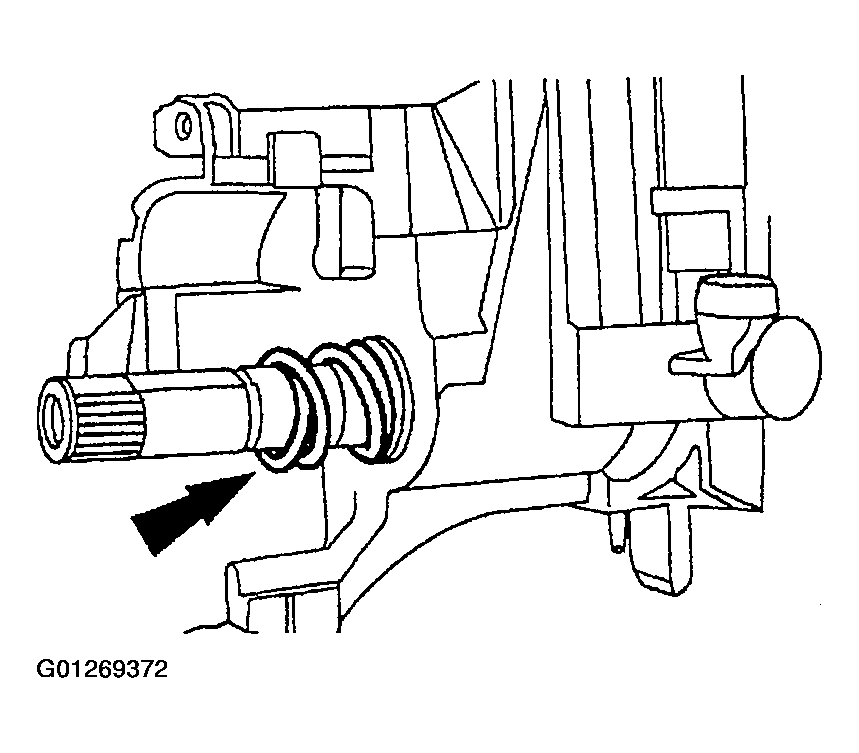

   Fig 10: Installing Steering Column Upper Bearing Spring

   Courtesy of FORD MOTOR CO.
10. Install the snap ring.
    Fig 11: Installing Snap Ring

    Courtesy of FORD MOTOR CO.

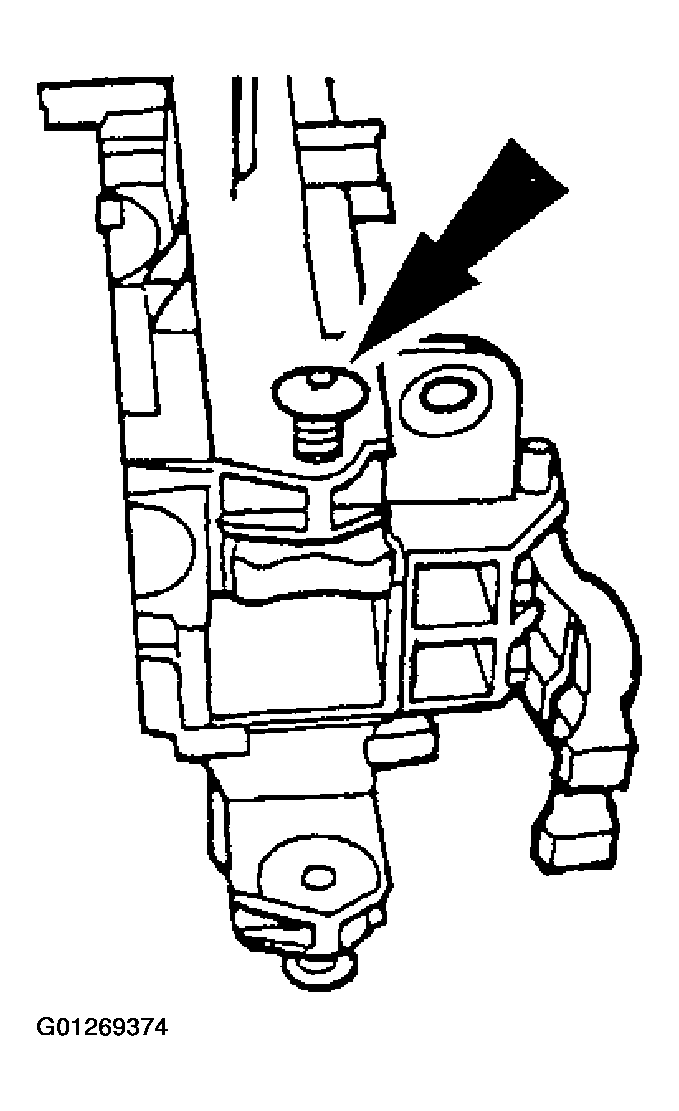

11. Install the lock cylinder housing screws loosely and position the steering actuator housing in a vise.
    Fig 12: Installing Lock Cylinder Housing Screws Loosely

    Courtesy of FORD MOTOR CO.
12. Install the turn signal cancel cam.
    Fig 13: Installing Turn Signal Cancel Cam

    Courtesy of FORD MOTOR CO.
NOTE: Lubricate the lock cylinder housing bushings with ignition lock grease.

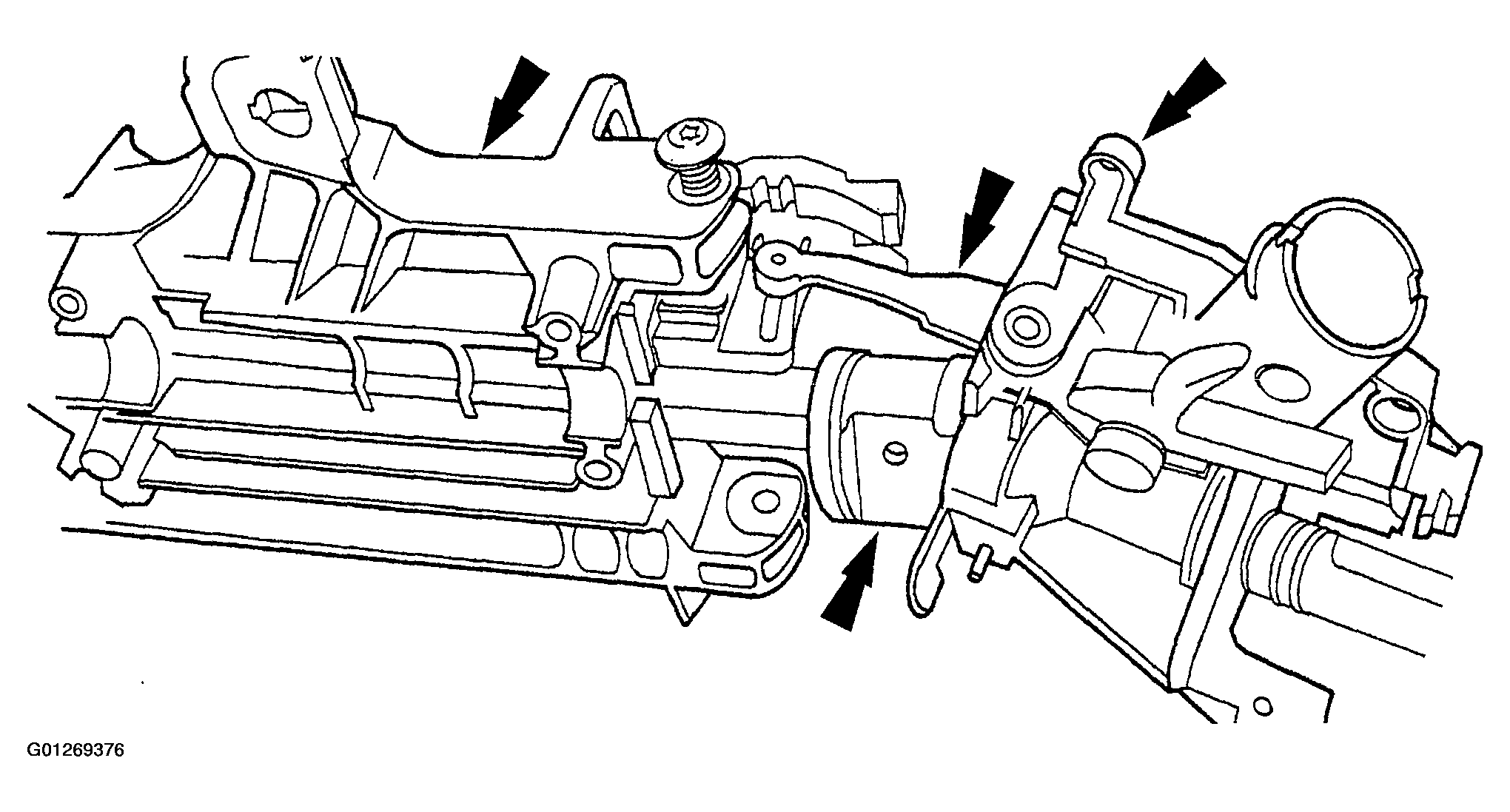

13. Position the steering column lock cylinder housing and the steering column shaft on the steering actuator housing.
    • Make sure the upper and lower steering column lock actuators are aligned.
      Fig 14: Positioning Steering Column Lock Cylinder Housing & Steering Column Shaft On Steering Actuator Housing

      Courtesy of FORD MOTOR CO.

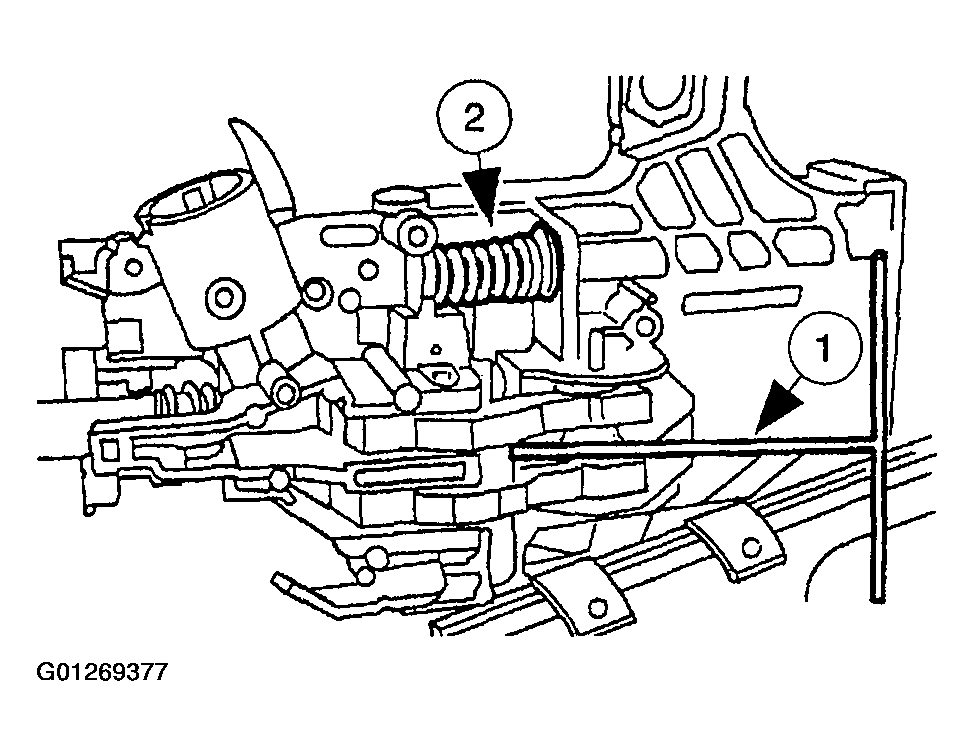

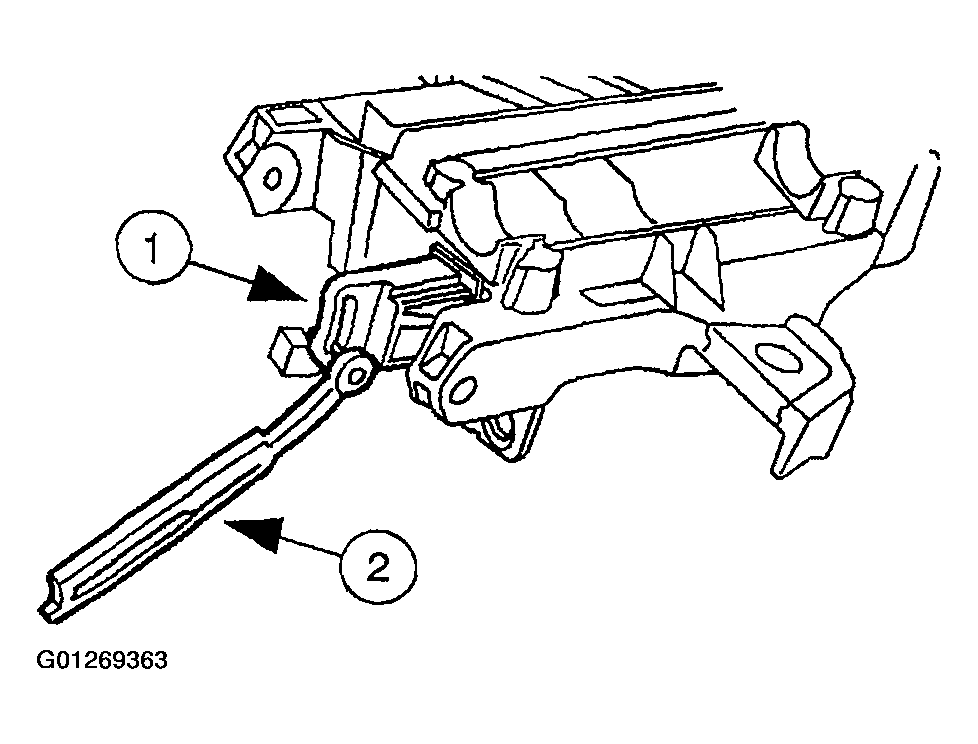

14. Position the steering column locking levers (3B661) on the steering actuator housing.
    1. Use a shop-fabricated tool.
    2. On tilt steering columns, install and compress the steering column position spring.
       Fig 15: Positioning Steering Column Locking Levers On Steering Actuator Housing

       Courtesy of FORD MOTOR CO.

    Vehicles with tilt steering column

15. Tighten the lock cylinder housing screws.

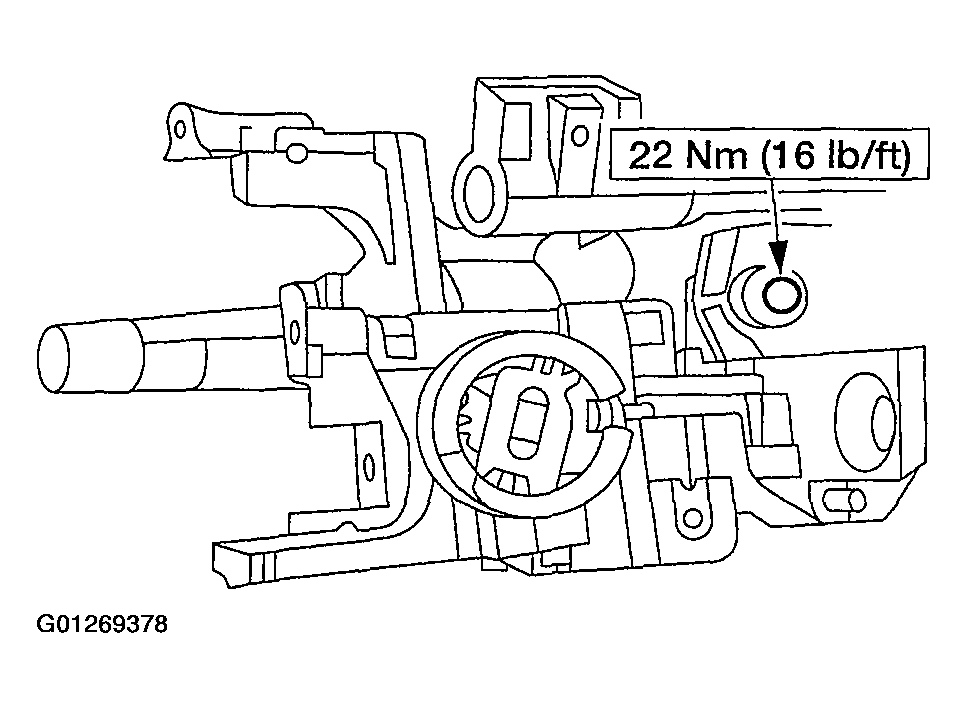

    Fig 16: Tightening Lock Cylinder Housing Screws

    Courtesy of FORD MOTOR CO.

    Vehicles with fixed steering column

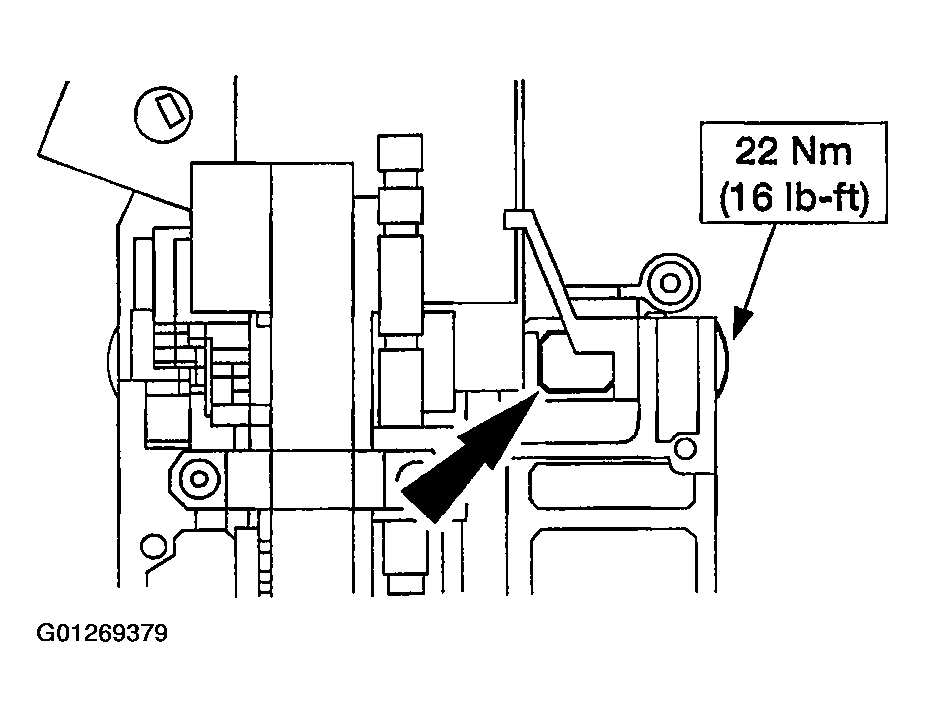

16. Install the steering column spacer (3C549). Tighten the two lock cylinder housing screws.
    • The steering column spacer is installed on the LH side of the steering column.
      Fig 17: Installing Steering Column Spacer & Tightening Lock Cylinder Housing Screws

      Courtesy of FORD MOTOR CO.

    All vehicles

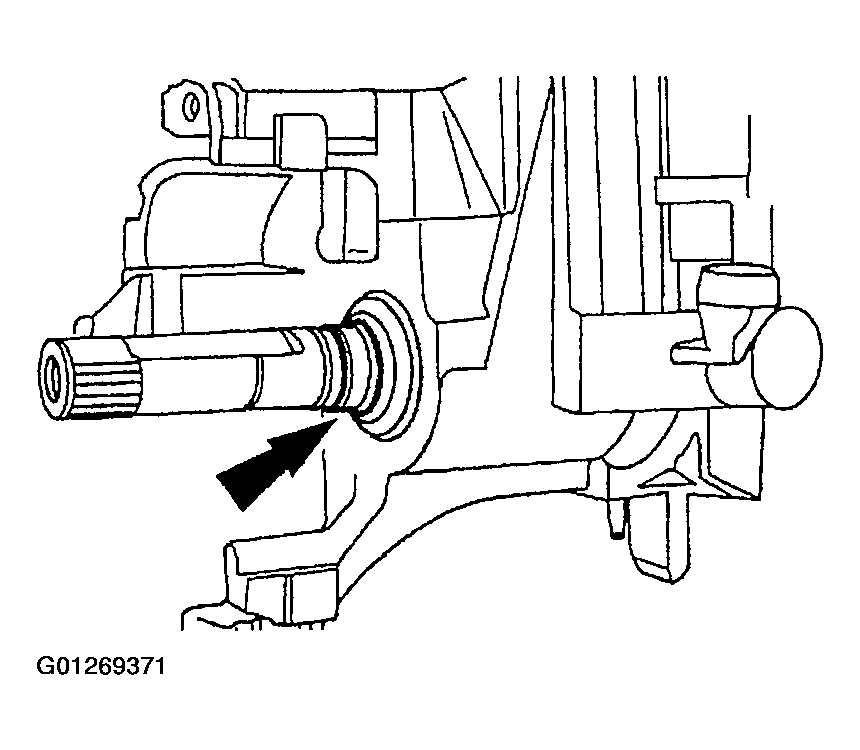

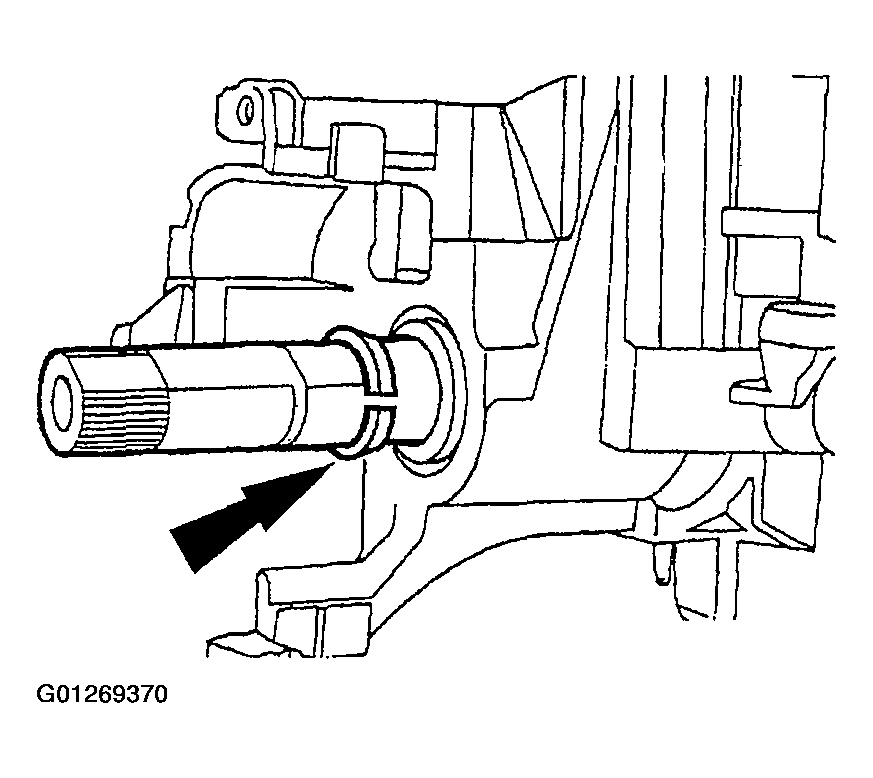

17. Install the steering column bearing tolerance ring.

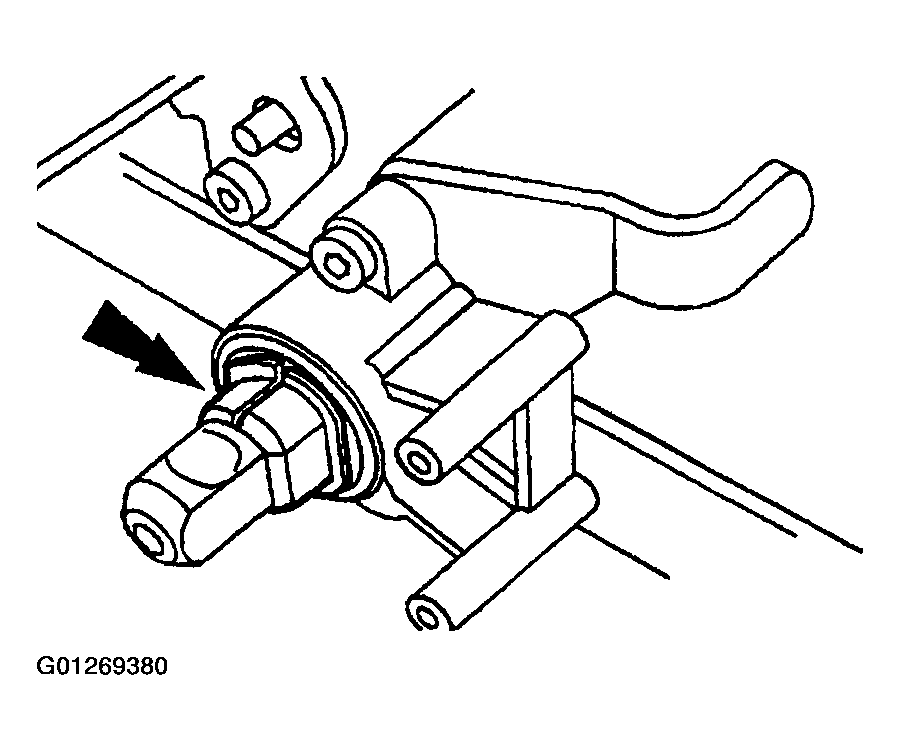

    Fig 18: Installing Steering Column Bearing Tolerance Ring

    Courtesy of FORD MOTOR CO.

    Vehicles with tilt steering column

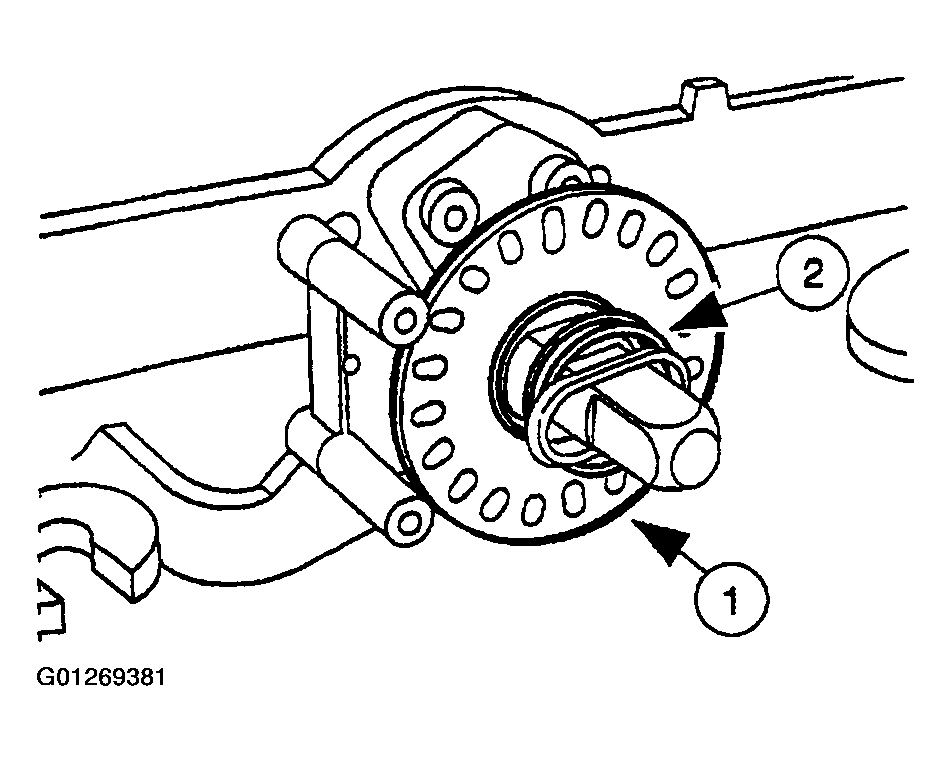

18. Install the sensor ring.
    1. Install the sensor ring.
    2. Install the steering column lower bearing spring.
       Fig 19: Installing Sensor Ring

       Courtesy of FORD MOTOR CO.

    Vehicles with fixed steering column

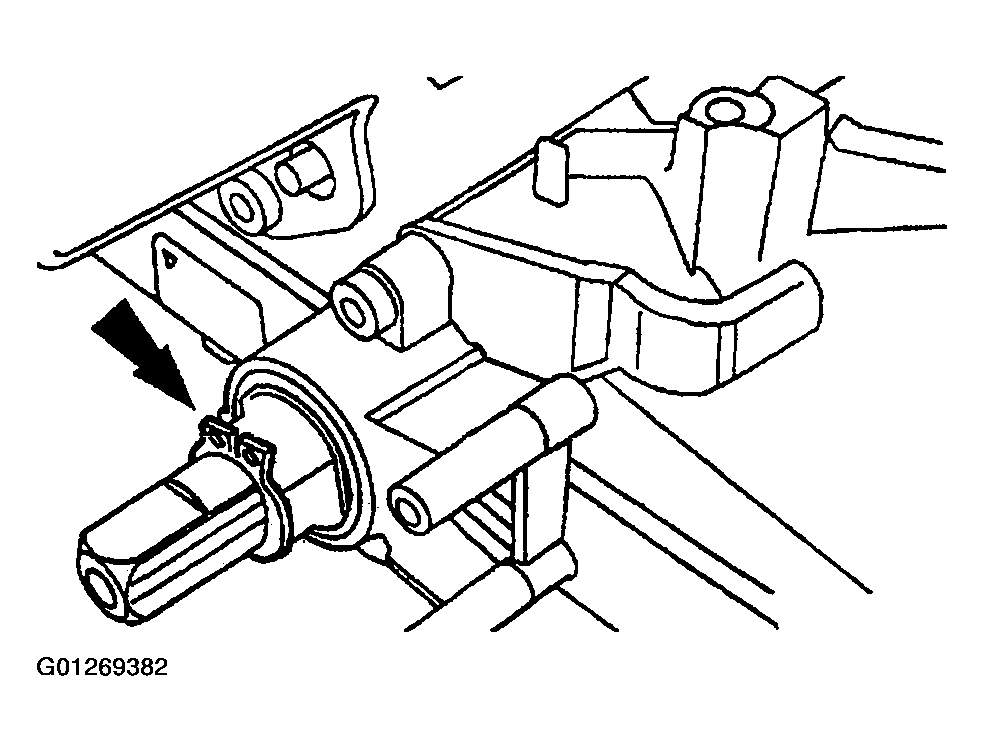

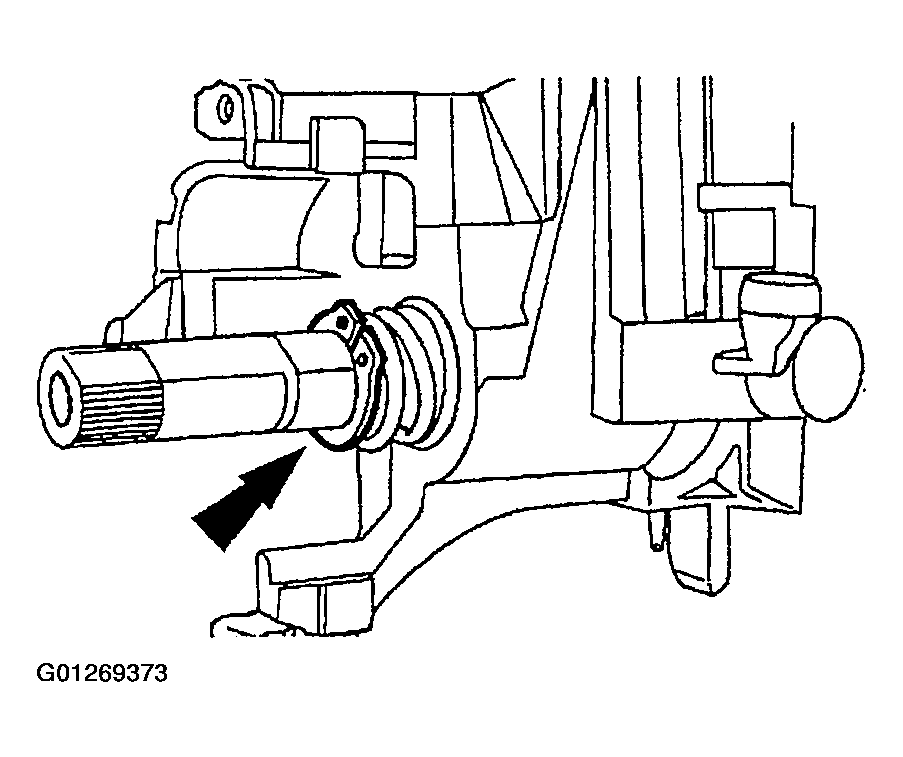

19. Install the snap ring.
    Fig 20: Installing Snap Ring

    Courtesy of FORD MOTOR CO.

    All vehicles

20. Install the ignition switch.

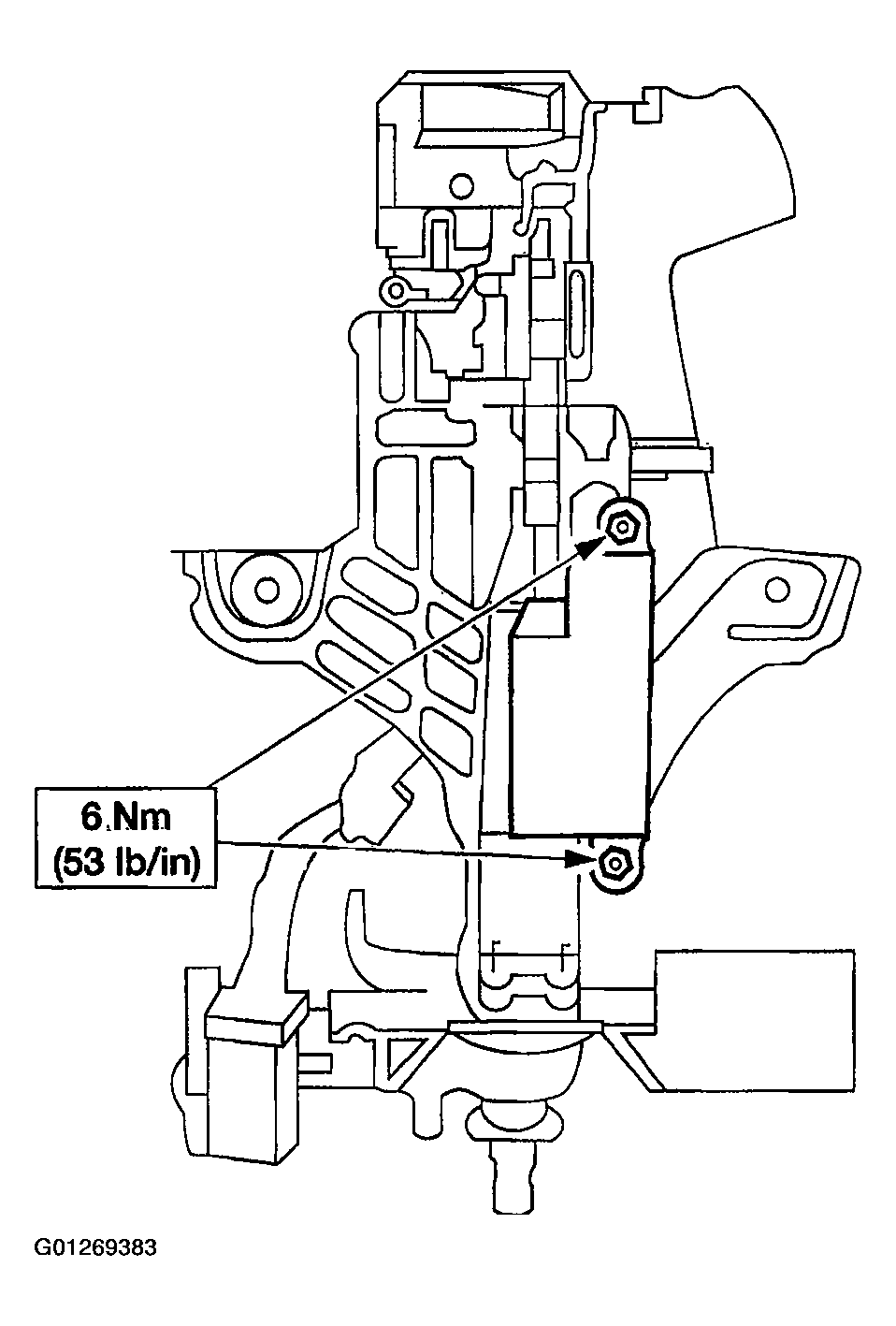

    Fig 21: Installing Ignition Switch

    Courtesy of FORD MOTOR CO.
NOTE: The narrow section of the keyhole in the lock gear should be in the 1 o'clock position.

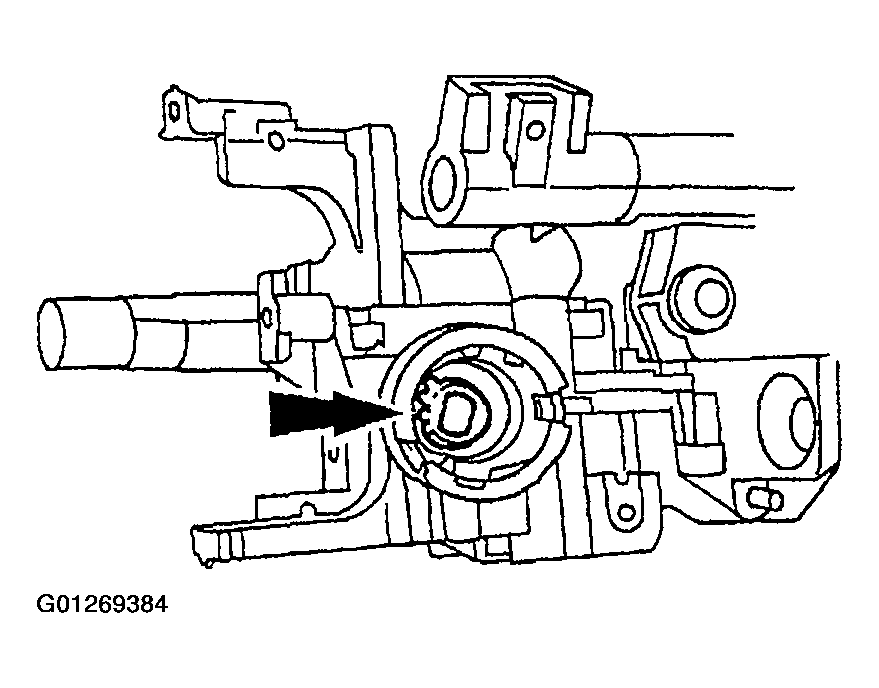

21. Install the steering column lock gear.
    • Use ignition lock grease to coat the steering column lock gear.

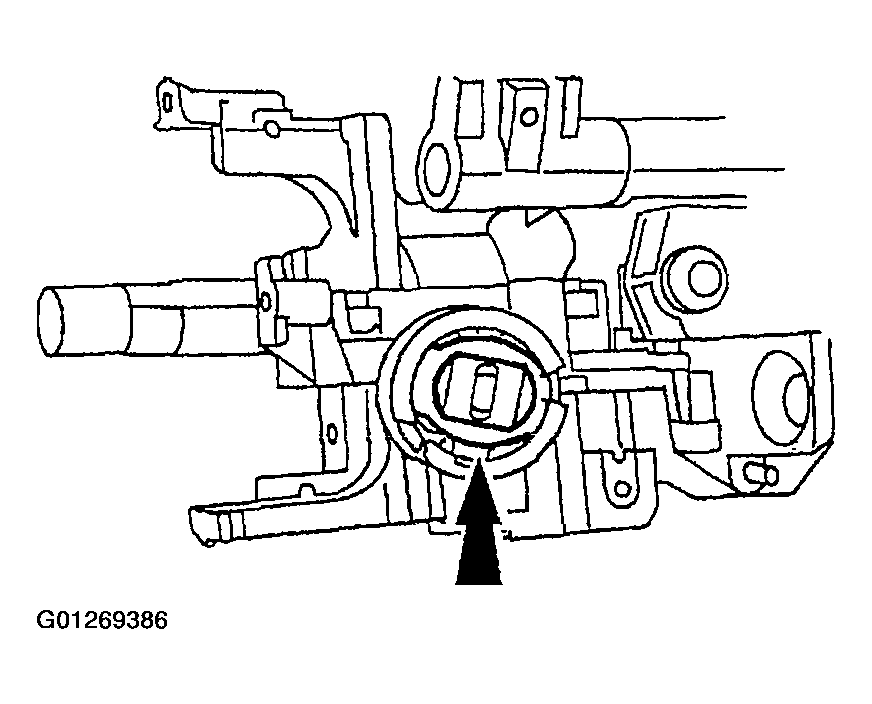

      Fig 22: Installing Steering Column Lock Gear

      Courtesy of FORD MOTOR CO.

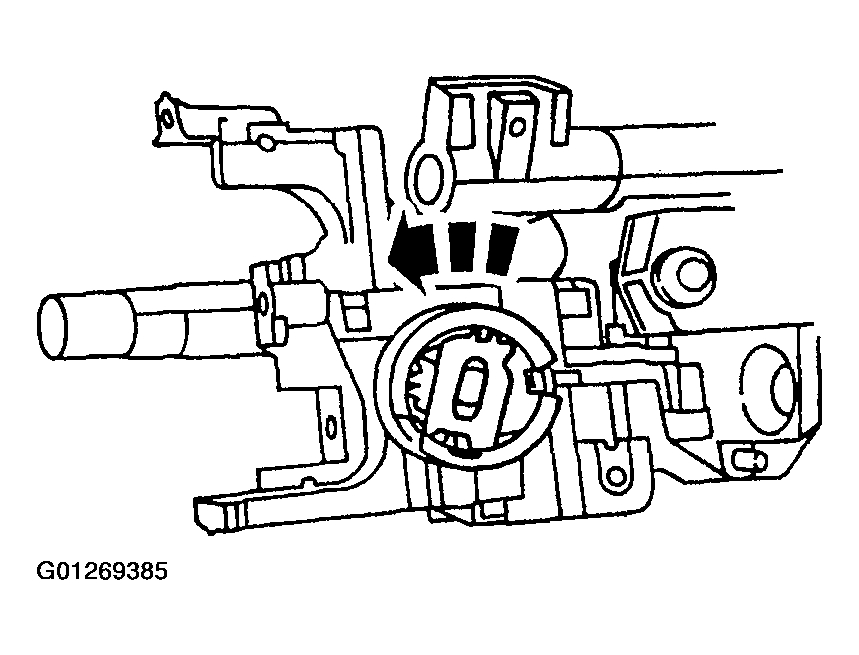

22. Install the steering column lock housing bearing.
    • The narrow section of the keyhole should be in the 1 o'clock position, with the tab inboard at the 3 o'clock position, and rotate it counterclockwise.
    • Lubricate the steering column lock housing bearing with ignition lock grease.
      Fig 23: Installing Steering Column Lock Housing Bearing

      Courtesy of FORD MOTOR CO.
23. Install the steering column upper bearing retainer firmly to engage the four retention tabs into the lock housing.
    Fig 24: Installing Steering Column Upper Bearing Retainer

    Courtesy of FORD MOTOR CO.
WARNING: To reduce the risk of serious personal injury, follow all warnings, cautions, notes and instructions in the steering column removal and installation procedure.
24. Install the steering column. For additional information, refer to COLUMN .
25. Install the ignition switch lock cylinder. For additional information, refer to Ignition Switch Lock Cylinder-Functional Lock Cylinder  or to IGNITION SWITCH LOCK CYLINDER-NON-FUNCTIONAL LOCK CYLINDER .
