Pcm Connector End View & Pcm Connector Circuit Functions (LS)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

LS PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
LS	C175A Fig 1, C175B Fig 5 & C175C Fig 7	C175A Fig 2-Fig 4 , C175B Fig 6 & C175C Fig 8-Fig 10

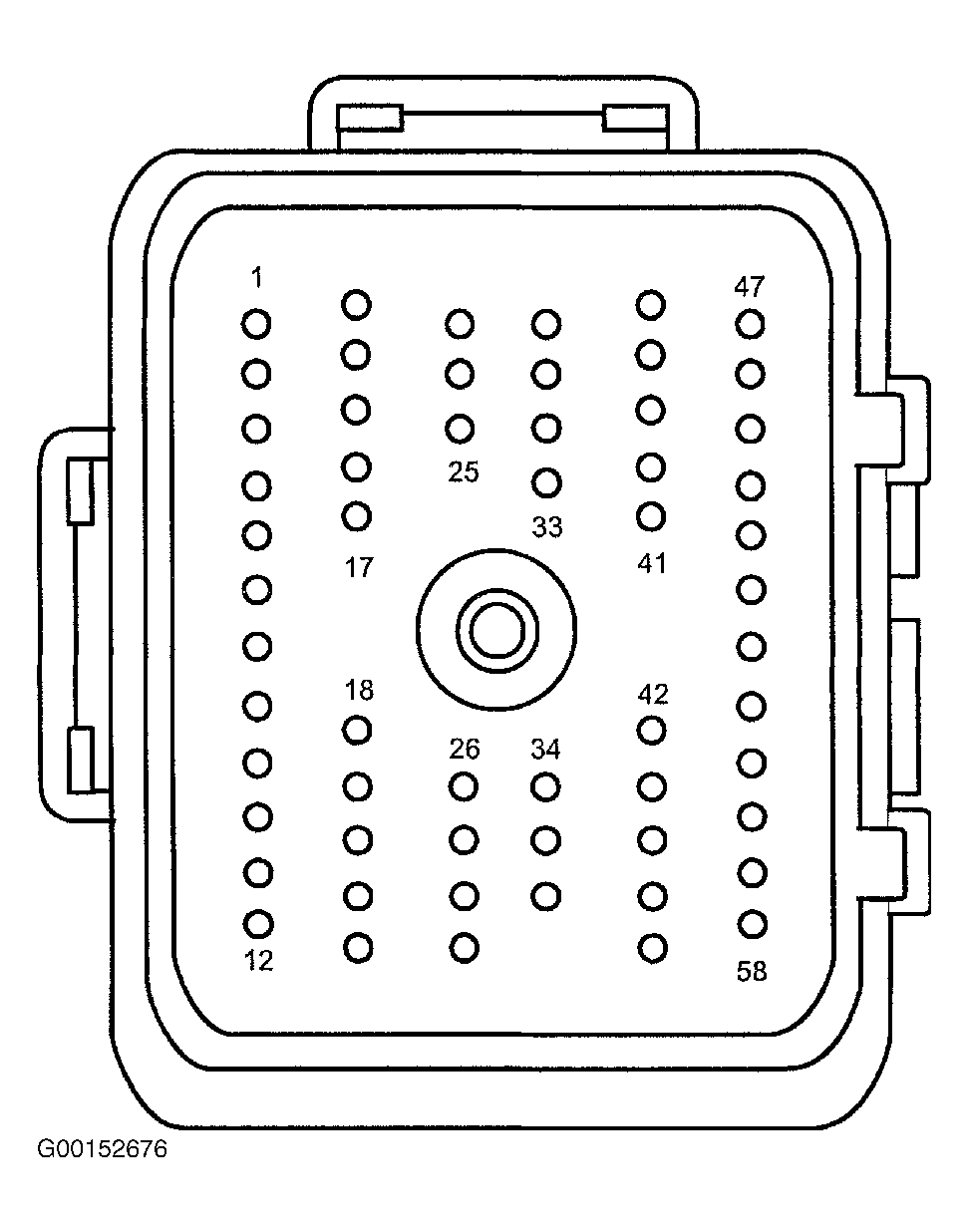

Fig 1: Identifying PCM Connector C175A Terminals (LS)

G00152676

Courtesy of FORD MOTOR CO.

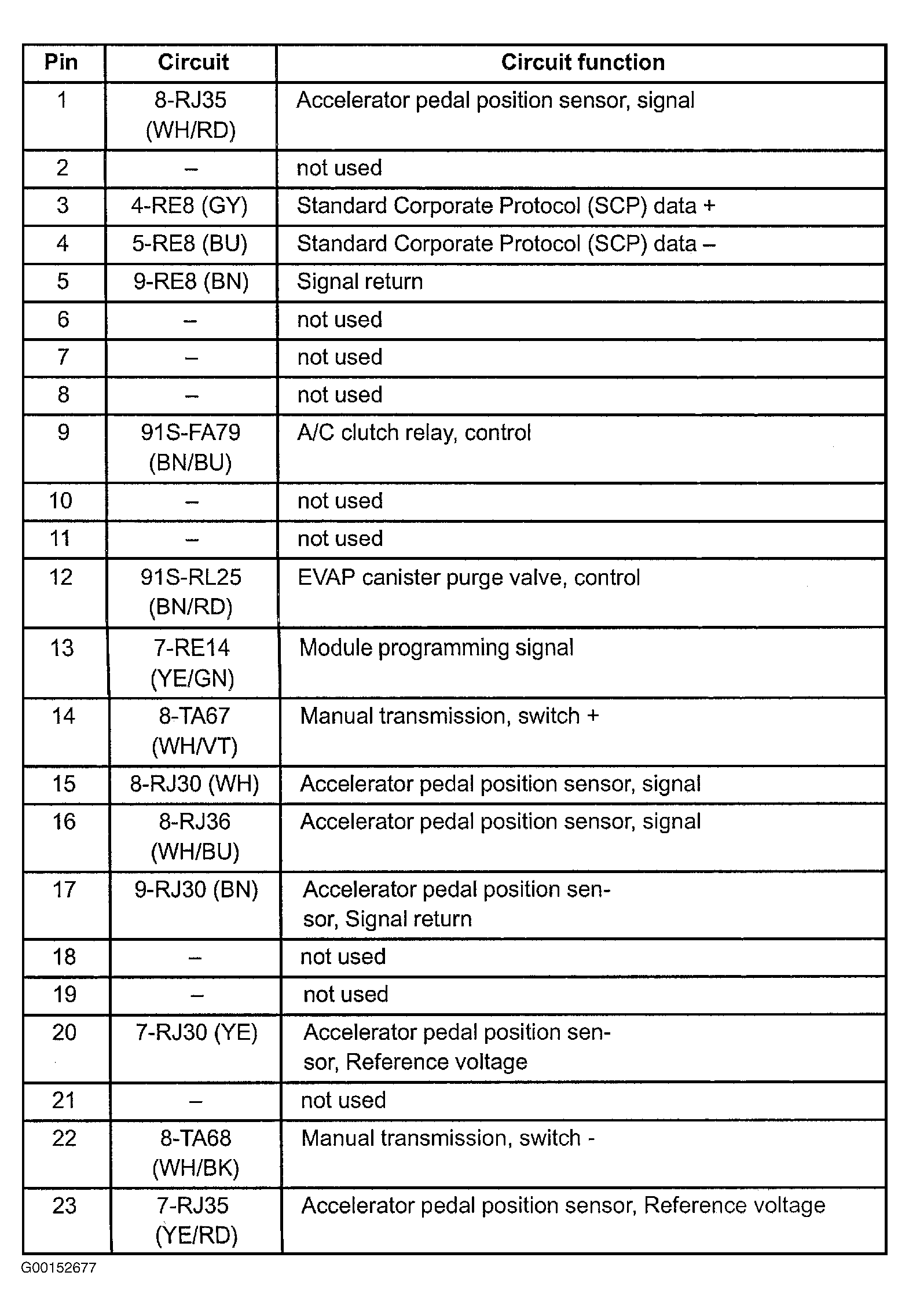

Fig 2: Identifying PCM Connector C175A Circuit Functions (1 Of 3 - LS)

G00152677

Courtesy of FORD MOTOR CO.

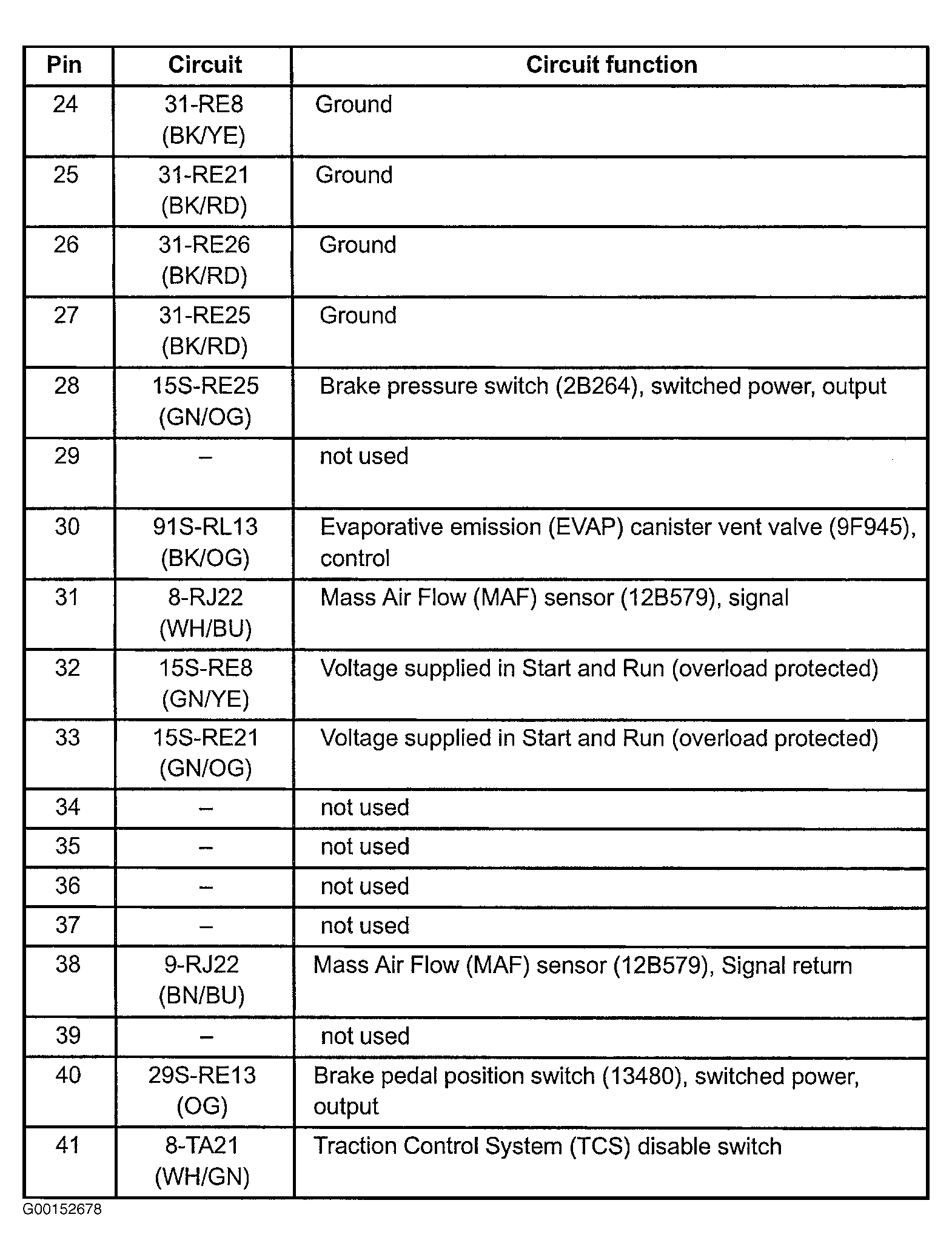

Fig 3: Identifying PCM Connector C175A Circuit Functions (2 Of 3 - LS)

G00152678

Courtesy of FORD MOTOR CO.

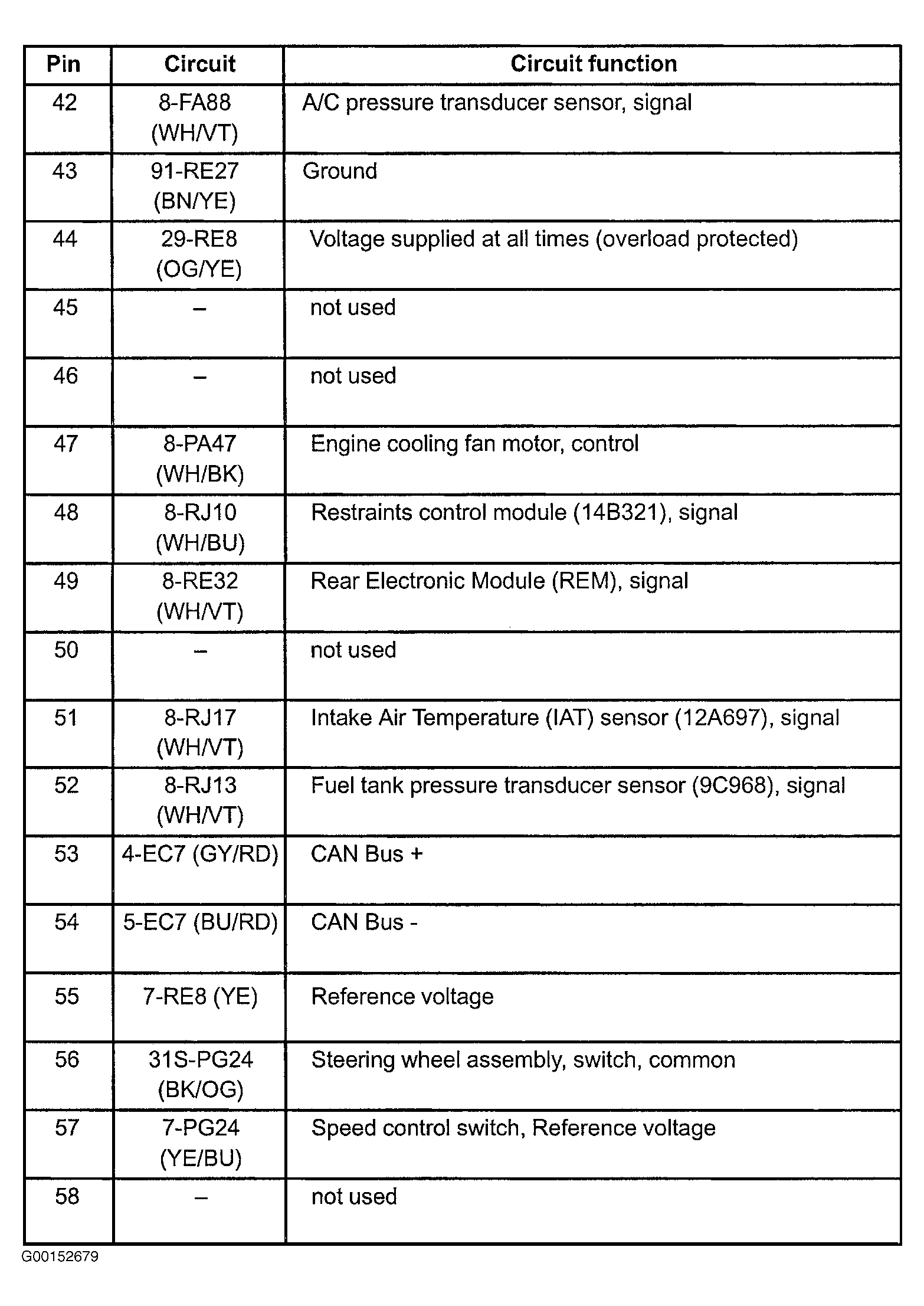

Fig 4: Identifying PCM Connector C175A Circuit Functions (3 Of 3 - LS)

G00152679

Courtesy of FORD MOTOR CO.

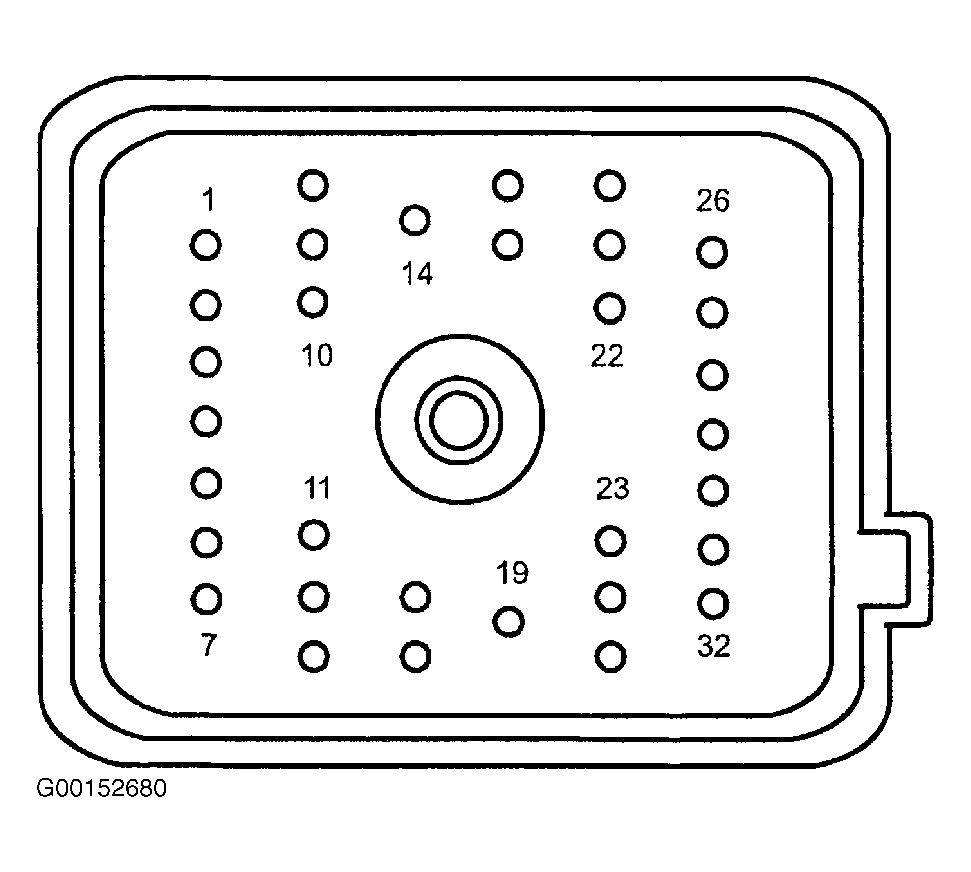

Fig 5: Identifying PCM Connector C175B Terminals (LS)

G00152680

Courtesy of FORD MOTOR CO.

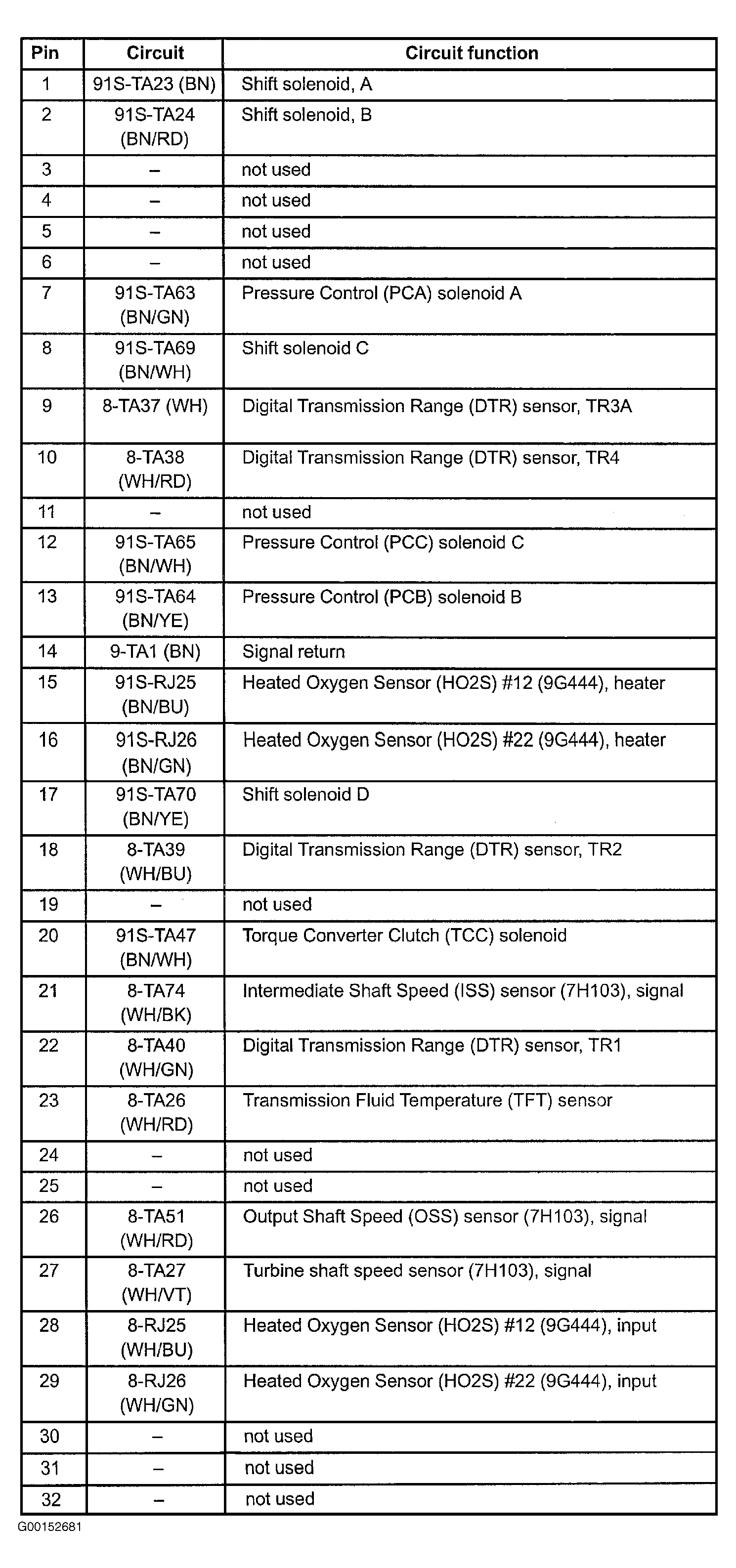

Fig 6: Identifying PCM Connector C175B Circuit Functions (LS)

G00152681

Courtesy of FORD MOTOR CO.

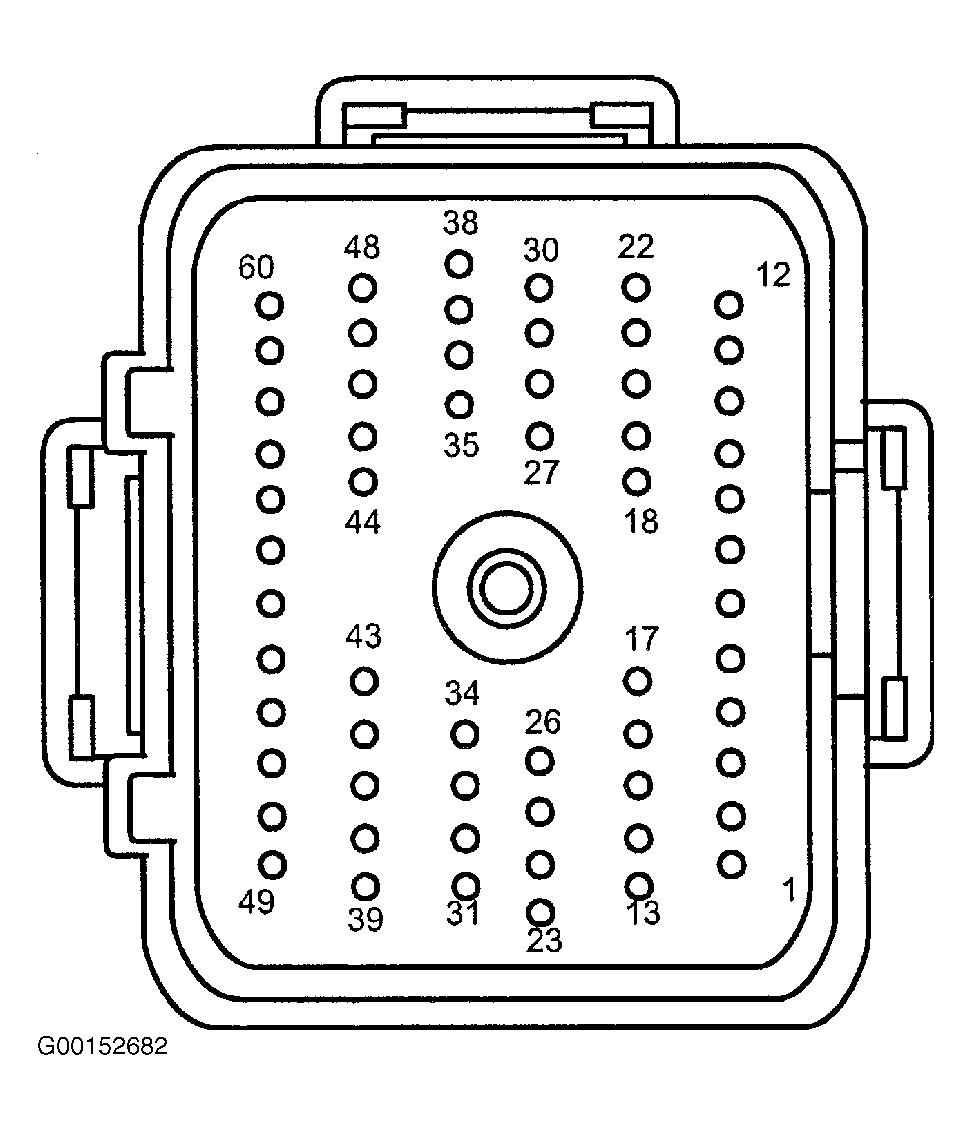

Fig 7: Identifying PCM Connector C175C Terminals (LS)

G00152682

Courtesy of FORD MOTOR CO.

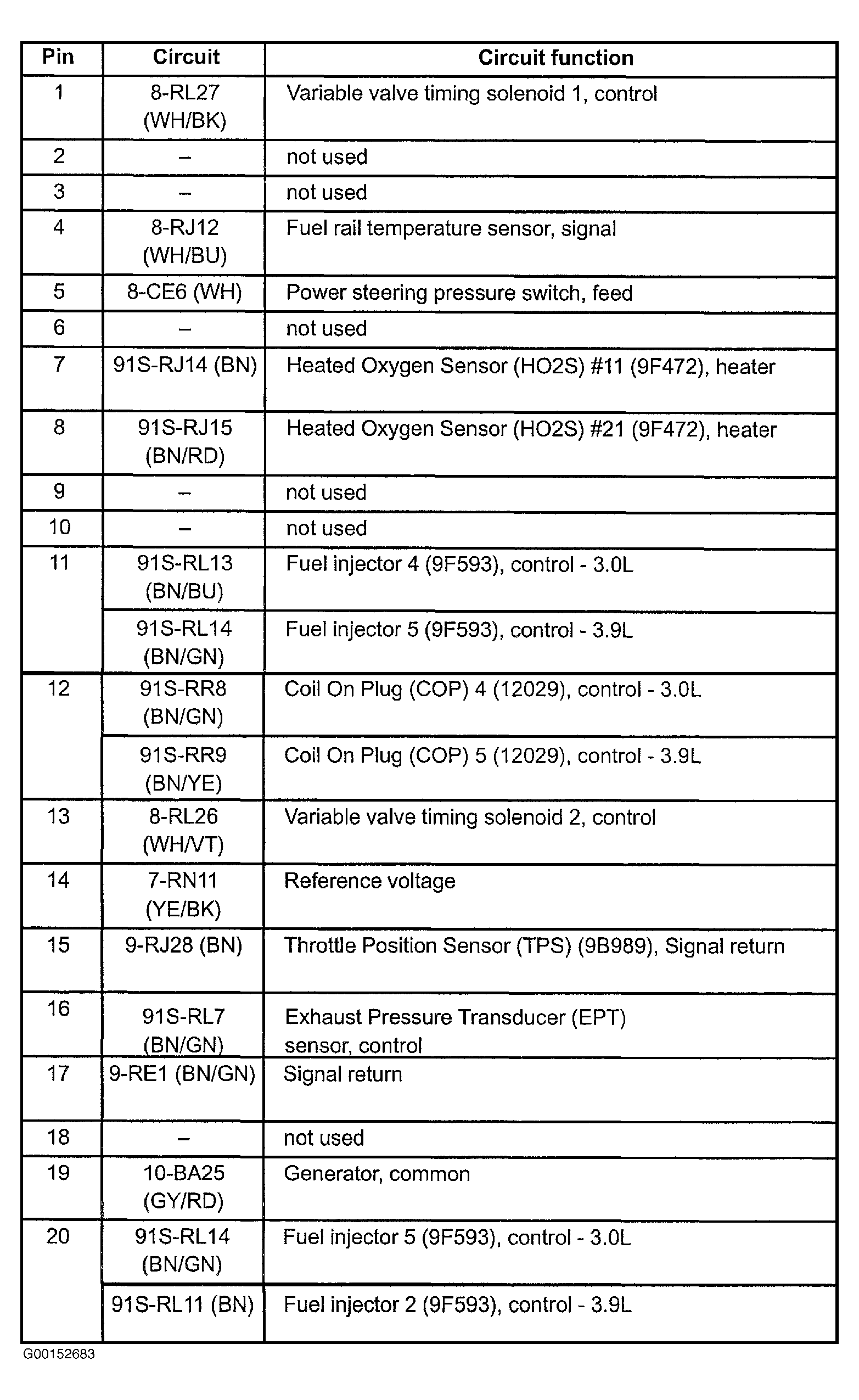

Fig 8: Identifying PCM Connector C175C Circuit Functions (1 Of 3 - LS)

G00152683

Courtesy of FORD MOTOR CO.

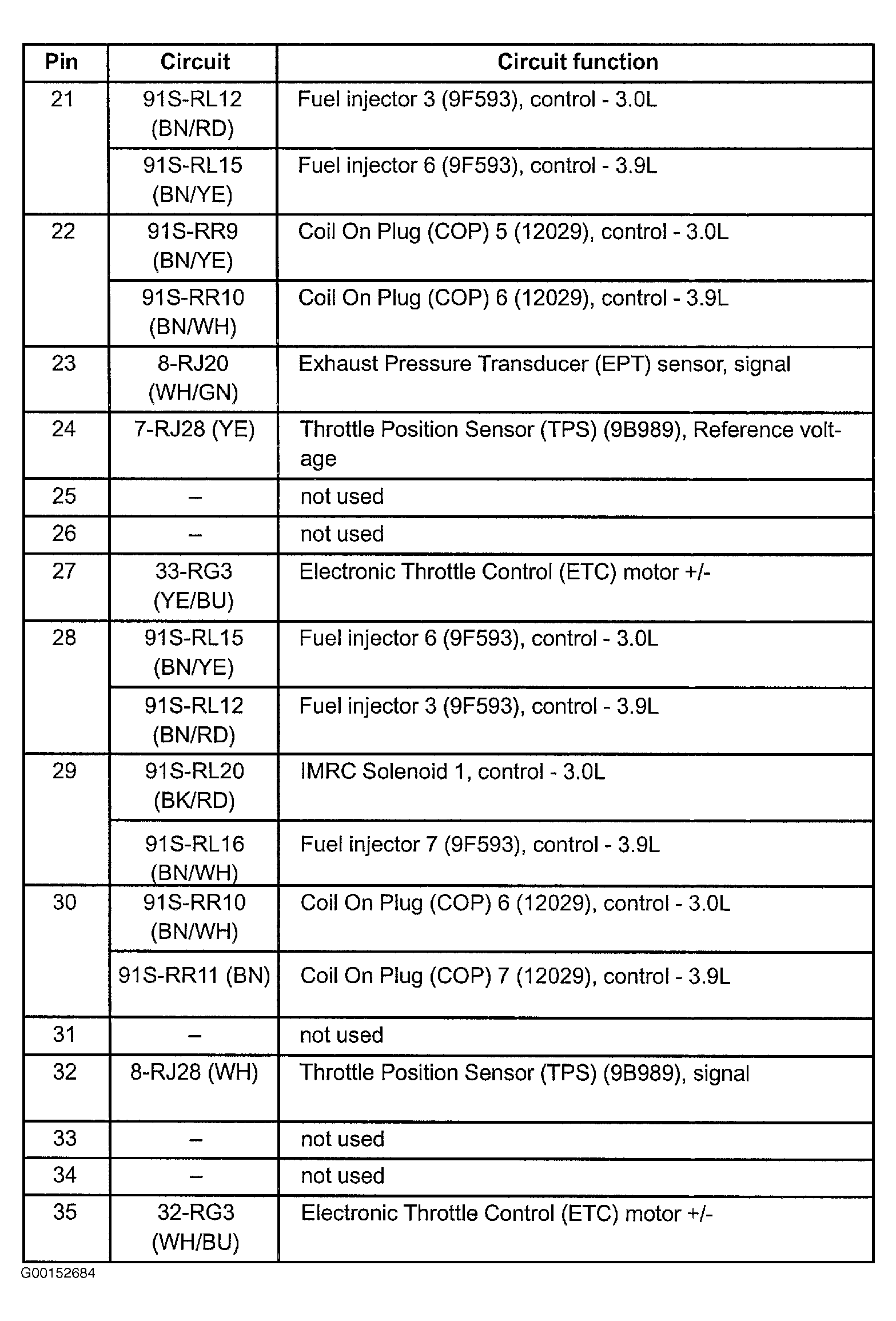

Fig 9: Identifying PCM Connector C175C Circuit Functions (2 Of 3 - LS)

G00152684

Courtesy of FORD MOTOR CO.

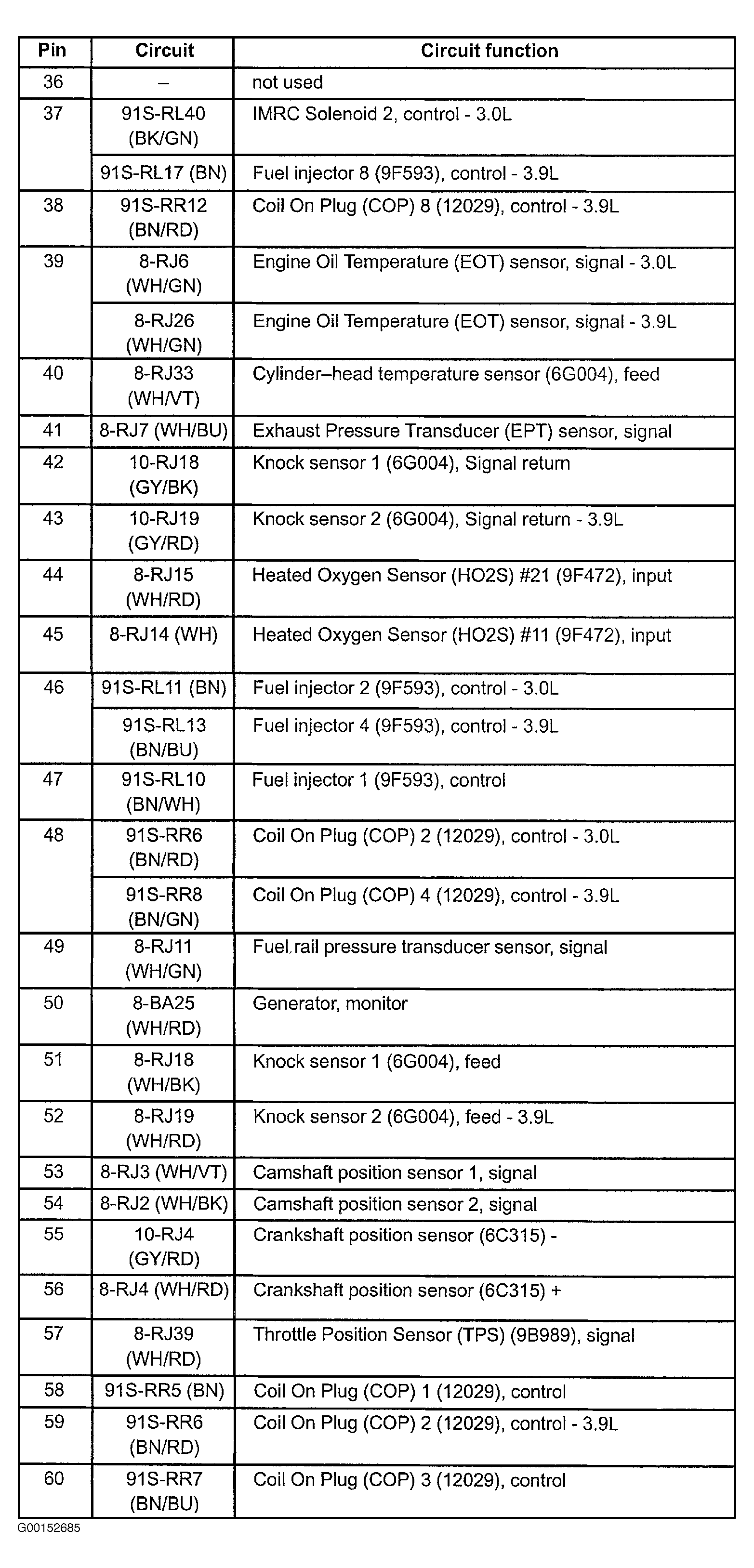

Fig 10: Identifying PCM Connector C175C Circuit Functions (3 Of 3 - LS)

G00152685

Courtesy of FORD MOTOR CO.
