Pcm Connector End View & Pcm Connector Circuit Functions (Focus 2.3L)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

FOCUS 2.3L PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Focus 2.3L	Fig 1	Fig 2-Fig 7

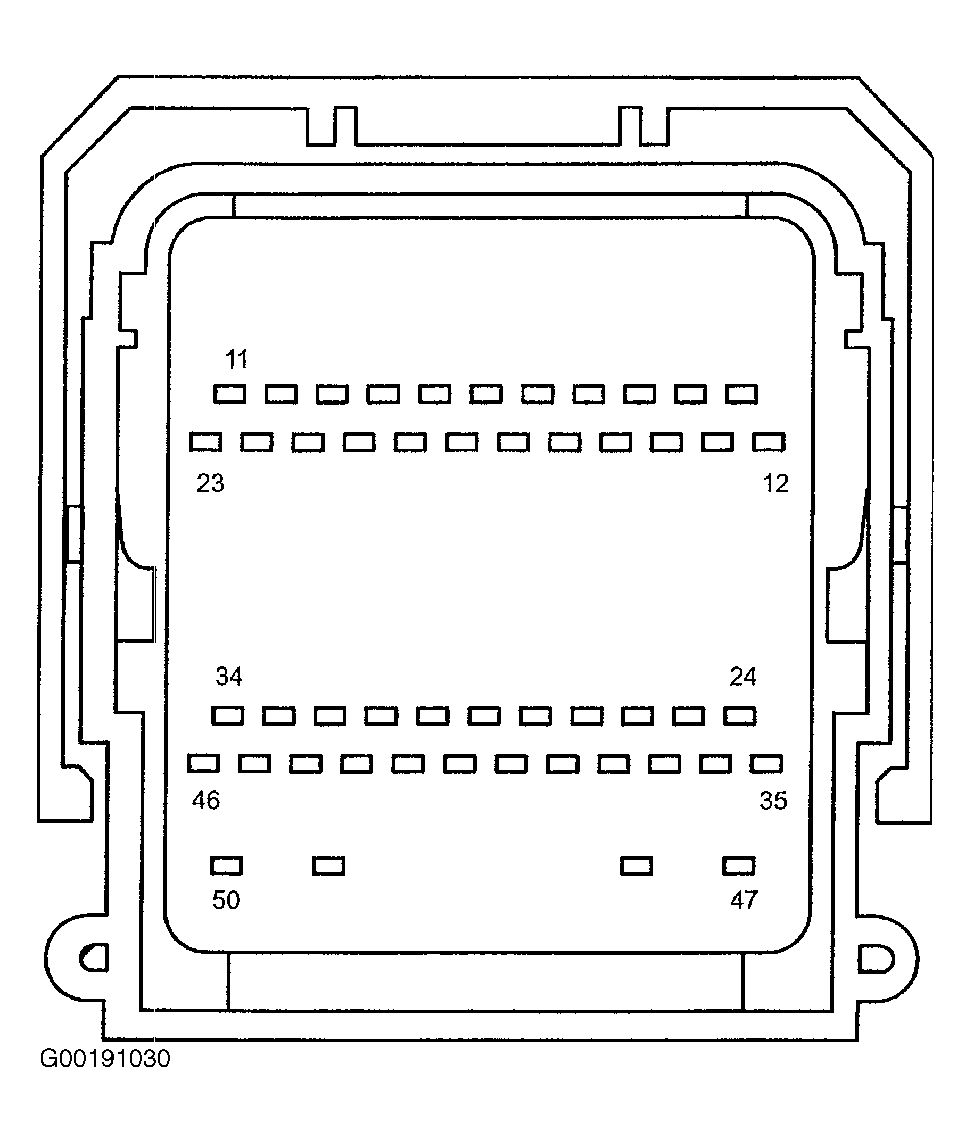

Fig 1: Identifying PCM Connector C175B, C175E & C175T Terminals (Focus 2.3L)

G00191030

Courtesy of FORD MOTOR CO.

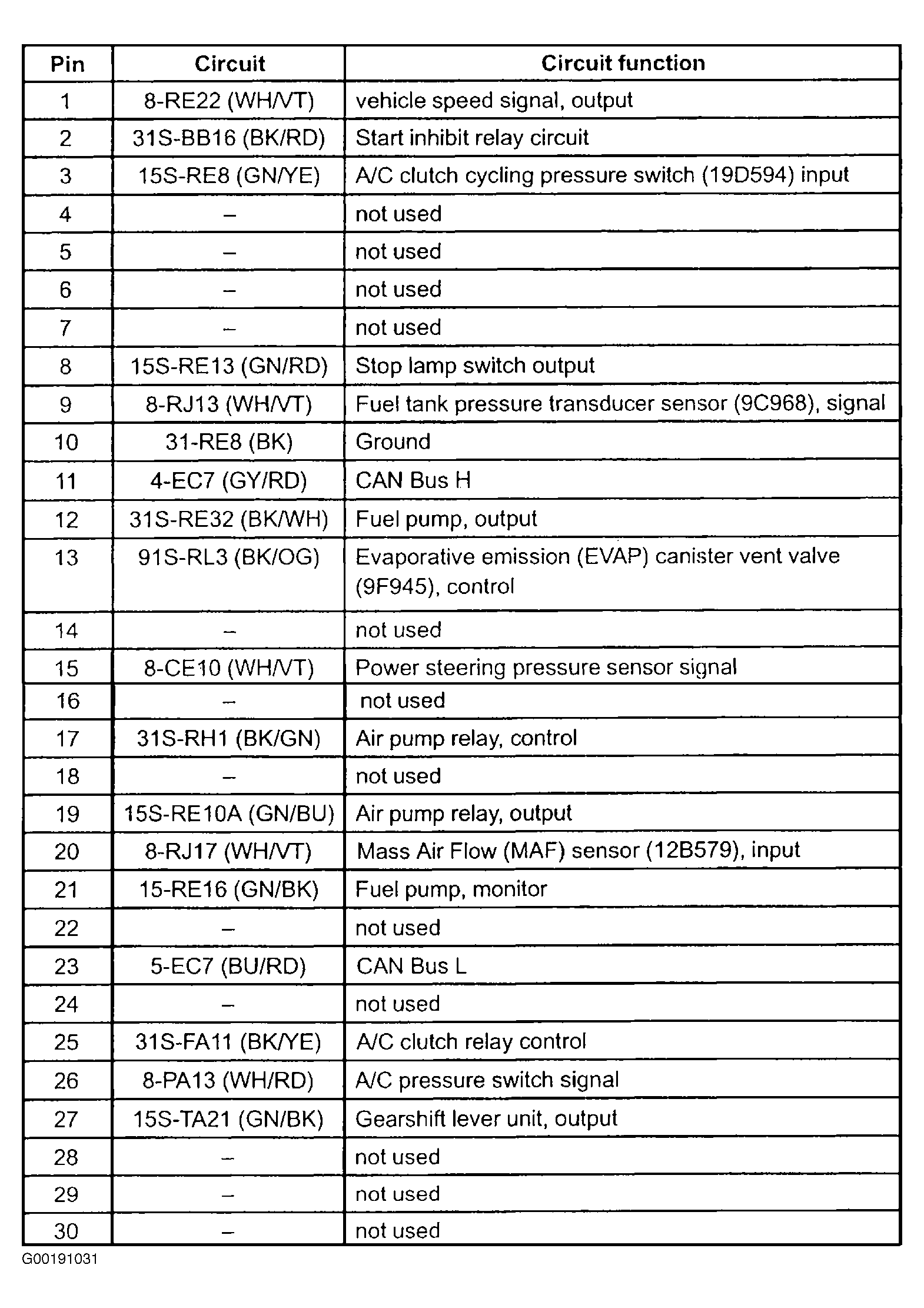

Fig 2: Identifying PCM Connector C175B Circuit Functions (1 Of 2 - Focus 2.3L)

G00191031

Courtesy of FORD MOTOR CO.

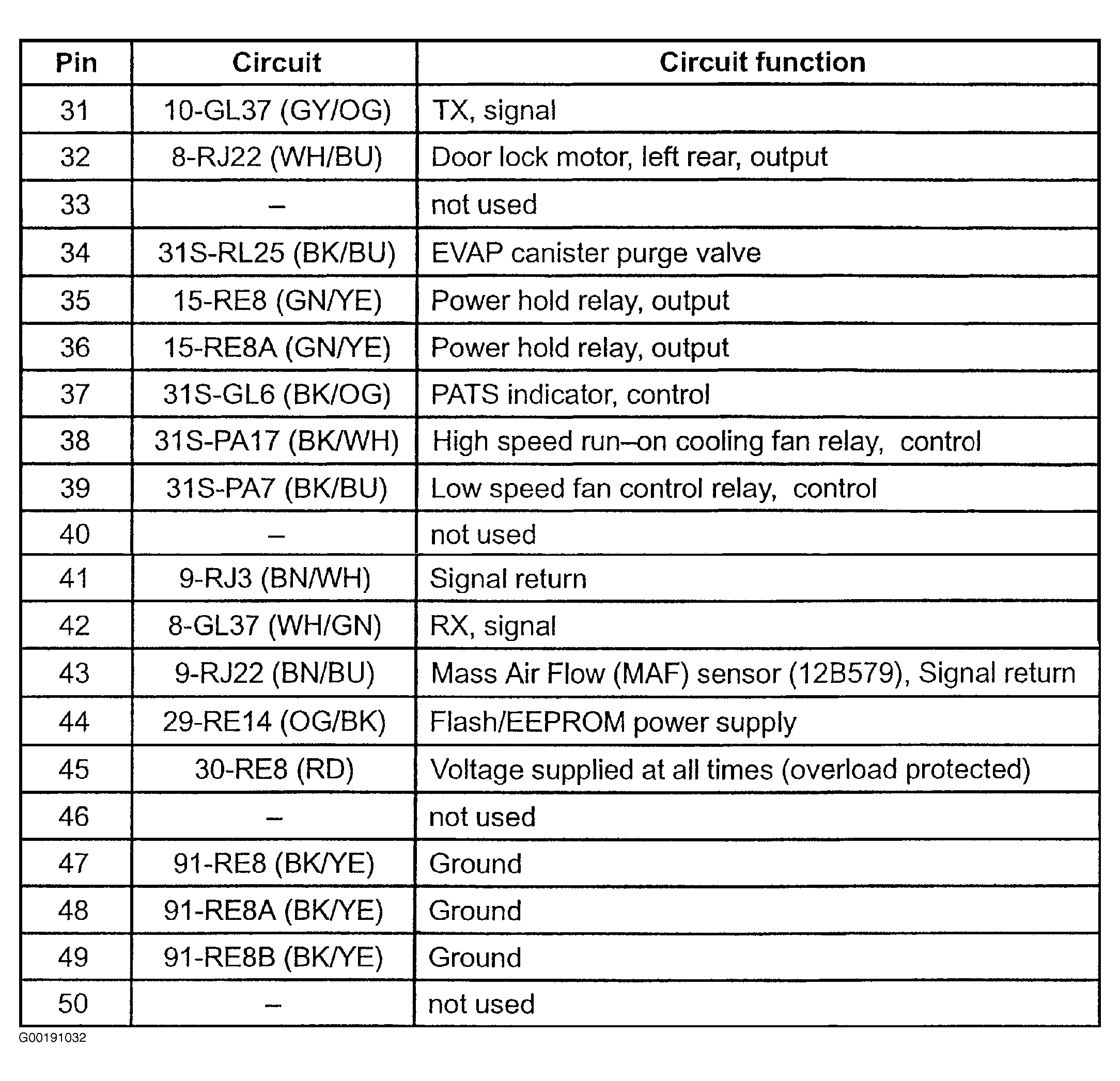

Fig 3: Identifying PCM Connector C175B Circuit Functions (2 Of 2 - Focus 2.3L)

G00191032

Courtesy of FORD MOTOR CO.

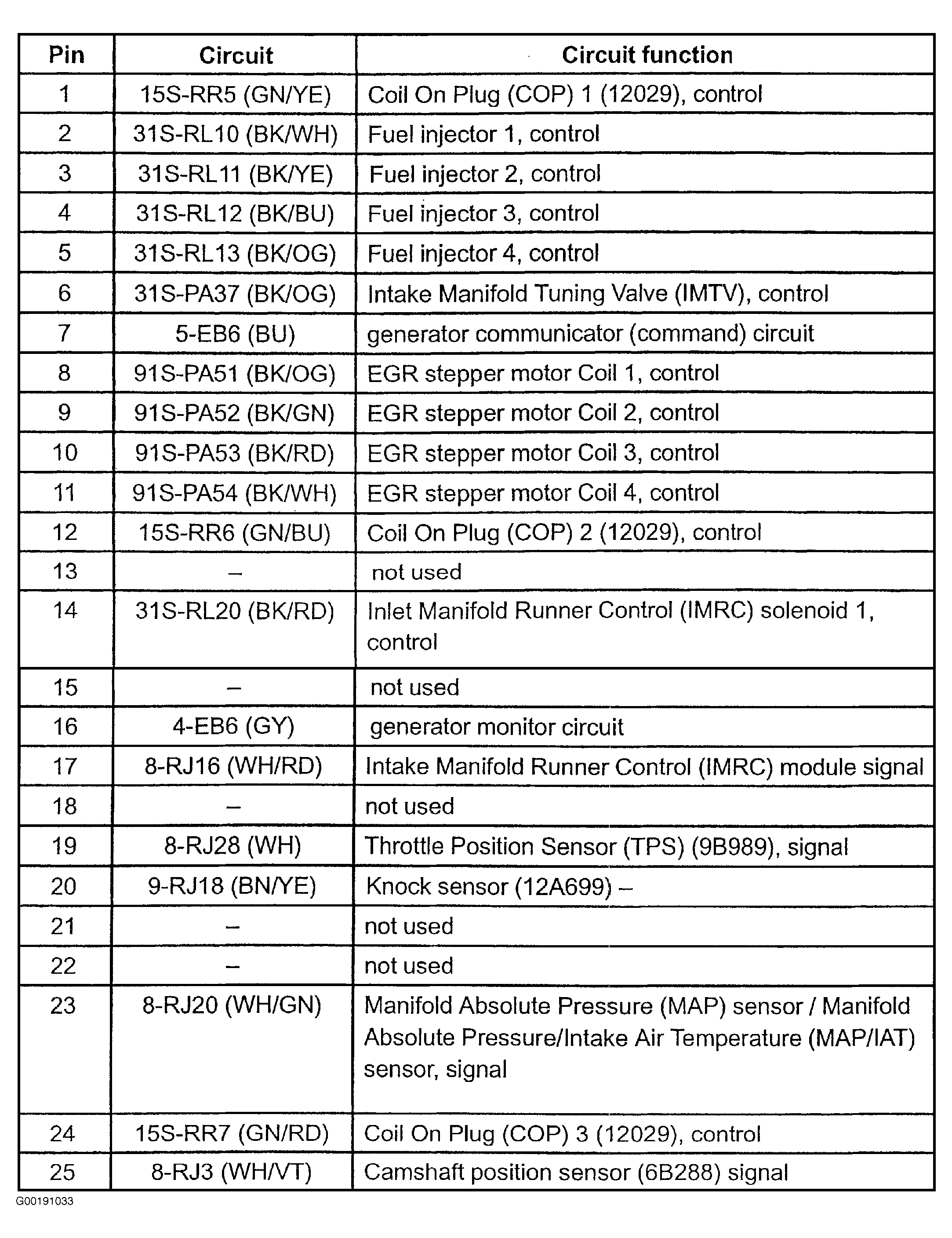

Fig 4: Identifying PCM Connector C175E Circuit Functions (1 Of 2 - Focus 2.3L)

G00191033

Courtesy of FORD MOTOR CO.

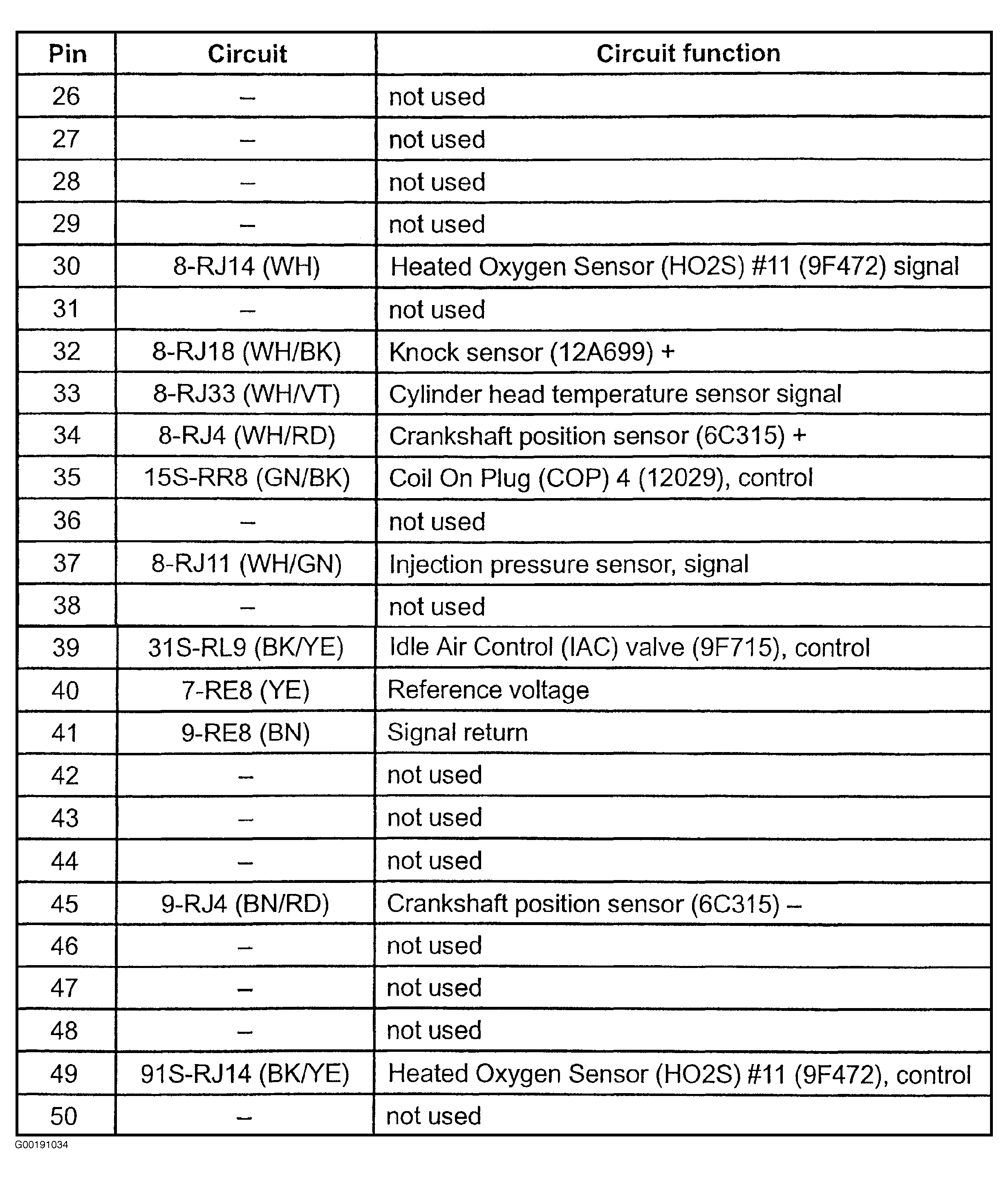

Fig 5: Identifying PCM Connector C175E Circuit Functions (2 Of 2 - Focus 2.3L)

G00191034

Courtesy of FORD MOTOR CO.

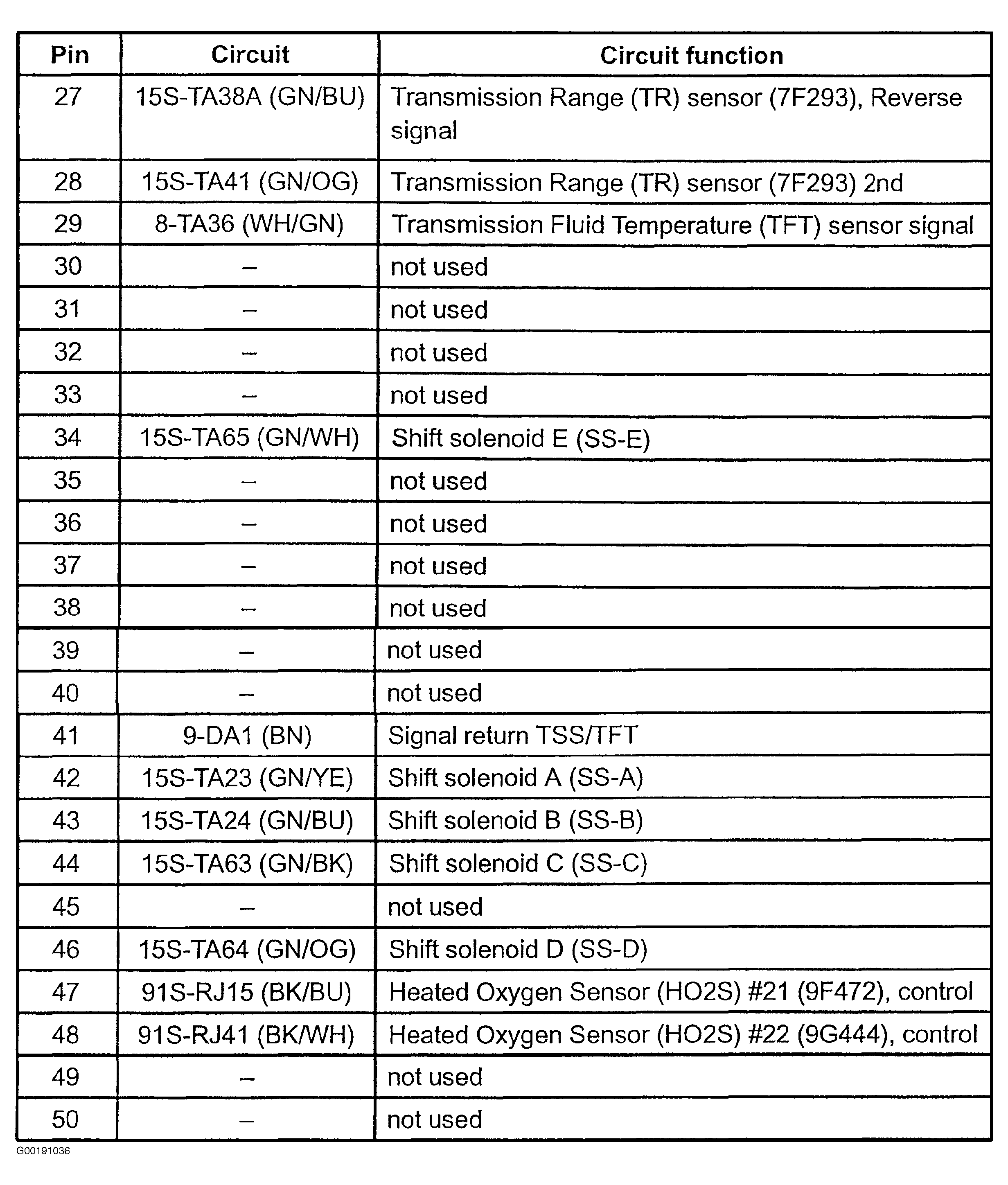

Fig 6: Identifying PCM Connector C175T Circuit Functions (1 Of 2 - Focus 2.3L)

G00191035

Courtesy of FORD MOTOR CO.

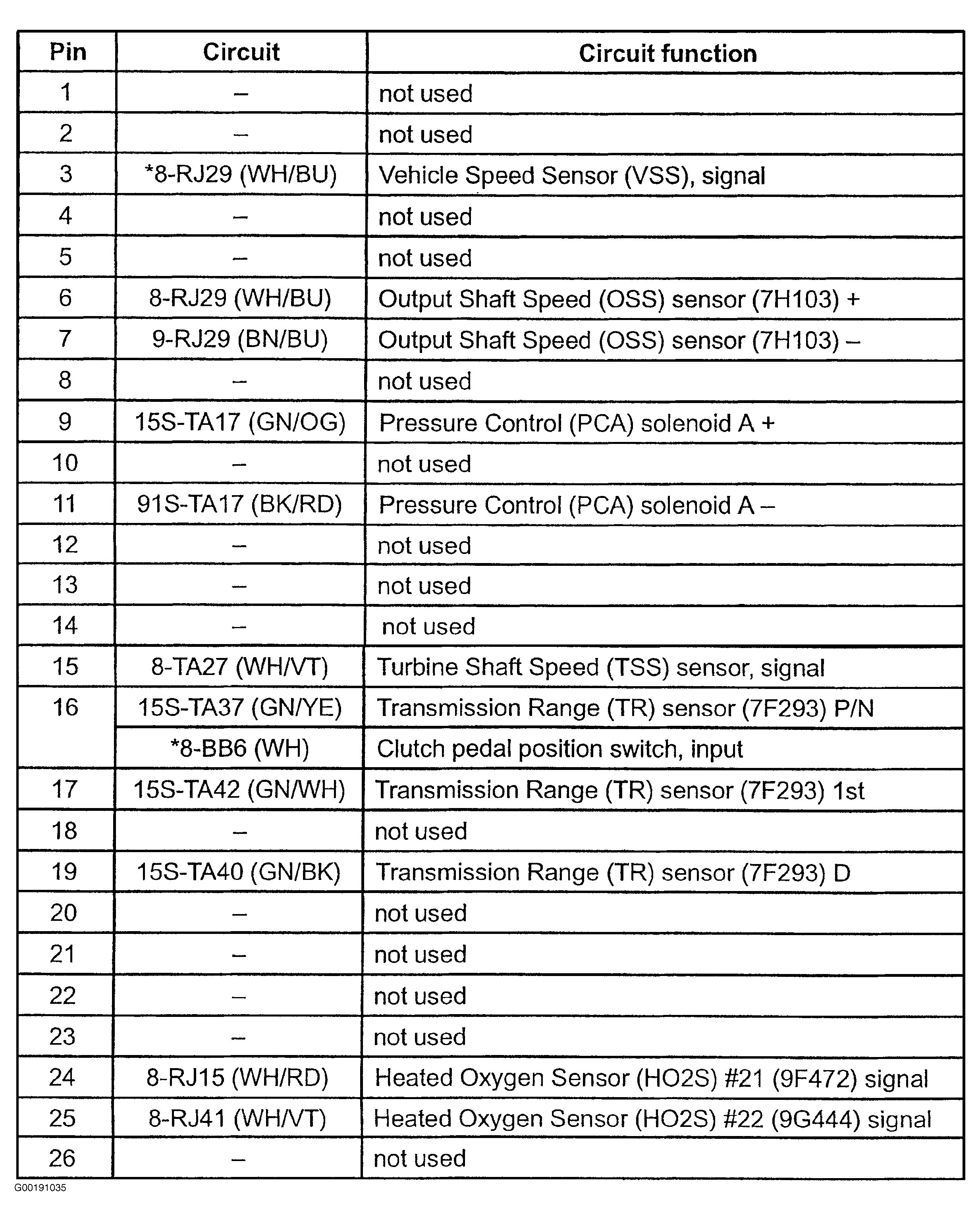

Fig 7: Identifying PCM Connector C175T Circuit Functions (2 Of 2 - Focus 2.3L)

G00191036

Courtesy of FORD MOTOR CO.
