Pcm Connector End View & Pcm Connector Circuit Functions (Explorer & Mountaineer)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

EXPLORER & MOUNTAINEER PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Explorer & Mountaineer	C175A Fig 1, C175B Fig 4 & C175C Fig 6	C175A Fig 2 & Fig 3 , C175B Fig 5 & C175C Fig 7 & Fig 8

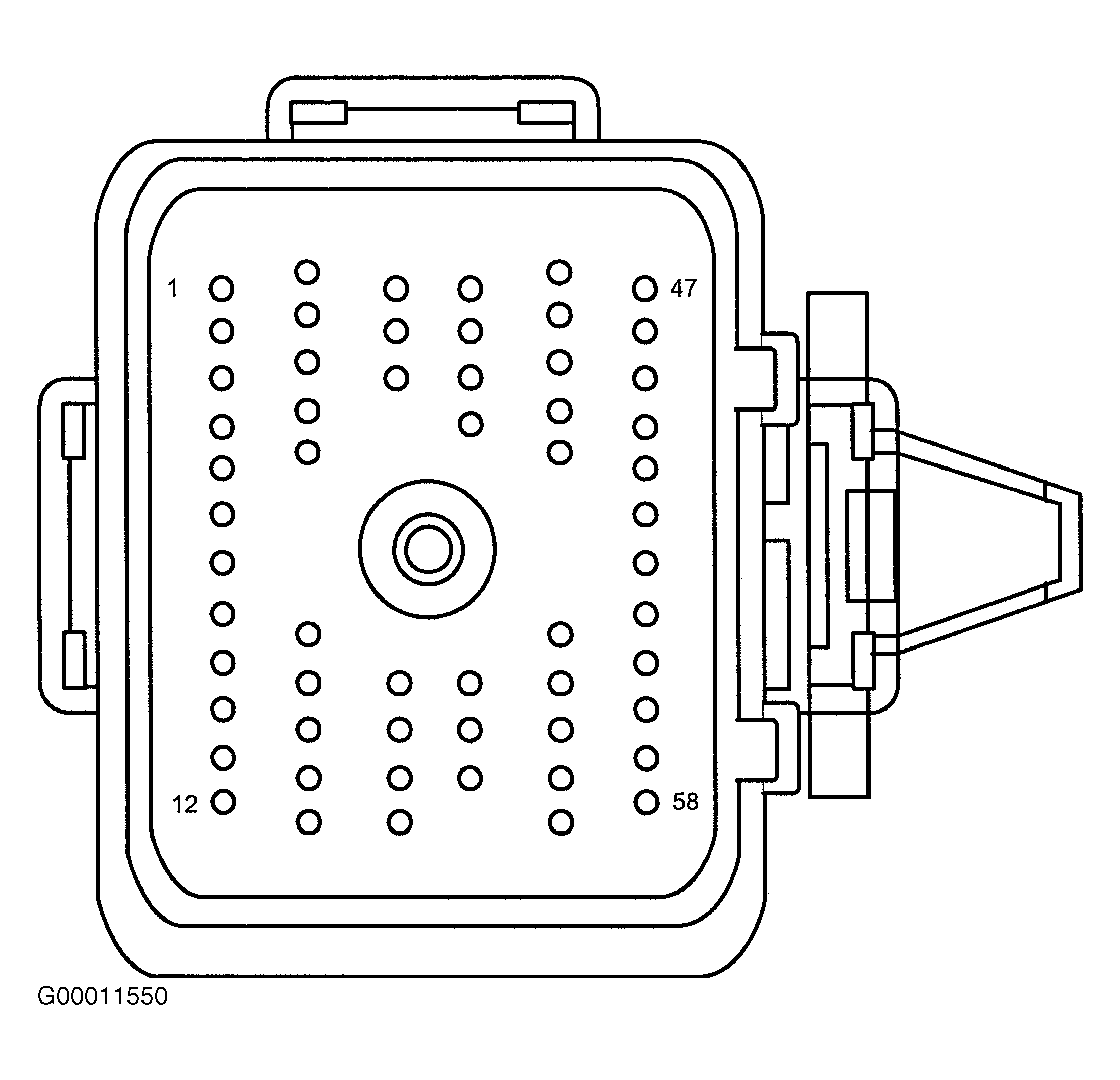

Fig 1: Identifying PCM Connector C175A Terminals (Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

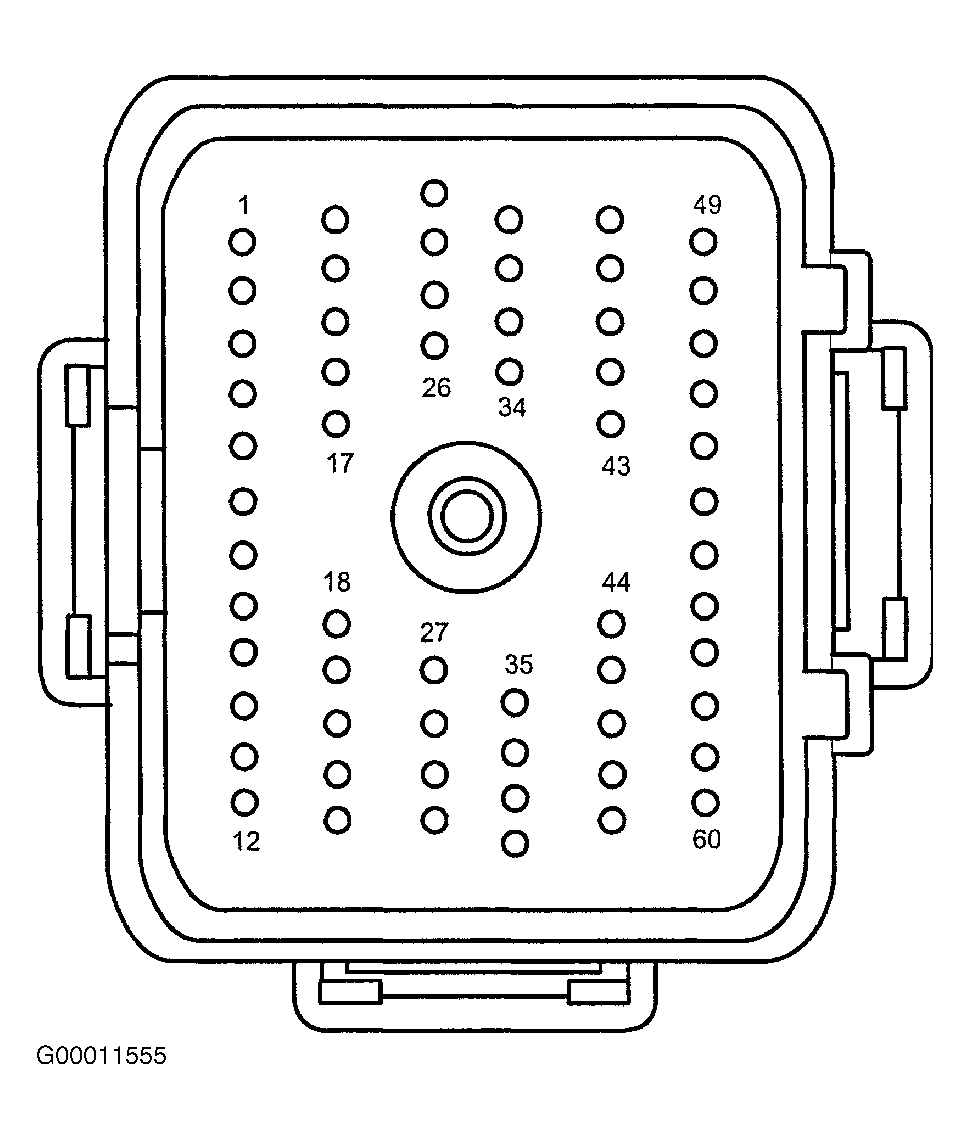

Fig 2: Identifying PCM Connector C175A Circuit Functions (1 Of 2 - Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

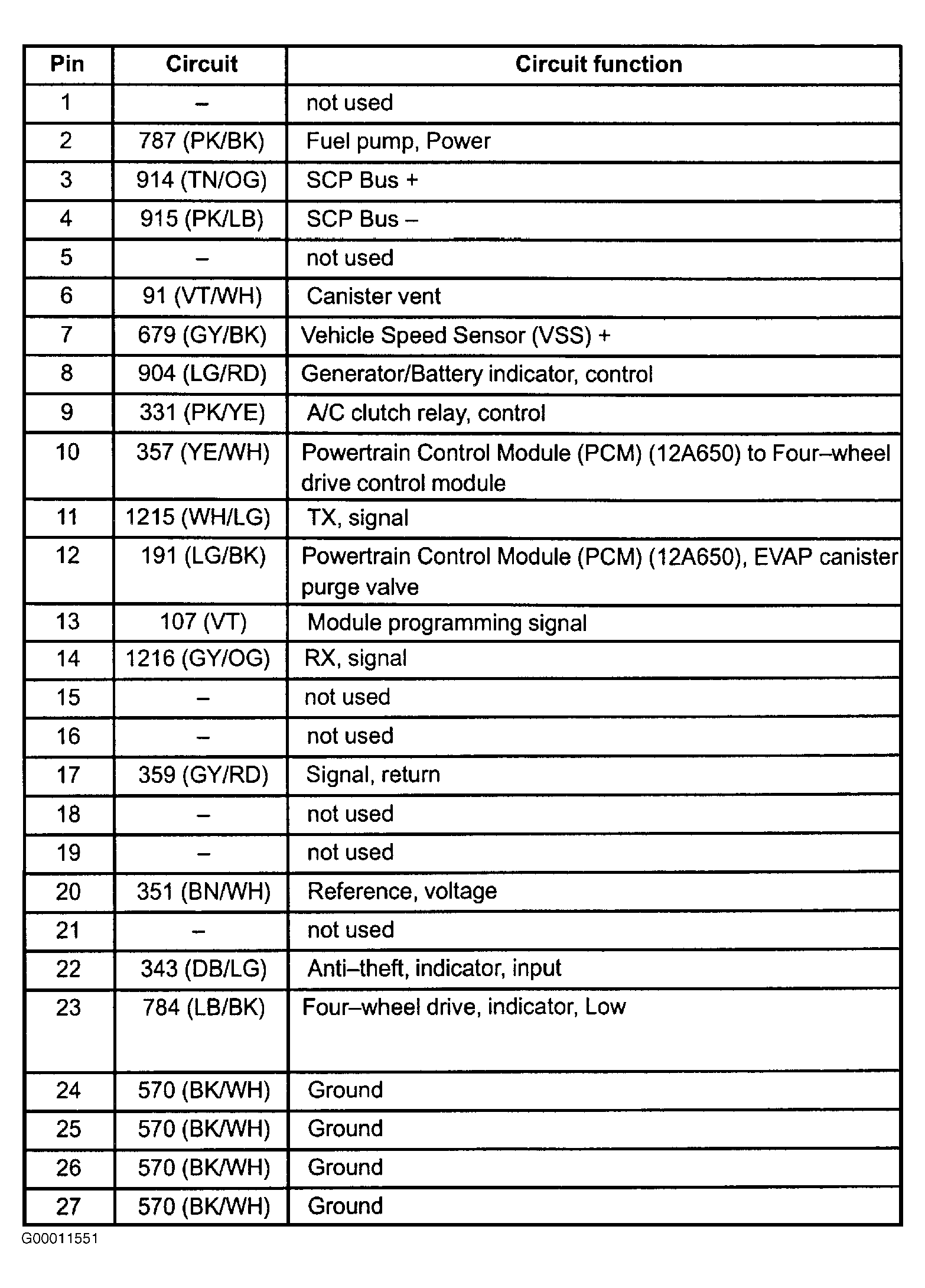

Fig 3: Identifying PCM Connector C175A Circuit Function (2 Of 2 - Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

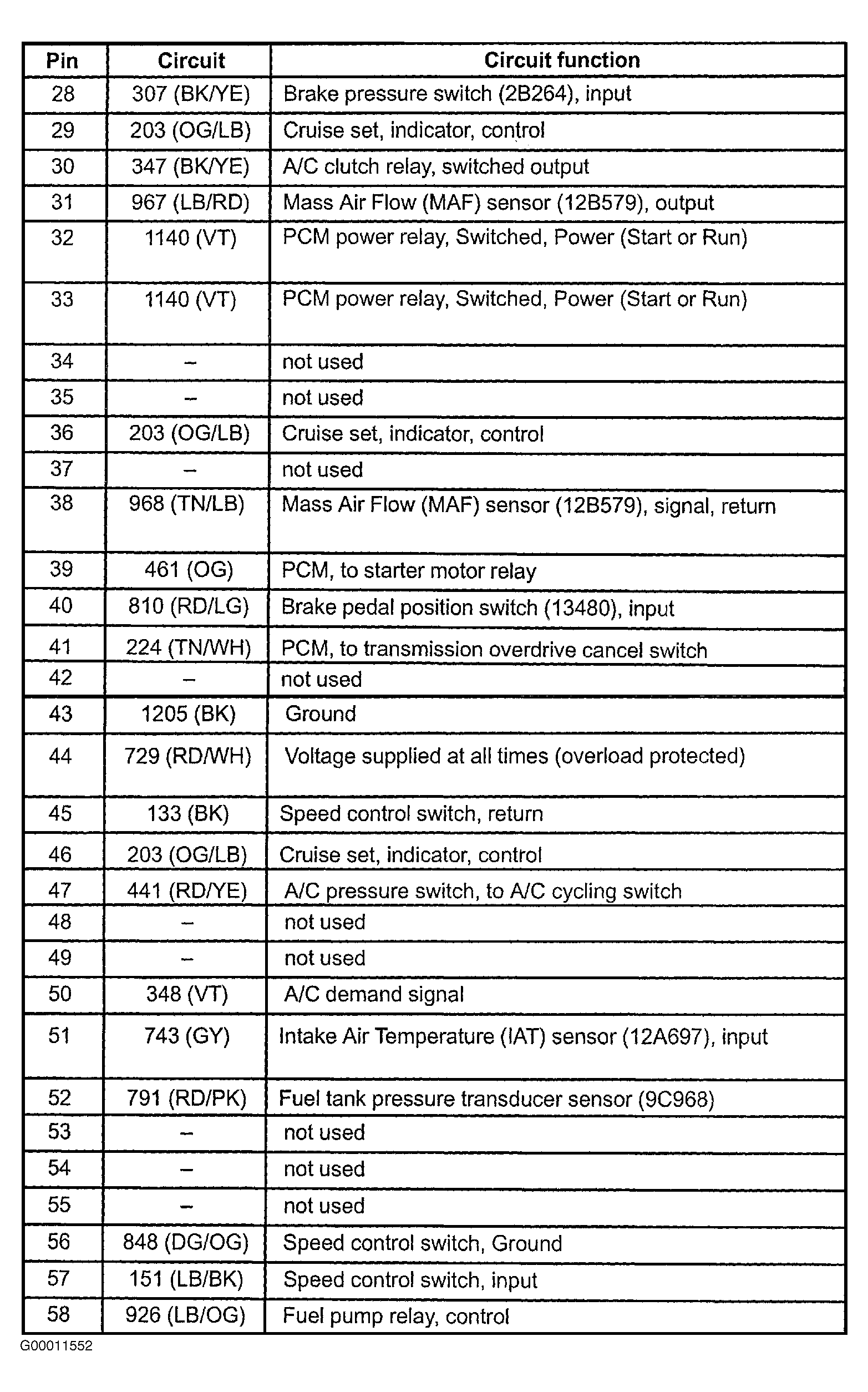

Fig 4: Identifying PCM Connector C175B Terminals (Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

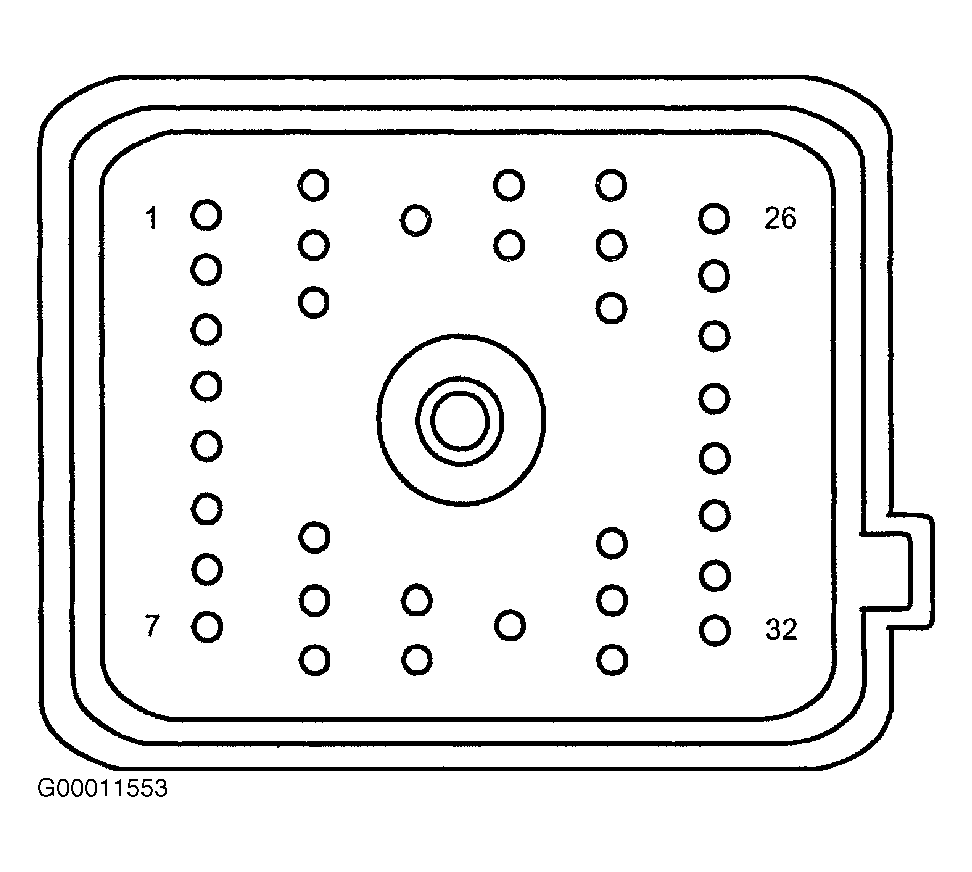

Fig 5: Identifying PCM Connector C175B Circuit Functions (Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

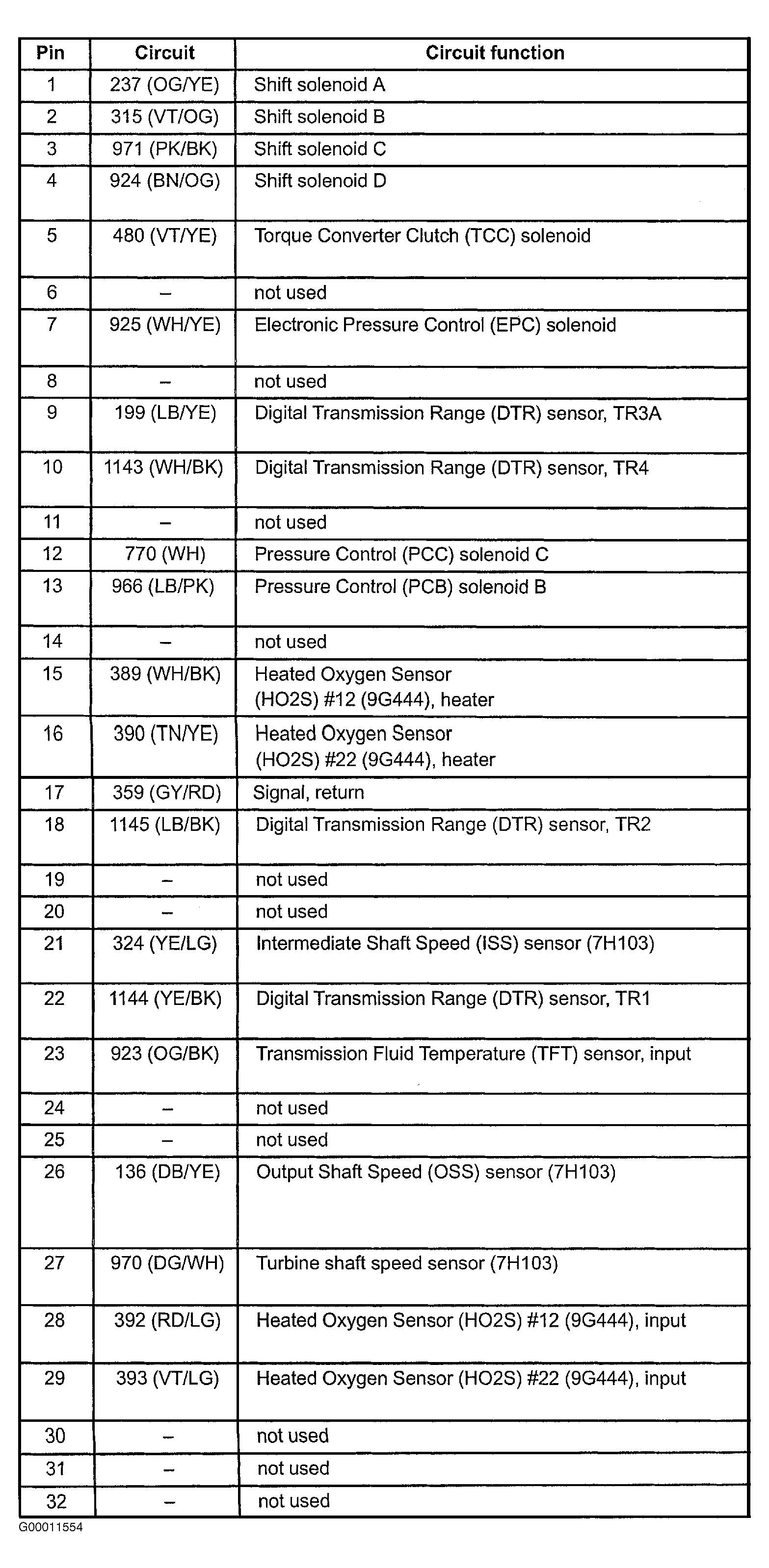

Fig 6: Identifying PCM Connector C175C Terminals (Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

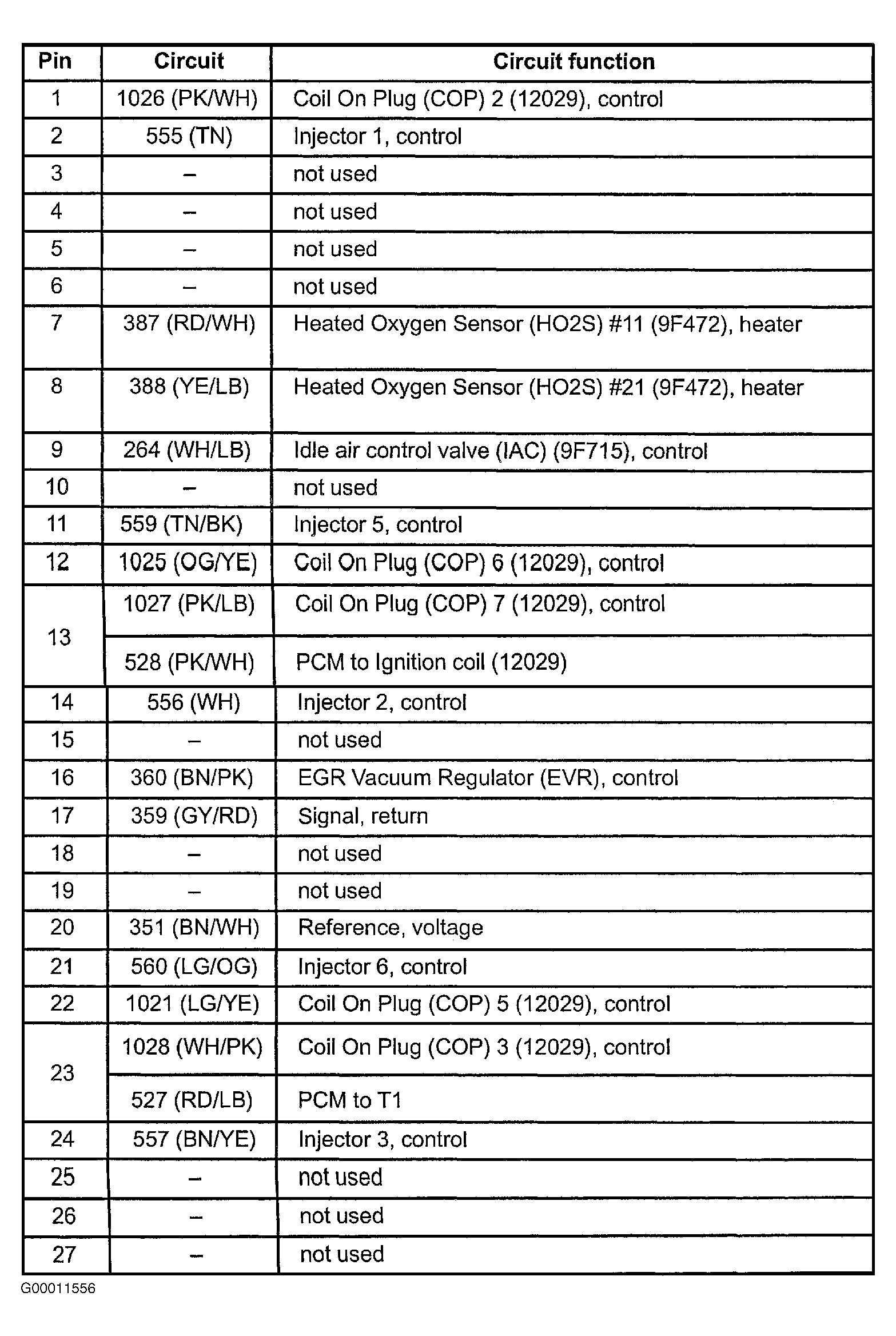

Fig 7: Identifying PCM Connector C175C Circuit Functions (1 Of 2 - Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.

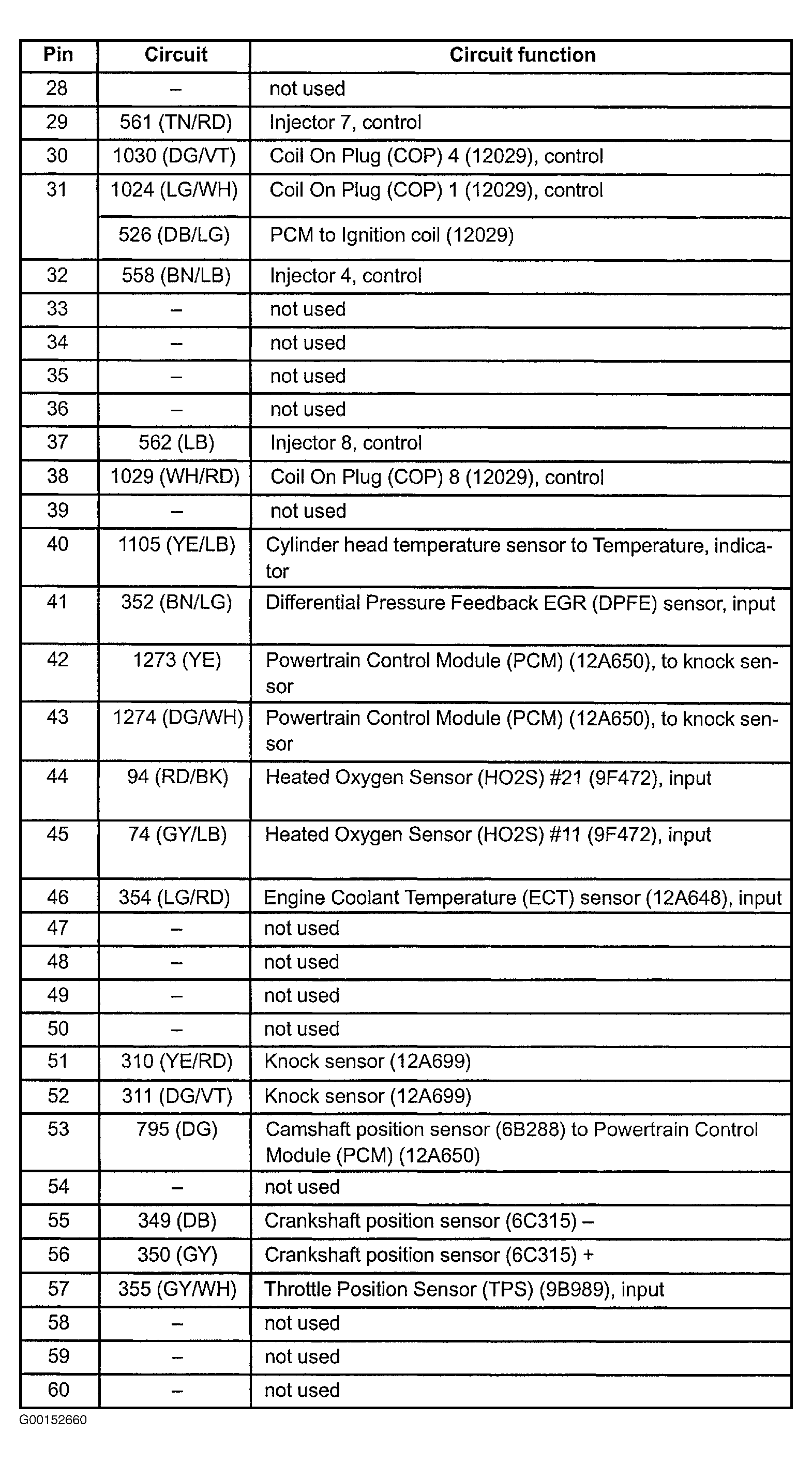

Fig 8: Identifying PCM Connector C175C Circuit Functions (2 Of 2 - Explorer & Mountaineer)

Courtesy of FORD MOTOR CO.
