Pcm Connector End View & Pcm Connector Circuit Functions (Expedition & Navigator)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2003 Mercury Sable, 2003 Mercury Mountaineer, 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

EXPEDITION & NAVIGATOR PCM CONNECTOR IDENTIFICATION

Application	Terminal Identification	Circuit Function
Expedition & Navigator	C175B Fig 1, C175E Fig 3 & C175T Fig 5	C175B Fig 2, C175E Fig 4 & C175T Fig 6

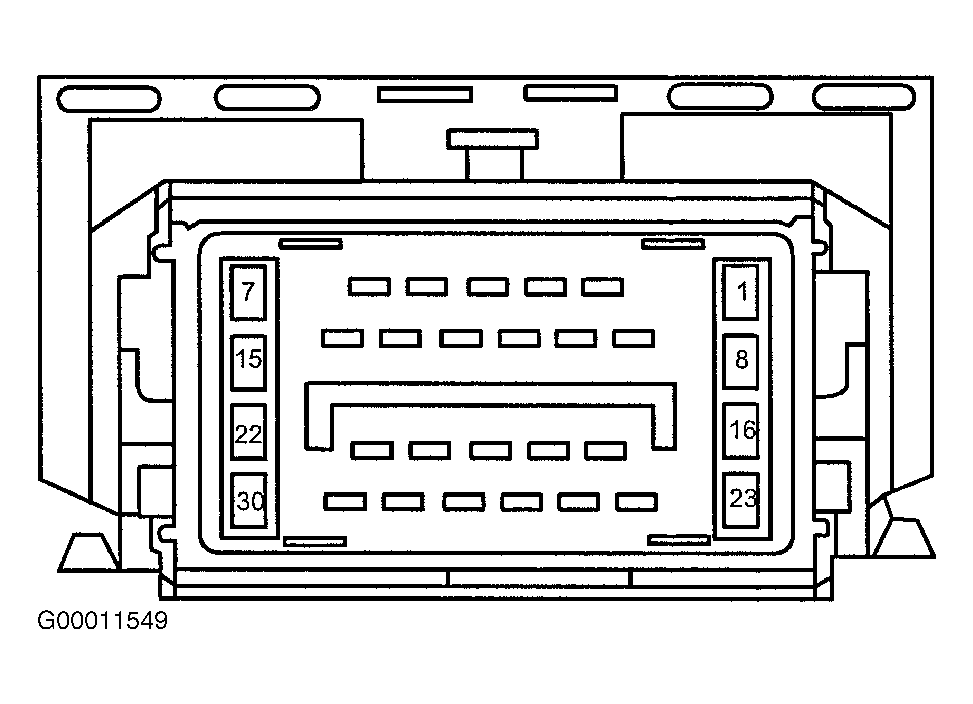

Fig 1: Identifying PCM Connector C175B Terminals (Expedition & Navigator)

Courtesy of FORD MOTOR CO.

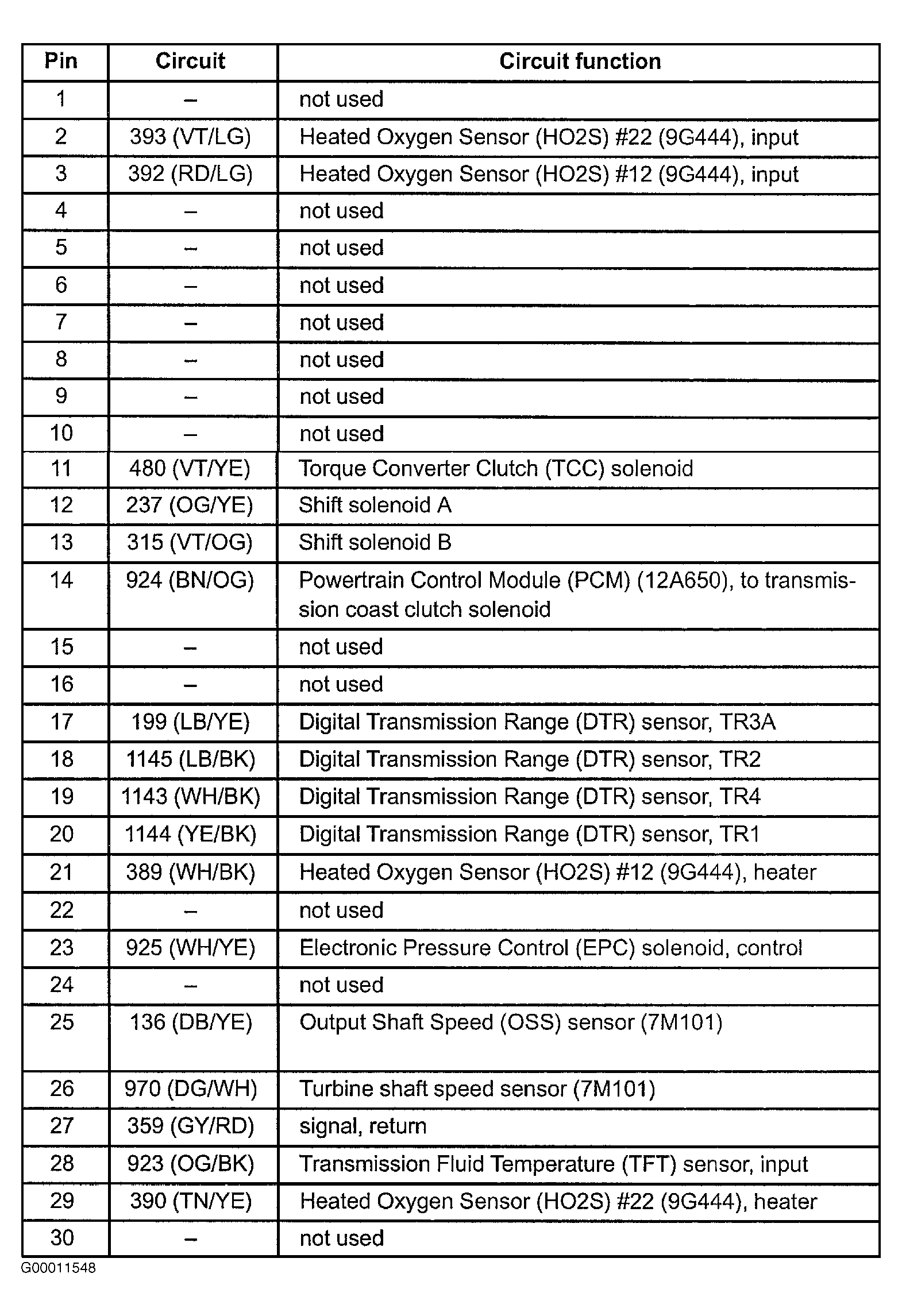

Fig 2: Identifying PCM Connector C175B Circuit Functions (Expedition & Navigator)

Courtesy of FORD MOTOR CO.

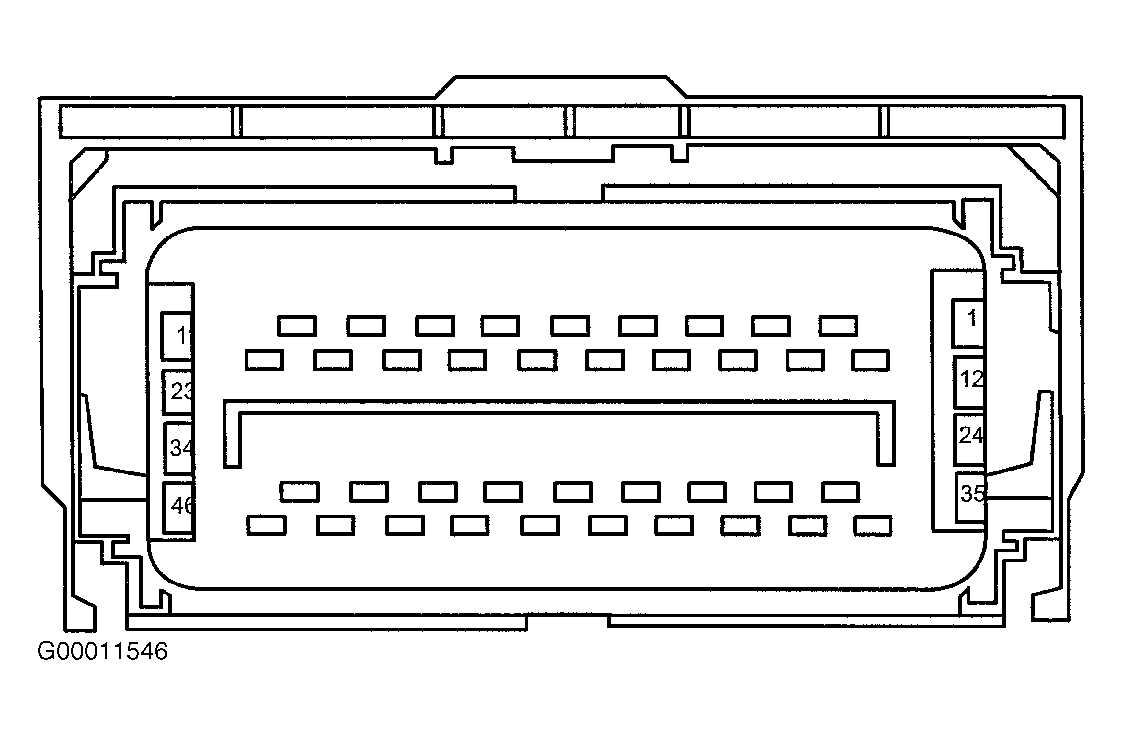

Fig 3: Identifying PCM Connector C175E Terminals (Expedition & Navigator)

Courtesy of FORD MOTOR CO.

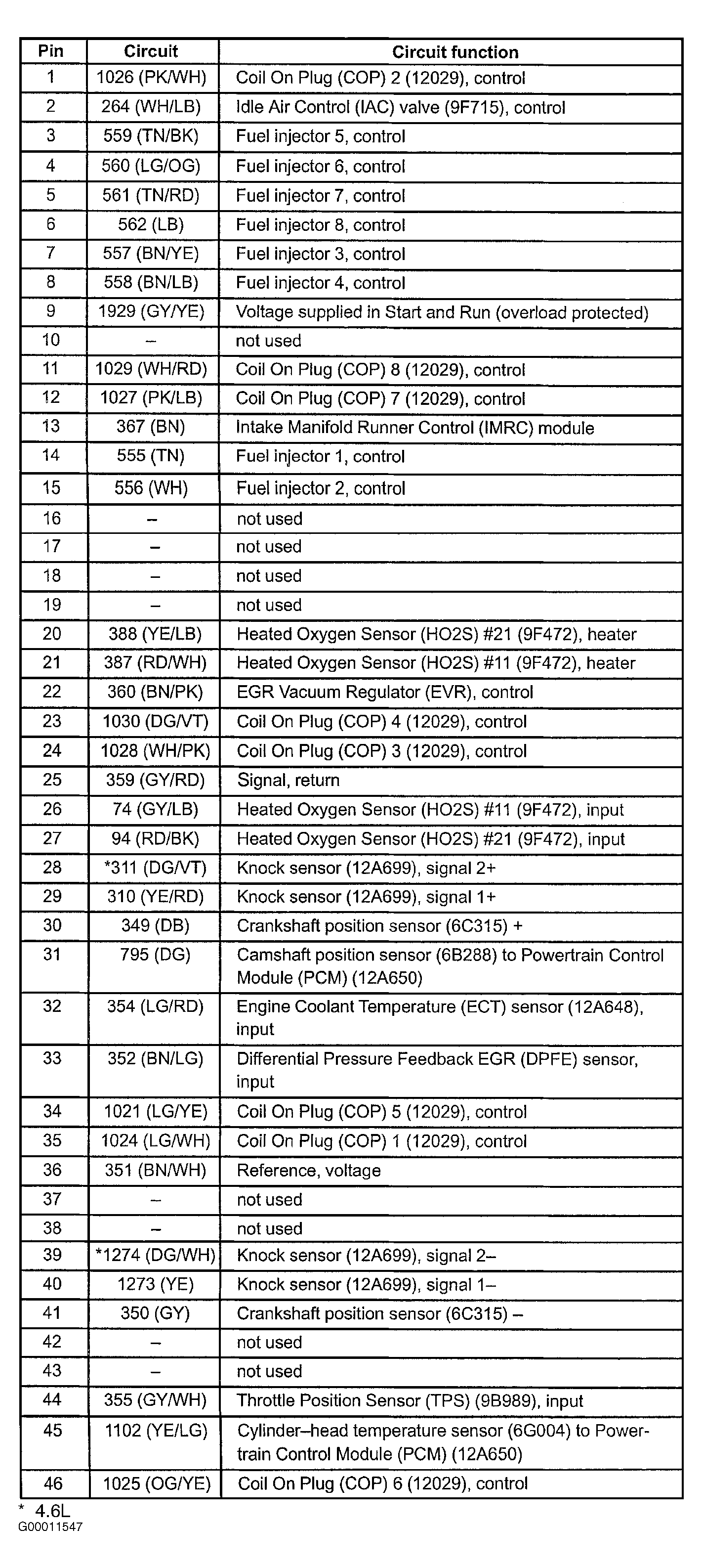

Fig 4: Identifying PCM Connector C175E Circuit Functions (Expedition & Navigator)

Courtesy of FORD MOTOR CO.

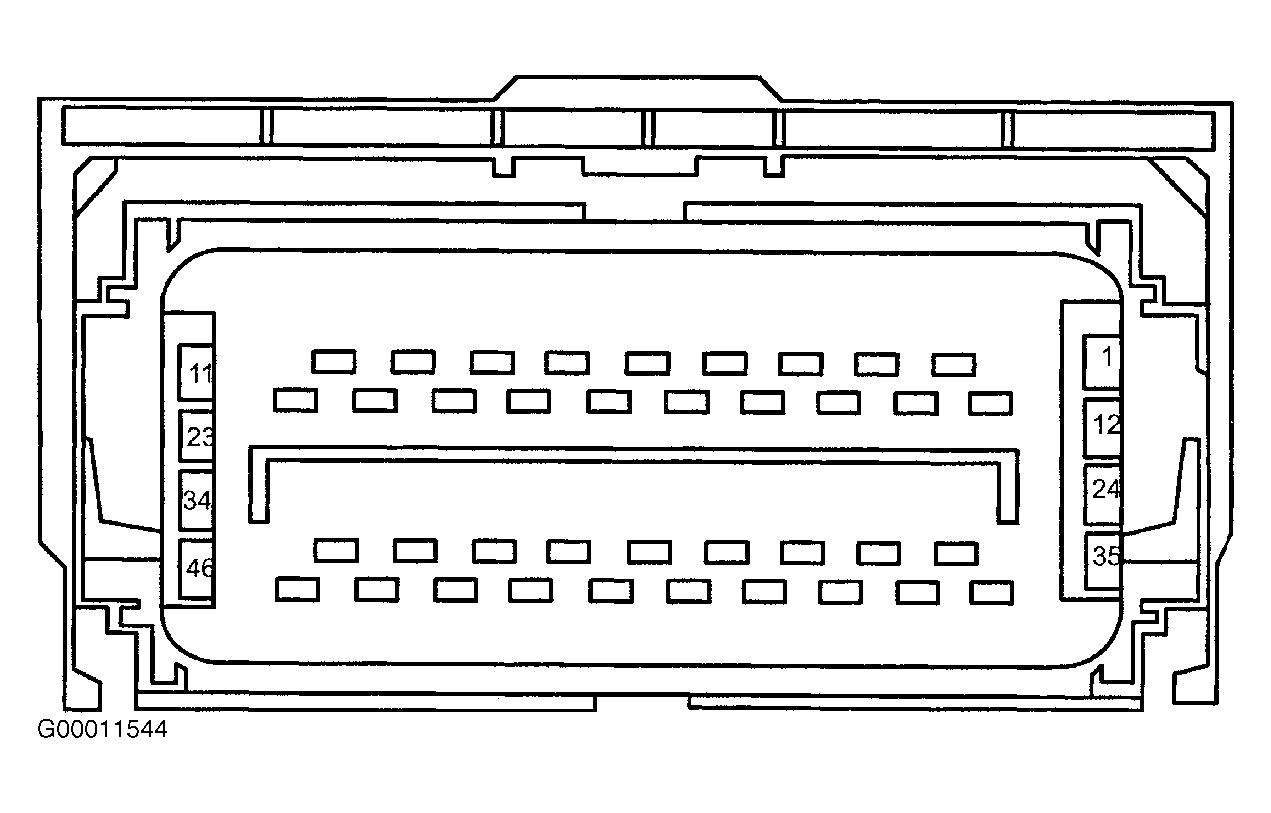

Fig 5: Identifying PCM Connector C175T Terminals (Expedition & Navigator)

Courtesy of FORD MOTOR CO.

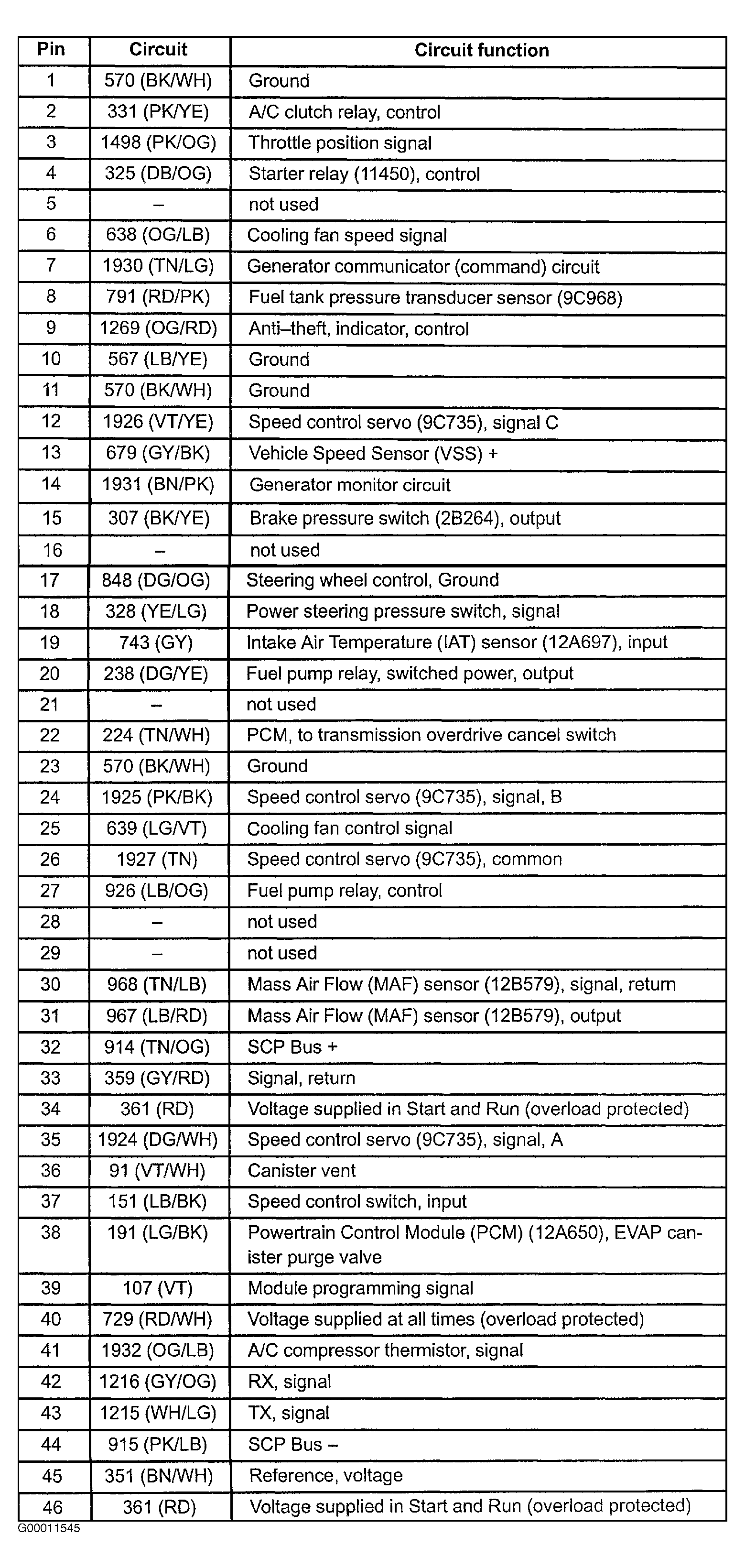

Fig 6: Identifying PCM Connector C175T Circuit Functions (Expedition & Navigator)

Courtesy of FORD MOTOR CO.
