Pinpoint Test X: Constant Control Relay Module (CCRM): Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • CCRM (12B581 12B577).
  • Harness circuits: B+, FC,LFC, HFC, ACCS, WAC, VPWR, ACC PWR, FAN PWR, GND.
  • PCM (12A650).

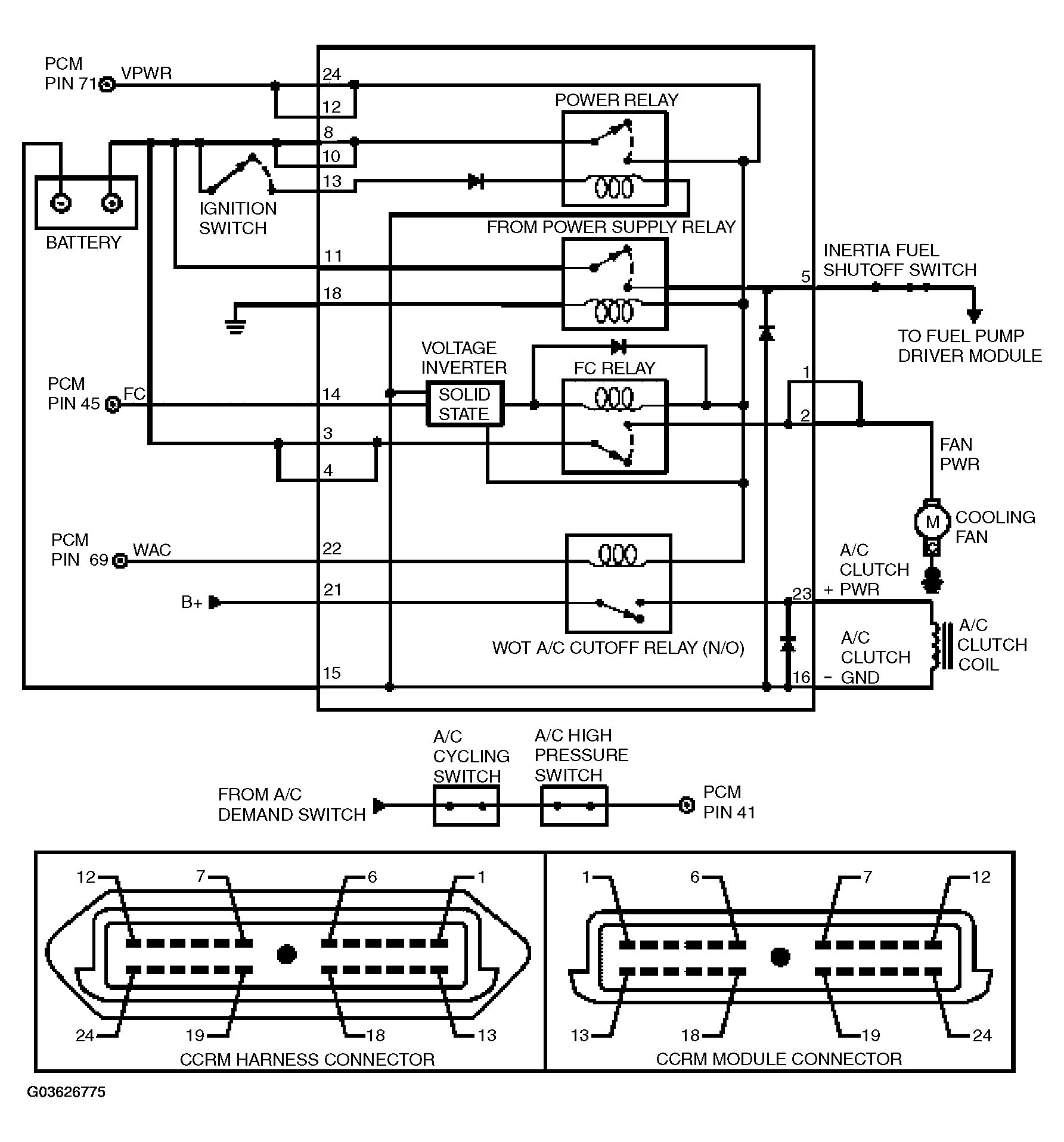

Fig 1: Identifying Constant Control Relay Module (CCRM) - 3.8L/3.9L Mustang
G03626775Courtesy of FORD MOTOR CO.

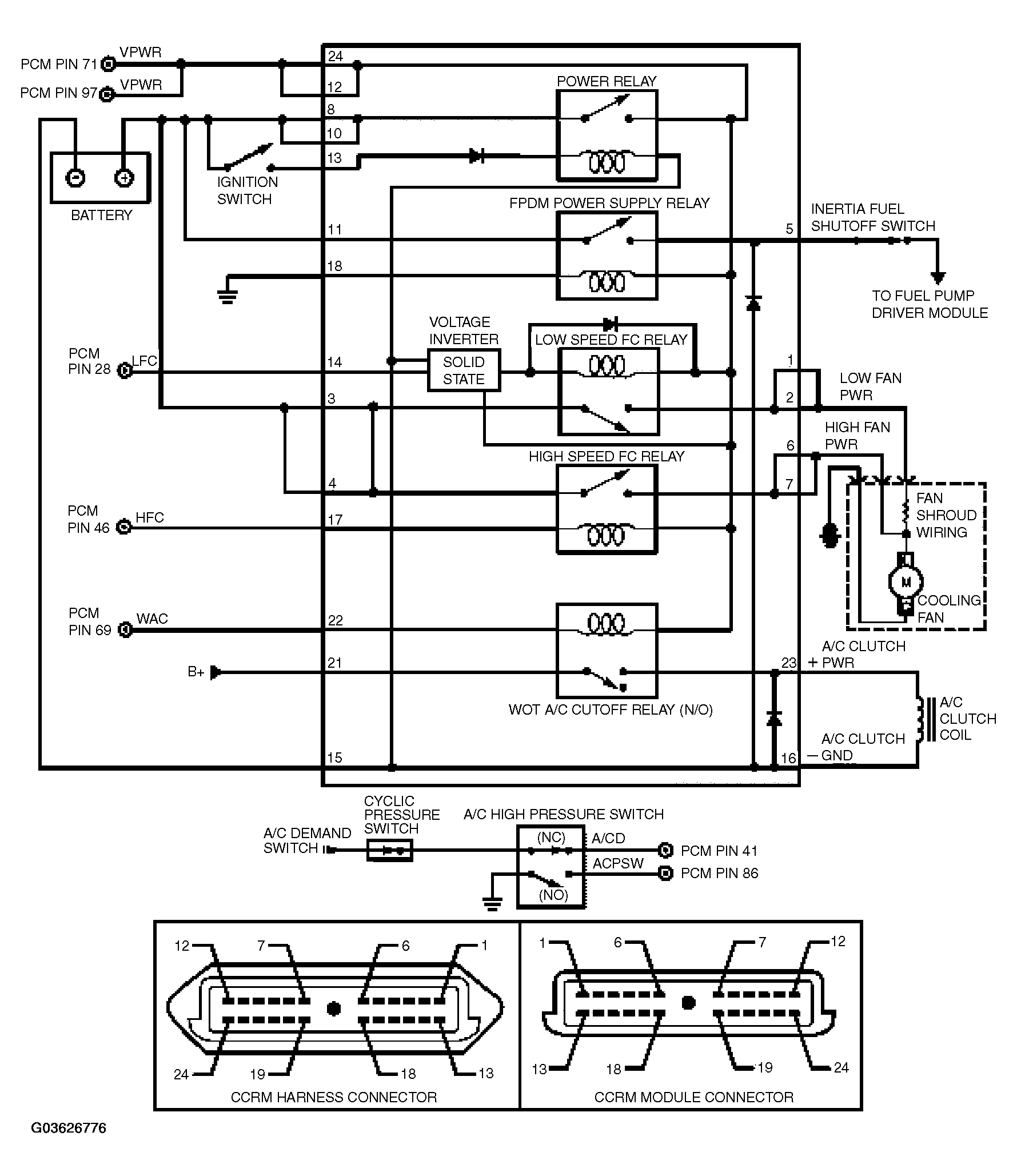

Fig 2: Identifying Constant Control Relay Module (CCRM) - 4.6L Mustang
G03626776Courtesy of FORD MOTOR CO.
