Pinpoint Test TJ: Output Shaft Speed (OSS) Sensor Introduction: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  1. OSS.
  2. PCM.

Harness circuits:

  1. OSS.
  2. SIGRTN.

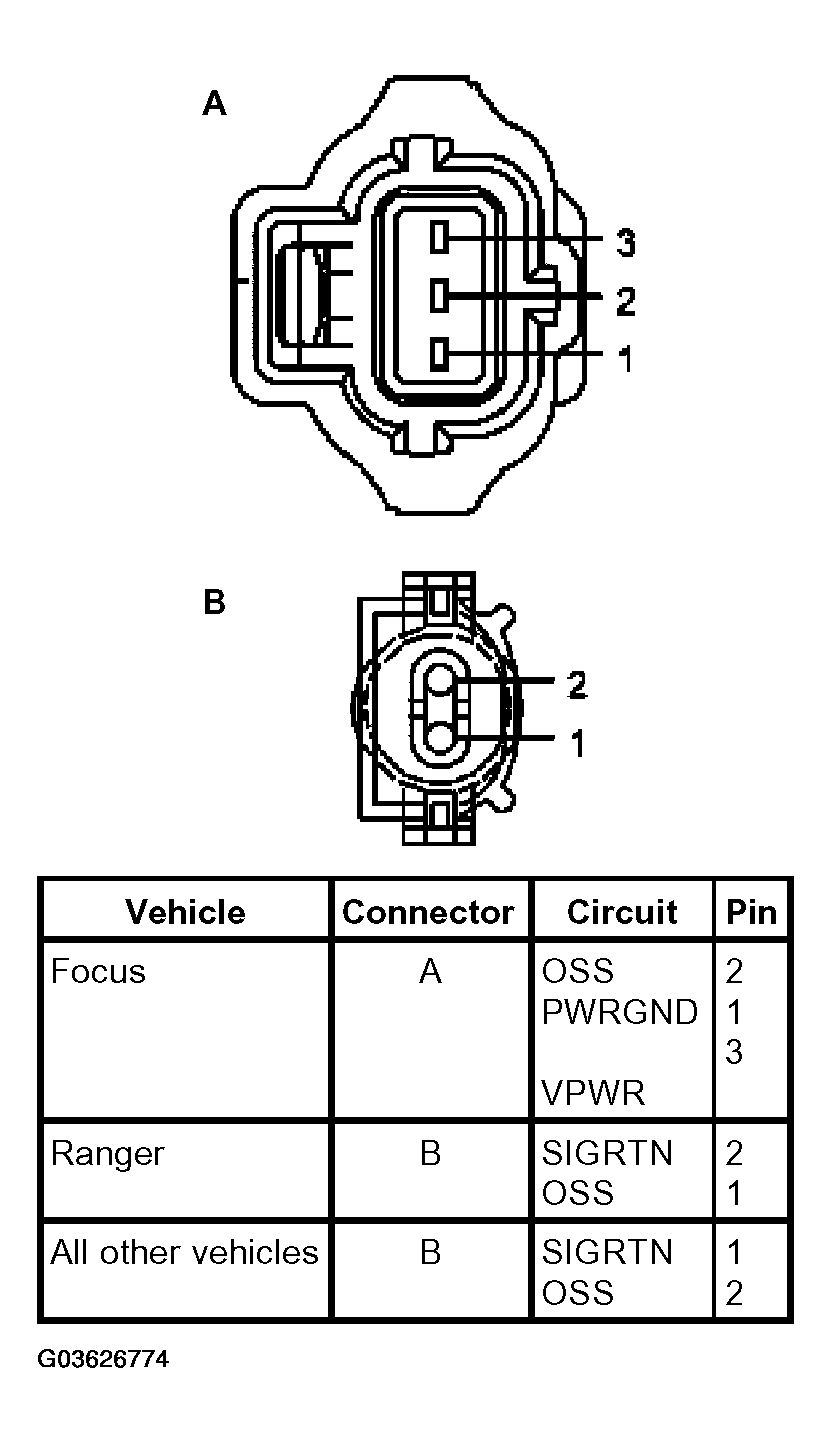

Fig 1: Identifying Output Shaft Speed (OSS) Connector
G03626774Courtesy of FORD MOTOR CO.
