Pinpoint Test KP: Charge air cooler (CAC) pump: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • Charge Air Cooler Pump Relay (14B192).
  • Charge Air Cooler Pump Motor (8501).
  • Harness circuits: CAC, VPWR and GND.
Fig 1: Identifying Charge Air Cooler (CAC) Motor Connector
G03626761Courtesy of FORD MOTOR CO.

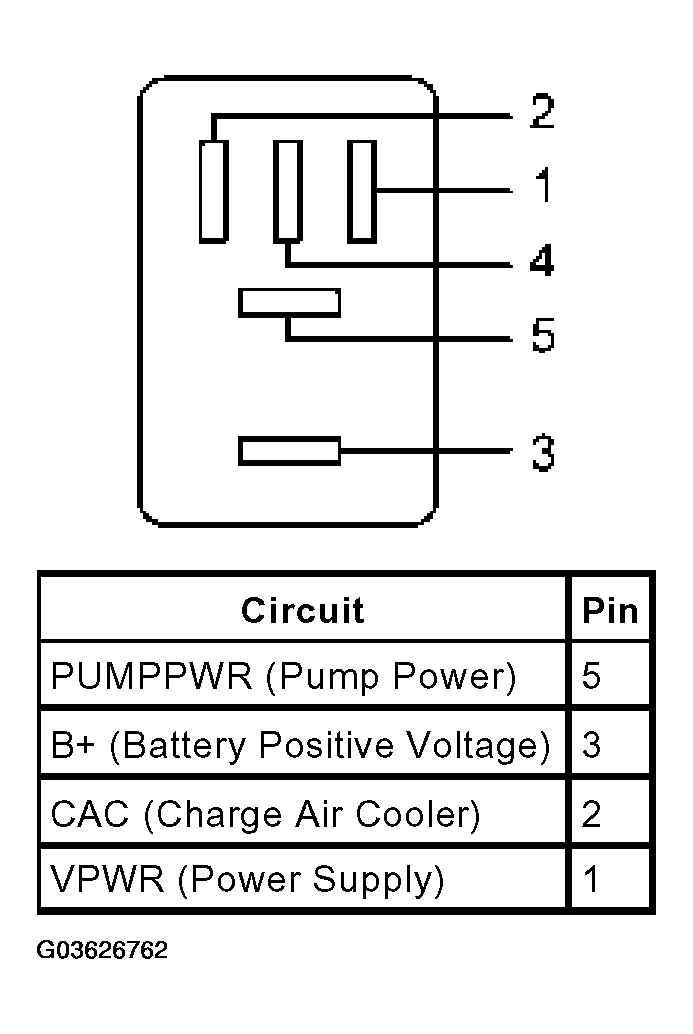

Fig 2: Identifying Charge Air Cooler (CAC) Relay Connector
G03626762Courtesy of FORD MOTOR CO.
