Pinpoint Test KD: Electric Exhaust Gas Recirculation (EEGR) System: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This pinpoint test is intended to diagnose the following:

Electric Exhaust Gas Recirculation (EEGR) System.
Harness circuit: EEGR.
Powertrain control module (PCM) (12A650).

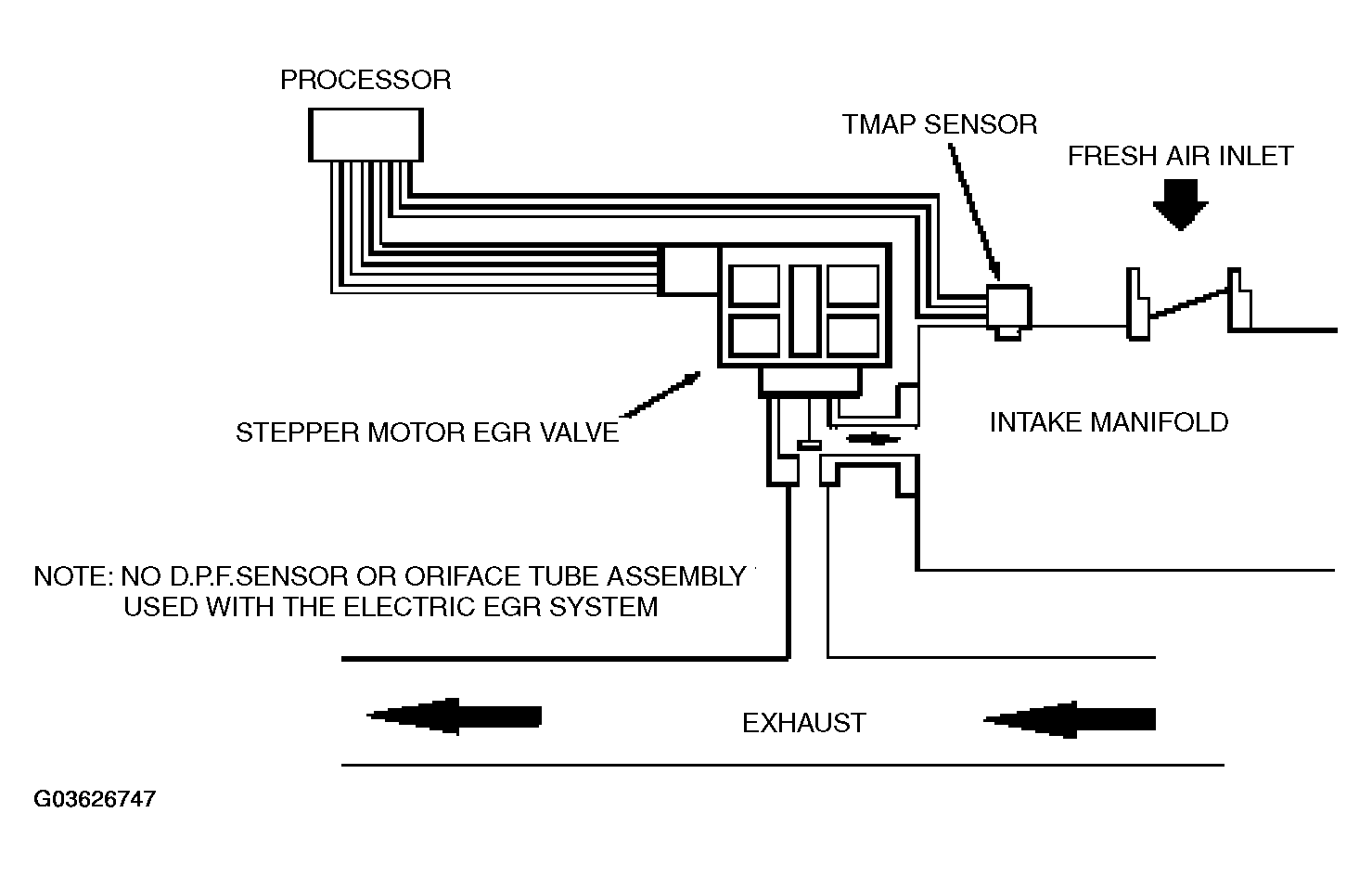

Fig 1: Identifying Electric Exhaust Gas Recirculation (EEGR) System

Courtesy of FORD MOTOR CO.

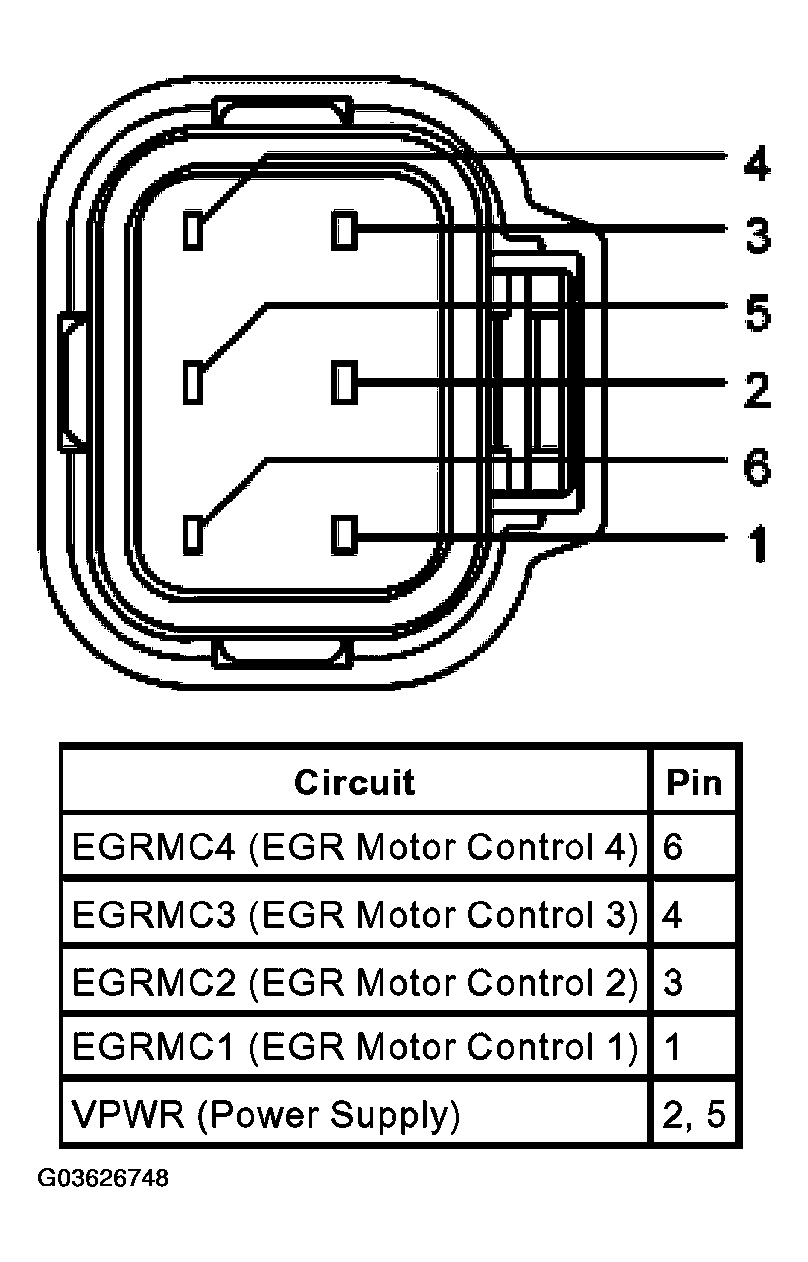

Fig 2: Identifying Electric Exhaust Gas Recirculation (EEGR) Assembly Connector

Courtesy of FORD MOTOR CO.

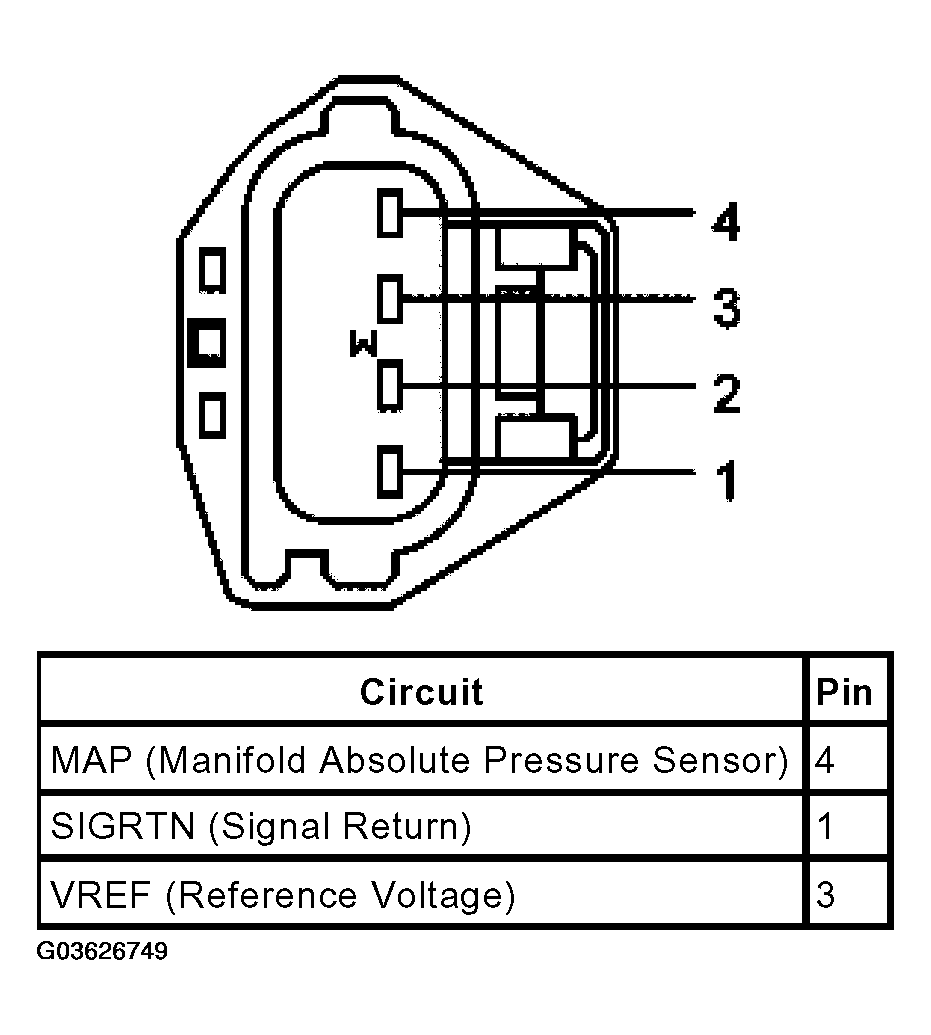

Fig 3: Identifying Manifold Absolute Pressure/Thermal Manifold Absolute Pressure (MAP/TMAP) Sensor Connector

Courtesy of FORD MOTOR CO.
