Pinpoint Test KB: Fuel Pump Driver Module: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • Harness circuit(s): Batt+, GND, FPDM GND, FPDMR GND, FPM, FP, FP PWR, FP RTN, FPDM PWR.
  • Inertia Fuel Shutoff Switch (9341).
  • Fuel Pump Driver Module (9D370).
  • Fuel Pump Driver Module Power Supply Relay.
  • Powertrain control module (PCM) (12A650).

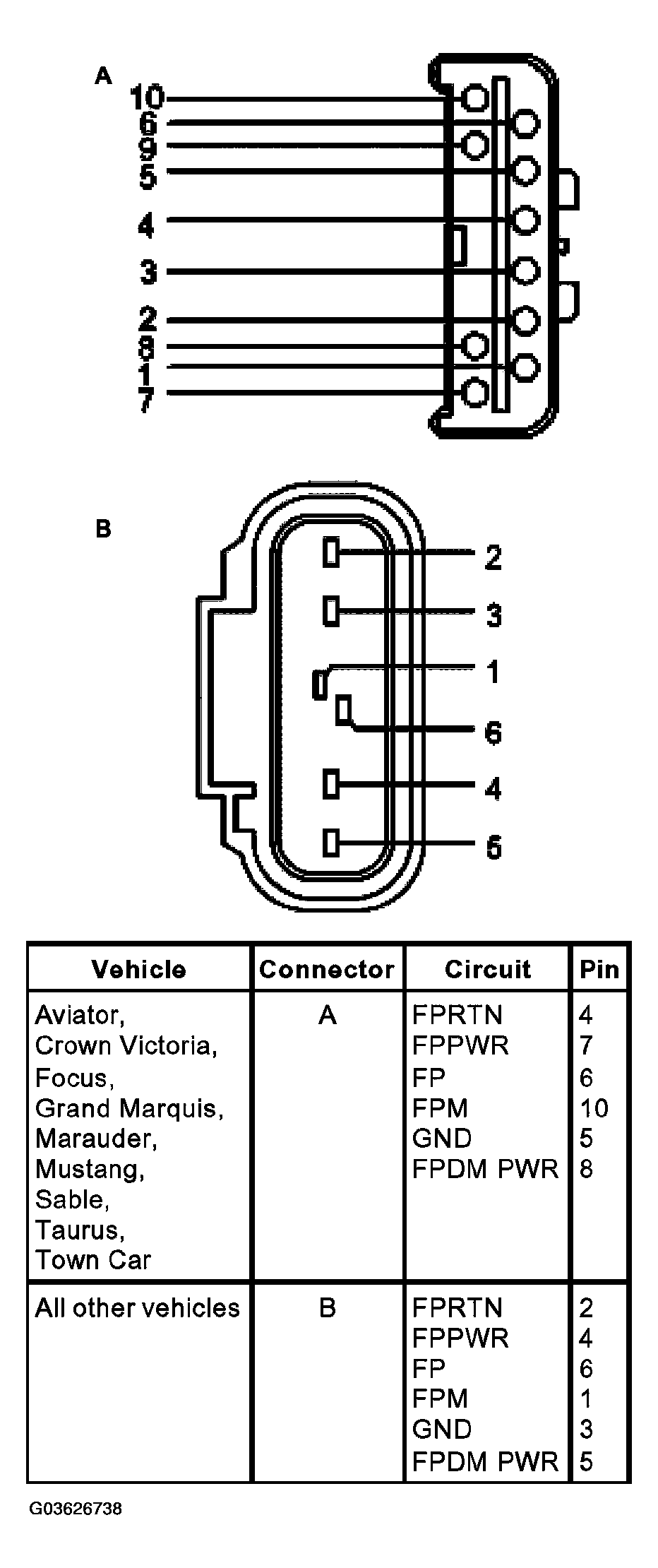

Fig 1: Identifying Fuel Pump Driver Module (FPDM) Connector
G03626738Courtesy of FORD MOTOR CO.

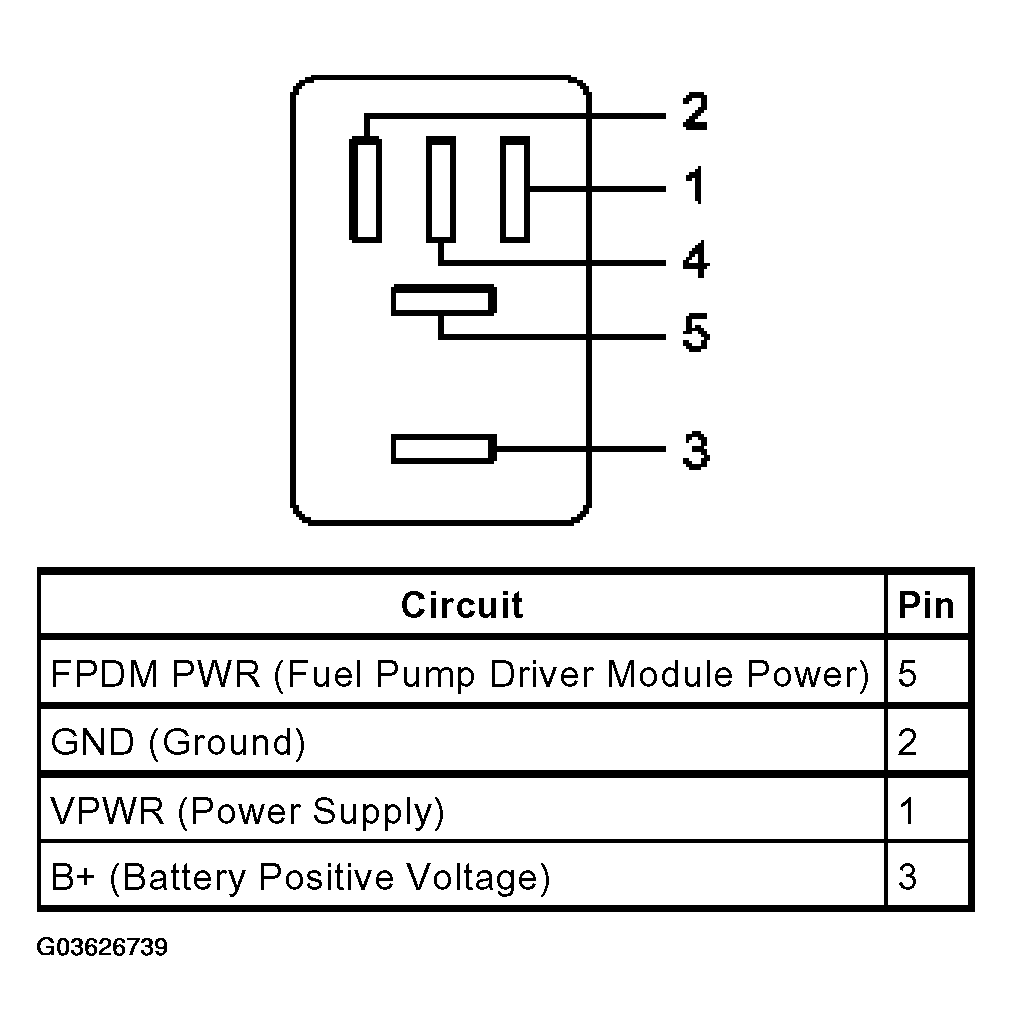

Fig 2: Identifying Fuel Pump Driver Module Power (FPDM PWR) Relay Connector
G03626739Courtesy of FORD MOTOR CO.

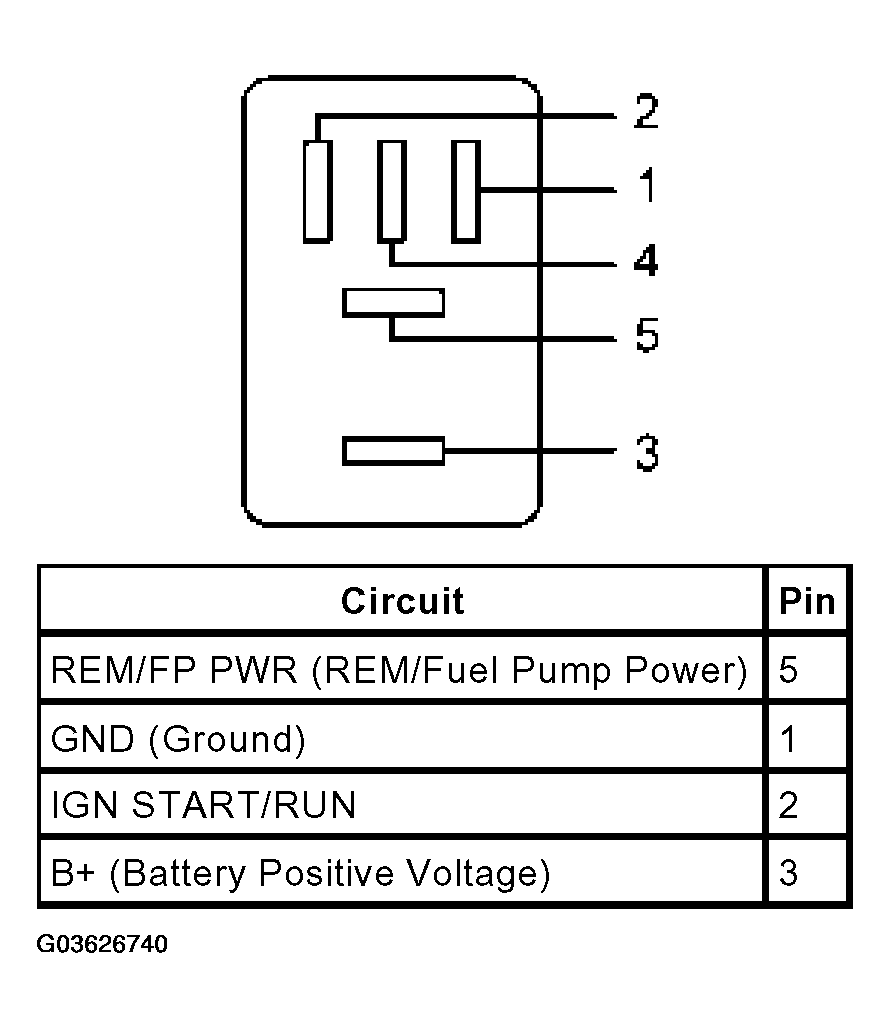

Fig 3: Identifying Fuel Pump/Rear Electronics Module Power (FP/REM PWR) Relay Connector
G03626740Courtesy of FORD MOTOR CO.
CONSTANT CONTROL RELAY MODULE (CCRM) CONNECTOR

Circuit Pin
FPDM PWR (Fuel Pump Driver Module Power) 5
GND (Ground) 15
B+ (C) 11
Fig 4: Identifying Inertia Fuel Shutoff (IFS) Connector
G03626741Courtesy of FORD MOTOR CO.

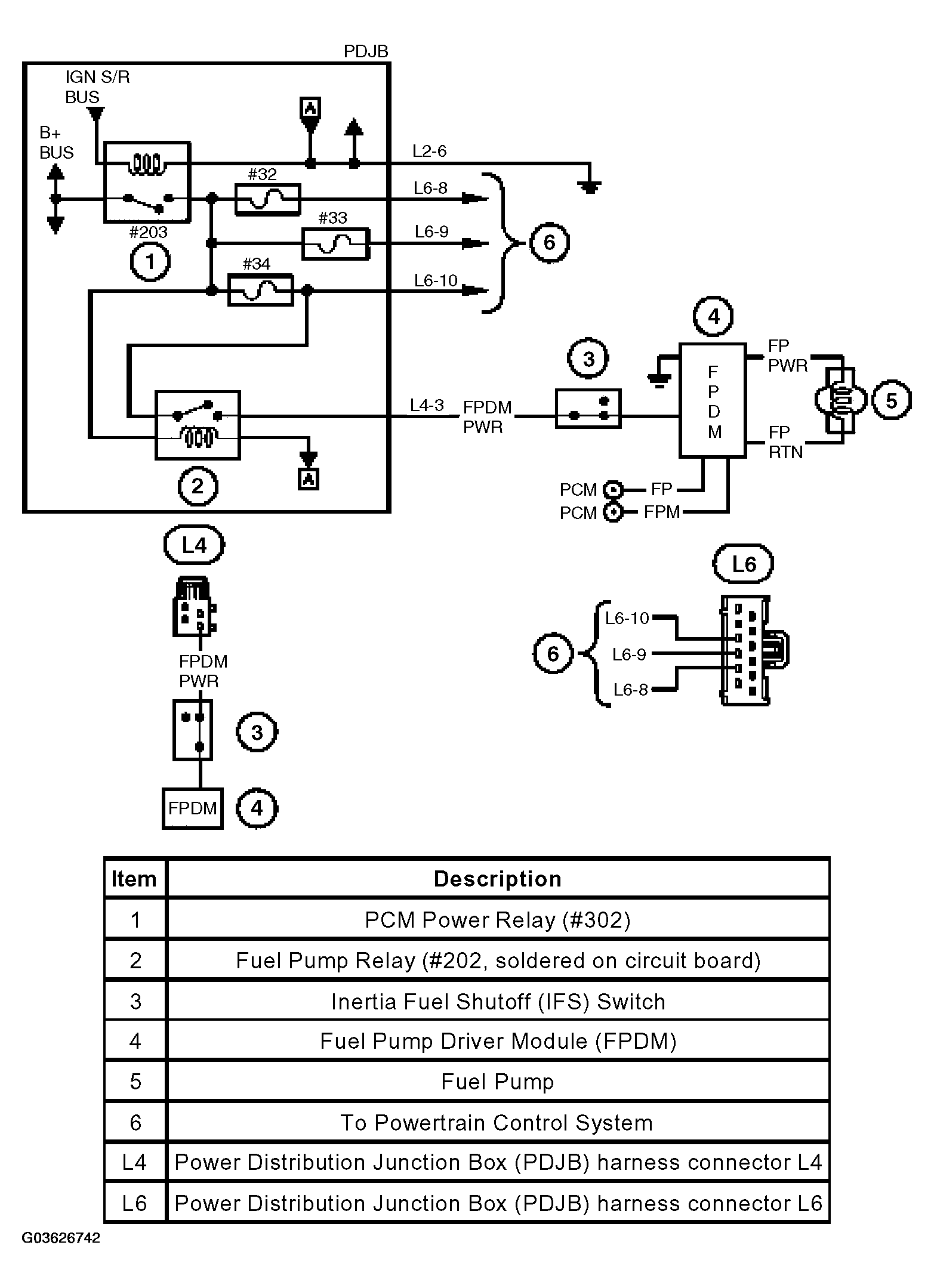

Fig 5: Identifying FPDM PWR relay integral to the PDJB (F-150)
G03626742Courtesy of FORD MOTOR CO.
NOTE: For applications with an FPDM PWR relay integral to the PDJB
Fig 6: Identifying Power Distribution Junction Box (PDJB) Connector
G03626743Courtesy of FORD MOTOR CO.
