Pinpoint Test KA: Fuel Pump Relay: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This pinpoint test is intended to diagnose the following:
Fuel Pump Relay (9345).
Inertia Fuel Shutoff (9341).
Harness Circuit(s): B+, VPWR, FP, LFP, GND, FPM & FP PWR.
Powertrain control module (PCM) (12A650).

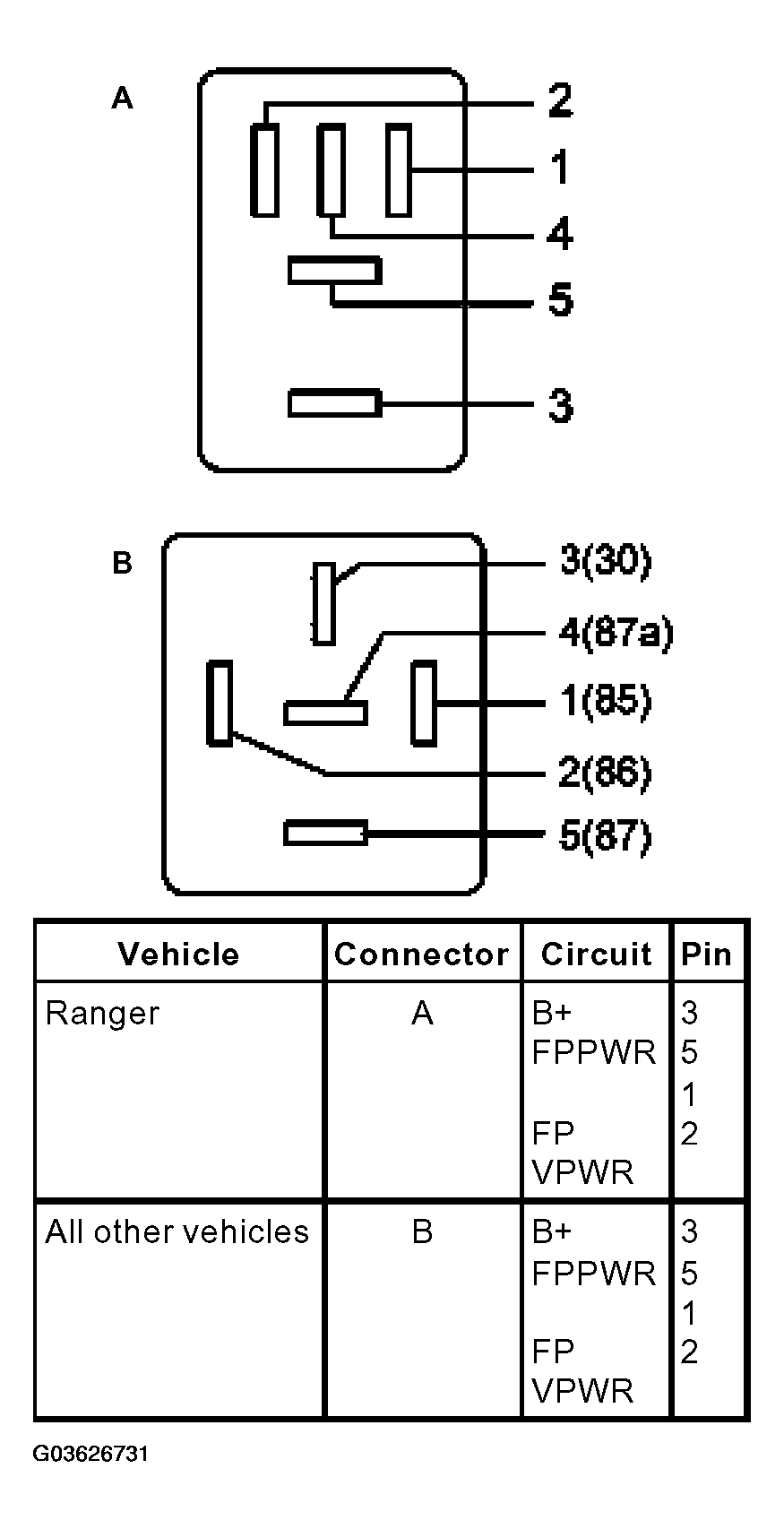

Fig 1: Identifying Fuel Pump (FP) Relay Connectors

Courtesy of FORD MOTOR CO.

The VPWR & FP circuits may be reversed in the harness connector. REFER to the appropriate SYSTEM WIRING DIAGRAMS article for more information .

Fig 2: Inertia Fuel Shutoff (IFS) Connector

Courtesy of FORD MOTOR CO.
