Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • Crankshaft Position (CKP) Sensor (6C135).
  • Harness Circuits: CKP(+) and CKP(-)
  • Powertrain control module (PCM) (12A650)
Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector (1 Of 2)
G03626727Courtesy of FORD MOTOR CO.

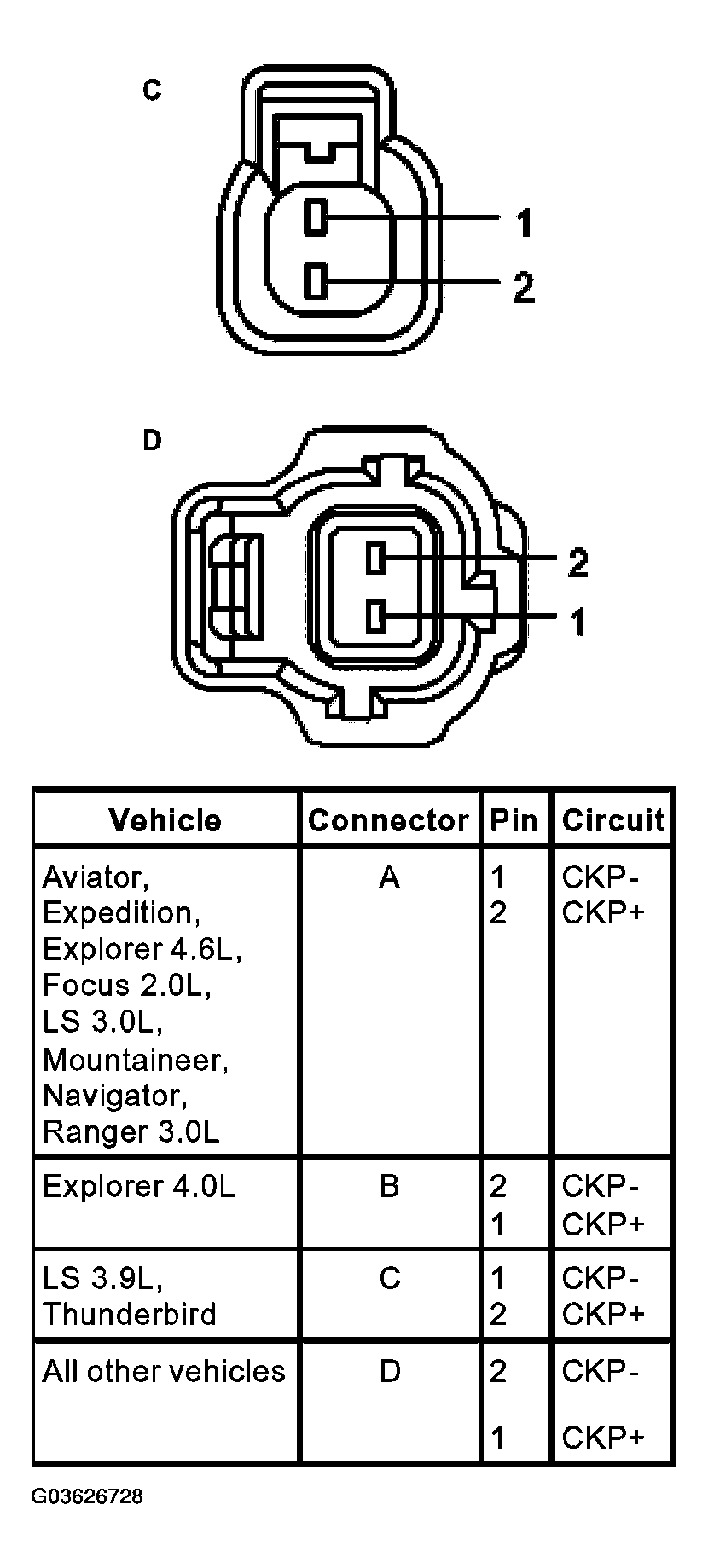

Fig 2: Identifying Crankshaft Position (CKP) Sensor Connector (2 Of 2)
G03626728Courtesy of FORD MOTOR CO.
