Pump - CIII 4.0L: Removal

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan. For additional information, refer to FAN ASSEMBLY .
  2. Loosen the power steering pump pulley bolts.

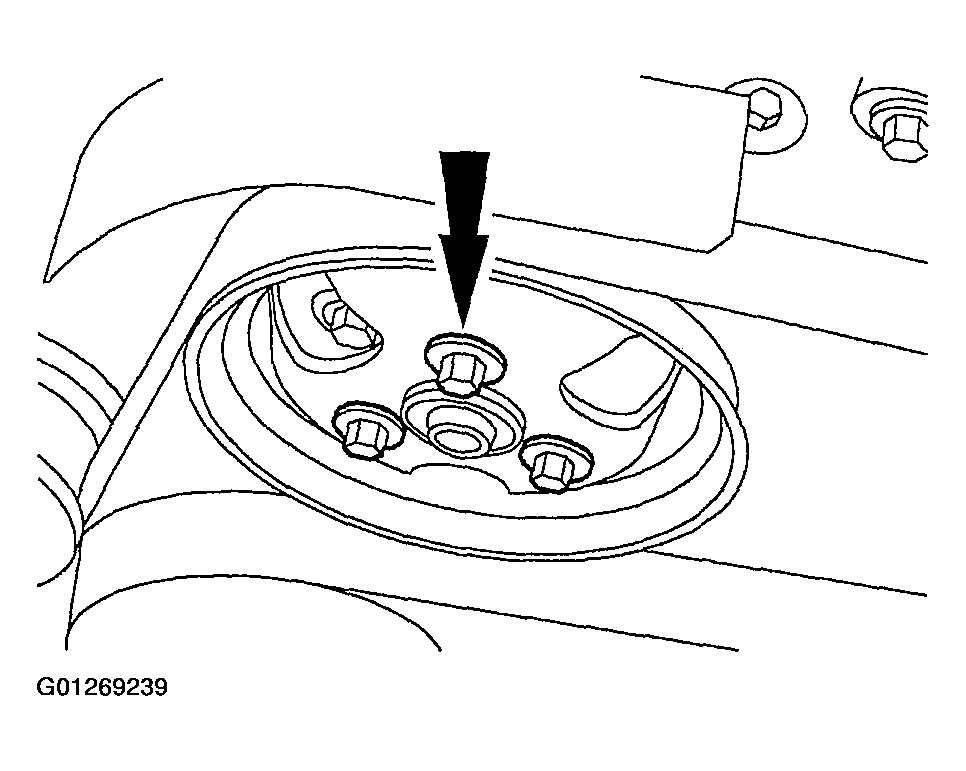

    Fig 1: Loosening Power Steering Pump Pulley Bolts
    G01269239Courtesy of FORD MOTOR CO.
  3. Remove the drive belt (8620).
  4. Remove the power steering pump pulley (3A733).
    1. Remove the bolts.
    2. Remove the power steering pump pulley.

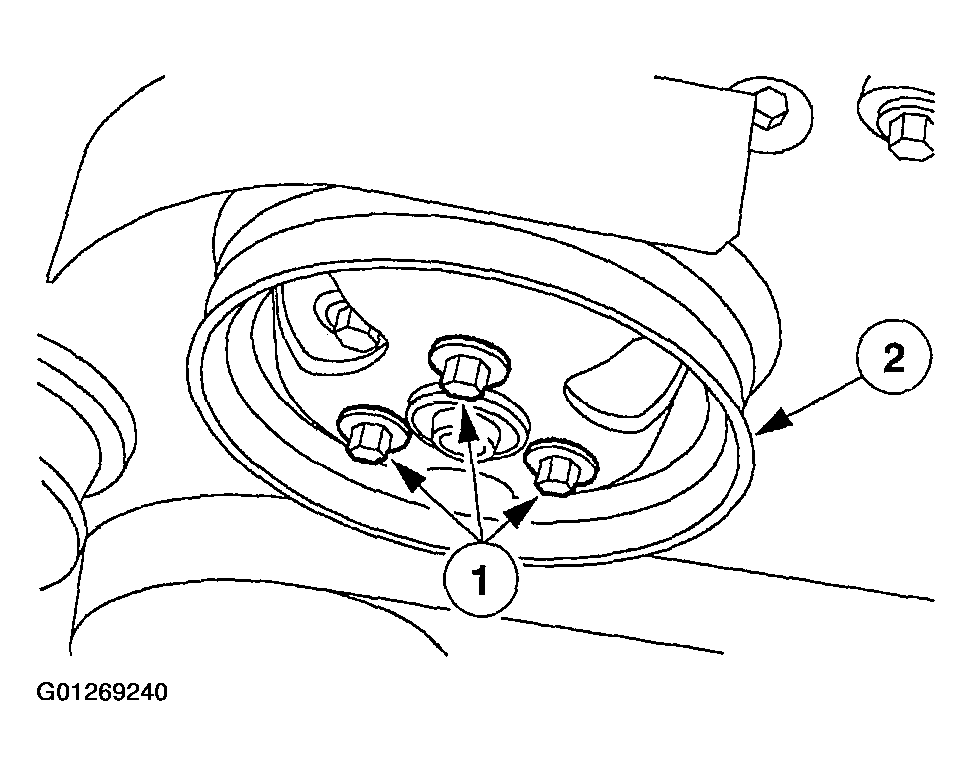

      Fig 2: Removing Power Steering Pump Pulley
      G01269240Courtesy of FORD MOTOR CO.
  5. Disconnect the power steering return line hose at the power steering fluid reservoir.
    • Allow the system to drain.

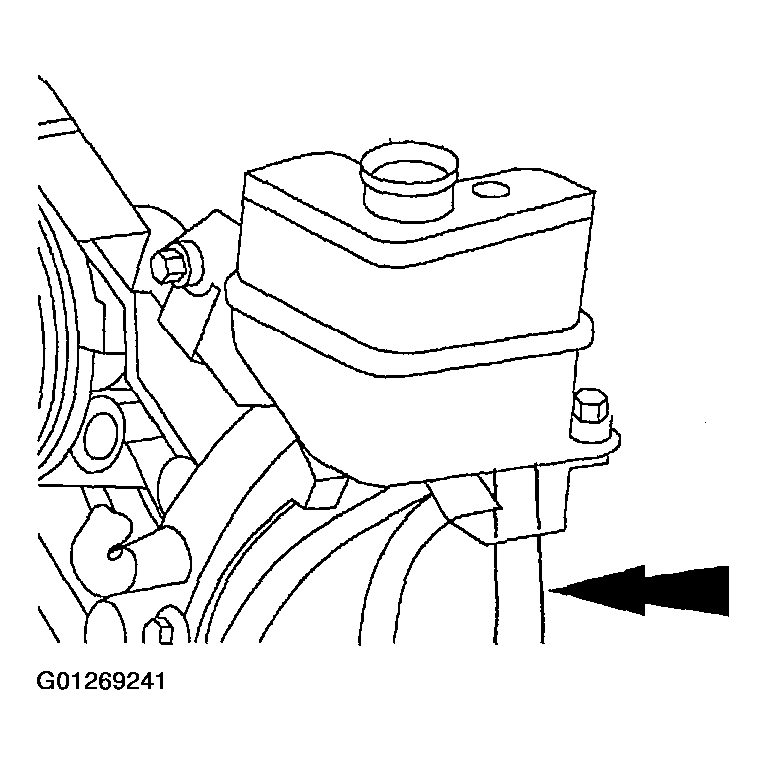

      Fig 3: Disconnecting Power Steering Return Line Hose
      G01269241Courtesy of FORD MOTOR CO.
  6. Disconnect the power steering pressure hose (3A719) from the power steering pump (3A674).

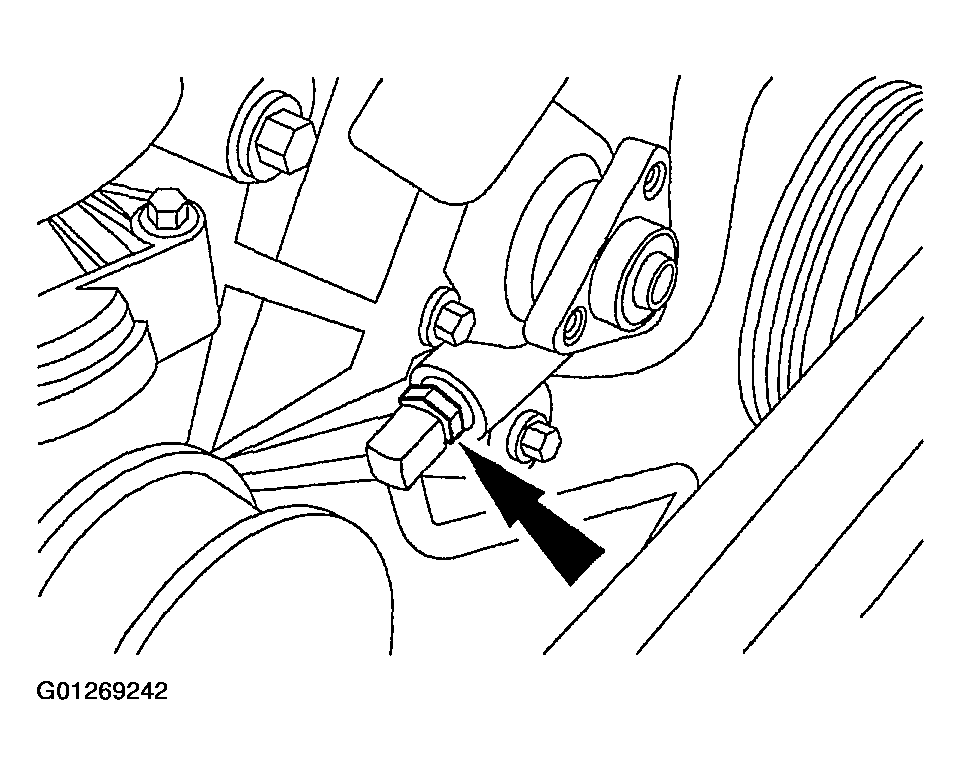

    Fig 4: Disconnecting Power Steering Pressure Hose
    G01269242Courtesy of FORD MOTOR CO.
  7. Disconnect the power steering fluid reservoir outlet hose from the power steering pump.
    1. Compress and move the power steering fluid reservoir outlet hose clamp.
    2. Disconnect the power steering fluid reservoir outlet hose from the power steering pump.

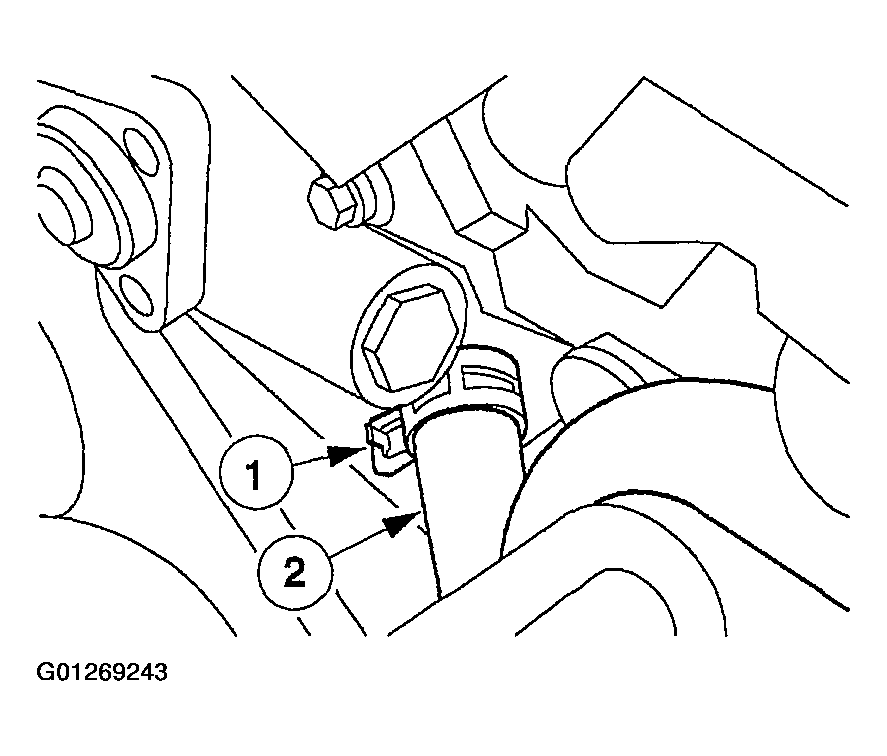

      Fig 5: Disconnecting Power Steering Fluid Reservoir Outlet Hose
      G01269243Courtesy of FORD MOTOR CO.
  8. Remove the power steering pump.
    1. Remove the bolts.
    2. Remove the power steering pump.

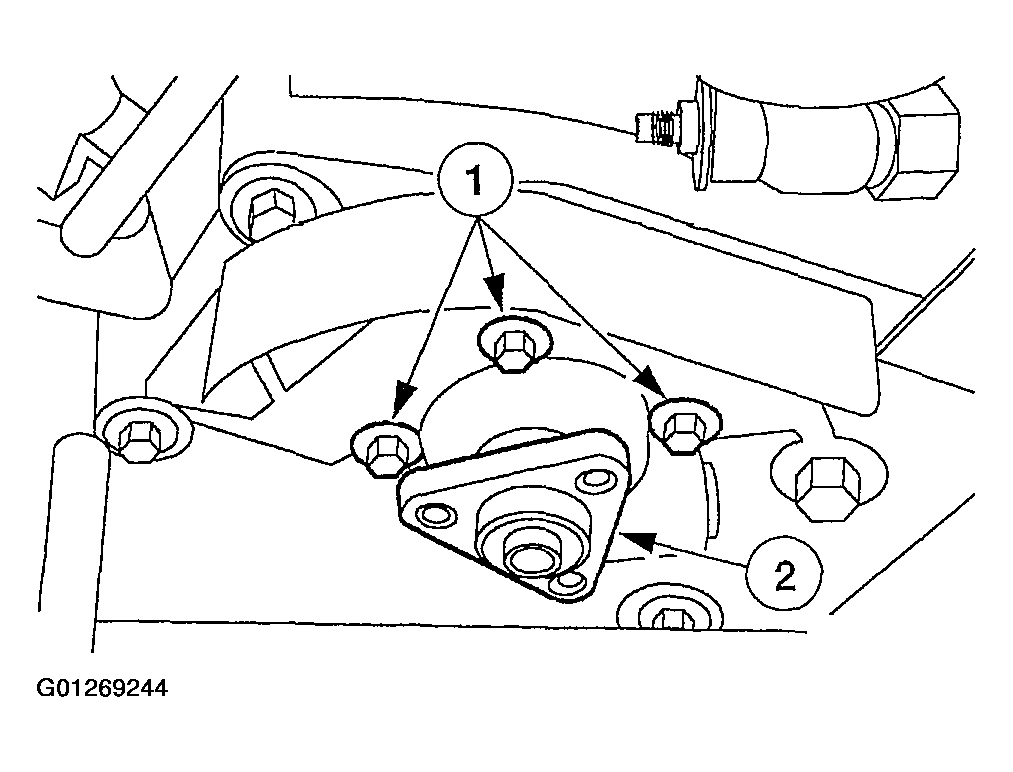

      Fig 6: Removing Power Steering Pump
      G01269244Courtesy of FORD MOTOR CO.
