Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet pipe.
Remove the drive belt.
Using the special tool, remove the pulley.

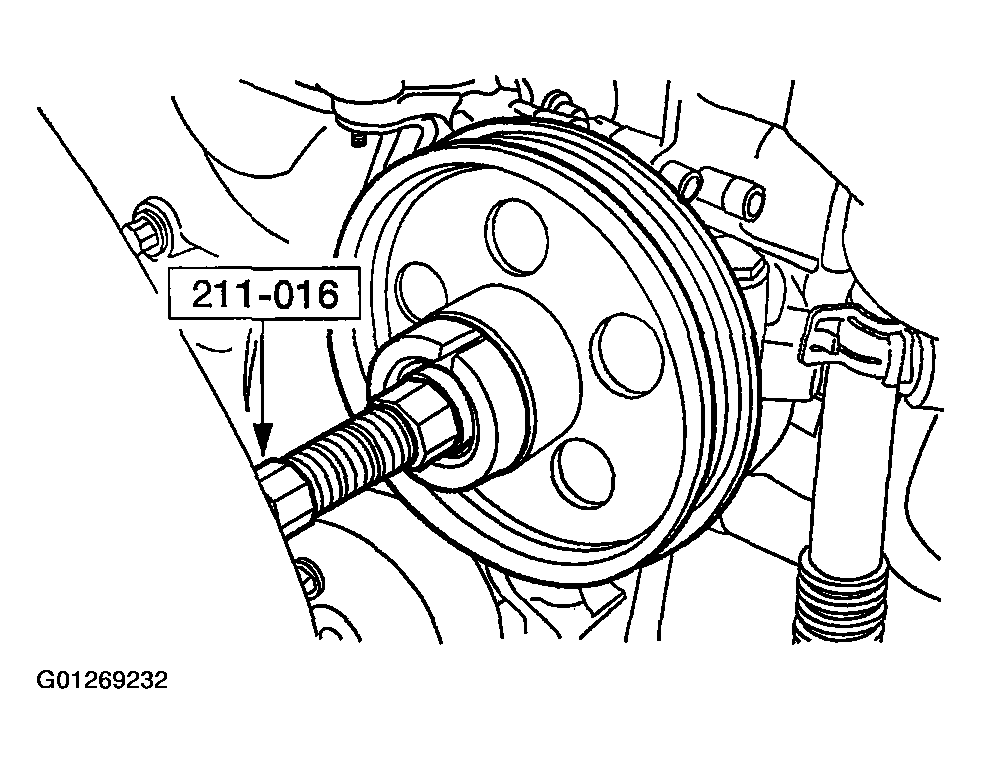

Fig 1: Removing Pulley
Courtesy of FORD MOTOR CO.
Loosen the clamp and remove the hose.

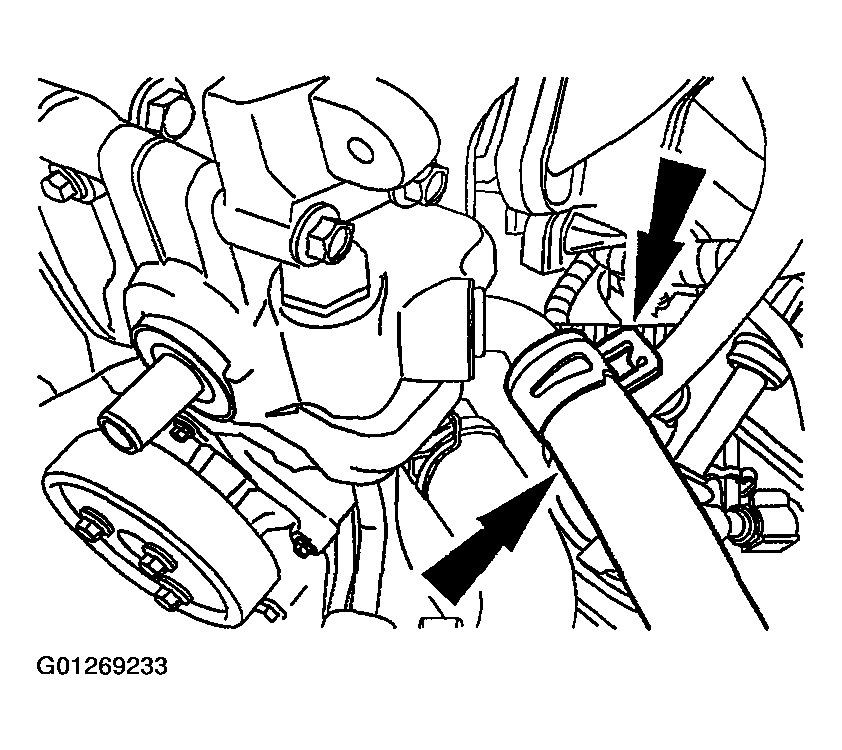

Fig 2: Removing Hose
Courtesy of FORD MOTOR CO.
Disconnect the pressure line.
- Remove and discard the seal.

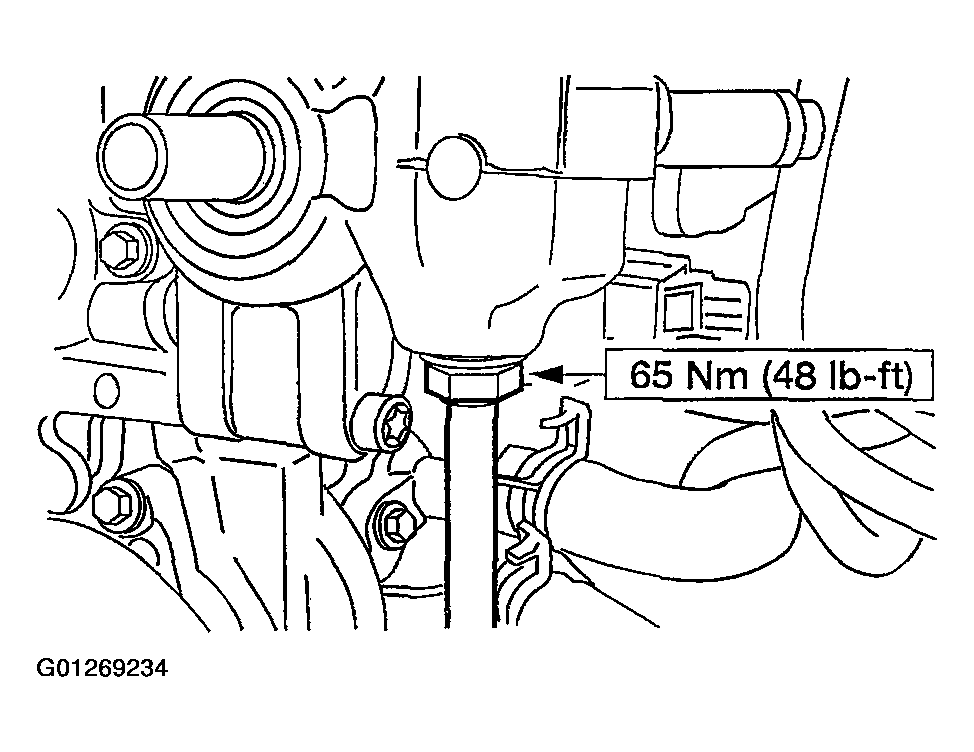

  Fig 3: Disconnecting Pressure Line
  Courtesy of FORD MOTOR CO.
Remove the bolts and the bracket.

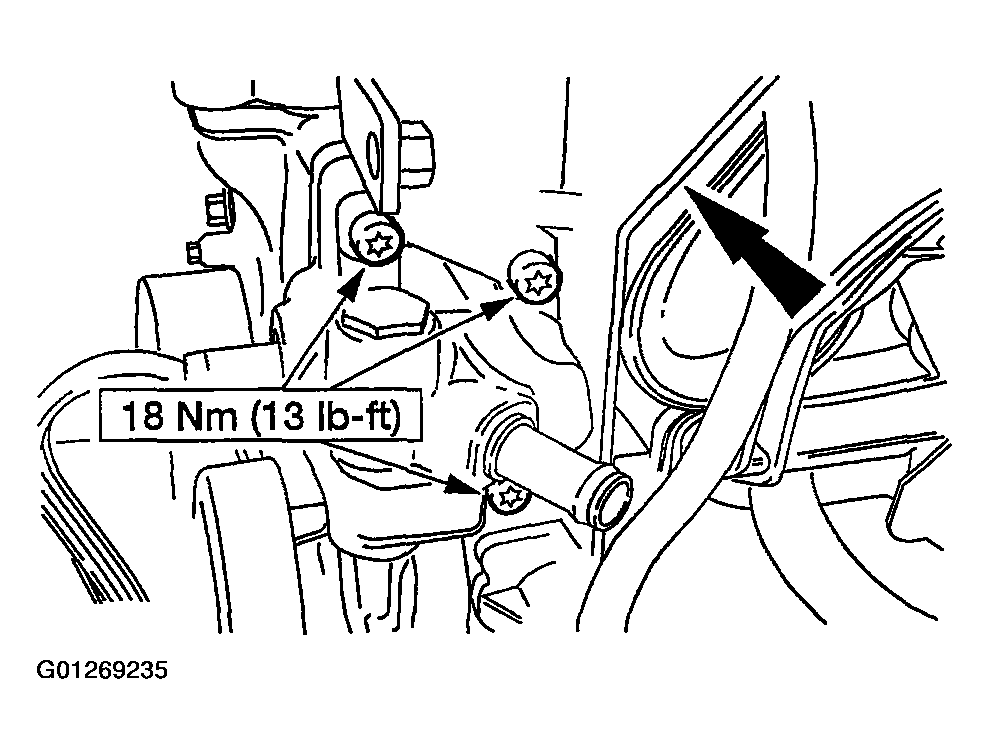

Fig 4: Removing Bracket
Courtesy of FORD MOTOR CO.
Remove the bolt and the power steering pump.

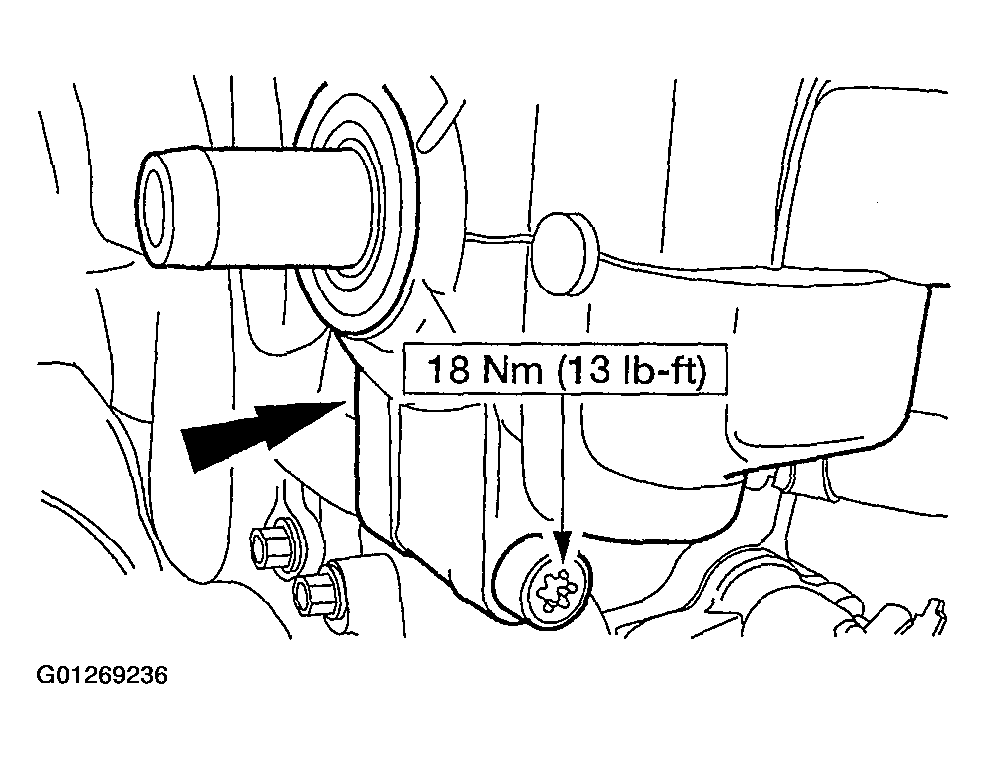

Fig 5: Removing Power Steering Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Using the special tool, install a new seal on the pressure line.

  Fig 6: Installing New Seal On Pressure Line
  Courtesy of FORD MOTOR CO.
Fill, purge and leak test the system. For additional information, refer to GENERAL INFORMATION .
