Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pump pulley. For additional information, refer to Pulley-Pump, 2.3L, 2.5L and 3.0L .
Disconnect the power steering pressure hose (3A719).
- Remove and discard the seal.

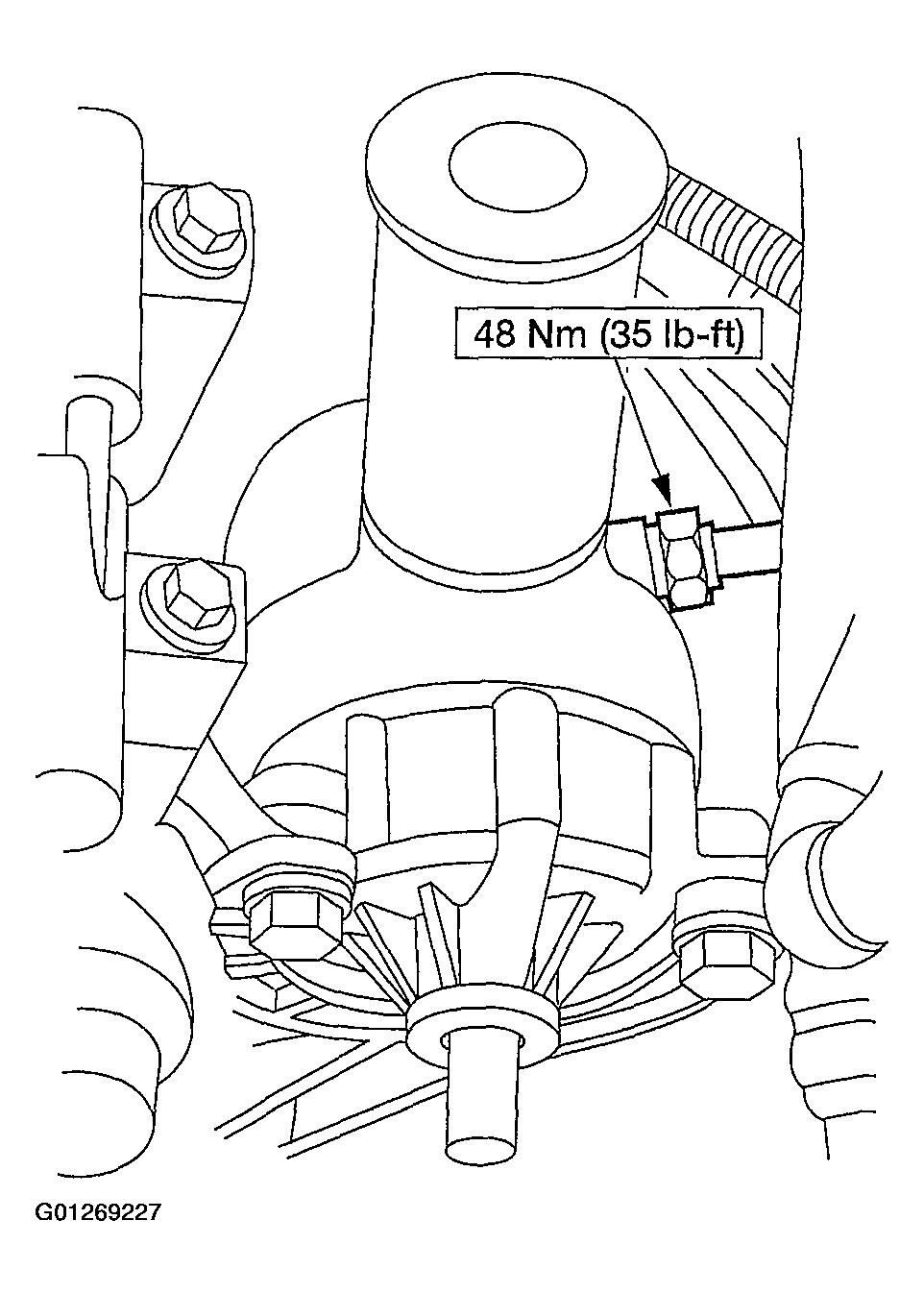

  Fig 1: Disconnecting Power Steering Pressure Hose
  Courtesy of FORD MOTOR CO.
Disconnect the power steering return hose (3A713).

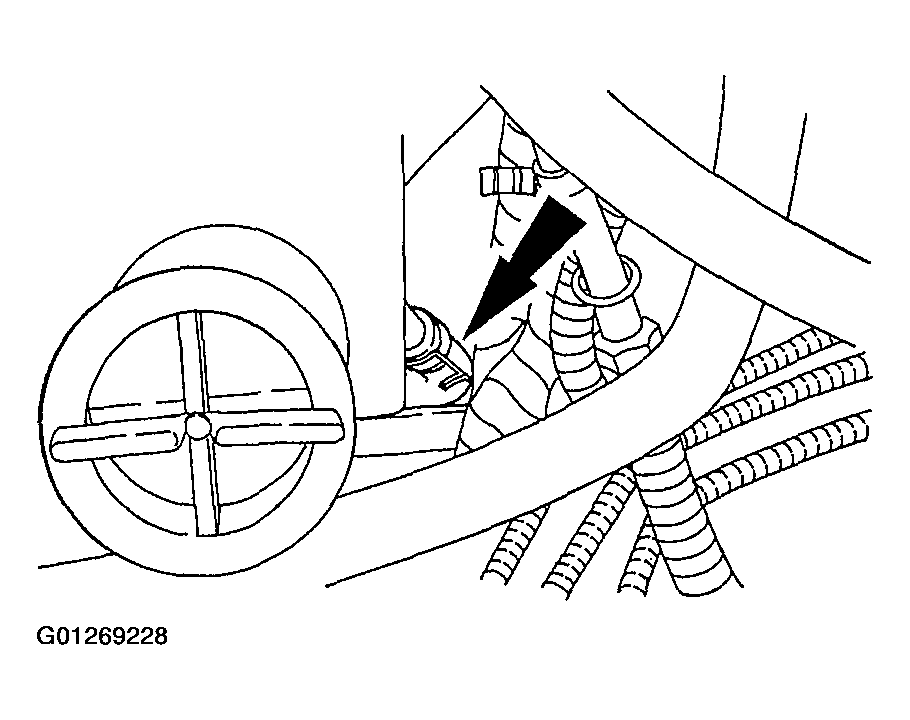

Fig 2: Disconnecting Power Steering Return Hose
Courtesy of FORD MOTOR CO.
Disconnect the power steering return line hose (3A005).
Remove the bolts and the power steering pump.

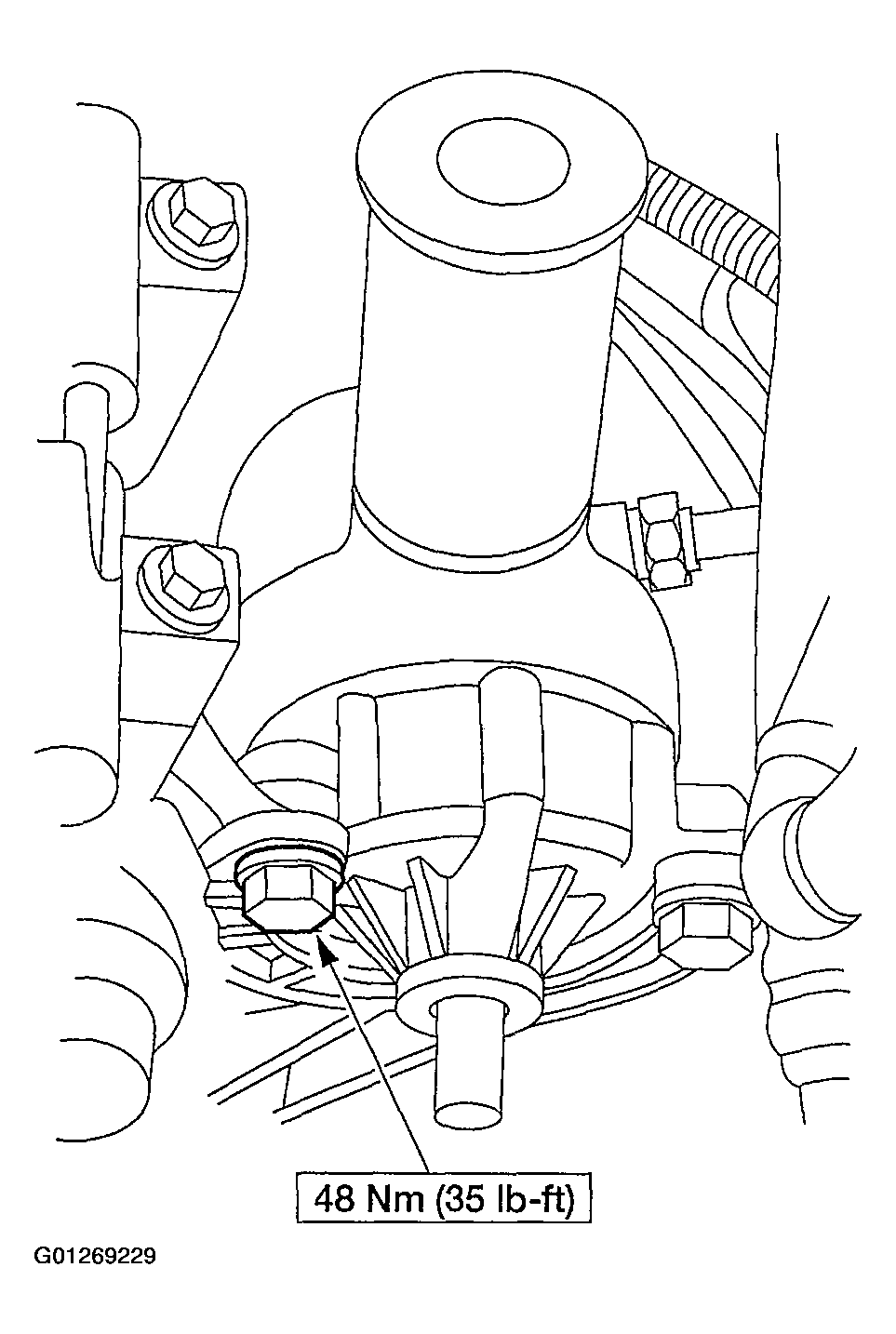

Fig 3: Removing Power Steering Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Using the special tool, install a new seal on the power steering pressure hose.

Fig 4: Installing New Seal On Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Fill, purge and leak test the system. For additional information, refer to GENERAL INFORMATION .
