Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan. For additional information, refer to FAN ASSEMBLY .
  2. Loosen the power steering pump pulley bolts.

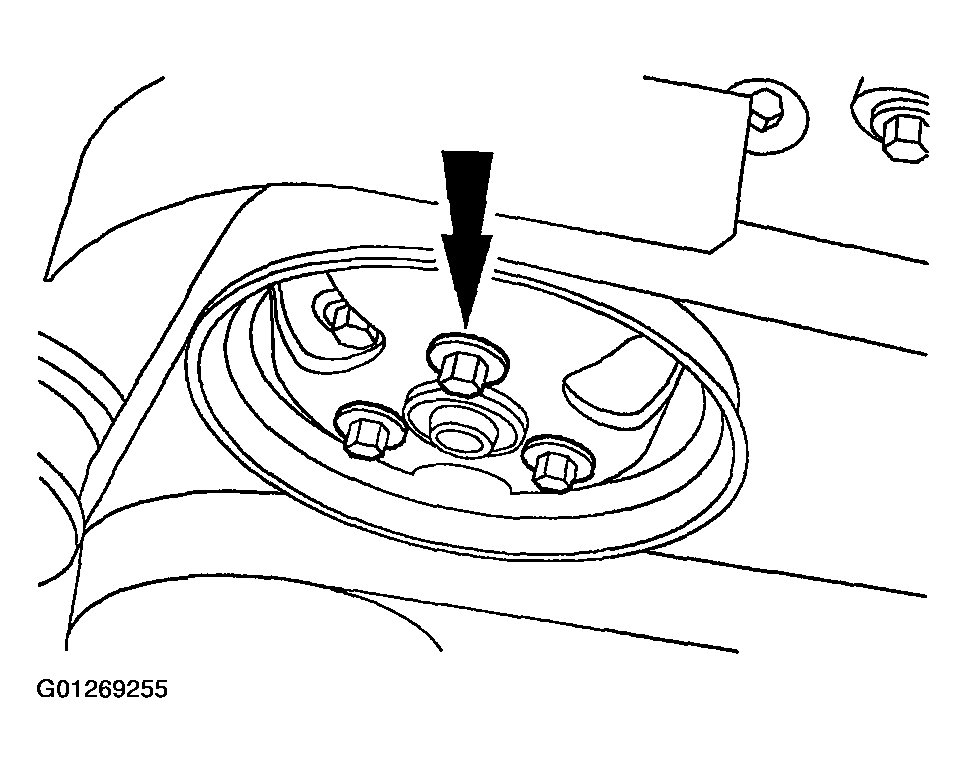

    Fig 1: Loosening Power Steering Pump Pulley Bolts
    G01269255Courtesy of FORD MOTOR CO.
  3. Remove the drive belt (8620).
  4. Remove the bolts and the power steering pump pulley (3A733).

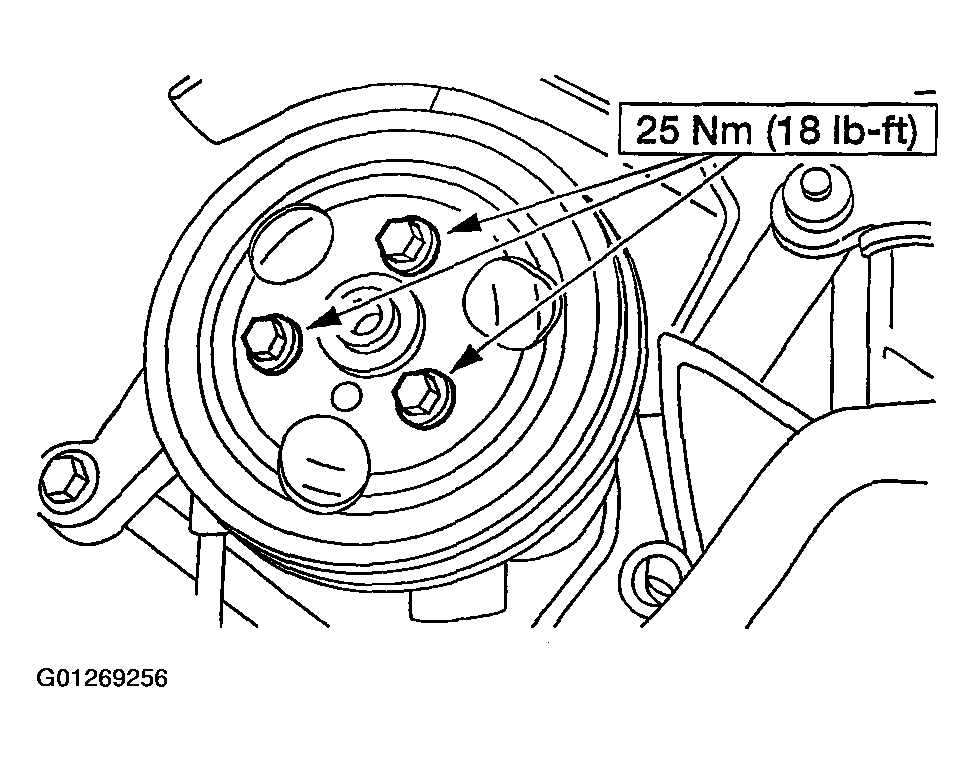

    Fig 2: Removing Power Steering Pump Pulley
    G01269256Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
