Pulley - Pump, 2.3L, 2.5L and 3.0L: Removal

WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt.
  2. Remove the power steering pump pulley (3A733), using the Power Steering Pump Pulley Remover.

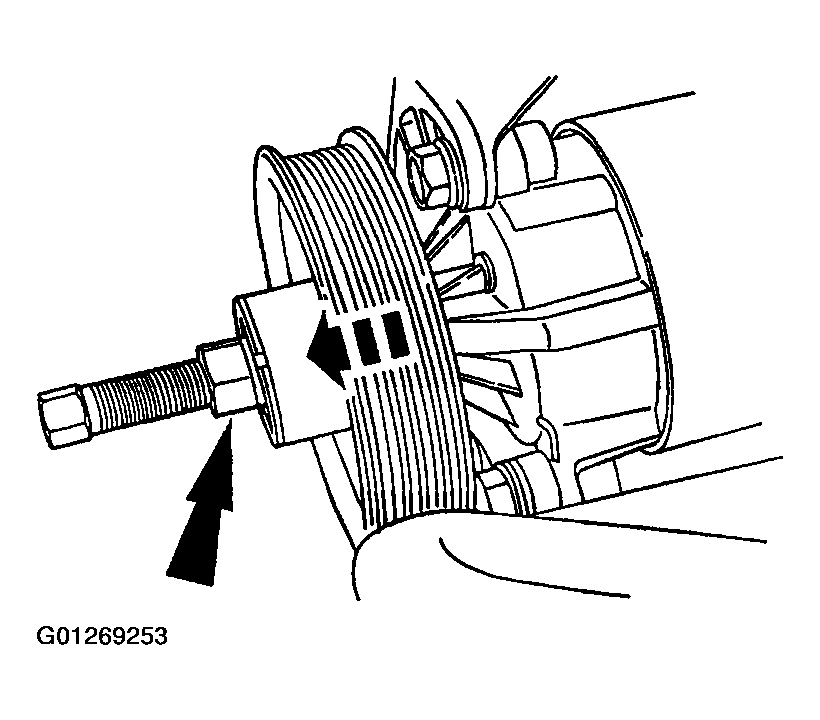

    Fig 1: Removing Power Steering Pump Pulley
    G01269253Courtesy of FORD MOTOR CO.
