Pulley - Pump, 2.3L, 2.5L and 3.0L: Installation
WARNING: This page is about a different car, the 2003 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Replacement of the power steering pump pulley is necessary after being removed and installed two times.
- Install the power steering pump pulley.
- Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.

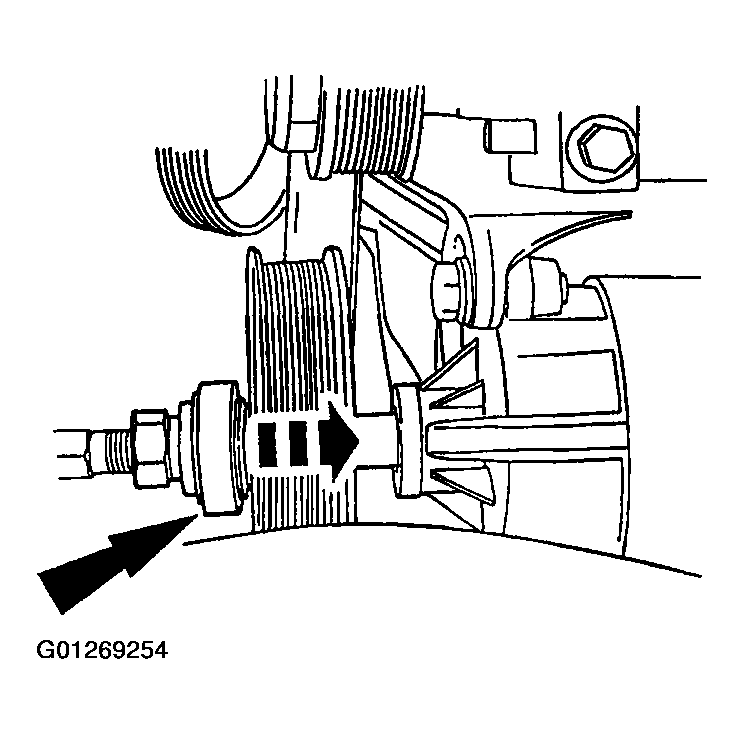

- Use the Power Steering Pump Pulley Replacer.
- Install the drive belt. For additional information, refer to DRIVE BELT ROUTING .
