Fuel Shutoff Valve (FSV) Solenoid Connector

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

Identical FSV connectors are used at the fuel rail and fuel tank.

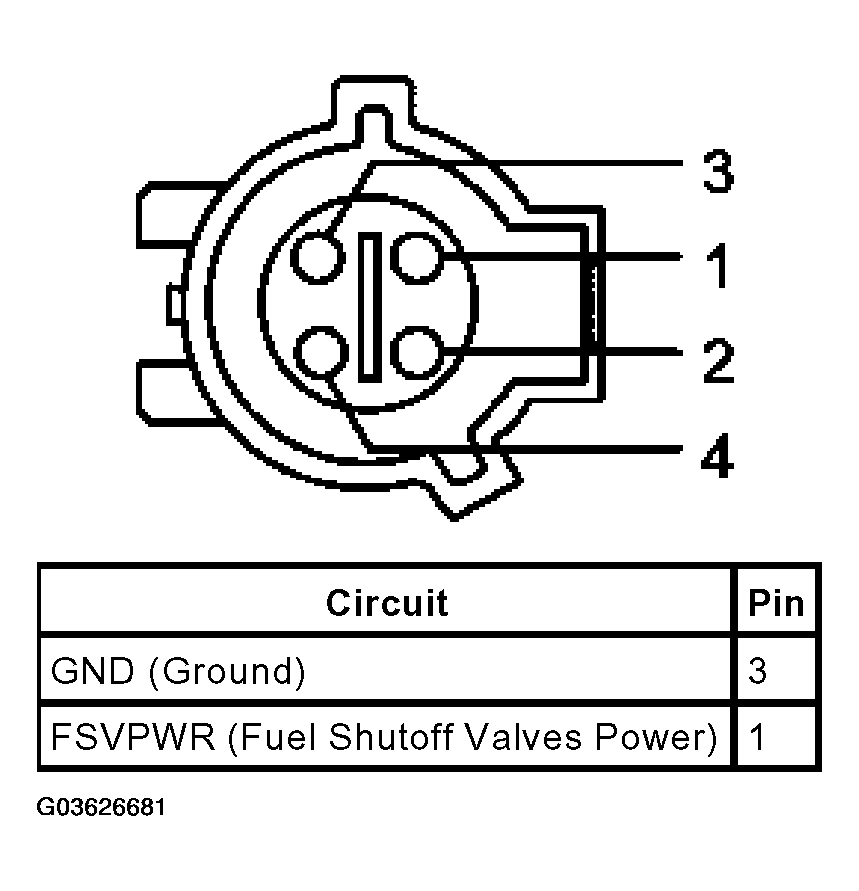

Fig 1: Identifying Fuel Shutoff Valve (FSV) Solenoid Connector
G03626681Courtesy of FORD MOTOR CO.

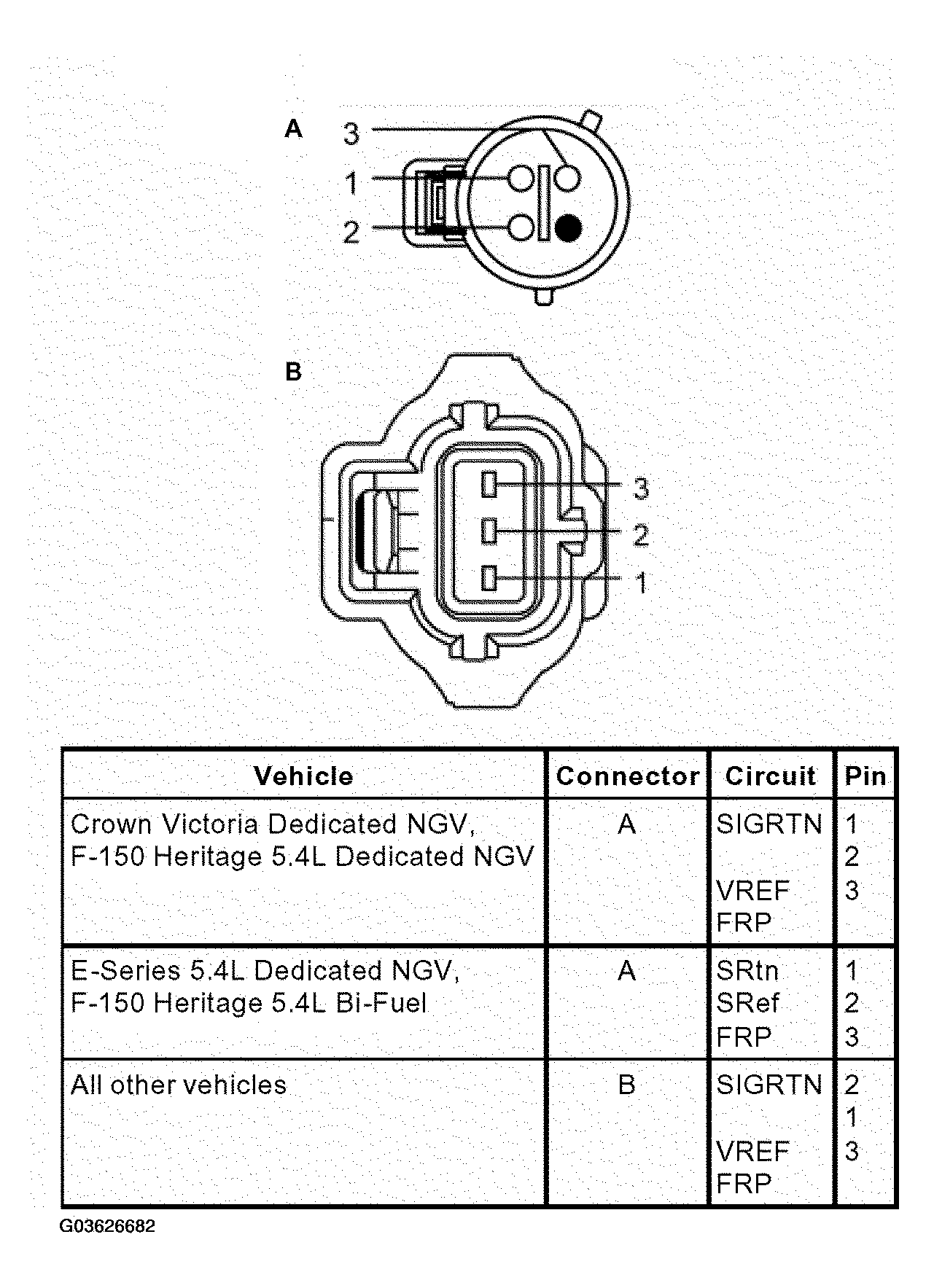

Fig 2: Identifying Fuel Rail Pressure (FRP) Sensor Connector
G03626682Courtesy of FORD MOTOR CO.

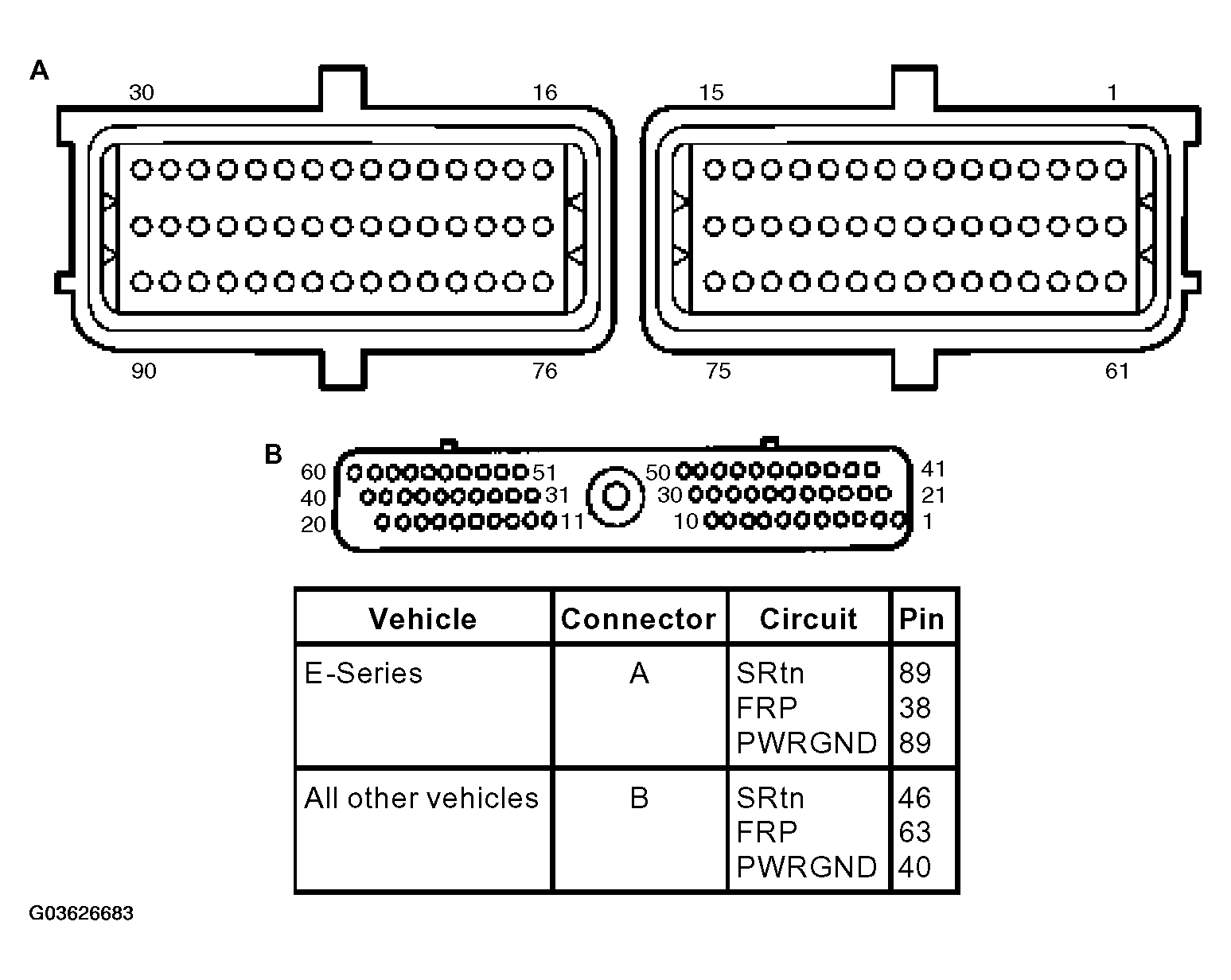

Fig 3: Identifying Natural Gas (NG) Module Connector
G03626683Courtesy of FORD MOTOR CO.
